Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 24" -
Travel Front 60mm -
Groupset Tourney, Shimano -
Suspension Hardtail -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL6 RIGID FRAME, 10X135MM, IS MOUNT
Suspension Fork
HSIN LUNG SUSPENSION FORK, TRAVEL 60MM
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO TOURNEY RD-TX800
Shift Levers
SHIMANO REVO SHIFTER
Cassette
SHIMANO CS-HG200-8 12-32T
Crank
PROWHEEL A105PP 32T
Bottom Bracket
STEEL BB
Chain
KMC Z-8.3
Wheels
Rims
ALLOY DOUBLE WALL RIMS ALLOY HUBS
Tires
VEE XCV 24X2.10”
Brakes
Brakes
MECH D-BRAKE
Cockpit
Stem
ALLOY 40MM BARBORE: 25.4MM
Handlebar
STEEL 640MM BARBORE: 25.4MM
Seat
Saddle
POLYGON SADDLE STEEL RAIL
Seatpost
ALLOY 27.2X350MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.45 mm |
| Bottom Bracket Height | 300 mm |
| Front Center | 559 mm |
| Rake | 34 mm |
| Stack | 505 mm |
| Reach | 348 mm |
| Top Tube Length | 502 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 300 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 110 mm |
| Chainstay Length | 407 mm |
| Wheelbase | 966 mm |
| Bottom Bracket Drop | 15 mm |
| Standover Height | 573 mm |
| Wheels | 24" |
About this model

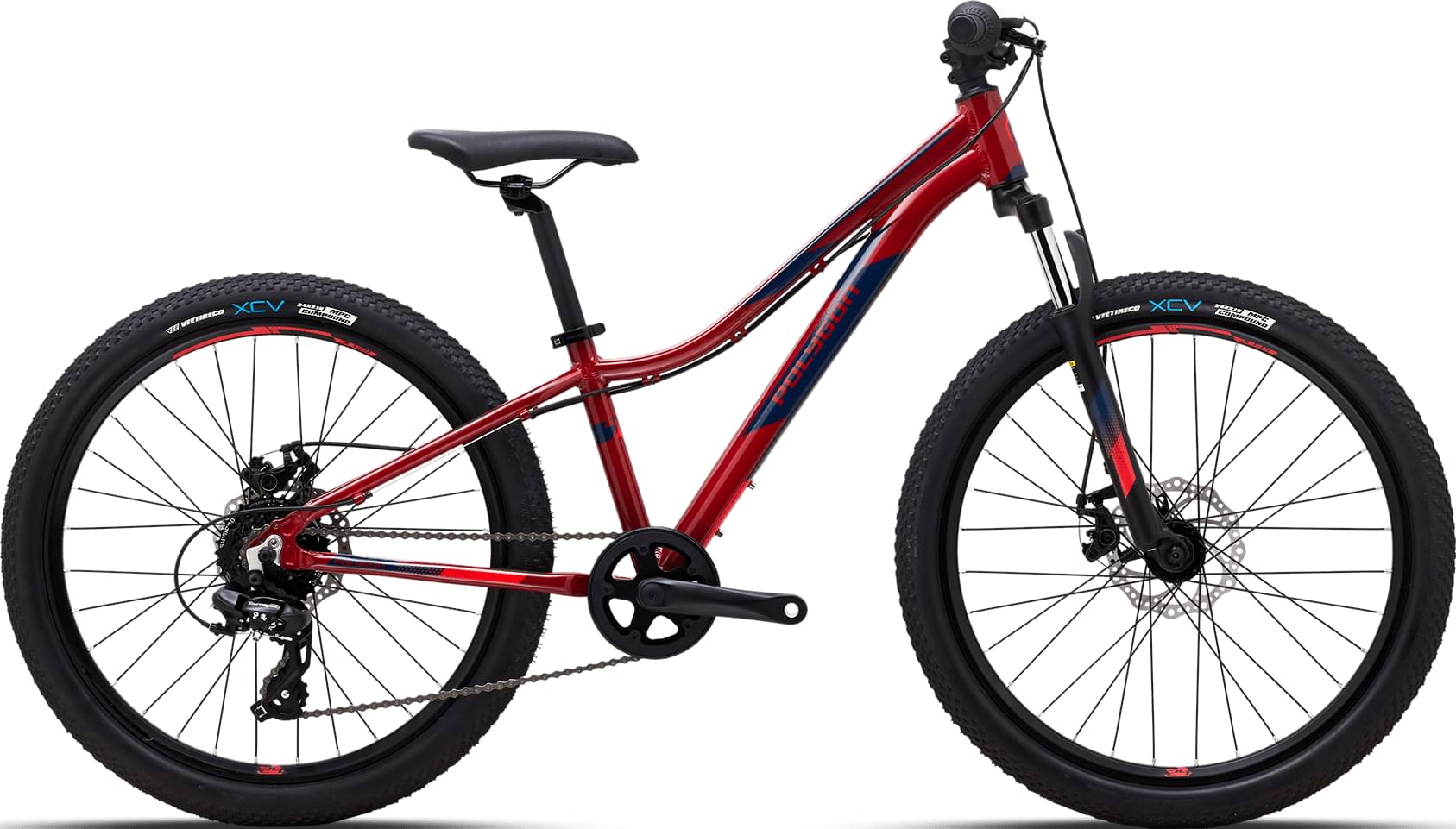

RELIC24 is a Polygon Relic24 model. 5 bikes variations carry this model name so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Youth bikes
If you want to purchase a solid Youth bike, it is important to know that the average cost is 278$. However, even if your budget is less than the average, you might still be able to get a top-quality Youth bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2022 and its price was 449$. In conclusion, this bike price is 61.51% more expensive than the price of the average Youth bike.
Overview of components
Wheels size
The RELIC24 2022 bike is equipped with 24″ aluminum wheels when leaving the factory. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
