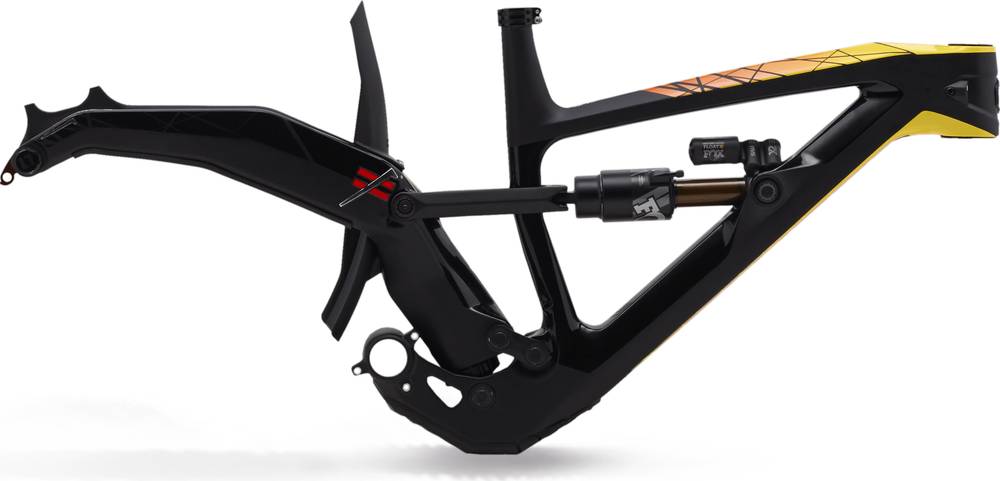

Polygon SET XQUARONE DH Frameset 2019
2019 Mountain
Estimate price |
2,799$
Weight | 4.02 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 218mm -
Suspension Full
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NAILD R3ACT 2PLAY SUSPENSION ACX, 218mm TRAVEL, FOR THRU AXLE SUPER BOOST 12x157mm O.L.D.
Suspension Fork
FOR 200mm TRAVEL (NOT INCLUDED)
Rear Shock
FOX FACTORY FLOAT X2 (225x75mm, Trunnion & W/O Hardware)
Drivetrain
Rear Derailleur
-
Shift Levers
-
Cassette
-
Crank
FOR SUPER BOOST 55mm CHAINLINE (NOT INCLUDED)
Bottom Bracket
BB92 PRESS-FIT 92mm (NOT INCLUDED)
Chain
-
Wheels
Tires
27.5"x2.60" MAX (NOT INCLUDED)
Brakes
Brakes
-
Cockpit
Stem
-
Handlebar
-
Seat
Saddle
-
Seatpost
30.9mm (NOT INCLUDED)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.488 mm | 1.4 mm | 1.344 mm | 1.274 mm |
| Bottom Bracket Height | 350.75 mm | 350.75 mm | 350.75 mm | 350.75 mm |
| Front Center | 758 mm | 783 mm | 813 mm | 838 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 595 mm | 595 mm | 605 mm | 605 mm |
| Reach | 400 mm | 425 mm | 450 mm | 475 mm |
| Top Tube Length | 577.38 mm | 602.38 mm | 633.51 mm | 658.51 mm |
| Seat Tube Angle | 73.4 ° | 73.4 ° | 73.1 ° | 73.1 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 97.52 mm | 97.52 mm | 108.75 mm | 108.75 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1198 mm | 1223 mm | 1253 mm | 1278 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Standover Height | 703 mm | 703 mm | 703 mm | 703 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 195 cm |
Model Overview
SET XQUARONE DH Frameset belongs to the Polygon Set model. Polygon launched 2 frames of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Downhill frames
If you want an acceptable Downhill frame you should know that the average price is 1923$. However, this doesn’t mean that if you spend less money on a Downhill frame, you couldn’t get a decent one. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Polygon SET XQUARONE DH Frameset price was 2799$. In conclusion, this frame price is 45.55% higher than the price of the average Downhill frame.
Average weight for Downhill frames
Downhill frames weigh an average of 4.28 kg (9.44 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 4.02 kg (8.86 lbs), Polygon frame is a bit lighter than average. In other words, this model is 6.47% lighter than the average Downhill frame.
Overview of components
Rear Shock
The shock that’s installed on this frame is FOX FACTORY FLOAT X2 (225x75mm, with a travel distance of 218mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Sizes
Polygon SET XQUARONE DH Frameset frame has 4 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
