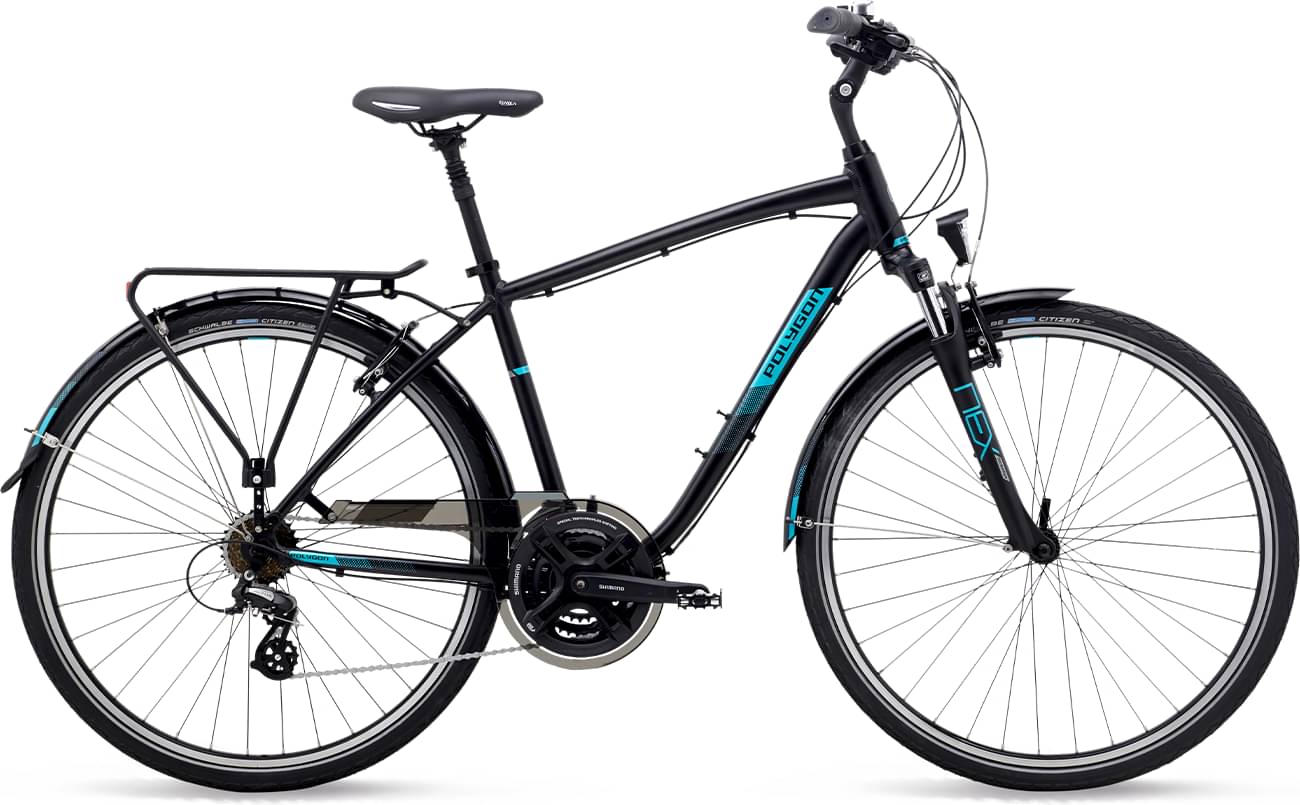

Polygon SIERRA DS GENT 2024
2024 Urban
Estimate price |
619$
Weight | 13.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Tourney, Altus -
Suspension Hardtail -
Brakes Rim
Sizing
Recommended size guide.
MD
160cm - 170cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
SR SUNTOUR NEX, TRAVEL 63MM, STANDARD STEERER
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO ALTUS RD-M310
Shift Levers
SHIMANO TOURNEY ST-EF41
Cassette
SHIMANO TOURNEY MF-TZ21, 14-28T
Crank
SHIMANO FC-TY501 48X38X28T, 170MM
Bottom Bracket
CARTRIDGE BEARING
Chain
KMC Z-51RB
Pedals
FEIMIN FP-980, ALLOY
Wheels
Rims
ARAYA TX-733 RIMS WITH ALLOY HUB
Tires
SCHWALBE CITIZEN, 700X40C
Brakes
Brakes
ALLOY V-BRAKE
Cockpit
Handlebar
ALLOY, 680MM
Headset
INTERNAL THREADED ID:44MM
Seat
Saddle
SELLE ROYAL NUVOLA, STEEL RAIL
Seatpost
ALLOY, 27.2X350MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD |
|---|---|
| Stack Reach Ratio | 1.491 mm |
| Bottom Bracket Height | 304 mm |
| Front Center | 671 mm |
| Rake | 42 mm |
| Trail | 89 mm |
| Stack | 610 mm |
| Reach | 409 mm |
| Top Tube Length | 590 mm |
| Seat Tube Angle | 73.5 ° |
| Seat Tube Length | 480 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 135 mm |
| Chainstay Length | 460 mm |
| Wheelbase | 1126 mm |
| Bottom Bracket Drop | 50 mm |
| Standover Height | 777 mm |
| Wheels | 700 |
| Rider Min Height | 160 cm |
| Rider Max Height | 170 cm |
