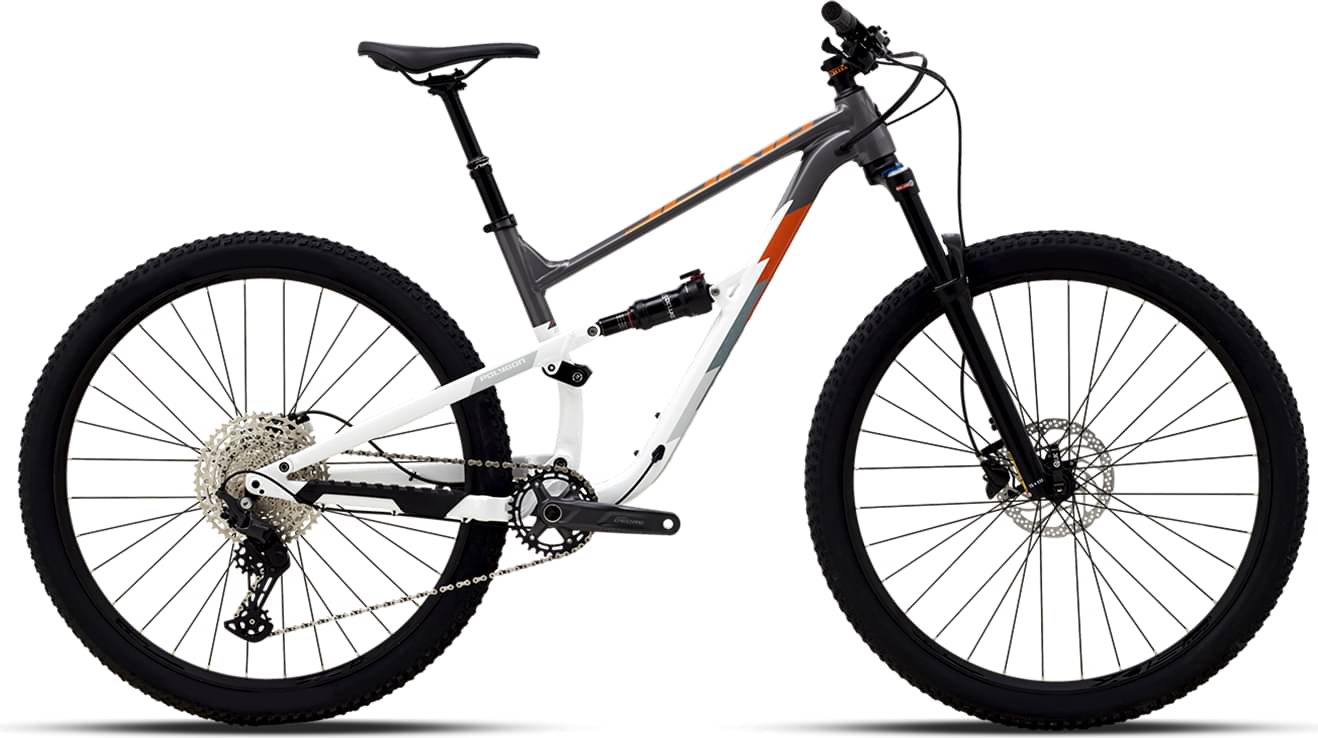

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour RAIDON -
Groupset Deore -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
SUNTOUR RAIDON32 BOOST LO-R
Rear Shock
ROCKSHOX DELUXE SELECT PLUS, E2E: METRIC 190x45mm, HARDWARE: M8x25mm FOR BOTH SIDES
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M5100-SGS DIRECT ATTACH 11-SPEED
Shift Levers
SHIMANO DEORE SL-M5100-R 11-SPEED TRIGGER
Cassette
SHIMANO DEORE CS-M5100 11-51T 11-SPEED
Crank
SHIMANO DEORE FC-M5100-1 32T TWO-PIECE-CRANK, CRANK ARM: 170mm (S-M) / 175mm (L-XL)
Bottom Bracket
SHIMANO BSA THREADED 68/73mm
Chain
KMC X11-1
Pedals
ALLOY W/ ALLOY CAGE
Wheels
Front Hub
F: ALLOY THRU AXLE 15x110mm 32H CENTER LOCK / R: ALLOY THRU AXLE 12X148mm 32H CENTER LOCK
Rear Hub
F: ALLOY THRU AXLE 15x110mm 32H CENTER LOCK / R: ALLOY THRU AXLE 12X148mm 32H CENTER LOCK
Rims
ALLOY DOUBLE WALL 622-30 32H FOR TYRE 622-54/76
Spokes
STAINLESS J-BEND NDS:294mm DS:296mm W/ 14Gx12MM BRASS NIPPLE
Tires
PERFORMANCE TIRE 29"x2.25 (622-57)
Brakes
Brakes
SHIMANO MT201 HYDRAULIC DISC BRAKE
Brake Levers
SHIMANO BL-MT201
Cockpit
Handlebar
ENTITY EXPERT ALLOY, W: 780mm, BB: 31.8mm, R/D: 30mm, BEND: 6degree
Headset
THREADLESS TAPERED ZERO STACK, ZS 44/28.6 | ZS 56/40
Seat
Saddle
ENTITY SADDLE, STEEL ø 7mm
Seatpost
TRANZ X DROPPER 150mm / 170mm, DxL: 30.9 x 459mm (S-M) / 499mm (L-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.406 mm | 1.363 mm | 1.325 mm | 1.289 mm |
| Bottom Bracket Height | 330 mm | 326 mm | 326 mm | 326 mm |
| Front Center | 710 mm | 733 mm | 757 mm | 781 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 597.4 mm | 606.7 mm | 615.9 mm | 625.2 mm |
| Reach | 425 mm | 445 mm | 465 mm | 485 mm |
| Top Tube Length | 579.5 mm | 603.9 mm | 624.3 mm | 646.7 mm |
| Seat Tube Angle | 75.5 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 395 mm | 435 mm | 487 mm | 522 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 102 mm | 112 mm | 122 mm |
| Chainstay Length | 435 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1141 mm | 1165 mm | 1189 mm | 1213 mm |
| Bottom Bracket Drop | 46 mm | 47 mm | 47 mm | 47 mm |
| Standover Height | 672 mm | 698 mm | 733 mm | 761 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 195 cm |
