Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 135mm -
Fork Fox Performance Elite Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX Trail Frame, One Piece Linkage Suspension Platform 140mm Travel (27.5”) 135mm (29”), Dropper Post And Rear Derailleur Routing, Direct Post-Mount Disc Brake, 148x12mm Boost Thru-Axle, 73mm Threaded BB, ISCG 05 Tabs
Suspension Fork
FOX 36 Performance Elite, 15x110mm, LSC, HSC, Rebound, 180mm Post Mount
Rear Shock
Fox Float X Performance, 2 Pos Lever, Rebound, M8x25mm, 210x55mm
Drivetrain
Rear Derailleur
Shimano Deore XT RD-M8100, 12-Speed
Shift Levers
Shimano Deore XT SL-M8100, 12-Speed
Cassette
Shimano Deore CS-M6100, 10-51T, Microspline
Crank
Shimano Deore XT M-8100, 32T Chainring
Bottom Bracket
BSA Threaded 73mm
Chain
KMC X-12
Wheels
Front Hub
Shimano HB-MT400-B, 15mm Thru-Axle, 110mm spacing
Rear Hub
Shimano FH-MT400-B, Freehub, 12mm Thru-Axle, 148mm spacing
Rims
Entity, Alloy Double Wall, 35mm Inner, 32H, Tubeless ready
Tires
Schwalbe Hans Dampf EVO, 29x2.6” / 27.5x2.6”, Super Trail TLE Addix Speed Grip, Tubeless Ready
Brakes
Brakes
Front: TRP DHR EVO, HD-M846, Hydraulic Disc Brake, 180mm Rotor, Rear: TRP DHR EVO, HD-M846, Hydraulic Disc Brake, 180mm Rotor
Cockpit
Stem
Entity Expert, 35mm Length

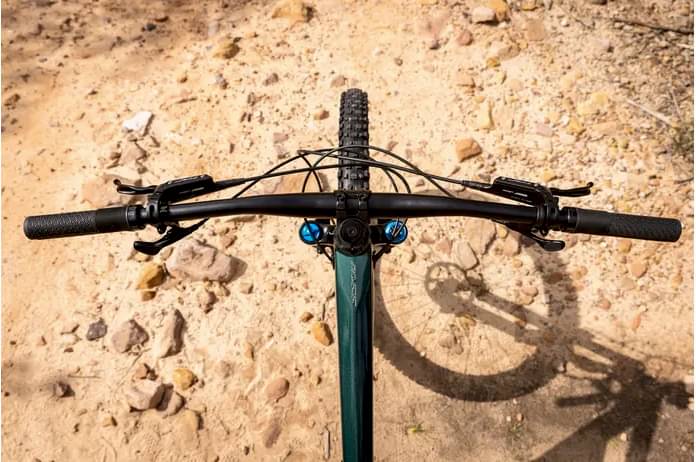

Handlebar
Entity Expert, 35mm Clamp, 780mm Width, 25mm Rise, 9° Bend
Headset
ZS 44/28.6 | ZS 56/40
Seat
Saddle
WTB VOLT
Seatpost
TranzX JD-YSP23JL, 1x Remote, 30.9mm, 150mm (S-M), 170mm (L-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.349 mm | 1.32 mm | 1.321 mm | 1.294 mm | 1.27 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 749 mm | 775 mm | 766 mm | 792 mm | 819 mm |
| Rake | 37 mm | 37 mm | 42 mm | 42 mm | 42 mm |
| Trail | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm |
| Stack | 593.5 mm | 607.1 mm | 607.6 mm | 621.2 mm | 634.9 mm |
| Reach | 440 mm | 460 mm | 460 mm | 480 mm | 500 mm |
| Top Tube Length | 582.5 mm | 605 mm | 605.9 mm | 629.1 mm | 652.4 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 385 mm | 400 mm | 400 mm | 415 mm | 430 mm |
| Head Tube Angle | 65 ° | 65 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 105 mm | 120 mm | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1172 mm | 1199 mm | 1193 mm | 1219 mm | 1245 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 690 mm | 695 mm | 700 | 710 mm | 720 mm |
| Front Travel | 150 mm | 150 mm | 140 mm | 140 mm | 140 mm |
| Rear Travel | 140 mm | 140 mm | 135 mm | 135 mm | 135 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 189 cm | 199 cm |
