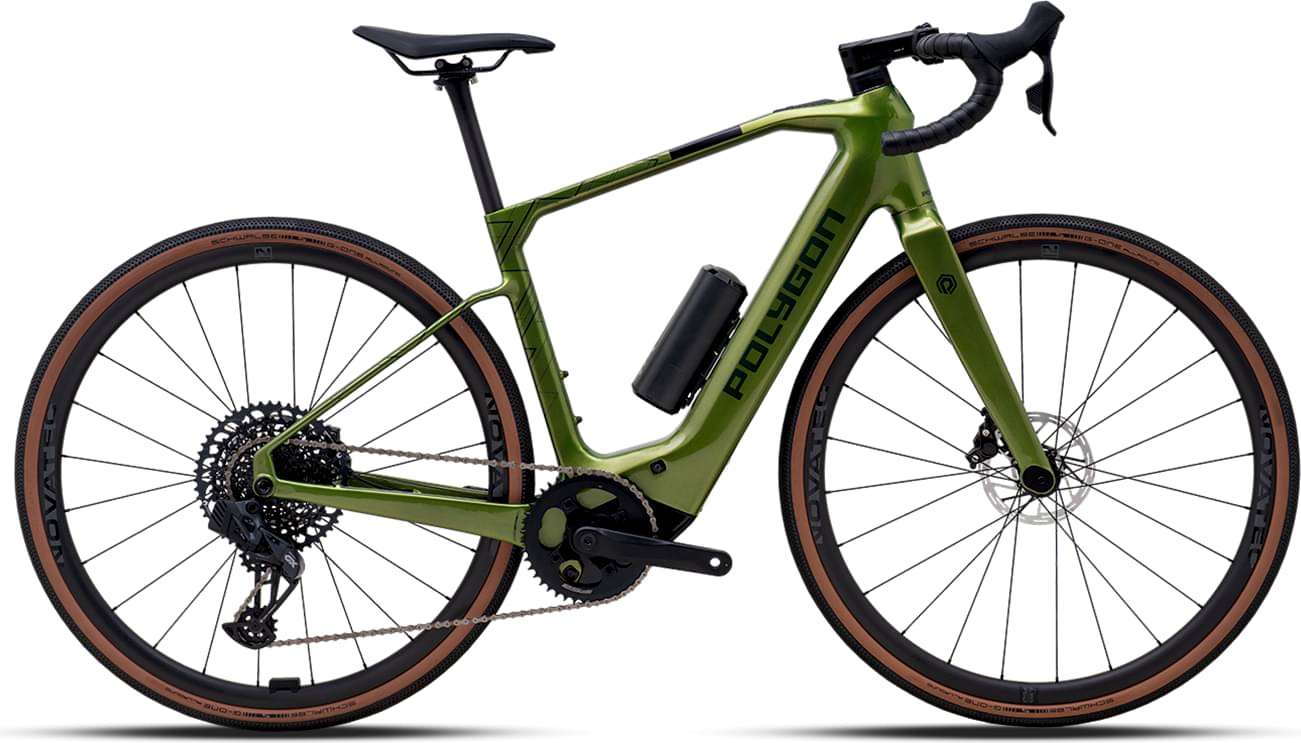

Polygon TAMBORA AE GX 2024
2024 E-bike
Estimate price |
4,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GX Eagle AXS, Rival AXS -
Suspension Rigid -
Motor Bosch 600W 63Nm mid-drive -
Battery BOSCH COMPACTTUBE 400 FIXED MOUNT HORIZONTAL -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Rival Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 164cm
MD
162cm - 176cm
LG
174cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Suspension Fork
CARBON RIGID
Drivetrain
Rear Derailleur
SRAM GX EAGLE AXS 12-SPEED
Shift Levers
SRAM RIVAL ETAP AXS 12-SPEED BRIFTER
Cassette
SRAM XG 1275 GX EAGLE 12-SPEED 10-52T XD DRIVER
Crank
FSA CK-220-IS MEGATOOTH A 44T
Chain
SRAM GX EAGLE 12-SPEED
Wheels
Front Hub
F: NOVATEC D791 12x100mm 24H CL / R: NOVATEC D792 12x142mm 24H CL FOR XDR
Rear Hub
F: NOVATEC D791 12x100mm 24H CL / R: NOVATEC D792 12x142mm 24H CL FOR XDR
Rims
CARBON FV H: 28 622x24 24H FOR TYRE 622-35/68 TLR
Spokes
F: STAINLESS DOUBLE BUTTED 14G NDS:286mm DS:288mm W/ 16mm ALLOY NIPPLE / R: STAINLESS DOUBLE BUTTED 14G NDS:288mm DS:285mm W/ 16mm ALLOY NIPPLE
Tires
SCHWALBE G-ONE 700C-40 622X40 ALLROUND TIRE TLE ADDIX
Brakes
Brakes
SRAM RIVAL HYDRAULIC
Brake Levers
SRAM RIVAL AXS
Cockpit
Handlebar
FSA ENERGY SUPER COMPACT, W: 400mm (S-M) 420mm (L-XL), BB: 31.8mm, R/D: 120mm
Headset
FSA NO.55R 1.5"/CR/LS, IS 52/28.6 | IS 52/40
Seat
Saddle
FIZIK TERRA ARGO, STEEL ø7mm
Seatpost
CARBON, DxL: 27.2 x 400mm
Motor & Battery
Motor
BOSCH PERFORMANCE LINE SPRINT BDU3184
Battery
BOSCH COMPACTTUBE 400 FIXED MOUNT HORIZONTAL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.542 mm | 1.554 mm | 1.585 mm | 1.587 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm | 283 mm |
| Front Center | 603 mm | 610 mm | 634 mm | 652 mm |
| Rake | 50 mm | 49 mm | 50 mm | 50 mm |
| Trail | 74 mm | 65 mm | 63 mm | 61 mm |
| Stack | 566 mm | 592 mm | 626 mm | 649 mm |
| Reach | 367 mm | 381 mm | 395 mm | 409 mm |
| Top Tube Length | 523 mm | 550 mm | 580 mm | 607 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 404 mm | 448 mm | 492 mm | 535 mm |
| Head Tube Angle | 70 ° | 71.5 ° | 71.7 ° | 72 ° |
| Head Tube Length | 143 mm | 165 mm | 200 mm | 223 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1023 mm | 1030 mm | 1054 mm | 1073 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 77 mm | 77 mm |
| Standover Height | 718 mm | 758 mm | 799 mm | 835 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 162 cm | 174 cm | 187 cm |
| Rider Max Height | 164 cm | 176 cm | 189 cm | 195 cm |
