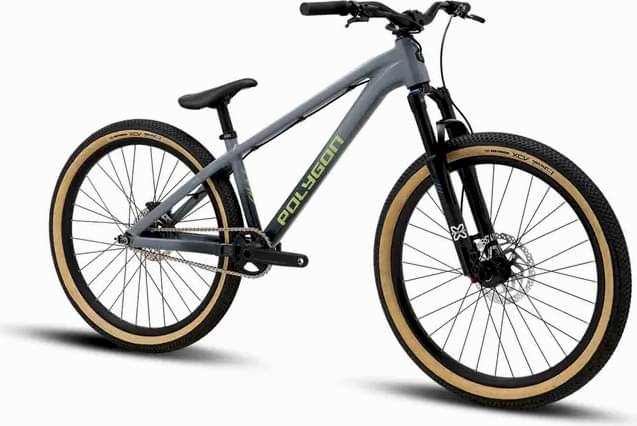

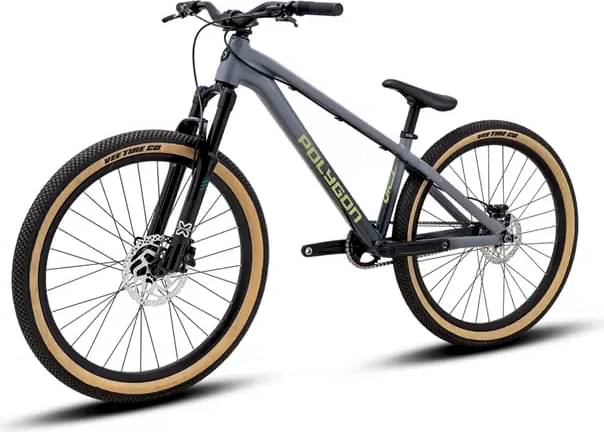

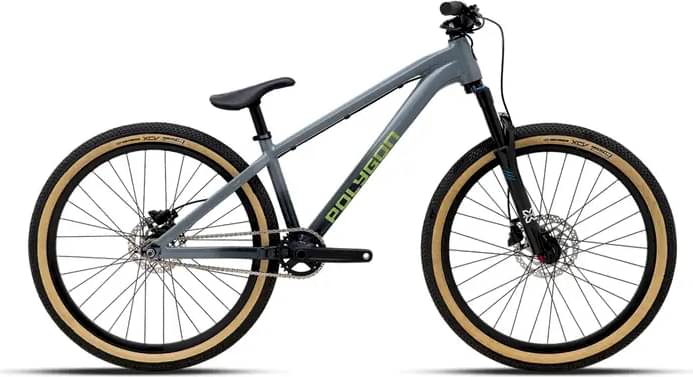

Polygon Trid 2025
2025 Mountain
Estimate price |
1,199$
Weight | 12.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork X-Fusion SLANT -
Suspension Hardtail -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL6 Dirt Jump, 135mm O.L.D. 100mm Travel, Is Mount 160mm, Horizontal Dropouts
Suspension Fork
X-Fusion Slant DJ 26" Air, Rebound & Compression Adjuster, Tapered, 15x100 Thru-Axle
Drivetrain
Cassette
Cog 2.3x14T
Crank
Samox TAF15-D32A 32T, 170mm
Chain
KMC HL-1 Half Link, Single Speed
Pedals
Nylon Flat Platform
Wheels
Rear Hub
Alloy Double Wall Rim & Hub, Thru Axle & Track Nut Hub, 25mm Inner Width, 15 Engagement Points
Tires
VeeTire Speedster (Two Six DJ), 26x2.25", Skin Wall
Brakes
Brakes
Front: Shimano BR-Mt201 Hydraulic Disc, Rotor F: 180mm R: 160mm, Rear: Shimano BR-Mt201 Hydraulic Disc, Rotor F: 180mm R: 160mm
Cockpit
Stem
Polygon Alloy, 40mm
Handlebar
Polygon Alloy, 750mm
Headset
Internal Sealed Bearing, ZS 44/28.6 | ZS 56/40
Seat
Saddle
Polygon Pivotal Saddle
Seatpost
Alloy, Pivotal, 30.9x200mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.404 mm |
| Bottom Bracket Height | 327 mm |
| Front Center | 662 mm |
| Rake | 36 mm |
| Trail | 87 mm |
| Stack | 584 mm |
| Reach | 416 mm |
| Top Tube Length | 600 mm |
| Seat Tube Angle | 72 ° |
| Head Tube Angle | 70 ° |
| Head Tube Length | 120 mm |
| Chainstay Length | 385 mm |
| Wheelbase | 1047 mm |
| Bottom Bracket Drop | 12 mm |
| Standover Height | 651 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
