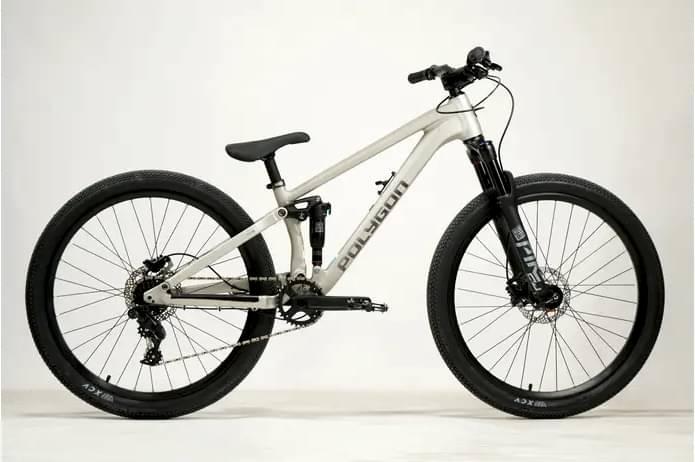

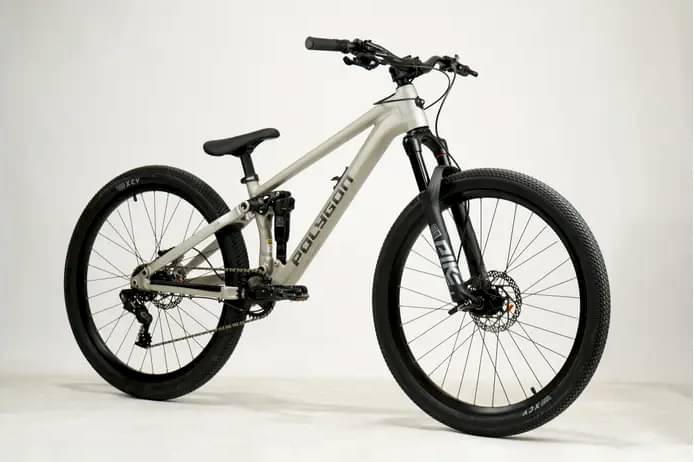

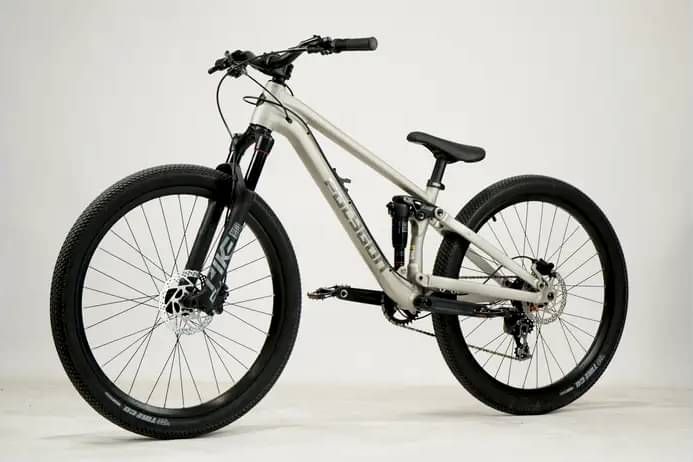

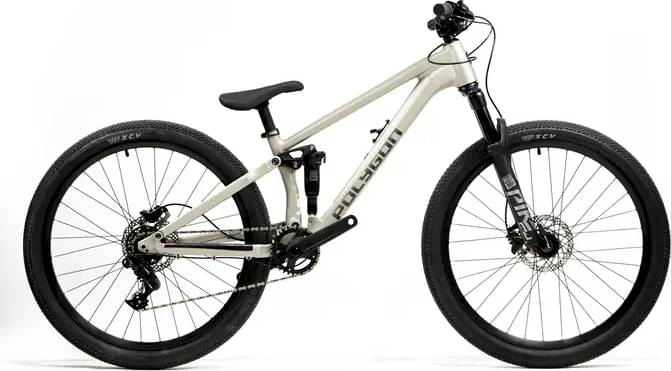

Polygon Trid ZZ Slopestyle 2025
2025 Mountain
Estimate price |
1,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox Pike DJ
-
Groupset GX -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

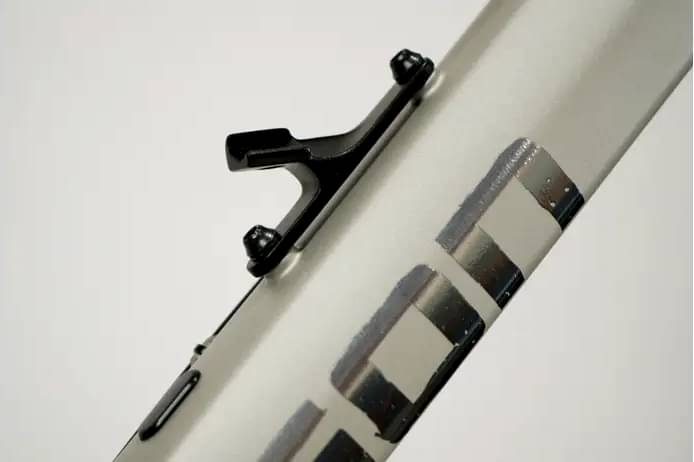

AL6 Alloy Slopestyle, 100mm Travel, Internal Routing, Tapered Headtube, 12x142mm Thru Axle, Down Tube Shifter Mount Adapter
Suspension Fork

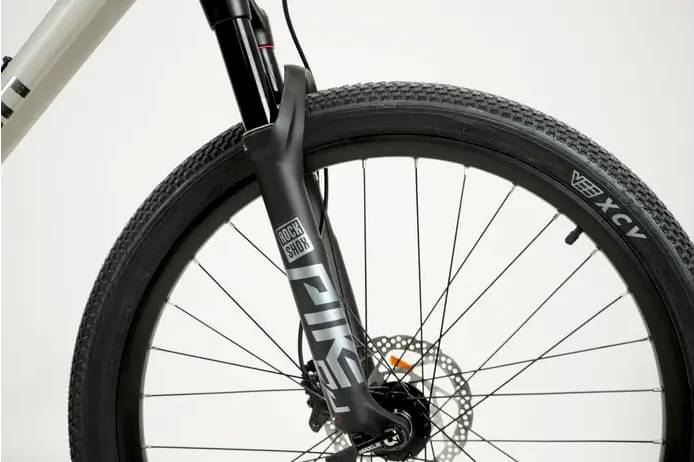

Rockshox Pike DJ, 100mm Travel, Solo Air, Charger Damper, Rebound Adjuster, Tapered Steerer, 15x100mm w/ Maxle Ultimate Axle
Rear Shock

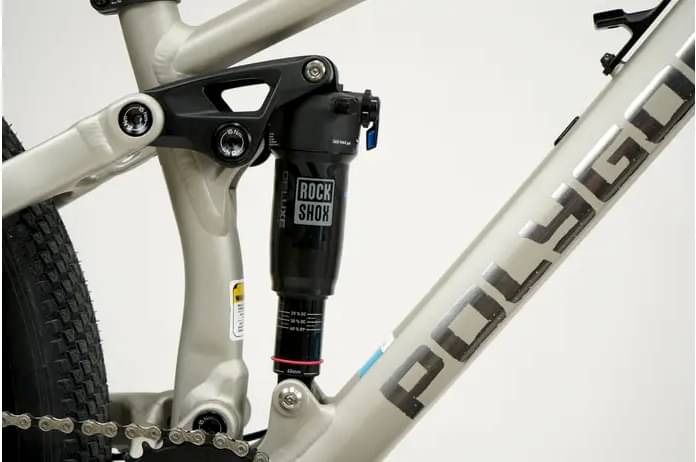

Rockshox Deluxe Select, E2E: 190mm
Drivetrain
Rear Derailleur

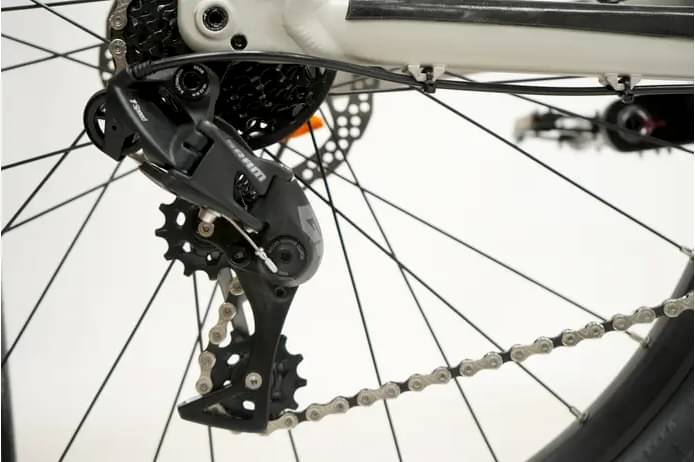

SRAM GX DH
Shift Levers
SRAM GX DH, 7-Speed
Cassette
SRAM PG-720, 11-25T, 7-Speed
Crank
Samox TAF 15-D32A 32T, 170mm
Chain
KMC X11
Pedals
Alloy Flat
Wheels
Rear Hub
Double Wall Alloy Rims/ Alloy Hubs 32H 6-Bolt / Stainless Steel Spokes / 15x100/12x142mm Thru Axle / 21 Engagement Points
Tires

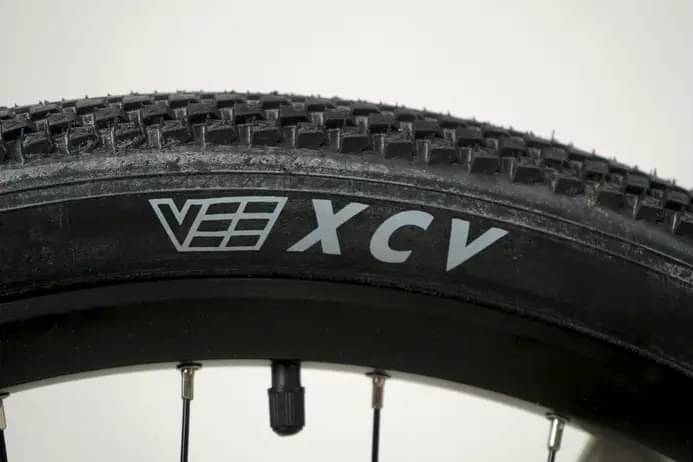

VeeTire XCV (Two Six DJ), 26x2.25"
Brakes
Brakes

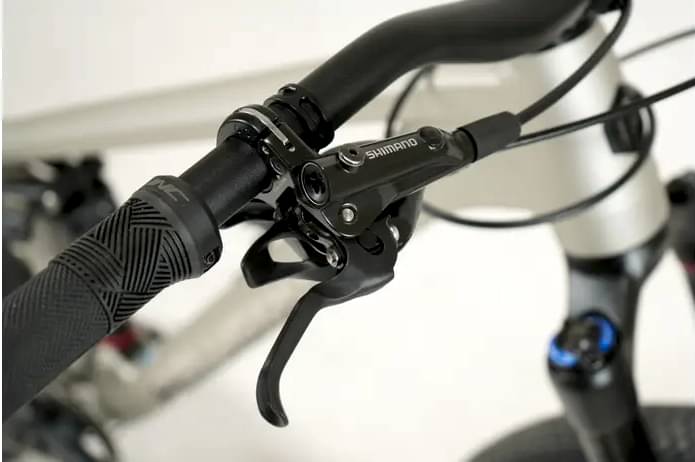

Front: Shimano BR-MT501, 160mm F/R Rotors, Rear: Shimano BR-MT501, 160mm F/R Rotors
Cockpit
Stem
Alloy, 40mm, 31.8mm
Handlebar
Alloy, 750mm, 31.8mm
Headset
Internal Sealed Bearing, ZS 44/28.6 | ZS 56/40
Seat
Saddle
Pivotal Saddle
Seatpost
Alloy, Pivotal, 30.9x200mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.313 mm |
| Bottom Bracket Height | 331 mm |
| Front Center | 679 mm |
| Rake | 40 mm |
| Trail | 89 mm |
| Stack | 558 mm |
| Reach | 425 mm |
| Top Tube Length | 575 mm |
| Seat Tube Length | 330 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 120 mm |
| Chainstay Length | 400 mm |
| Wheelbase | 1079 mm |
| Bottom Bracket Drop | 8 mm |
| Standover Height | 649 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
