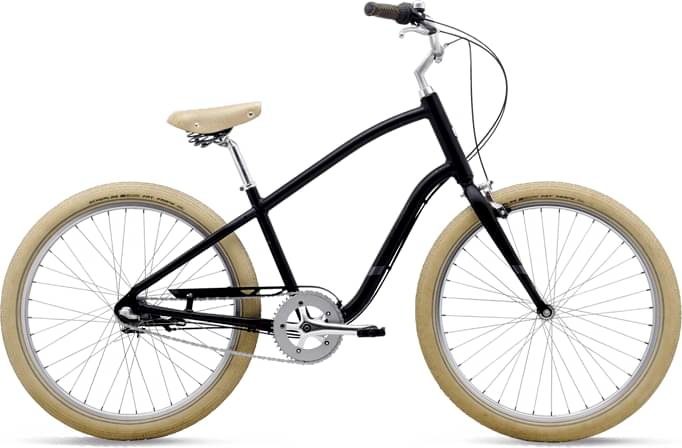

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Rim
Sizing
Recommended size guide.
SM
150cm - 161cm
MD
159cm - 170cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
HI-TEN STEEL RIGID FORK
Drivetrain
Shift Levers
SHIMANO NEXUS SL-3S41E
Cassette
SHIMANO NEXUS 18T
Crank
ALLOY CRANK 44T, 170MM
Bottom Bracket
CARTRIDGE BEARING
Chain
KMC Z-610RB
Pedals
VP COMPONENT, VP-191, ALLOY
Wheels
Rims
ARAYA TX-633 RIMS WITH SHIMANO NEXUS-3 HUB
Tires
SCHWALBE FAT FRANK, 26”X2.35”
Brakes
Brakes
CALIPER BRAKE (F) SHIMANO ROLLER BRAKE BR-IM31R (R)
Cockpit
Handlebar
ALLOY, 695MM
Headset
INTERNAL THREAD ID:44MM
Seat
Saddle
SELLE ROYAL ONDINA, STEEL RAIL
Seatpost
ALLOY, 27.2X300MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.96 mm | 1.974 mm |
| Bottom Bracket Height | 307 mm | 307 mm |
| Front Center | 382 mm | 614 mm |
| Stack | 590 mm | 608 mm |
| Reach | 301 mm | 308 mm |
| Top Tube Length | 570 mm | 585 mm |
| Seat Tube Angle | 66.5 ° | 66.5 ° |
| Seat Tube Length | 406 mm | 456 mm |
| Head Tube Angle | 66 ° | 66 ° |
| Head Tube Length | 230 mm | 250 mm |
| Chainstay Length | 490 mm | 490 mm |
| Bottom Bracket Drop | 33 mm | 33 mm |
| Standover Height | 719 mm | 763 mm |
| Wheels | 26" | 26" |
| Rider Min Height | 150 cm | 159 cm |
| Rider Max Height | 161 cm | 170 cm |
