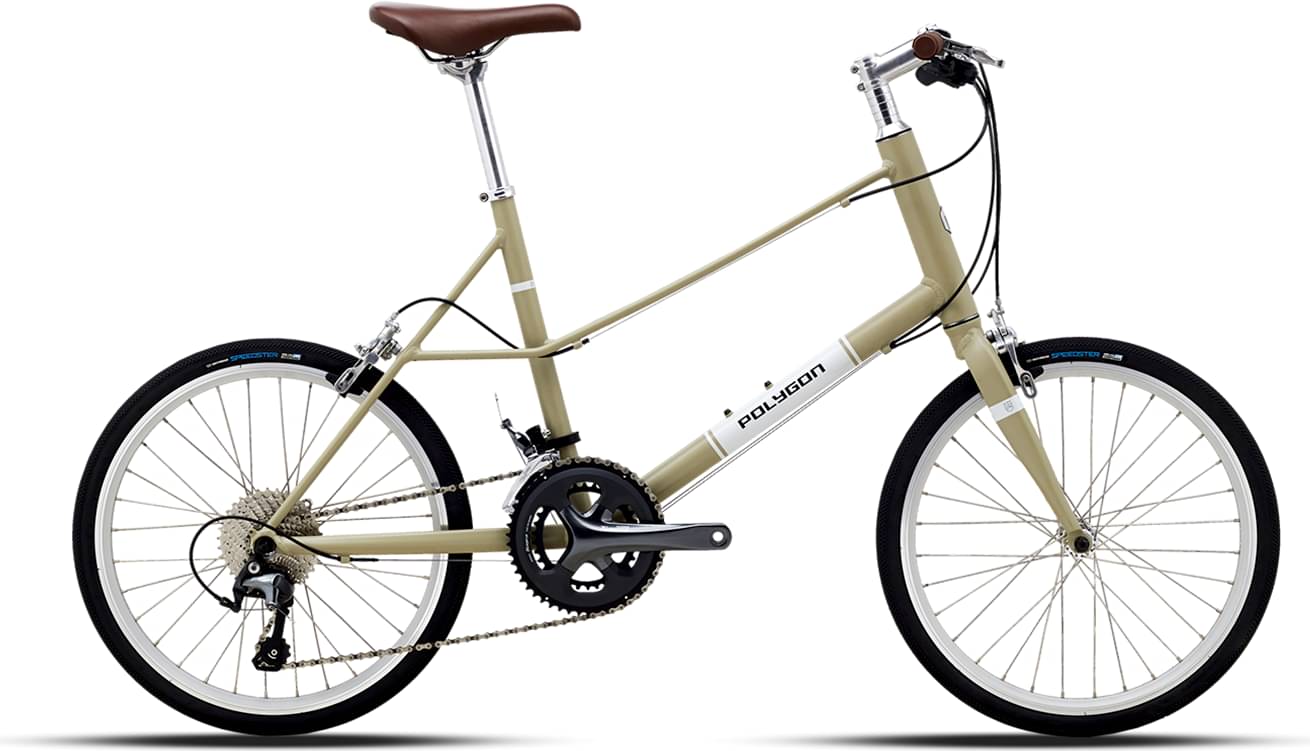

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
All Size
150cm - 170cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
ALLOY RIGID FORK
Drivetrain
Rear Derailleur
SHIMANO TIAGRA RD-4700-GS DIRECT ATTACH
Shift Levers
SHIMANO TIAGRA SL-4700 2x10 SPEED TRIGGER
Cassette
SHIMANO TIAGRA CS-HG500-10 11-34T
Crank
PRAXIS ALBA M24 50/34T, CRANK ARM: 170mm, MAX CHAIN RING: 170mm
Bottom Bracket
PRAXIS FOR 2-PIECE CRANKSET BSA THREADED
Chain
KMC X10-1
Pedals
PP PEDALS W/ PP CAGE
Wheels
Front Hub
F: ALLOY QRx100mm 32H / R: ALLOY QRX130mm 32H FOR CASSETTE SPROCKET
Rear Hub
F: ALLOY QRx100mm 32H / R: ALLOY QRX130mm 32H FOR CASSETTE SPROCKET
Rims
ALLOY DOUBLE WALL 451-18 32H FOR TYRE 451-20/54
Spokes
STAINLESS J-BEND 14G
Tires
VEE SPEEDSTER 20"-1 3/8 (451-37)
Brakes
Brakes
TEKTRO R810C ALLOY CALIPER
Brake Levers
TEKTRO CL332RS 4-FINGERS
Cockpit
Handlebar
ALLOY, W: 640mm, BB: 31.8mm, R/D: 0mm, B: 6degree
Headset
FEIMIN FP-H807B 44mm STEEL THREADLESS, ZS 44/28.6 | ZS 44/30
Seat
Saddle
POLYGON SADDLE
Seatpost
ALLOY, 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | All Size |
|---|---|
| Stack Reach Ratio | 1.27 mm |
| Bottom Bracket Height | 276 mm |
| Front Center | 637 mm |
| Rake | 55 mm |
| Stack | 507.3 mm |
| Reach | 399.31 mm |
| Top Tube Length | 540 mm |
| Seat Tube Angle | 74.5 ° |
| Seat Tube Length | 460 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 250 mm |
| Chainstay Length | 410 mm |
| Wheelbase | 1047 mm |
| Bottom Bracket Drop | 15 mm |
| Standover Height | 553 mm |
| Wheels | 20" |
| Rider Min Height | 150 cm |
| Rider Max Height | 170 cm |
