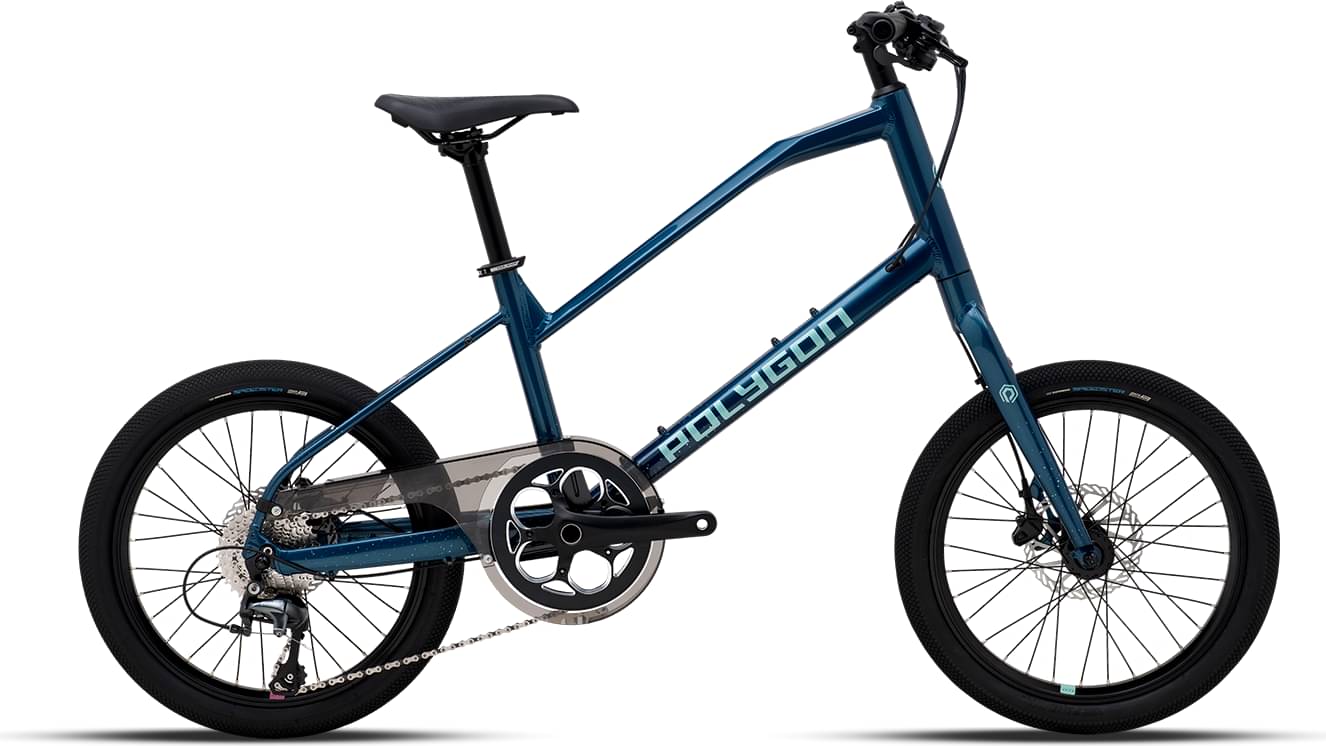

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
All Size
150cm - 170cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
ALLOY RIGID FORK
Drivetrain
Rear Derailleur
SHIMANO TIAGRA RD-4700 DIRECT ATTACH
Shift Levers
SHIMANO TIAGRA SL-4700, 1x10-SPEED RAPIDFIRE
Cassette
SHIMANO TIAGRA CS-HG500 11-34T
Crank
PROWHEEL OUNCE 48T
Bottom Bracket
BSA THREADED FOR 2-PIECE CRANKSET
Chain
KMC X10
Pedals
PP PEDALS W/ REFLECTOR
Wheels
Front Hub
F: ALLOY QRx100mm 32H 6-BOLTS / R: ALLOY QRx135mm 32H 6-BOLTS
Rear Hub
F: ALLOY QRx100mm 32H 6-BOLTS / R: ALLOY QRx135mm 32H 6-BOLTS
Rims
F: 20'' ALLOY DOUBLE WALL H:21mm W: 17.9mm 406 32H / R: 20'' ALLOY DOUBLE WALL H:21mm W: 17.9mm 406 32H
Spokes
F: 14G STAINLESS NDS:182mm DS:184mm / R: 20'' ALLOY DOUBLE WALL H:21mm W: 17.9mm 406 32H
Tires
VEE SPEEDSTER 20"x2.0"
Brakes
Brakes
CLARKS M2 HYDRAULIC DISC BRAKE
Brake Levers
CLARKS M2
Cockpit
Handlebar
POLYGON SPORT, W: 640mm, BB: 31.8mm, R/D: 0mm, B: 6degree
Headset
SEMI INTEGRATED THREADLESS, ZS 44/28.6 | ZS 44/30
Seat
Saddle
SELLE ROYAL
Seatpost
POLYGON SPORT, DxL: 30.9 x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | All Size |
|---|---|
| Stack Reach Ratio | 1.377 mm |
| Bottom Bracket Height | 290 mm |
| Front Center | 681 mm |
| Rake | 69 mm |
| Stack | 567.9 mm |
| Reach | 412.5 mm |
| Top Tube Length | 570 mm |
| Seat Tube Angle | 74.5 ° |
| Seat Tube Length | 360 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 250 mm |
| Chainstay Length | 400 mm |
| Wheelbase | 1078 mm |
| Bottom Bracket Drop | 35 mm |
| Standover Height | 594 mm |
| Wheels | 20" |
| Rider Min Height | 150 cm |
| Rider Max Height | 170 cm |
