Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Advent X -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Double Heat Treated Aluminum (lifetime warranty). Uses an IS 42/52 Headset.
Suspension Fork
Aluminum Tapered Fork with 3 Bosses on Each Side.
Drivetrain
Rear Derailleur
MicroShift Advent X 10 Speed with Clutch
Shift Levers
MicroShift Advent X
Cassette
11-48 10-speed Microshift Advent X.
Crank
Prowheel Charm 170mm Crankset with 38t 104 BCD Narrow-Wide Chainring.
Bottom Bracket
73 x 110.5 English Threaded Square Taper.
Chain
KMC X10
Pedals
MicroShift Advent X
Wheels
Rims
12mm Thru-Axle 32h Tubeless Compatible Rims Laced to Sealed Cartridge Hubs. Internal Rim Width: 26mm. We Recommend 30mm Tubeless Tape. Hub Spacing: 100mm front, 142mm rear. Minimum tire recommendation 650b x 42, Max tire recommendation 27.5 x 2.6. Max tire size can range based on the tread of the tire.
Tires
27.5" x 2.35" Kenda Kadre.
Brakes
Brakes
Tektro MD-C550 Mechanical Flat Mount Short-Pull Brake Calipers
Brake Levers
Flatbar Tektro Mechanical Short-pull.
Seat
Seatpost
31.6mm Promax Alloy.

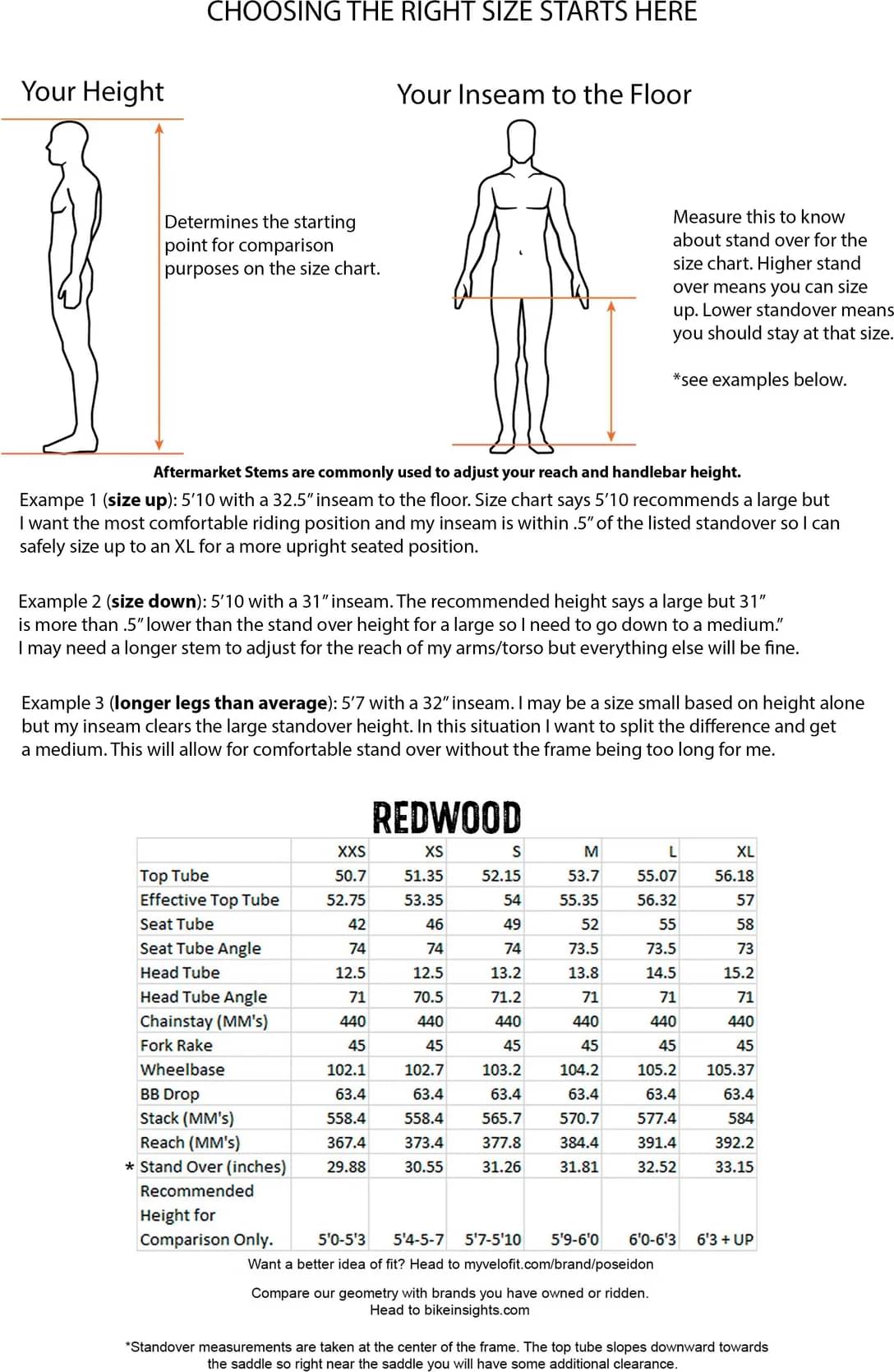

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXS |
|---|---|---|---|---|---|---|
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
