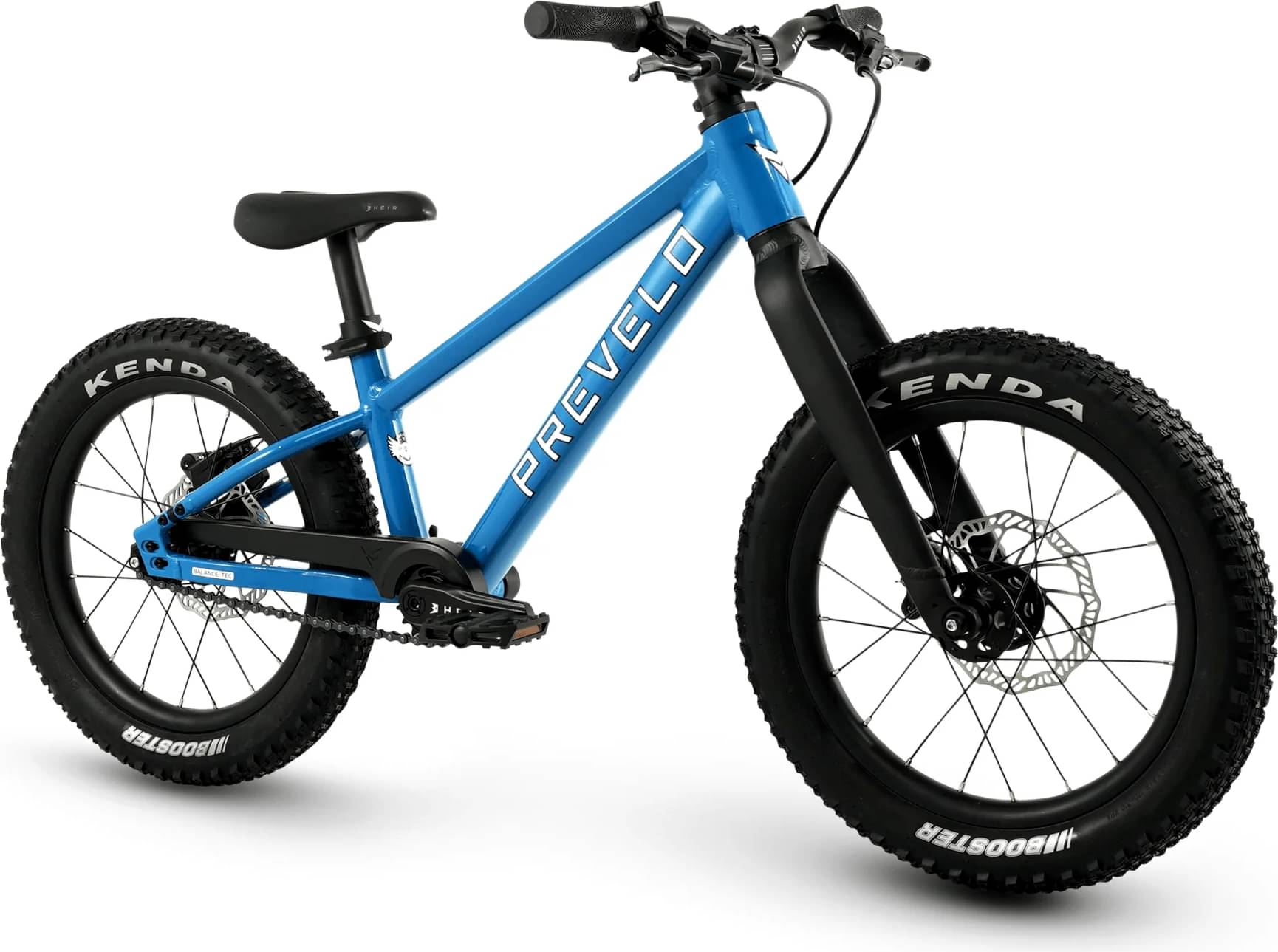

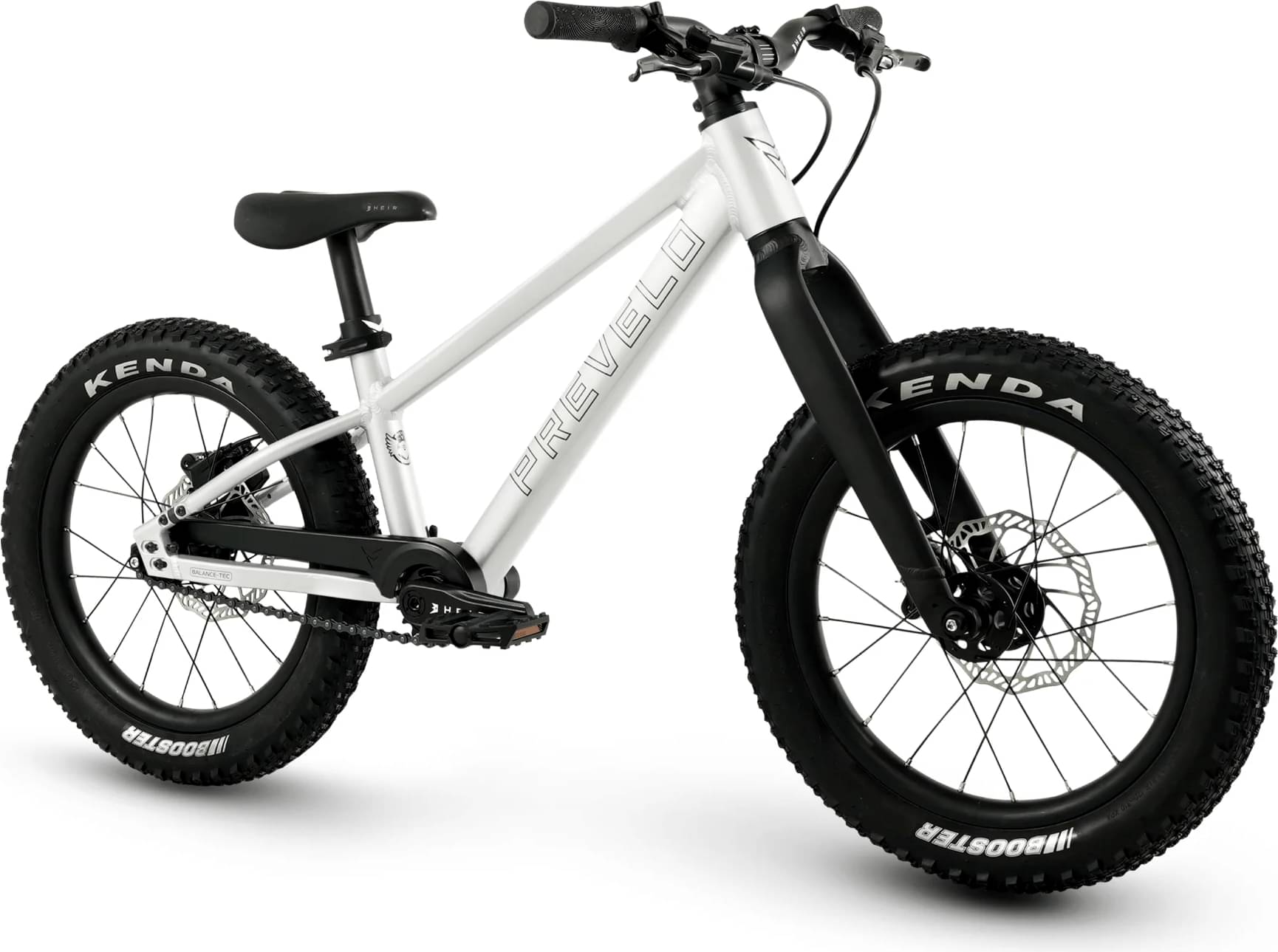

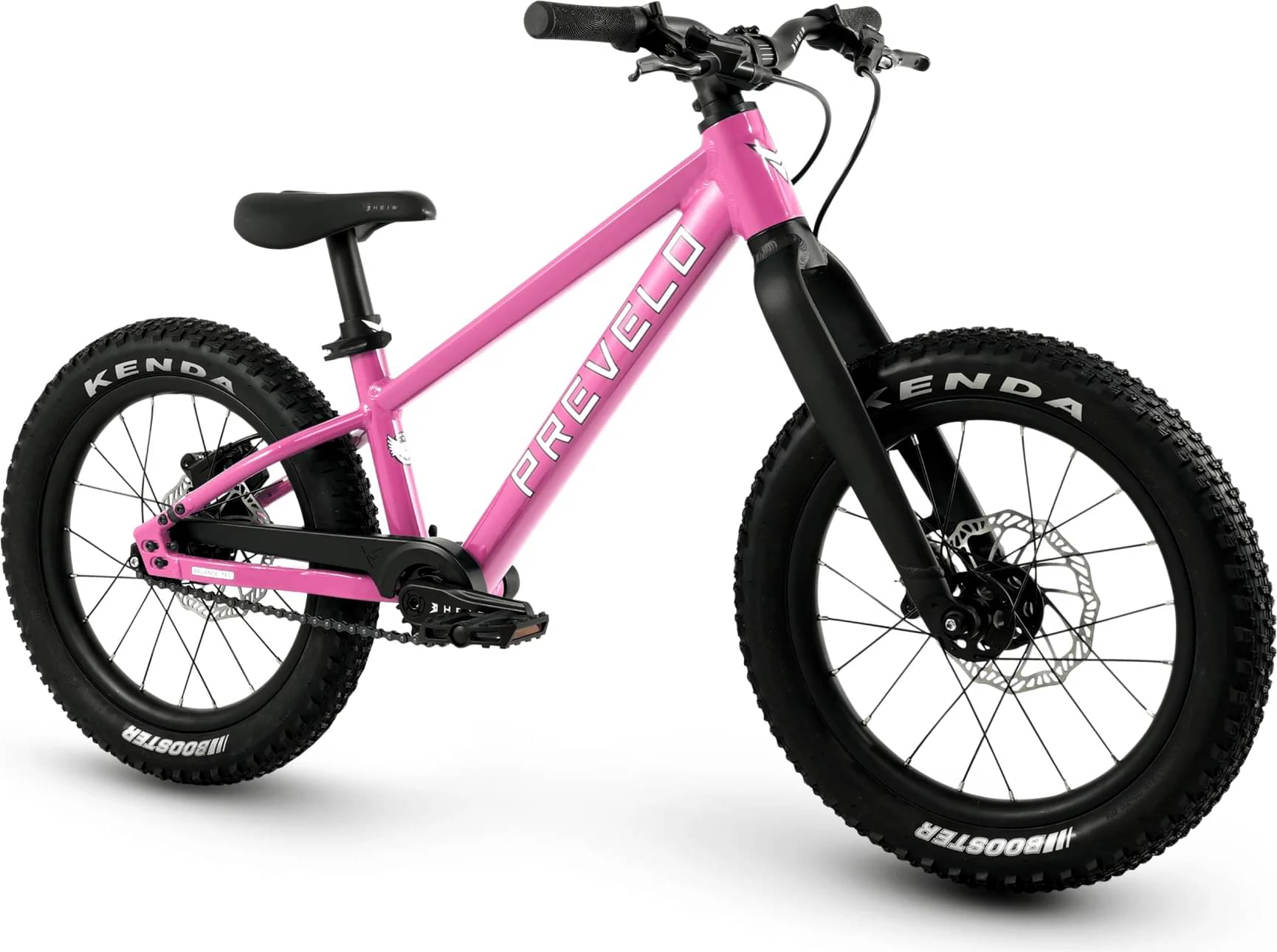

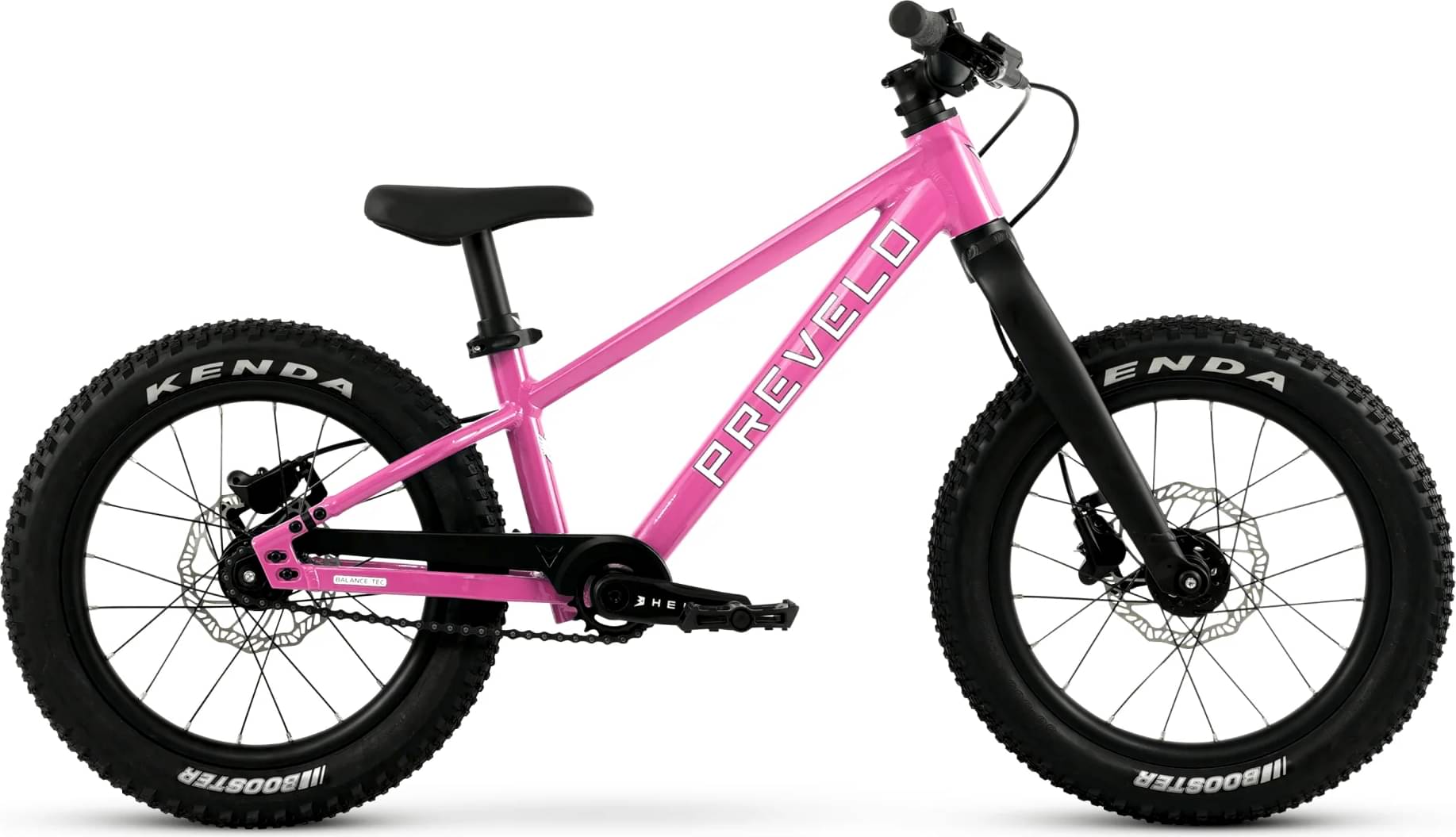

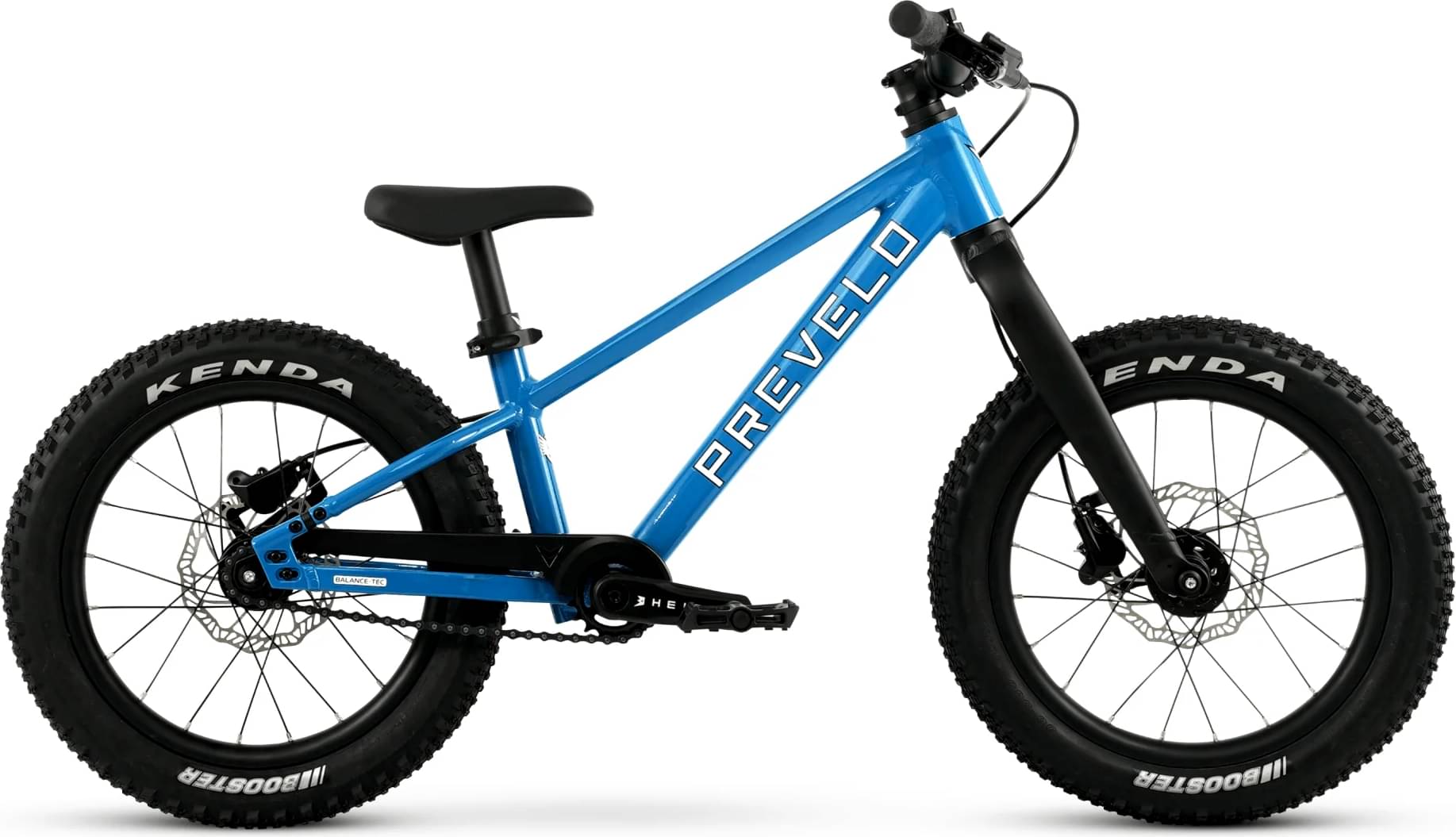

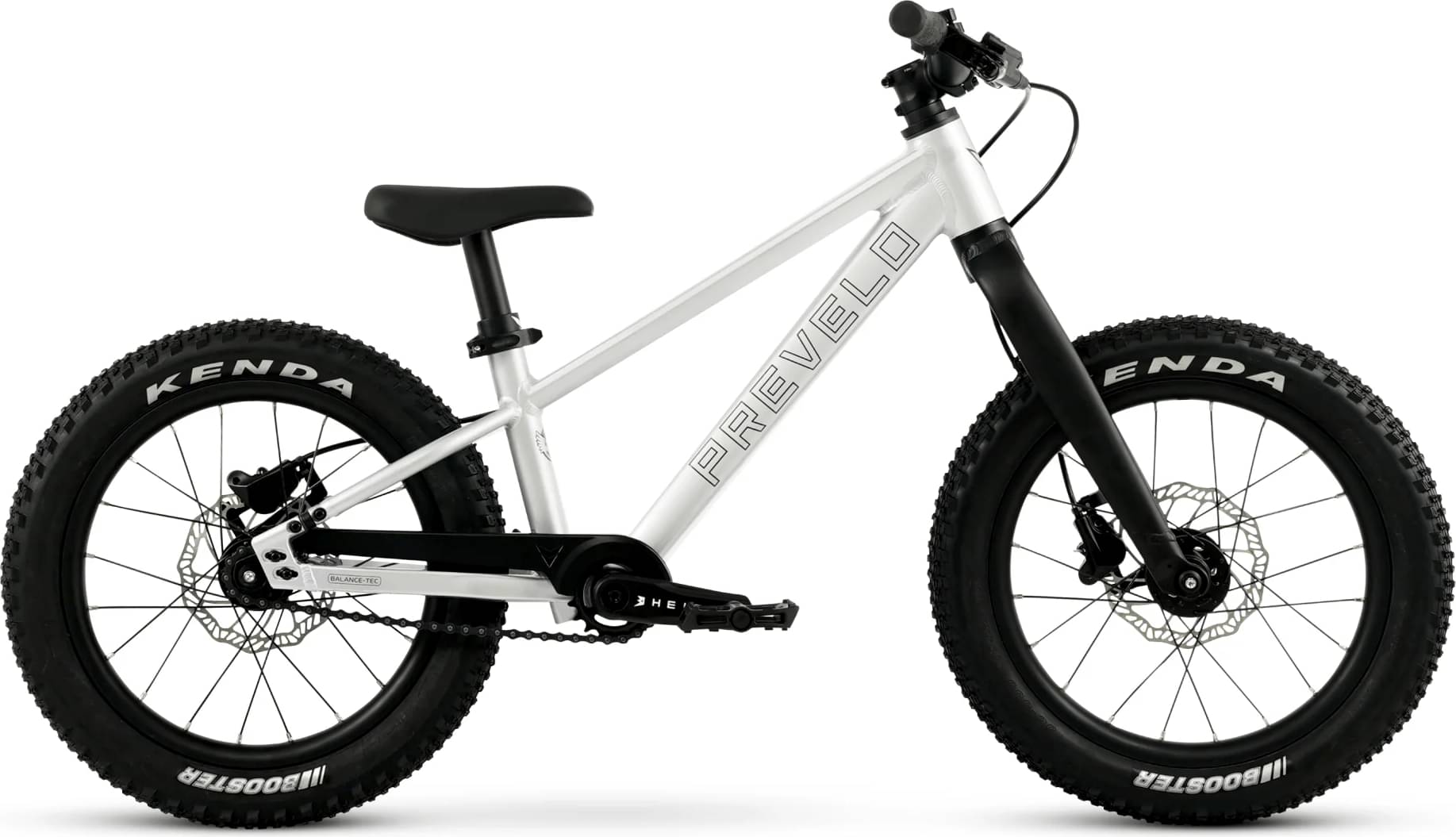

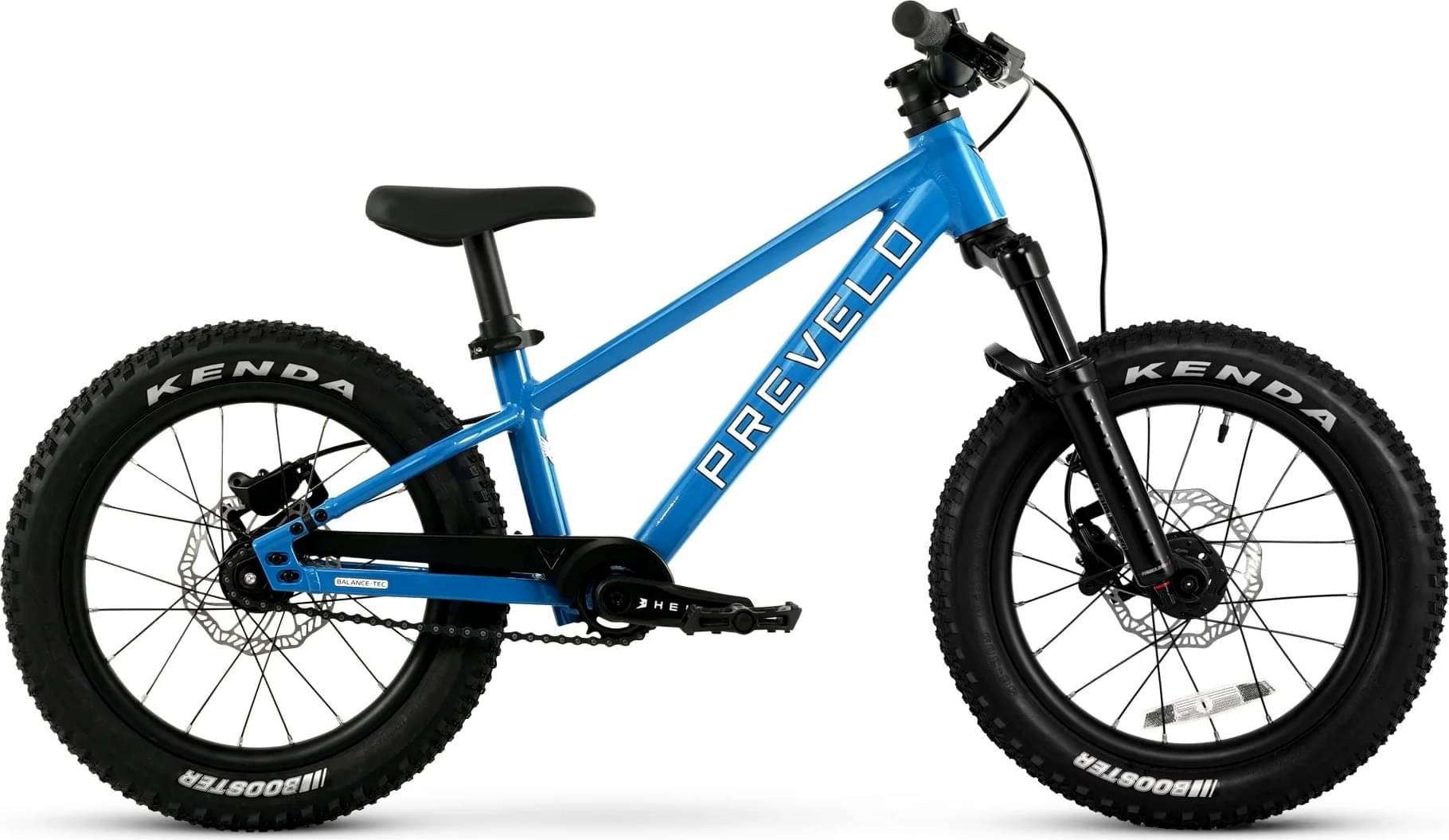

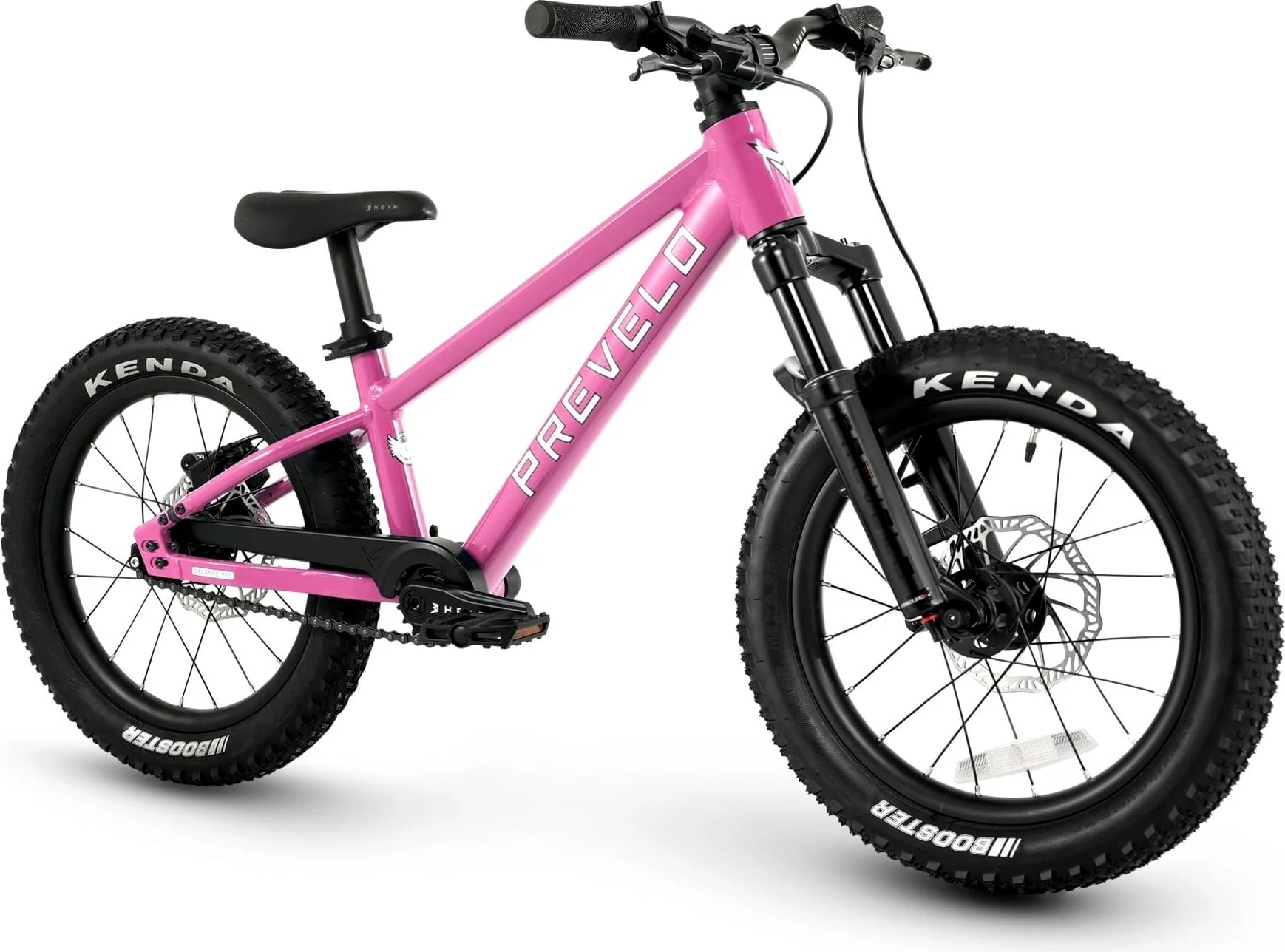

Prevelo HEIR 2024
2024 Mountain
Estimate price |
949$
Weight | 7.17 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 60mm -
Fork RST BLADE
-
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Promax Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
THRU-TUBE™ Lightweight 6061 Aluminum with Internal Cable Routing and Low Center of Gravity Trail Geometry
Suspension Fork

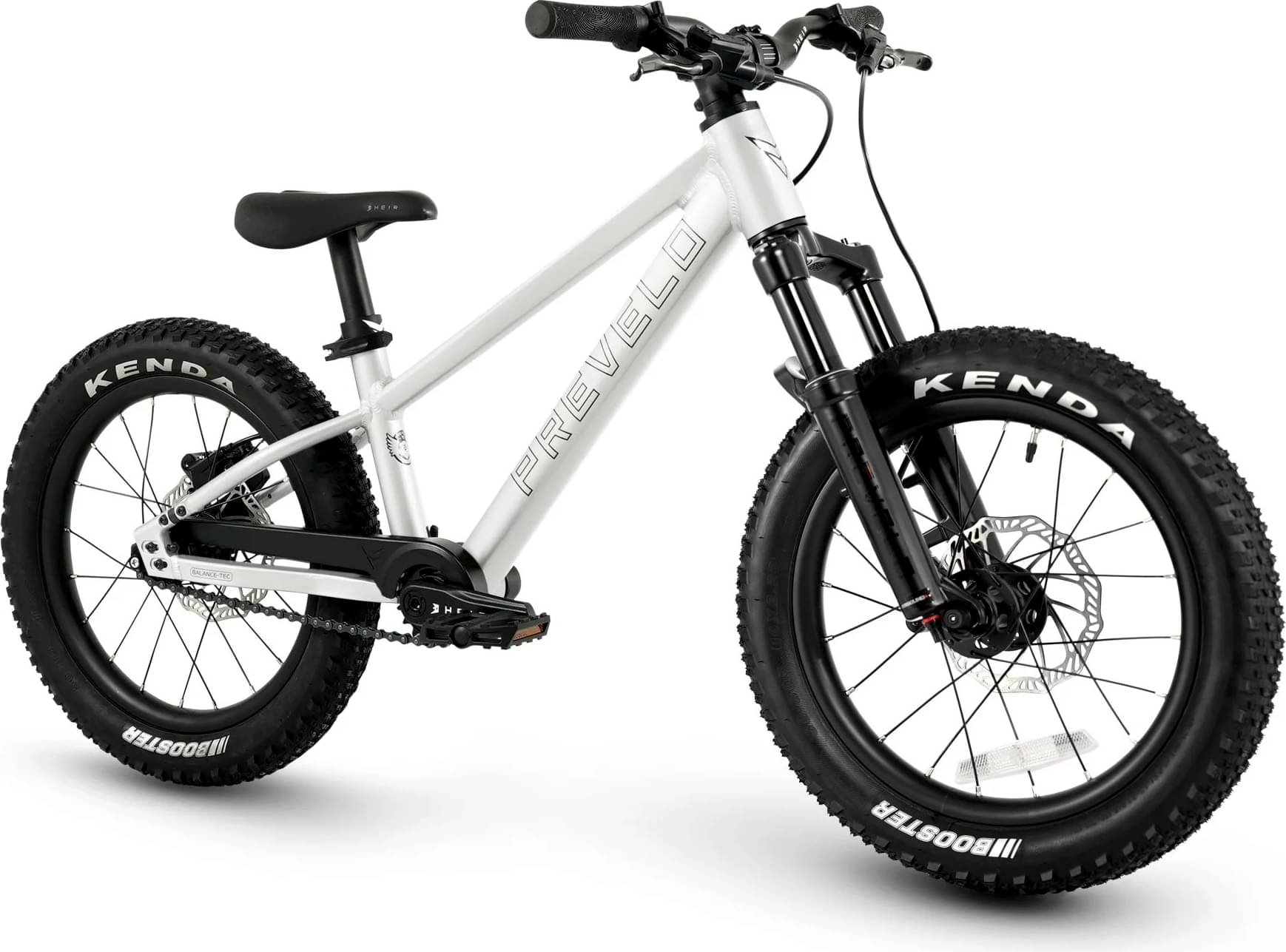

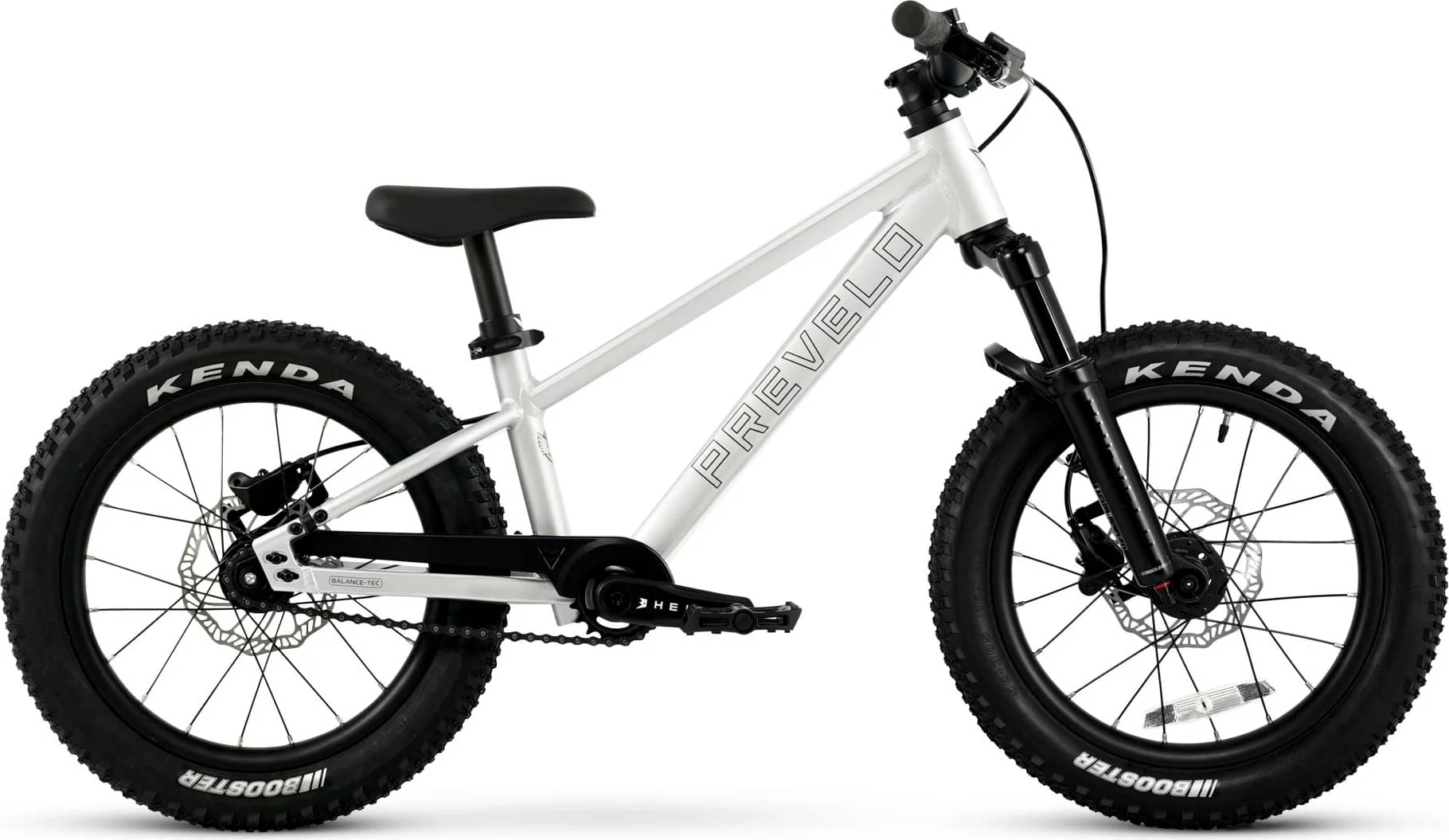

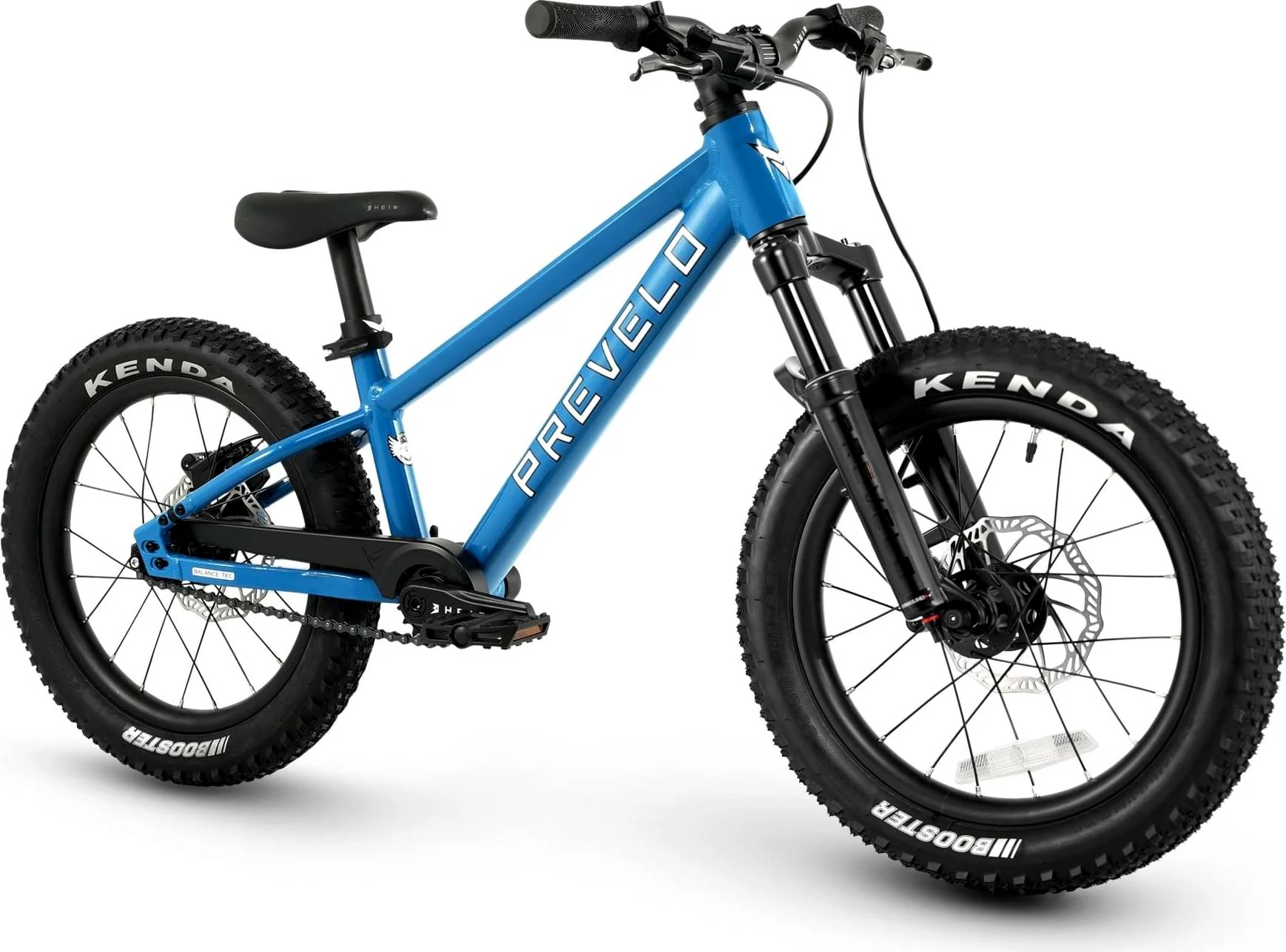

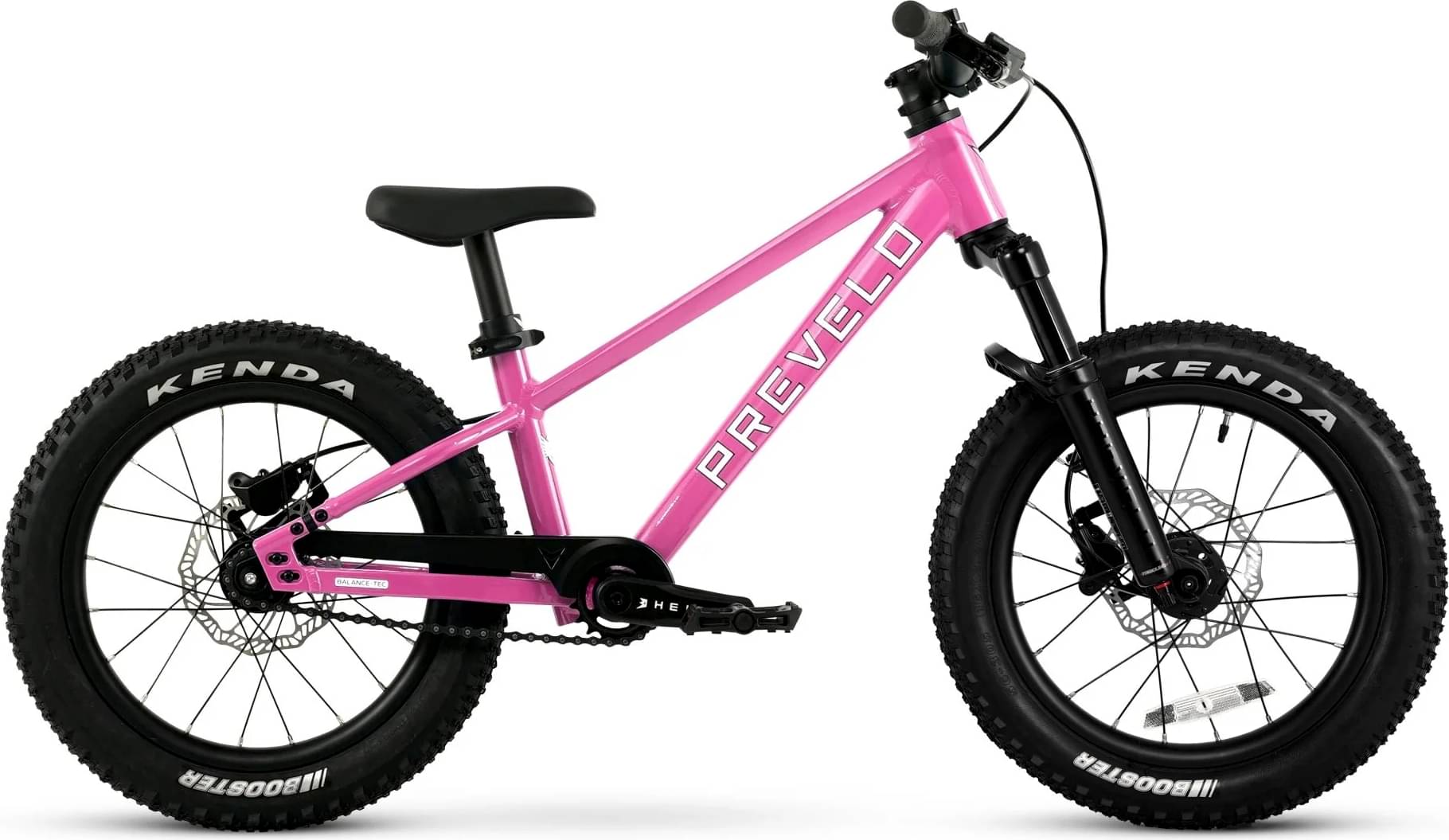

Standard: Bladed Aluminum Legs with 1?" Aluminum Steer Tube and Disc Brake Mounts ||| HEIR: RST First 16 AIR - 60mm travel - lockout and adjustable rebound
Drivetrain
Cassette
10t 1pc driver
Crank
Lightweight Aluminum 3 piece. Narrow Width, 95mm length, 146mm Q factor
Bottom Bracket
68x113 Hollow Spindle Square Taper with Sealed Cartridge Bearings
Pedals
Prevelo Composite Short Spindle, 9/16 Crmo Spindle
Wheels
Front Hub
9x100 20h Sealed Cartridge Bearing
Rear Hub
110mm 20h Sealed Cartridge Bearing Cassette
Rims
Double Wall Aluminum
Tires
Kenda Booster 16 × 2.2
Brakes
Brakes
Promax DSK 940 Hydraulic Disc
Cockpit
Stem
Lightweight Aluminum 31.6, 35mm Extension
Handlebar
HEIR 19mm Riser Bar 31.6 clamp, 520mm wide, 25mm rise, 19mm grip diameter
Grips
HEIR 110mm wide 19mm Lock-On
Headset
Integrated Sealed Cartridge Bearing
Seat
Saddle
HEIR Frame Hugger™ Little Kid - Alloy Reinforced
Seatpost
?27.2mm alloy 1 piece
