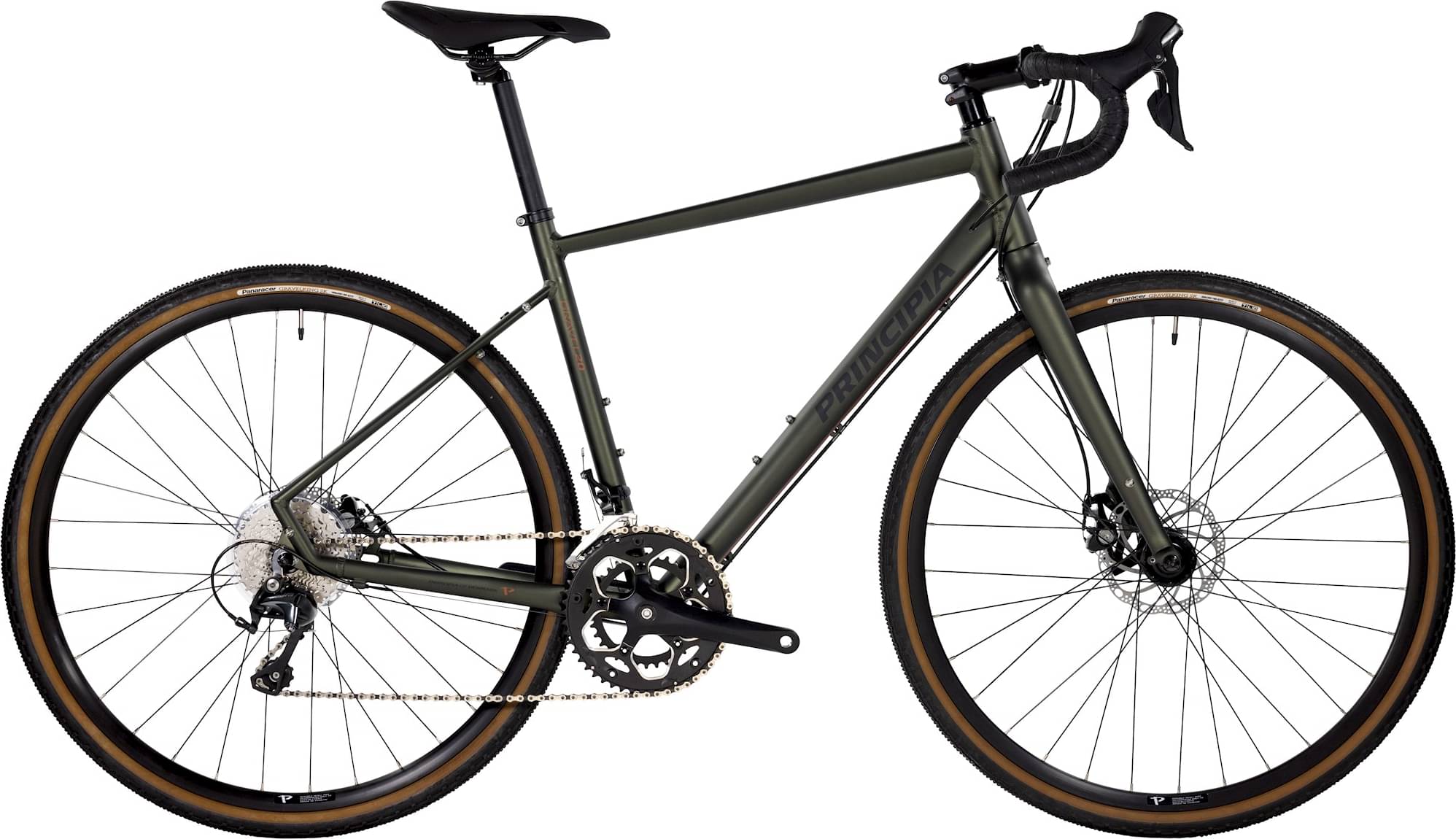

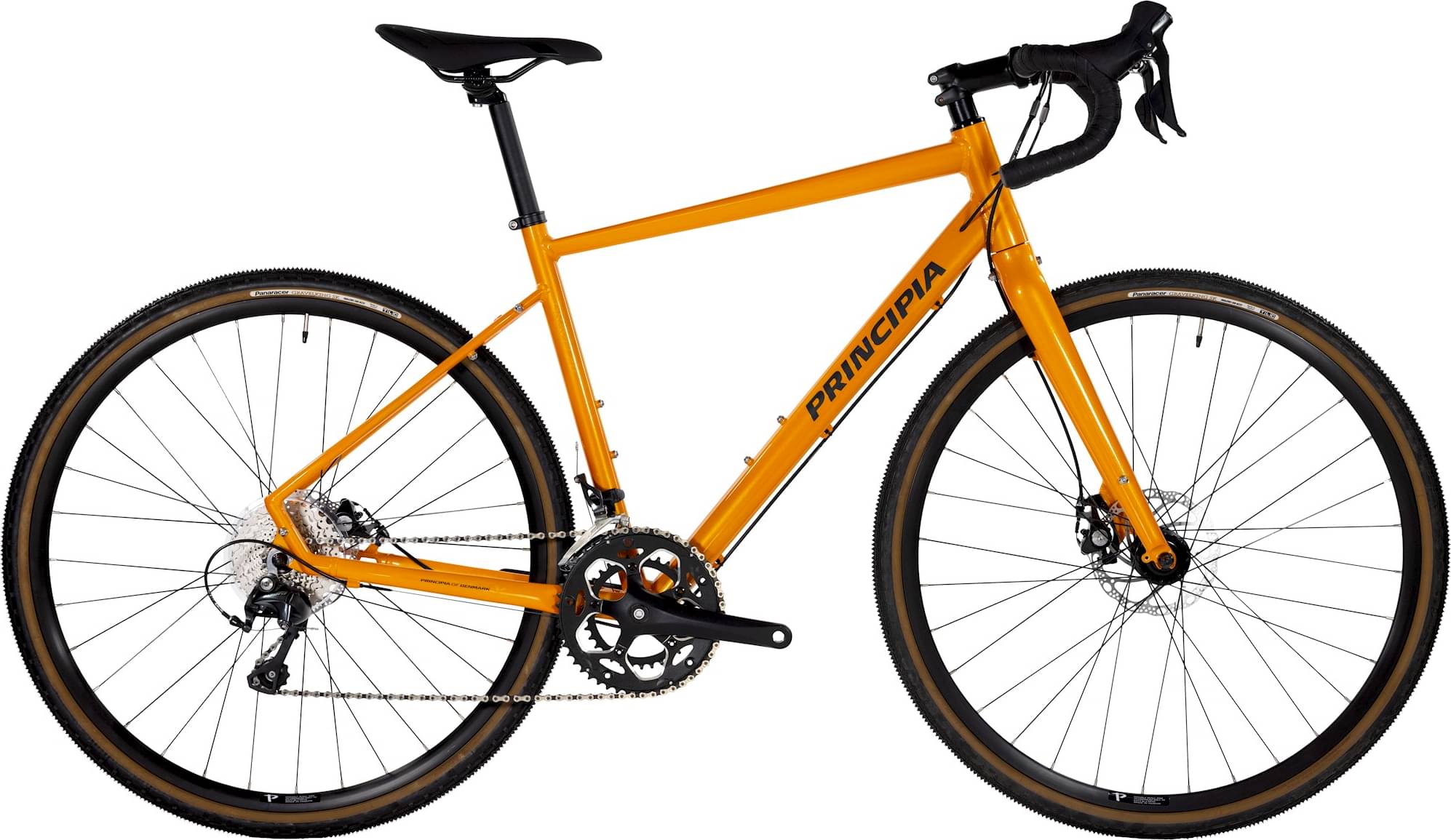

principia 20 2023
2023 Road
Estimate price |
1,490$
Weight | 12.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
Aluminium
Drivetrain
Rear Derailleur
Shimano Tiagra 4700
Front Derailleur
Shimano Tiagra 4700
Shift Levers
Shimano Tiagra ST-4700 2x10
Cassette
Sunrace CSMS1 10sp 11-34T
Crank
Prowheel Ounce-621C-N 50/34T 170mm
Chain
KMC X10, 114 link
Pedals
Not included
Wheels
Rims
28in (700)
Tires
Panaracer GravelKing SK 38-622
Brakes
Brakes
Front: Tektro MD-C400 mechanical disc brake, 160 mm. rotor, Rear: Tektro MD-C400 mechanical disc brake, 160 mm. rotor
Cockpit
Stem
Kalloy AS-DC1, 31.8 mm.
Handlebar
Kalloy HBL002, 31.8 mm.
Seat
Saddle
Foming DDK-510
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm | 61cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.47 mm | 1.46 mm | 1.58 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 639 mm | 638 mm | 638 mm | 649 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 73.82 mm | 67.29 mm | 64.05 mm | 54.42 mm |
| Stack | 564.67 mm | 587.61 mm | 589.63 mm | 652.81 mm |
| Reach | 399.13 mm | 400.76 mm | 405.2 mm | 412.68 mm |
| Top Tube Length | 556 mm | 564 mm | 569 mm | 594 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 610 mm |
| Head Tube Angle | 70 ° | 71 ° | 71.5 ° | 73 ° |
| Head Tube Length | 135 mm | 155 mm | 155 mm | 155 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1064 mm | 1064 mm | 1063 mm | 1075 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 716 mm | 761 mm | 799 mm | 860 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
20 is a Principia 20 model. Principia launched 1 bike of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 1379$. In conclusion, this bike price is 78.54% lower than the price of the average Gravel bike.
Average weight for Gravel bikes
Gravel bikes have an average weight of 8.45 kg (18.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
20 weighs 12.1 kg (26.68 lbs) and is much heavier than the average. To sum up, it’s 43.2% heavier than the average weight of Gravel bikes.
Overview of components
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When it comes to wheels, the 20 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Principia 20 is equipped with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
