principia Evoke A2.0 2024

2024 Youth
Estimate price | 732$
Weight | 11.5 kg
Open compare Use advisor

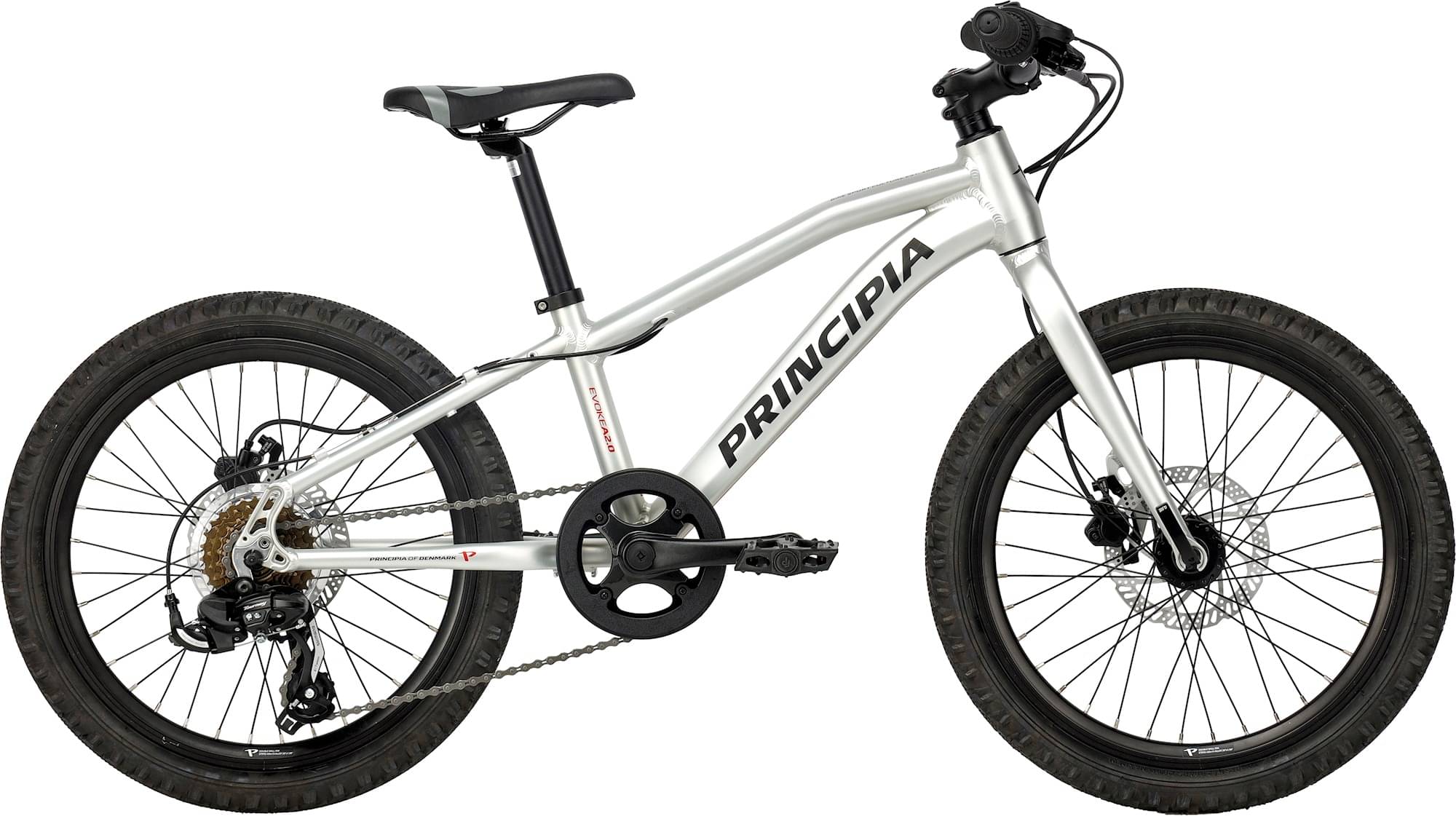

  • Principia Evoke A2.0 2024 - principia-evoke-a2.0-2024.jpeg

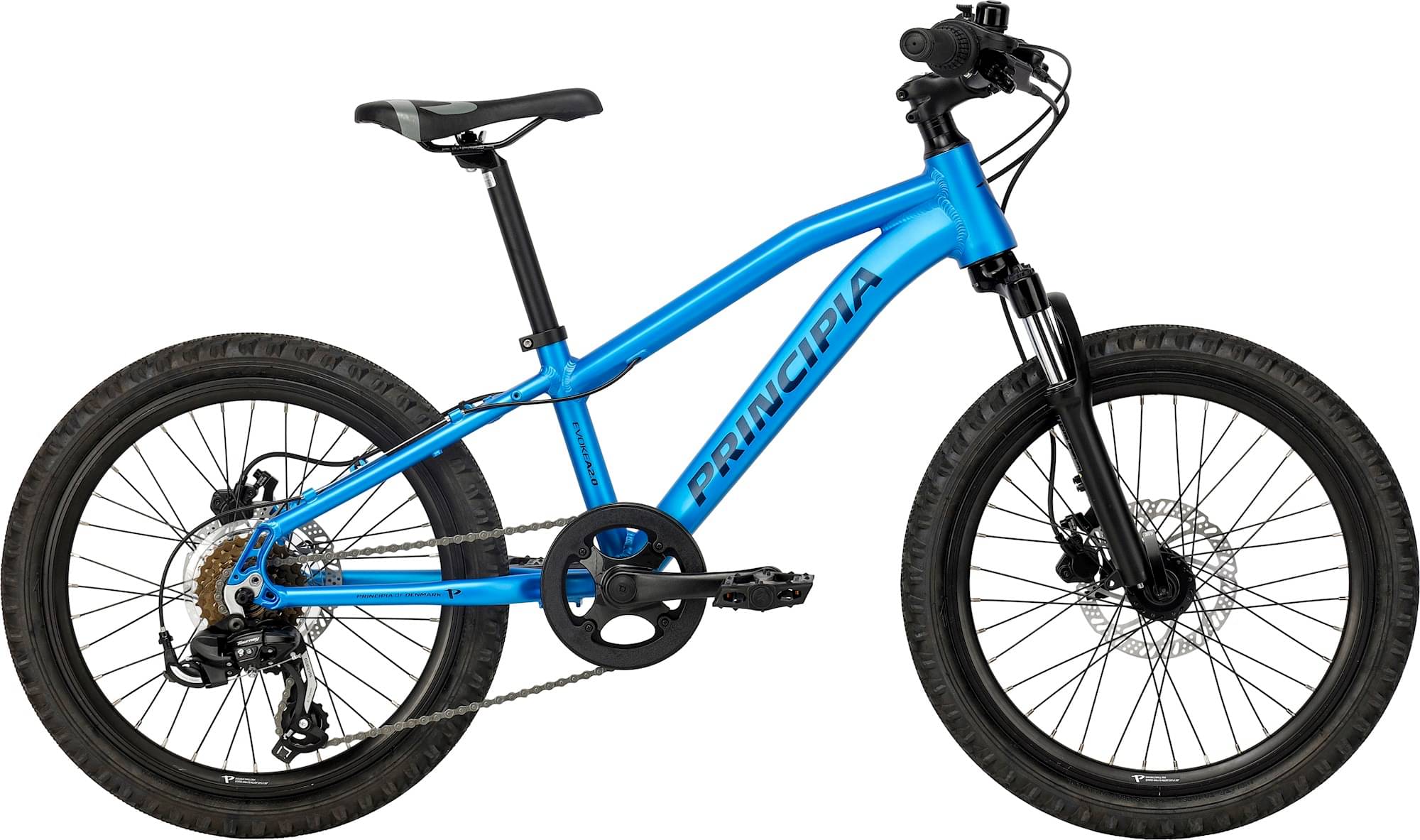

  • Principia Evoke A2.0 2024 - principia-evoke-a2.0-2024-1.jpeg

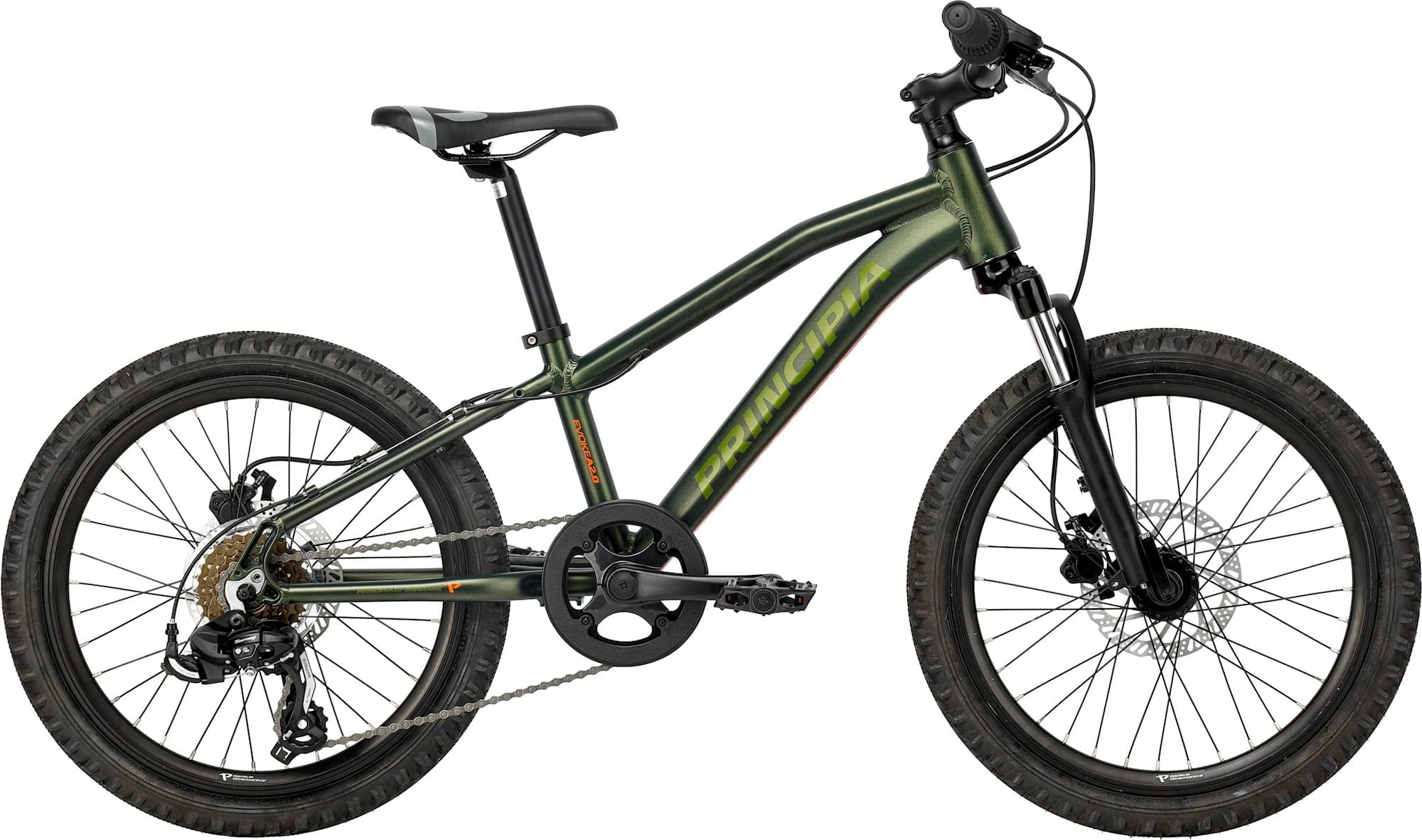

  • Principia Evoke A2.0 2024 - principia-evoke-a2.0-2024-2.jpeg

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Groupset Tourney
  • Suspension Rigid
  • Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Aluminium

Suspension Fork

Rigid fork

Drivetrain

Rear Derailleur

Shimano Tourney

Cassette

Shimano MF-TZ500 6vxl 14-28T

Crank

Aluminium black 36T

Wheels

Rims

20in

Tires

20x1,95 black

Brakes

Brakes

Front: Tektro HD-M285 hydraulic disc brake, 160 mm. rotor, Rear: Tektro HD-M285 hydraulic disc brake, 160 mm. rotor

Fit data

Geometry

Numbers for sizing and ride feel.

Size10"
Stack Reach Ratio
1.248 mm
Bottom Bracket Height
257 mm
Trail
56 mm
Stack
403 mm
Reach
323 mm
Top Tube Length
447 mm
Seat Tube Angle
73 °
Seat Tube Length
258 mm
Head Tube Angle
69 °
Head Tube Length
110 mm
Chainstay Length
368 mm
Wheelbase
888 mm
Standover Height
528 mm
Wheels20"
