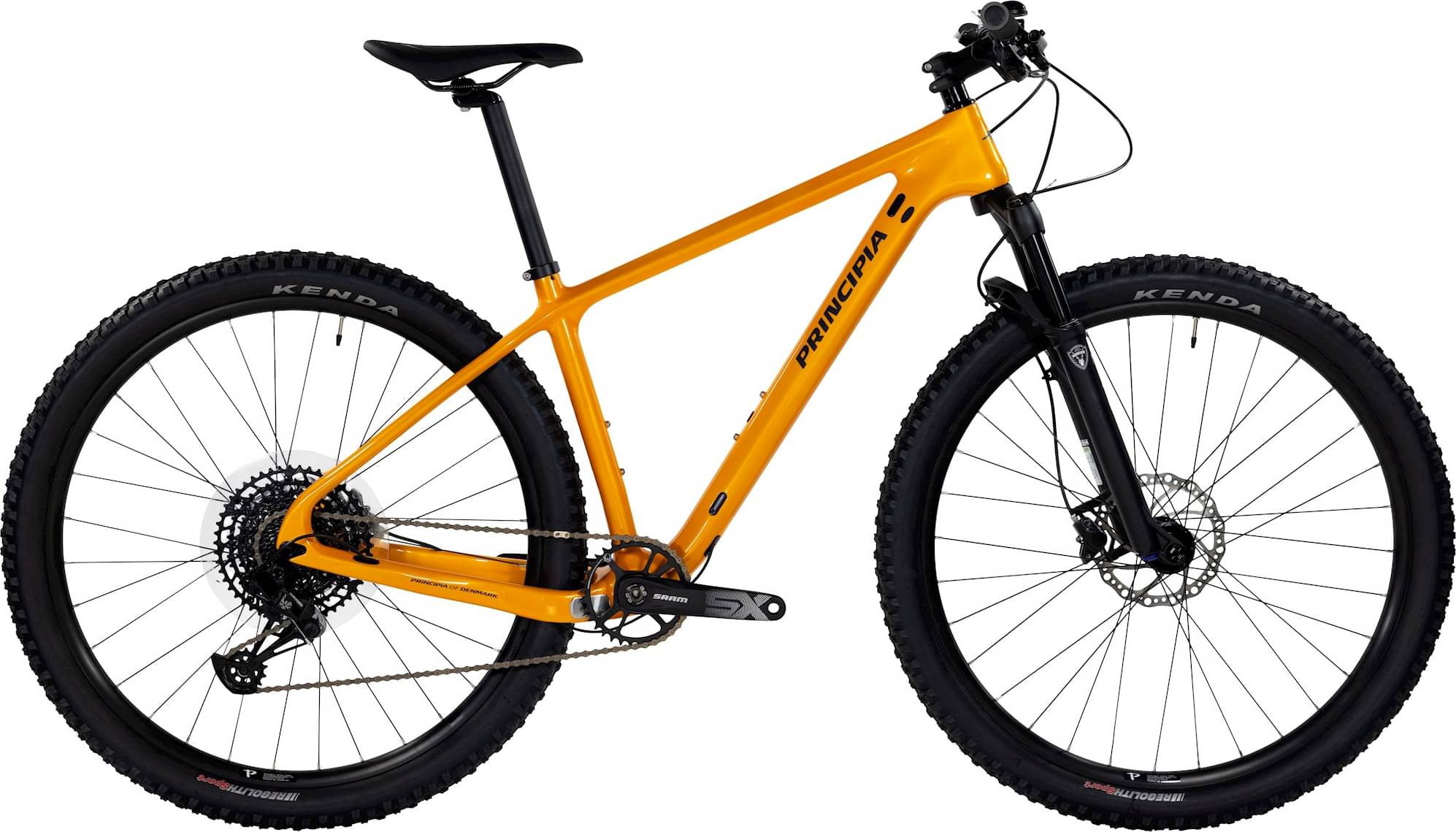

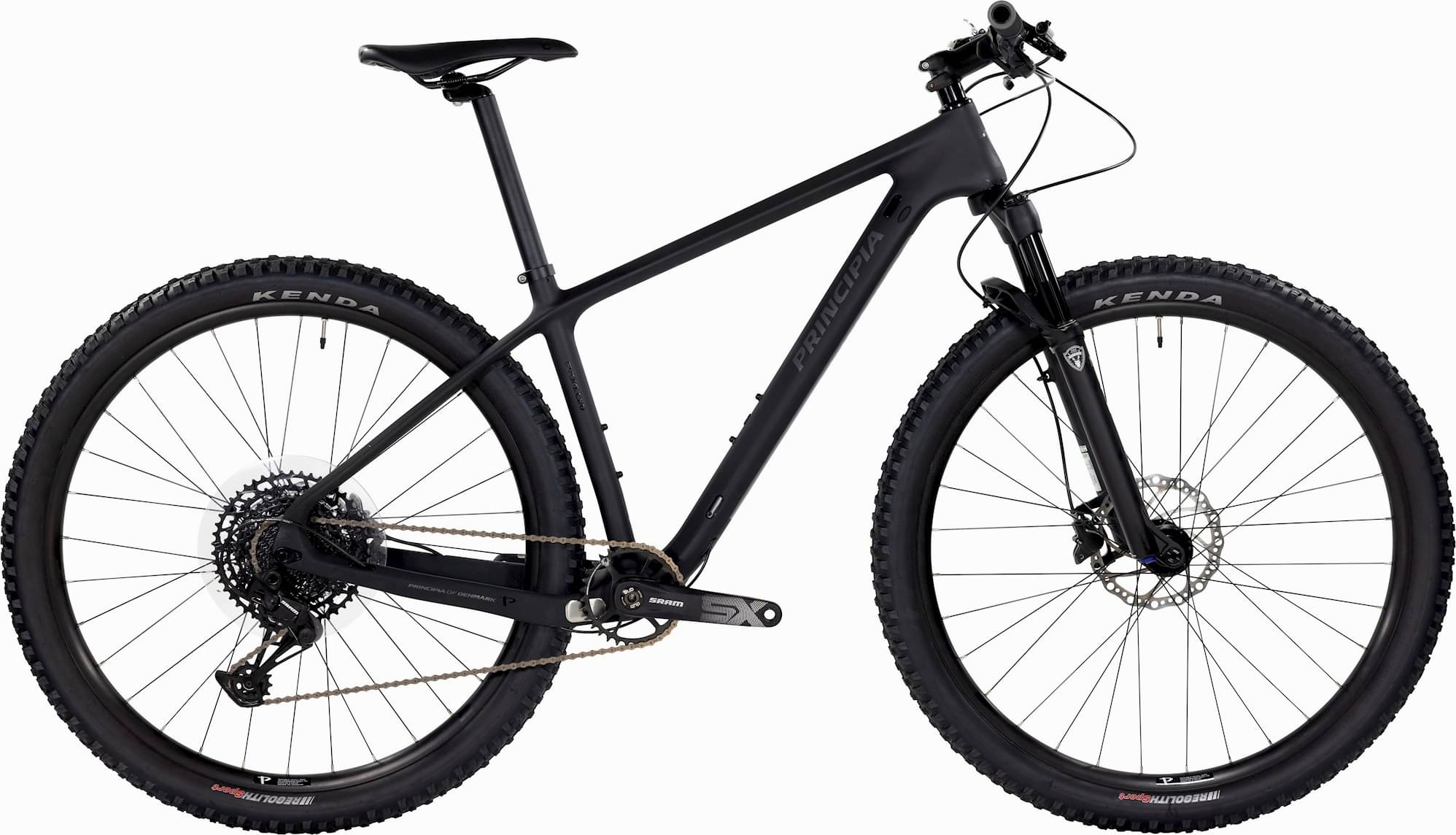

principia Evoke C20 2024
2024 Mountain
Estimate price |
3,140$
Weight | 11.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Manitou Markhor
-
Groupset NX Eagle, SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Principia Evoke Carbon 29"
Suspension Fork
Manitou Markhor 100mm boost, air with lockout
Drivetrain
Rear Derailleur
SRAM NX Eagle
Cassette
SRAM CS PG1210 Eagle 12sp 11-50T
Crank
SRAM FC SX Eagle 34T 175mm
Chain
SRAM CN SX Eagle 120L
Wheels
Rims
29in
Tires
Schwalbe Nobby Nic 29x2,40
Brakes
Brakes
Front: Tektro HD-M275 hydraulic disc brake, 180 mm. rotor, Rear: Tektro HD-M275 hydraulic disc brake, 160 mm. rotor
Cockpit
Handlebar
Kalloy HB-FB11L, 31,8 mm/700 mm.
Seat
Seatpost
Kalloy SP-602, aluminium, 31.6 mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 21" | 15" | 17" | 18" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.429 mm | 1.517 mm | 1.477 mm | 1.448 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 710 mm | 659 mm | 679 mm | 694 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 79.5 mm | 82.6 mm | 82.6 mm | 79.5 mm |
| Stack | 634.6 mm | 604.1 mm | 613.5 mm | 625.2 mm |
| Reach | 444 mm | 398.3 mm | 415.4 mm | 431.9 mm |
| Seat Tube Angle | 73.7 ° | 73.7 ° | 73.7 ° | 73.7 ° |
| Seat Tube Length | 530 mm | 390 mm | 430 mm | 480 mm |
| Head Tube Angle | 70 ° | 69.5 ° | 69.5 ° | 70 ° |
| Head Tube Length | 130 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1143 mm | 1092 mm | 1112 mm | 1127 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 828 mm | 714 mm | 748 mm | 789 mm |
| Wheels | 29" | 29" | 29" | 29" |
