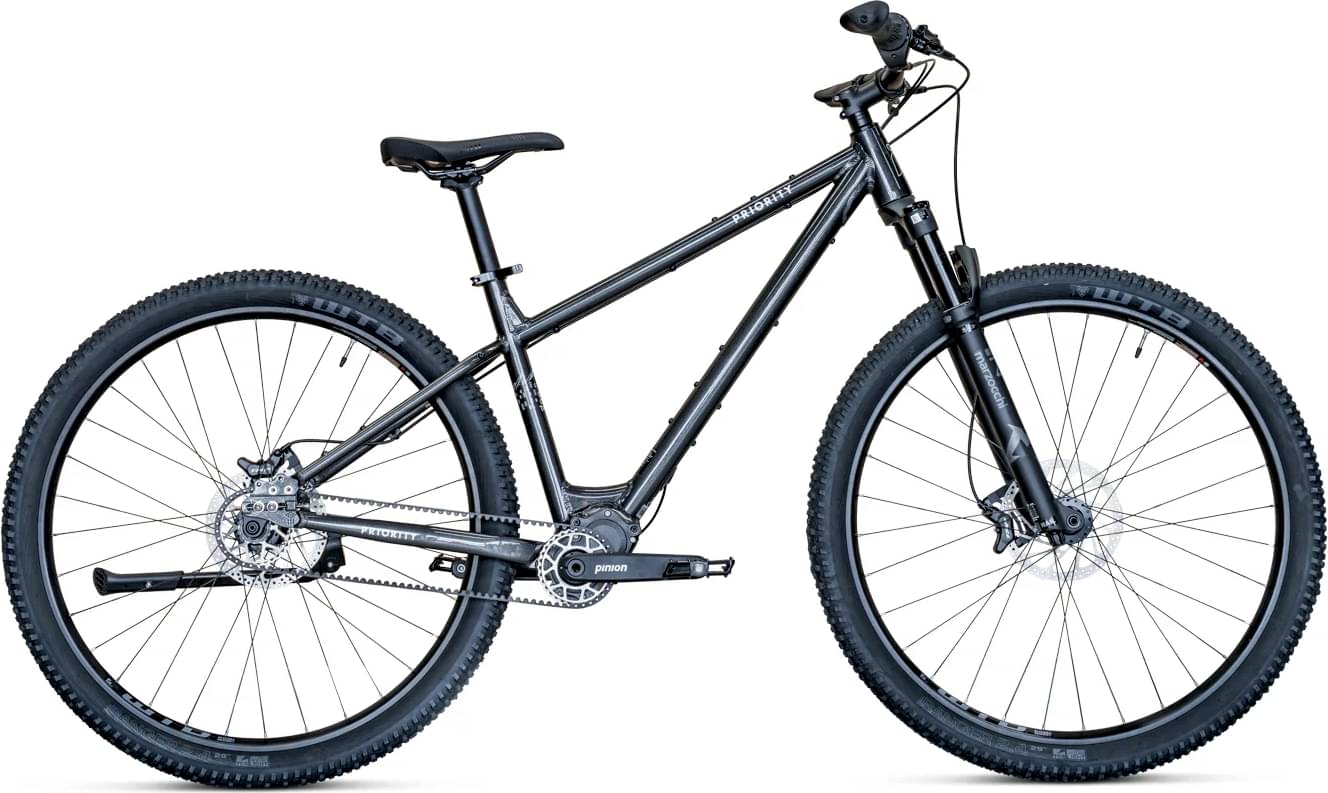

Priority 600ADX 2025
2025 Urban
Estimate price |
3,499$
Weight | 15.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Marzocchi Bomber Z2
-
Groupset Pinion -
Suspension Hardtail -
Brakes TRP Slate T4 Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum or Grade 9 Titanium, rack mounts, bottle cage mounts on the top tube, downtube (top and bottom), and seat stays, Pinion gearbox node
Suspension Fork
Marzocchi Bomber Z2 100mm travel, 44mm offset, 110mm Kabolt thru-axle
Drivetrain
Shift Levers
Pinion DS2 gripshift
Crank
Pinion-forged crank arms 170mm
Bottom Bracket
Pinion, press-fit
Pedals
Aluminum body, chromoly spindle
Wheels
Rims
Front: WTB KOM Trail rim, 32 14g Sapim stainless spokes, Alloy thru-axle hub 15mm thru axle, 110mm hub spacing, 6-bolt, Rear: WTB KOM Trail rim, 32 14g Sapim stainless spokes, high-engagement Priority hub 12mm thru axle, 148mm spacing, 6-bolt, single speed cassette body
Tires
WTB Ranger TCS Light/Fast Rolling SG2, 29 x 2.4”
Brakes
Brakes
Hydraulic quad piston disc w/ 180mm rotor F/R - Alum: TRP Slate T4, Ti: Hayes Dominion
Cockpit
Stem
60mm length, 6-degree rise
Handlebar
740mm width, 18mm rise, 17-degree backsweep
Grips
Priority Ergonomic lock-on
Seat
Saddle
WTB Volt Medium
Seatpost
Alloy 2-bolt, 31.6mm diameter
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.358 mm | 1.393 mm | 1.371 mm | 1.347 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 577 mm | 595 mm | 614 mm | 644 mm |
| Reach | 425 mm | 427 mm | 448 mm | 478 mm |
| Top Tube Length | 594 mm | 600 mm | 627 mm | 666 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 110 mm | 130 mm | 160 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1142 mm | 1150 mm | 1180 mm | 1210 mm |
| Standover Height | 686 mm | 711 mm | 762 mm | 800 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
