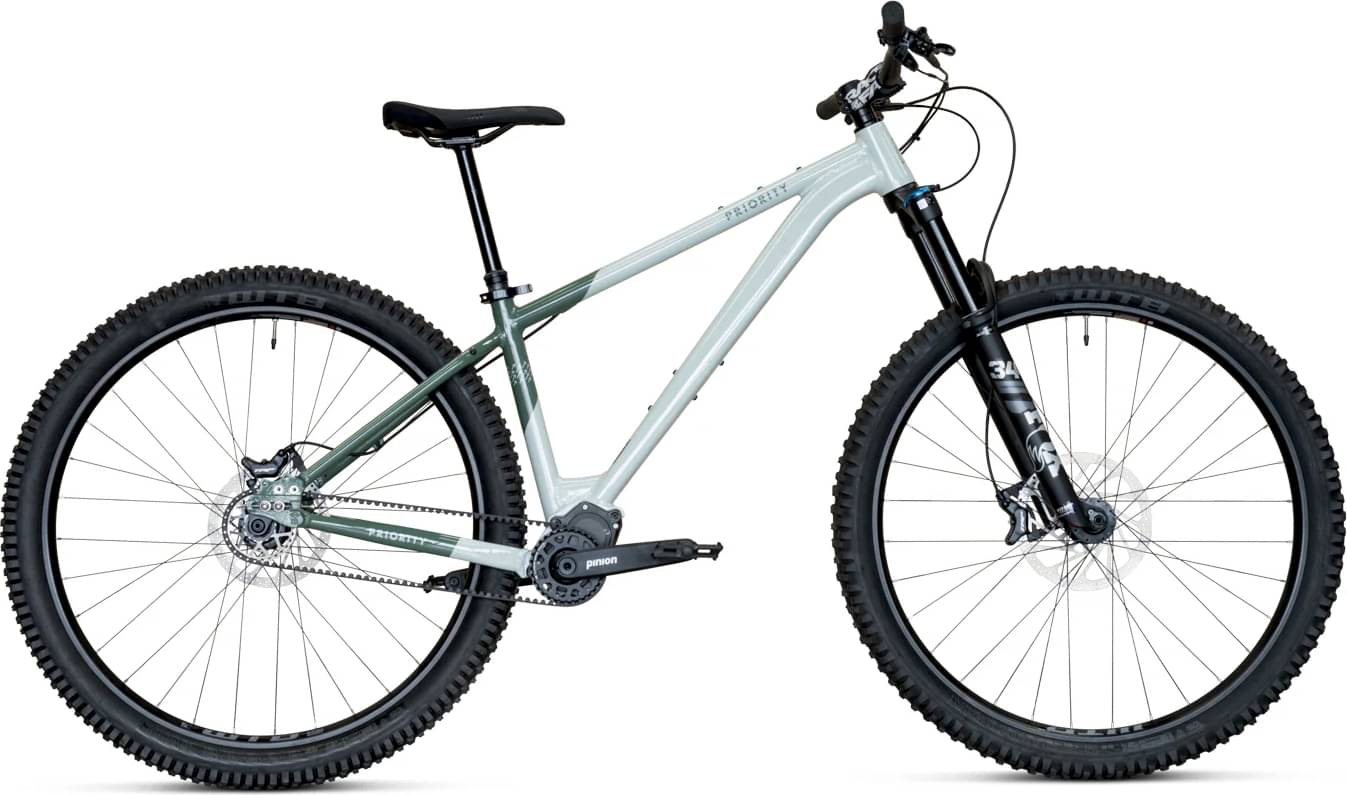

Priority 600HXT 2024
2024 Urban
Estimate price |
3,999$
Weight | 15.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork Fox Performance Float 34
-
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 172cm
MD
170cm - 180cm
LG
177cm - 187cm
XL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy Frame with Internal Dropper Routing
Suspension Fork
Fox 34 Performance, 140mm Travel, 44mm Offset, Boost, Grip 2 Damper
Wheels
Front Hub
Sealed Bearing, 6-Bolt, Boost Thru-Axle
Rear Hub
Custom Spec, High-Engagement, Single-Speed Cassette, Boost, 6-Bolt
Rims
WTB KOM Trail i30
Tires
Front: WTB Vigilante 29 x 2.5" Tubeless-Ready, Rear: WTB Trail Boss 29 x 2.6" Tubeless Ready
Brakes
Brakes
TRP Slate T4 2.3mm 203F/180R Rotor, Hydraulic 4-Piston Disc Brakes
Cockpit
Stem
Race Face Chester, 31.8mm Clamp, 50mm Length
Handlebar
174 Hudson MTB, 7050 Aluminum, 780mm Width, 7-Degree Backsweep, 20mm Rise
Seat
Saddle
WTB Volt Medium
Seatpost
OneUp 180mm (M/L/XL), 150mm (S) Internal Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.326 mm | 1.344 mm | 1.294 mm | 1.32 mm |
| Front Center | 740 mm | 754 mm | 790 mm | 800 mm |
| Rake | 54 mm | 50 mm | 57 mm | 34 mm |
| Trail | 103 mm | 108 mm | 100 mm | 125 mm |
| Stack | 578 mm | 598 mm | 608 mm | 644 mm |
| Reach | 436 mm | 445 mm | 470 mm | 488 mm |
| Top Tube Length | 595 mm | 607 mm | 640 mm | 650 |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 360 mm | 410 mm | 440 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 80 mm | 100 mm | 120 mm | 130 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1172 mm | 1186 mm | 1223 mm | 1233 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 724 mm | 749 mm | 787 mm | 813 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 170 cm | 177 cm | 184 cm |
| Rider Max Height | 172 cm | 180 cm | 187 cm | 193 cm |
