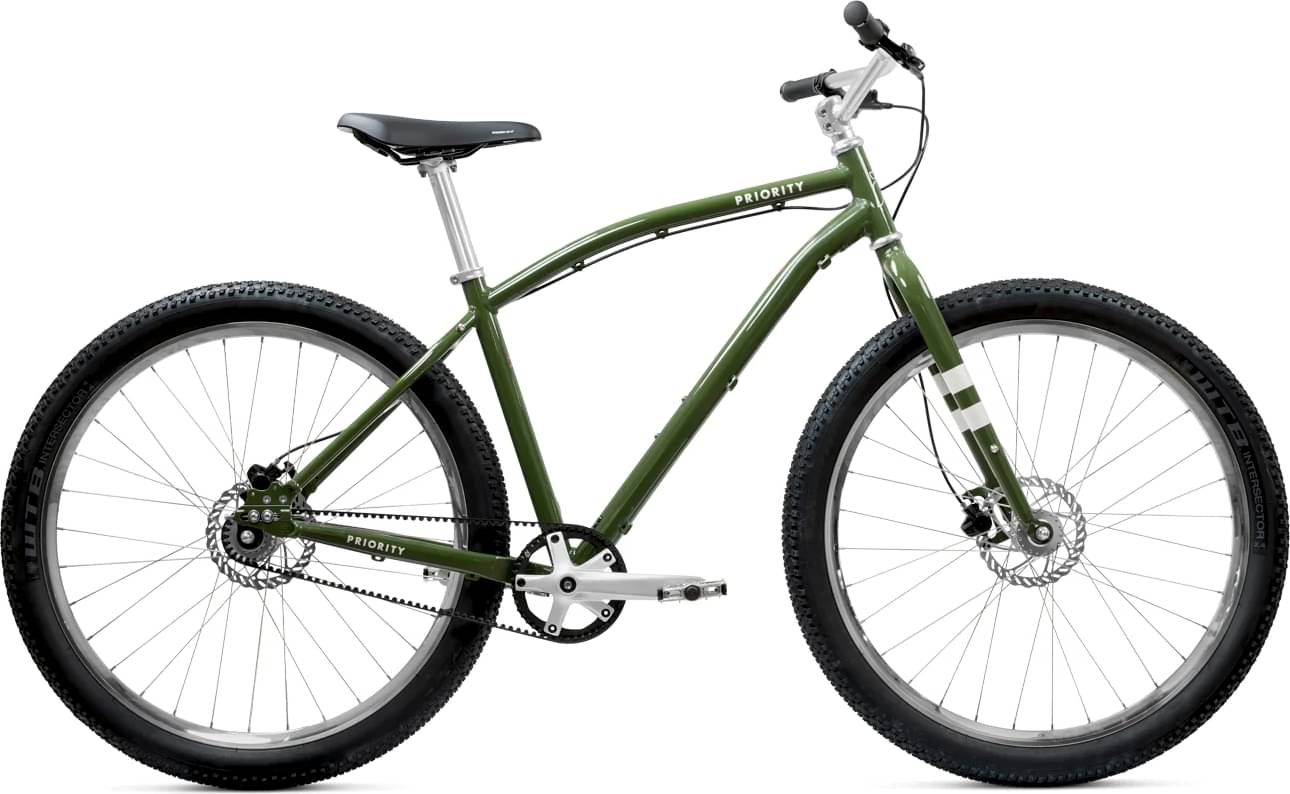

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 6061 T6 Aluminum, 100mm suspension corrected fork, 1-1/8" straight steerer
Suspension Fork
Ultralight 6061 T6 Aluminum, 100mm suspension corrected fork, 1-1/8" straight steerer
Drivetrain
Shift Levers
>> HOT SAUCE << Rapidfire Trigger Shifter
Wheels
Rear Hub
>> HOT SAUCE << Shimano Nexus 7-Speed Internally Geared Hub
Rims
27.5" Tubeless-Ready Sun Ringle Helix TR25
Tires
27.5" x 2.4" WTB Intersector
Brakes
Brakes
174HUDSON Hydraulic Disc
Seat
Saddle
Selle Royal Essenza Comfort Sport
Seatpost
30.9mm 2-Bolt Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | MD/LG |
|---|---|---|
| Stack Reach Ratio | 1.538 mm | 1.502 mm |
| Bottom Bracket Height | 285 mm | 285 mm |
| Front Center | 656 mm | 696 mm |
| Rake | 42 mm | 43 mm |
| Trail | 98 mm | 97 mm |
| Stack | 603 mm | 631 mm |
| Reach | 392 mm | 420 mm |
| Top Tube Length | 585 mm | 622 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° |
| Seat Tube Length | 455 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 130 mm | 160 mm |
| Chainstay Length | 448 mm | 448 mm |
| Wheelbase | 1095 mm | 1135 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Wheels | 27" | 27" |
