Bike details
Overview
Key information split into simple groups.

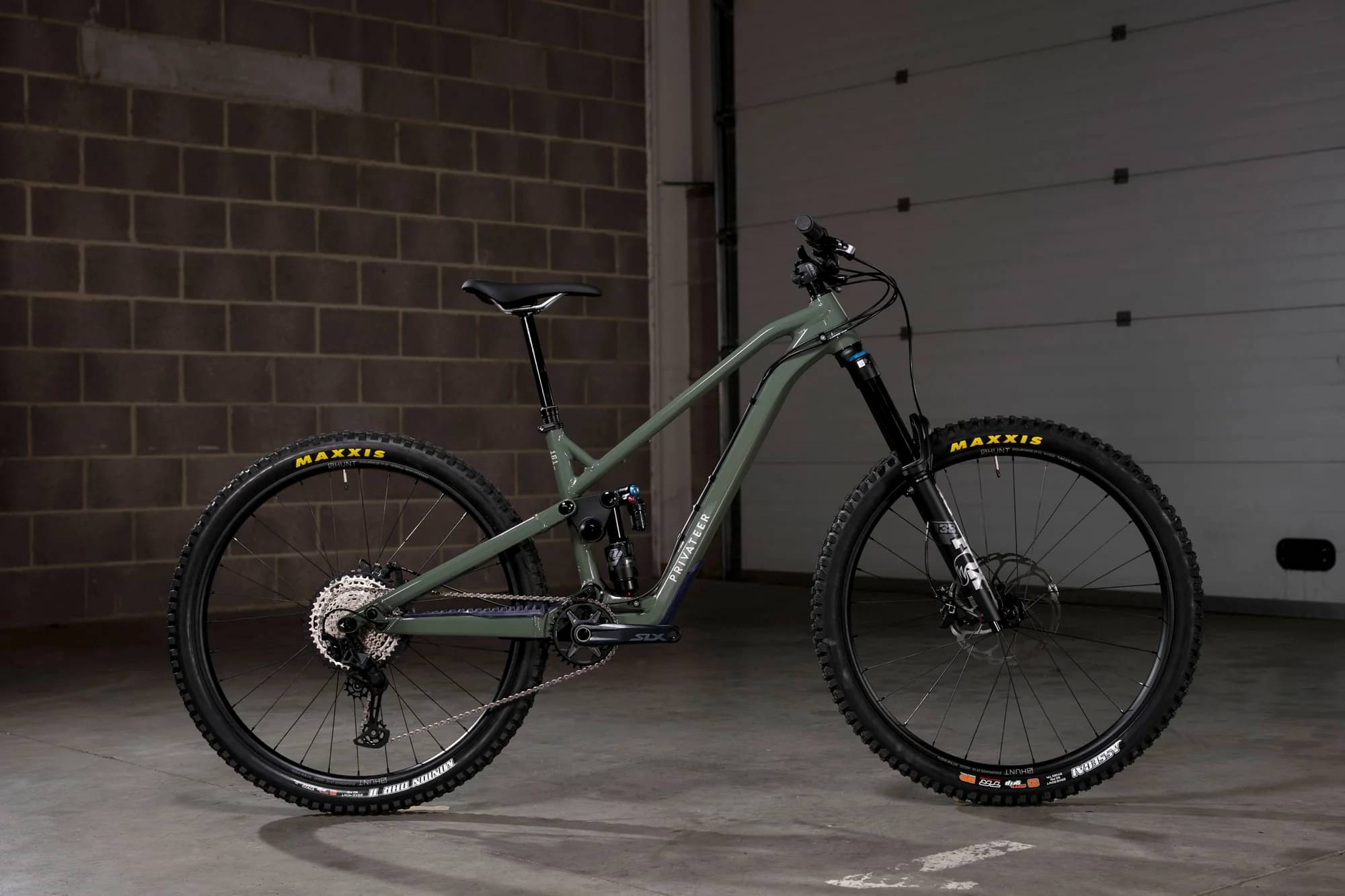

Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 161mm -
Fork Fox Performance Elite Float 38
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hayes Dominion A4 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame

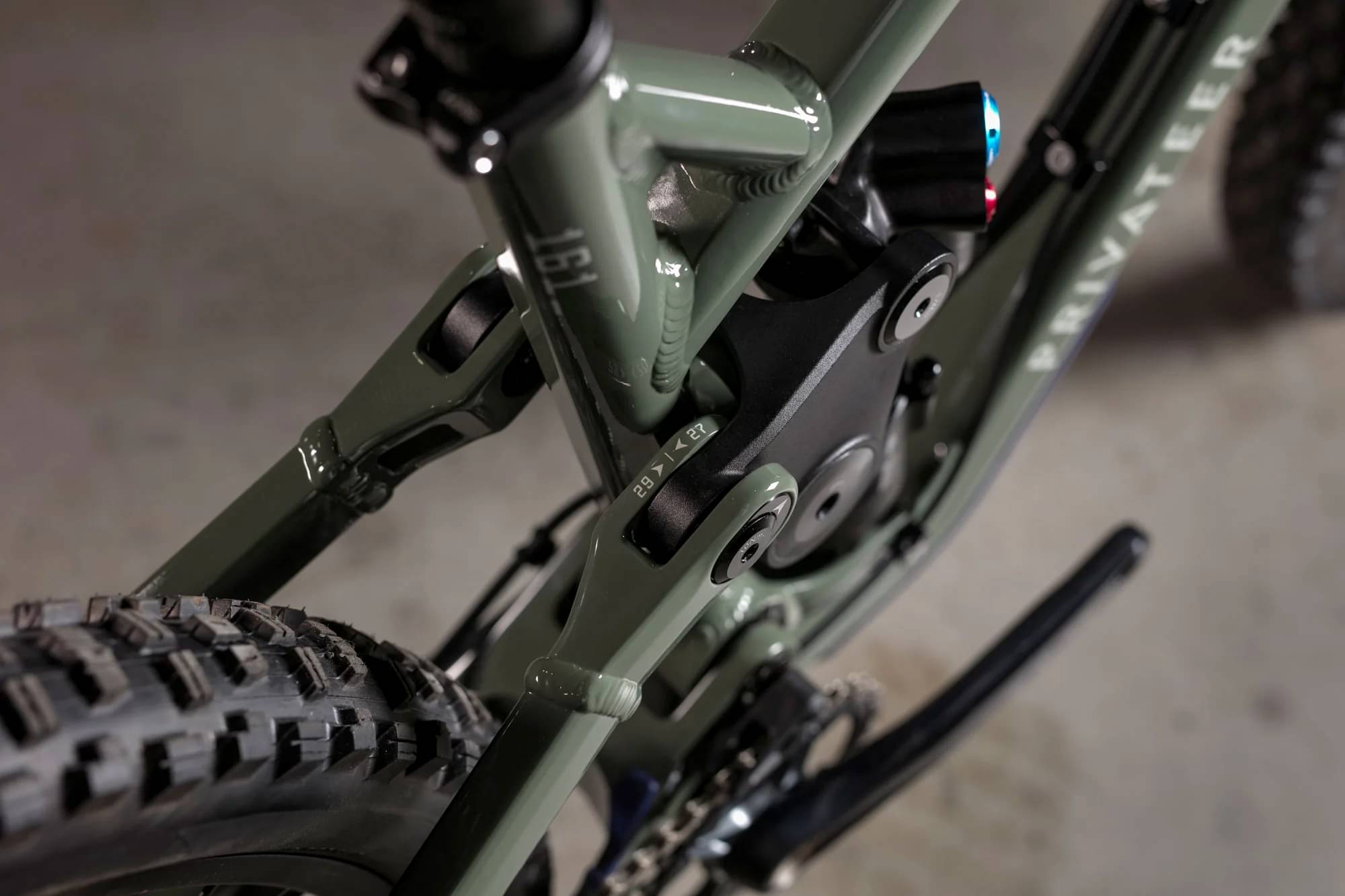

Frame
6061-T6 Aluminium. 161mm Travel.
Suspension Fork
Fox 38 Performance Elite, 44mm offset, 170mm travel

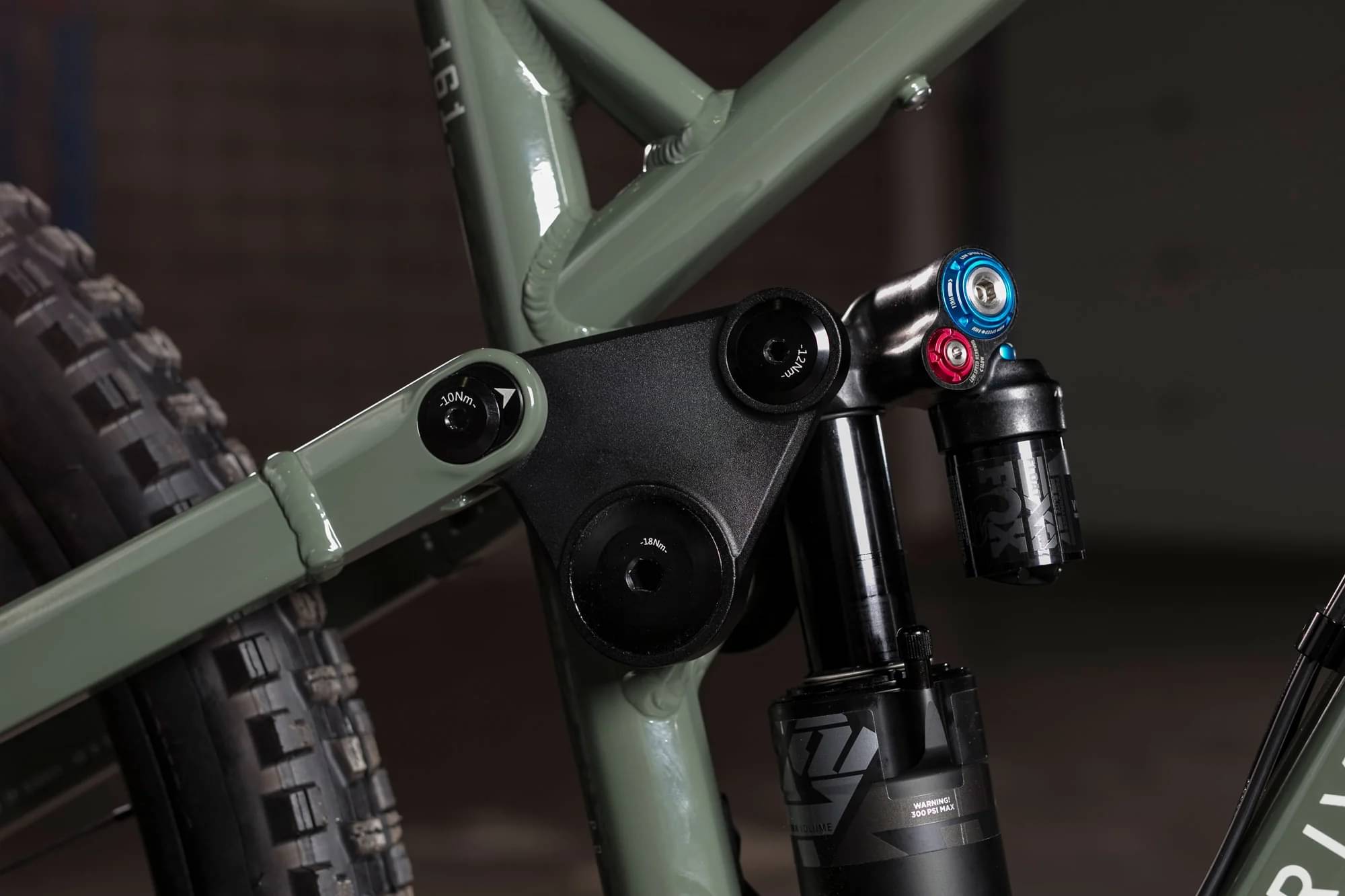

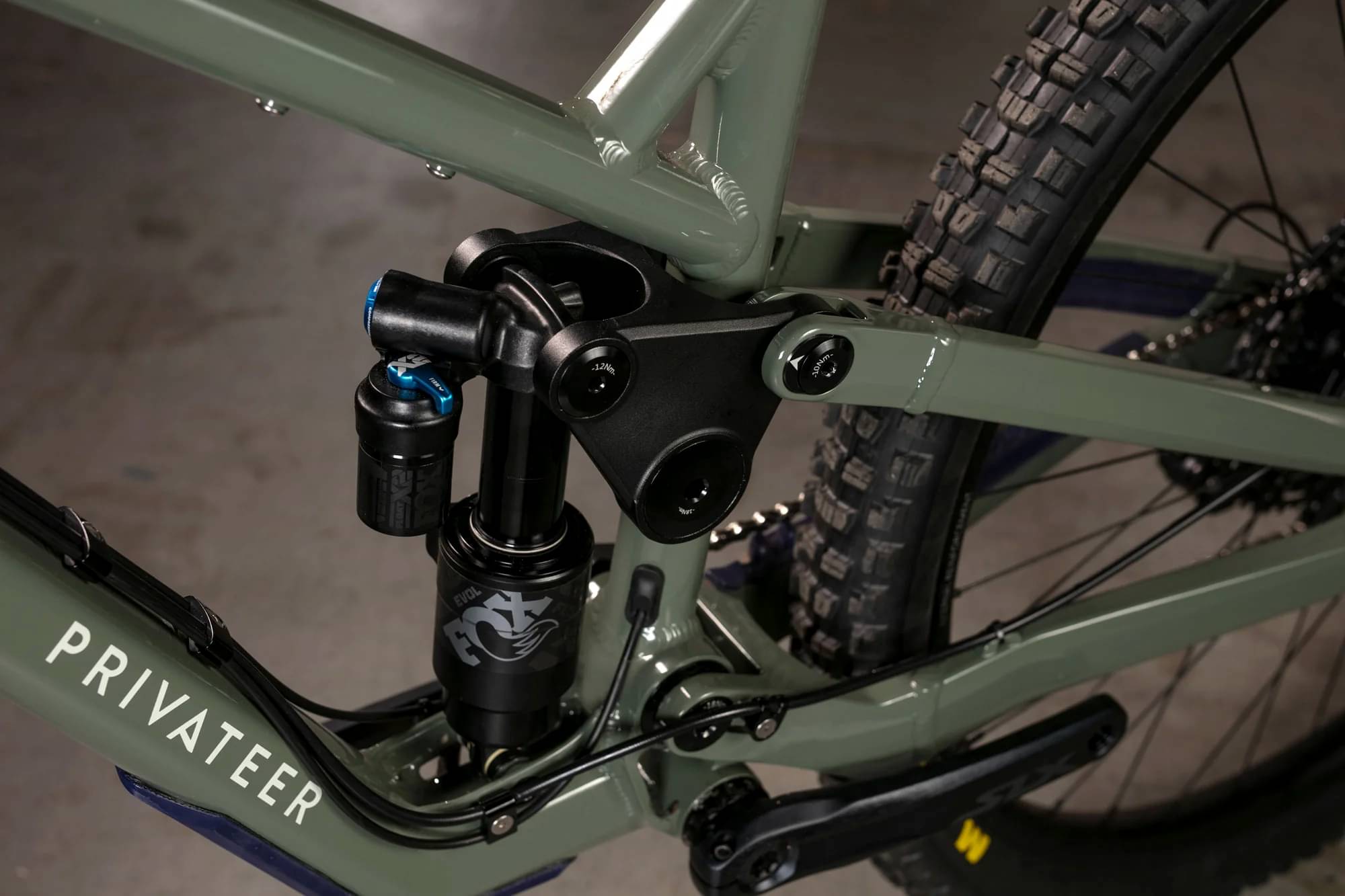

Rear Shock
Fox Float X2 Performance Elite, Custom Tuned, 205 x 60.
Drivetrain
Rear Derailleur
Shimano SLX, 12 Speed
Shift Levers
Shimano XT
Cassette
Shimano SLX, 12 Speed, 10-51t

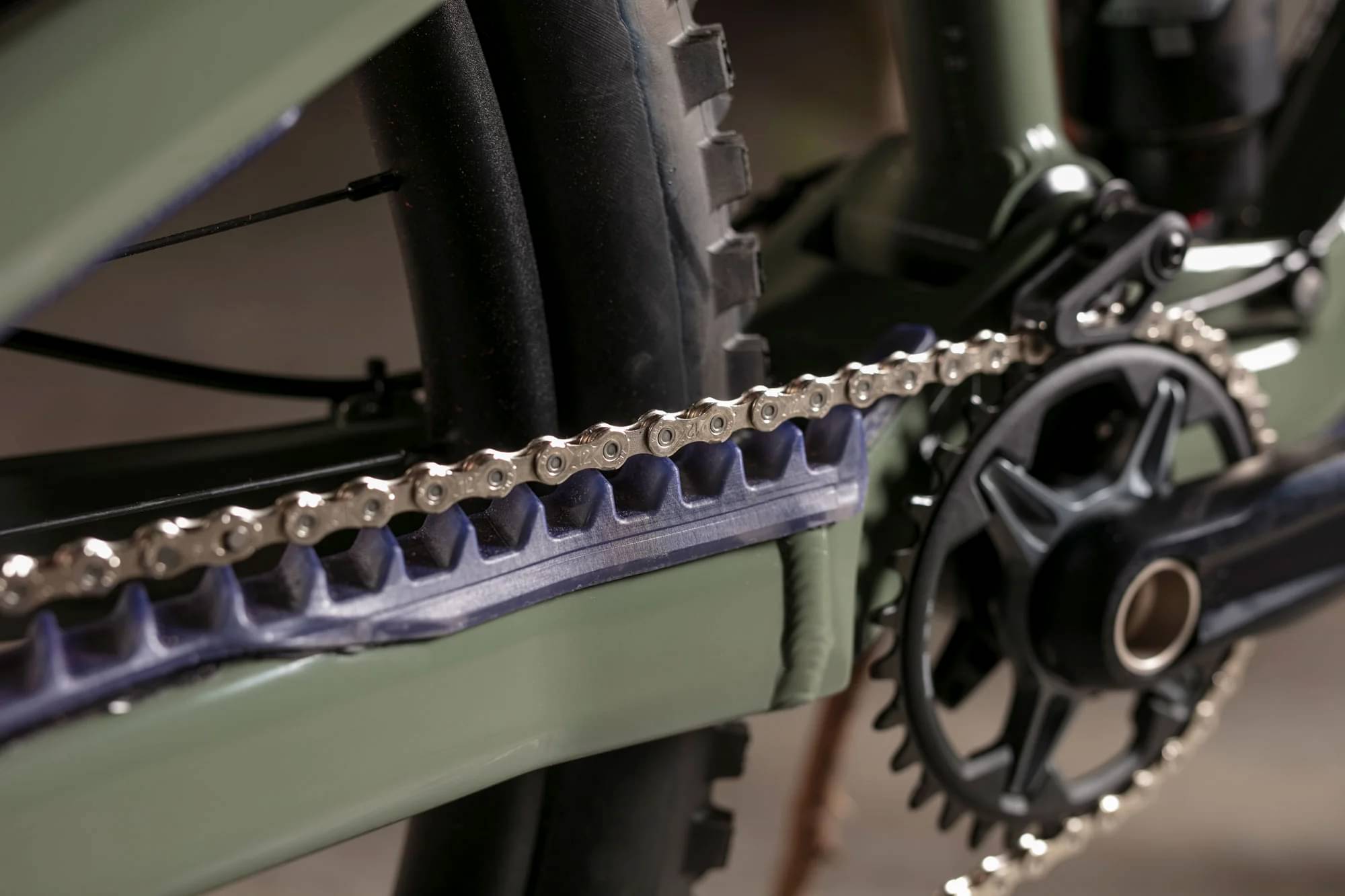

Crank
Shimano SLX 170mm, 32t
Chain
KMC X12
Wheels
Rims
HUNT Enduro Wide V2, 33mm Front/31mm Rear internal, 6069-T6 Rim. PSR Triple Butted spokes.
Tires
Front: Maxxis Assegai 29x2.5", MaxxGrip, Doubledown/TR, Rear: Maxxis Minion DHRII 29"x 2.4", 3C/DH/TR, MaxxGrip
Brakes

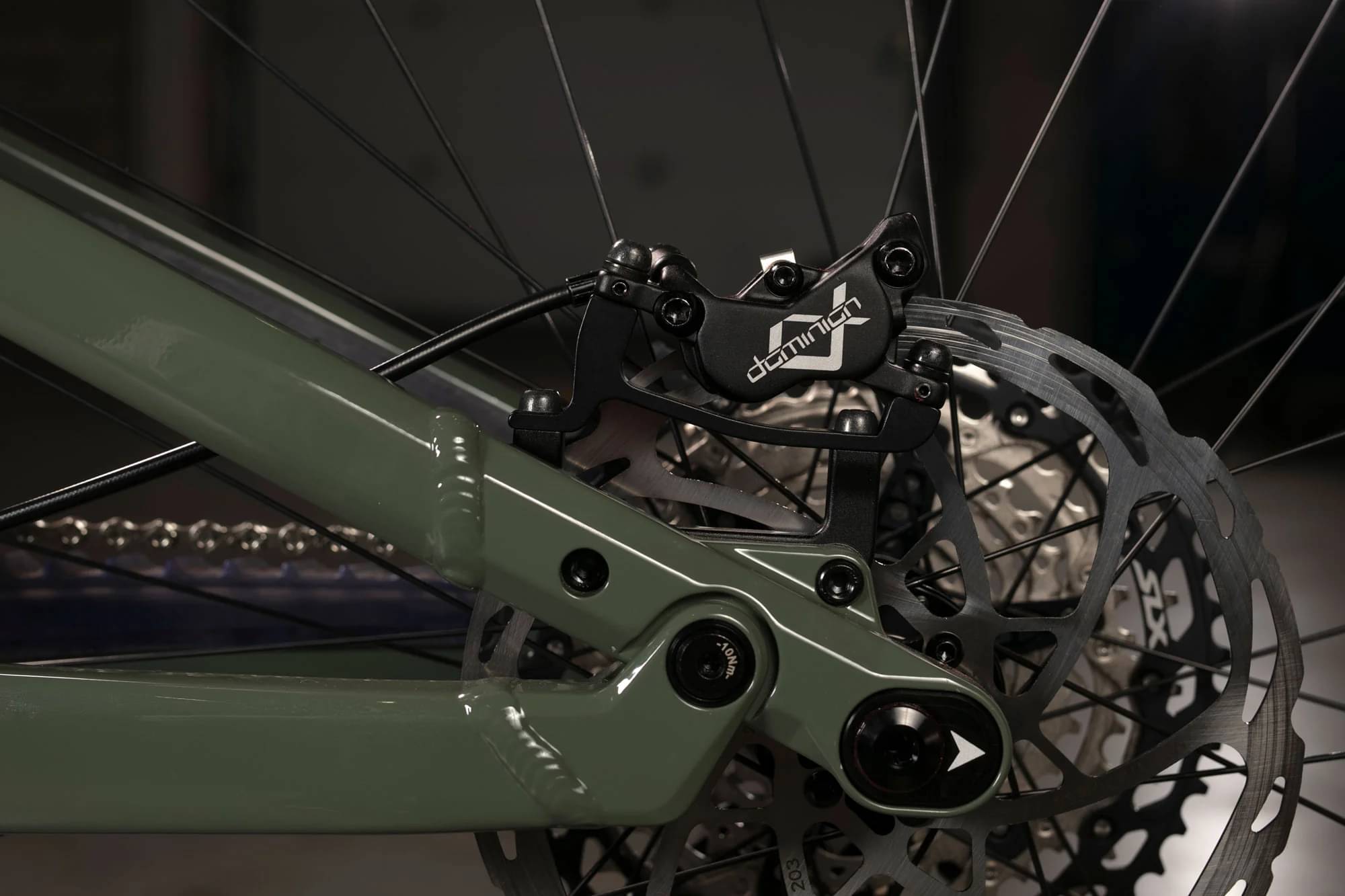

Brakes
Hayes Dominion A4 4 piston brake
Cockpit
Stem
RaceFace Aeffect R. 40mm. 35mm Clamp.
Handlebar
RaceFace Turbine. 800x20. 35mm Clamp
Grips
ProPalm, soft compound lock-on grip

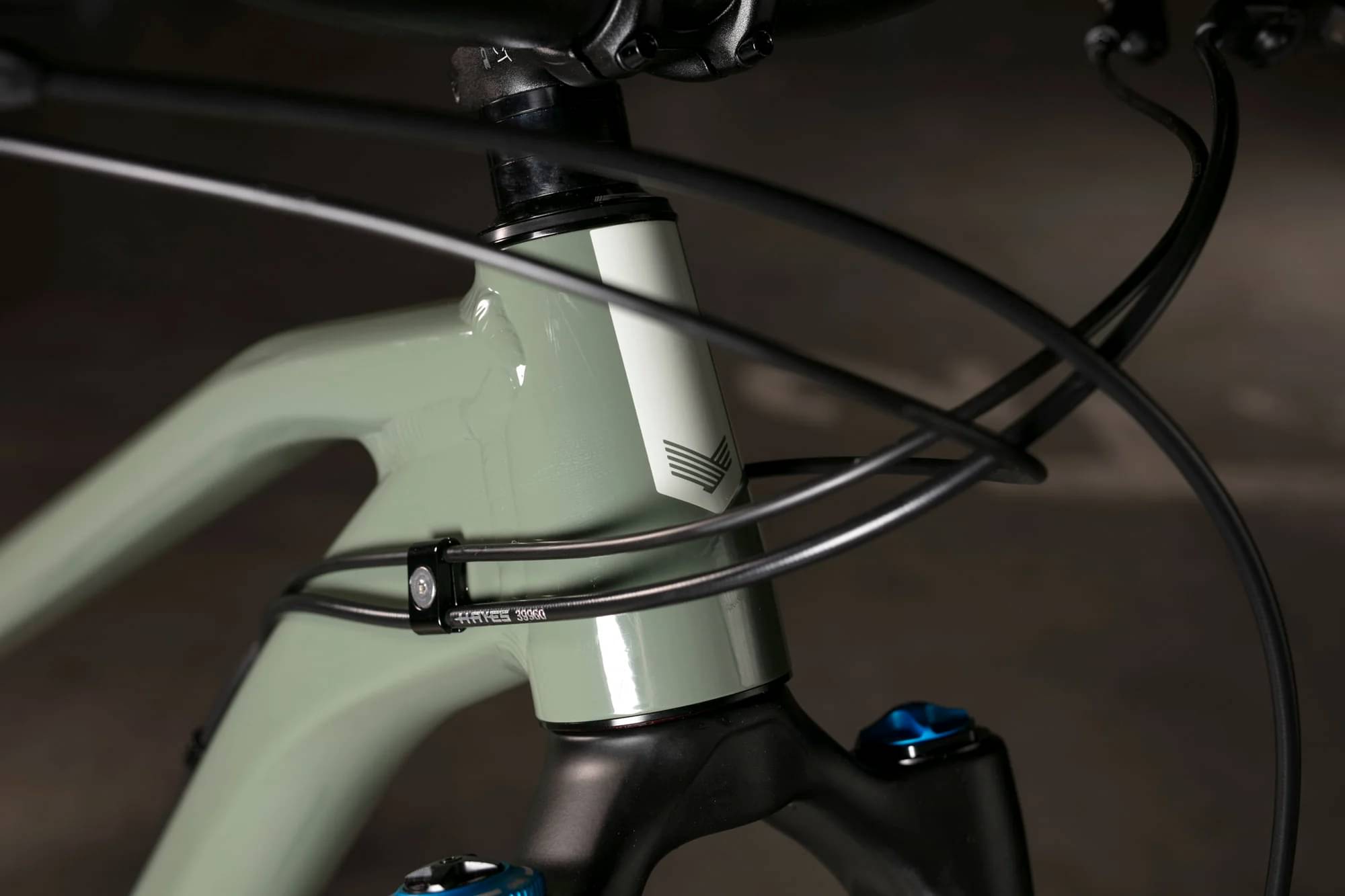

Headset
FSA ZS44/ZS56 fully sealed cartridge bearings
Seat
Saddle
Privateer Cro-Mo rail

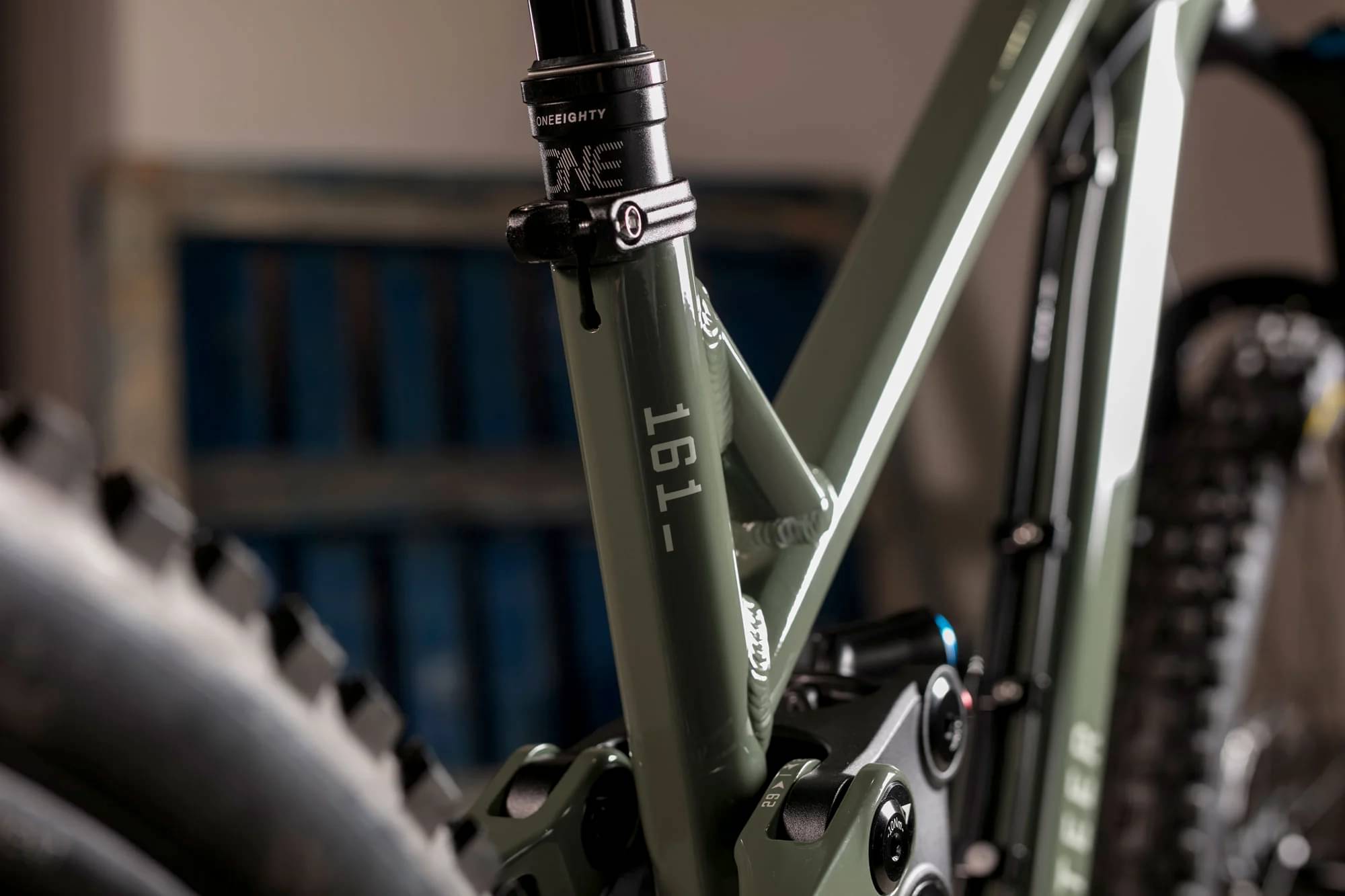

Seatpost
OneUp 1.6mm P1 = 150mm, P2-P4 = 180mm
Fit data

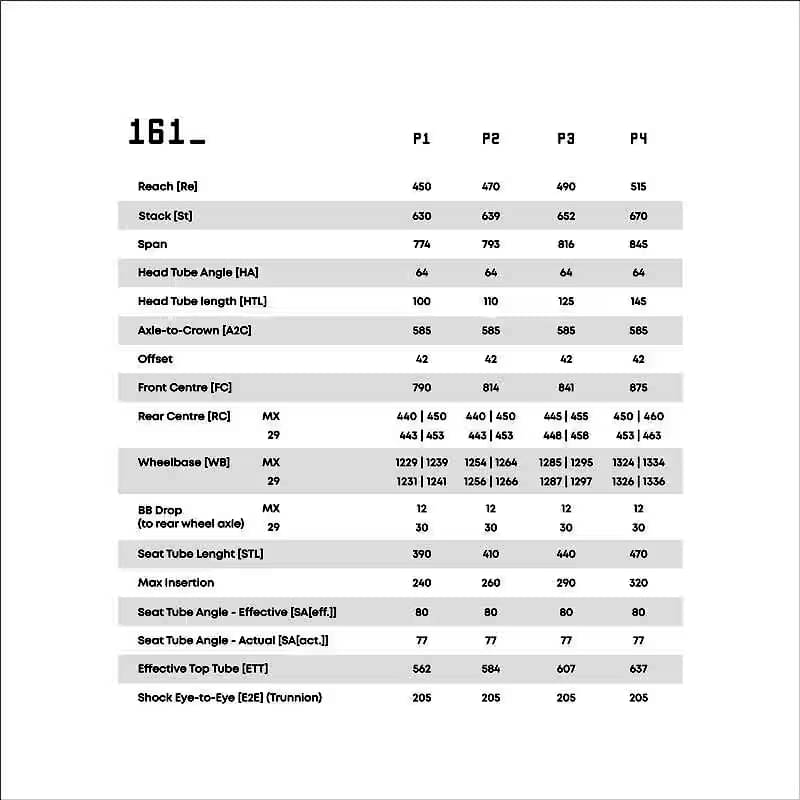

Geometry
Numbers for sizing and ride feel.
| Size | P1 | P2 | P3 | P4 |
|---|---|---|---|---|
| Wheels | 27" | 29" | 29" | 29" |
