Bike details
Overview
Key information split into simple groups.

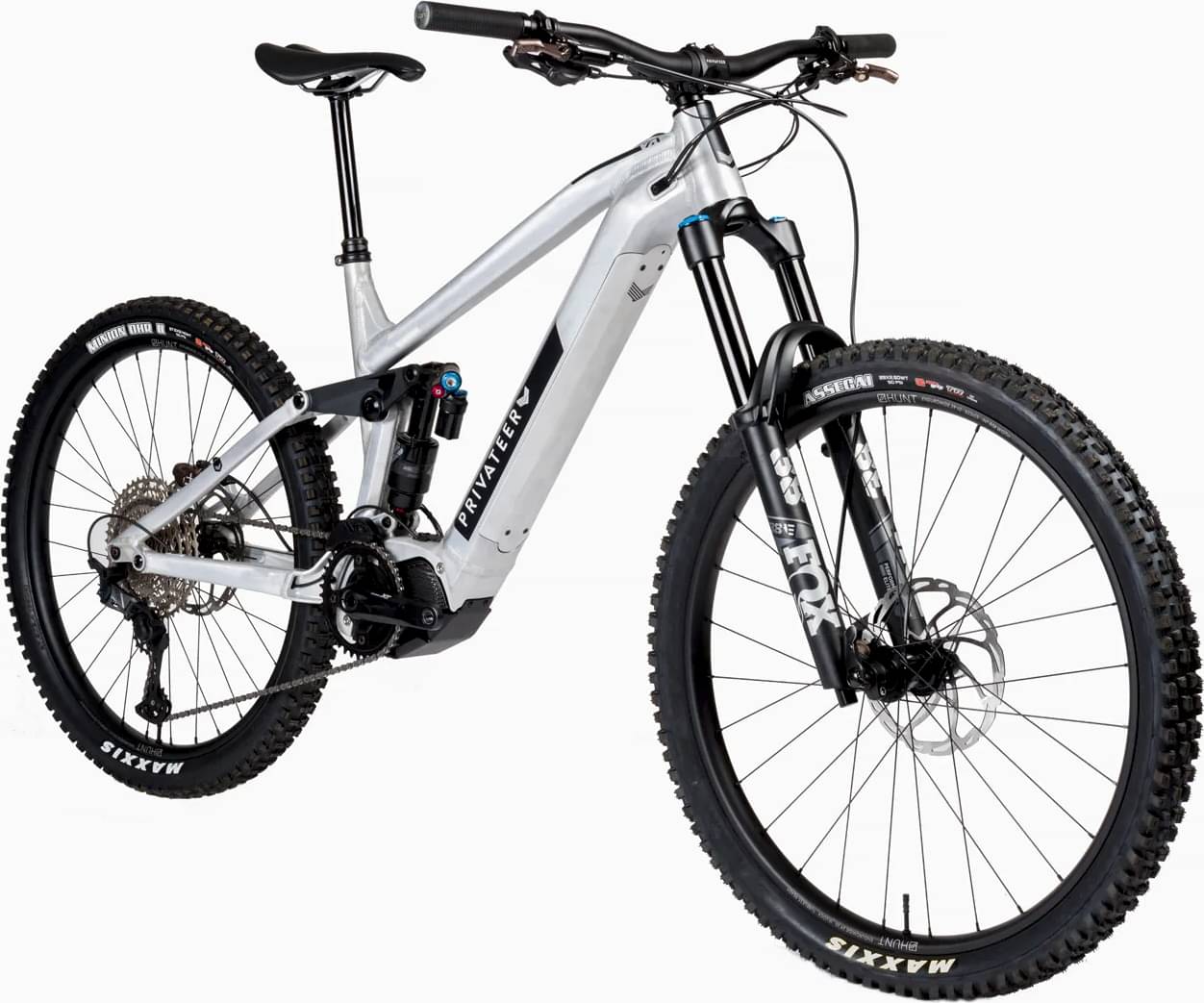

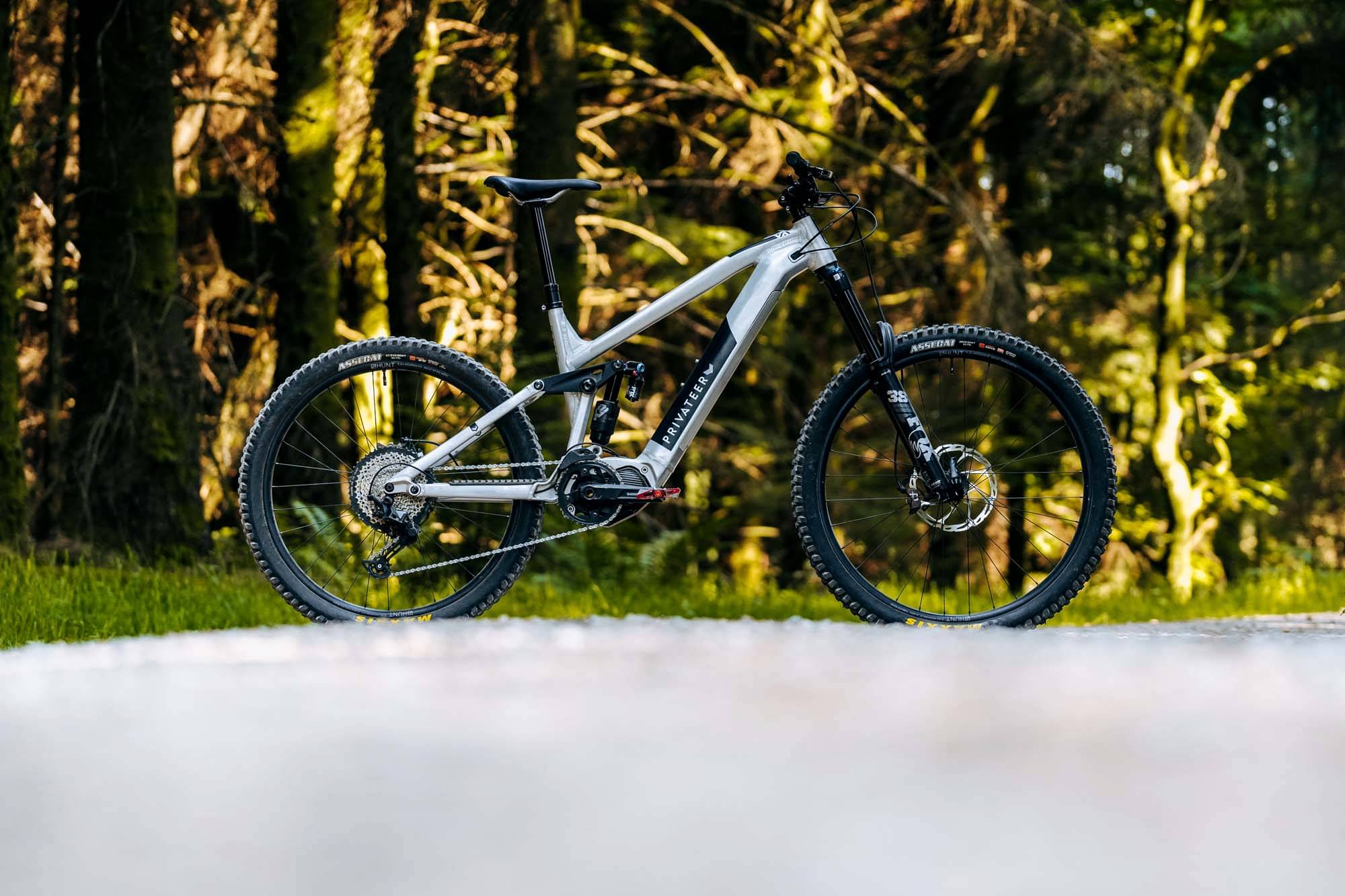

Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Fork Fox Performance Elite Float 38
-
Groupset SLX -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Shimano BT-EN806 630Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame

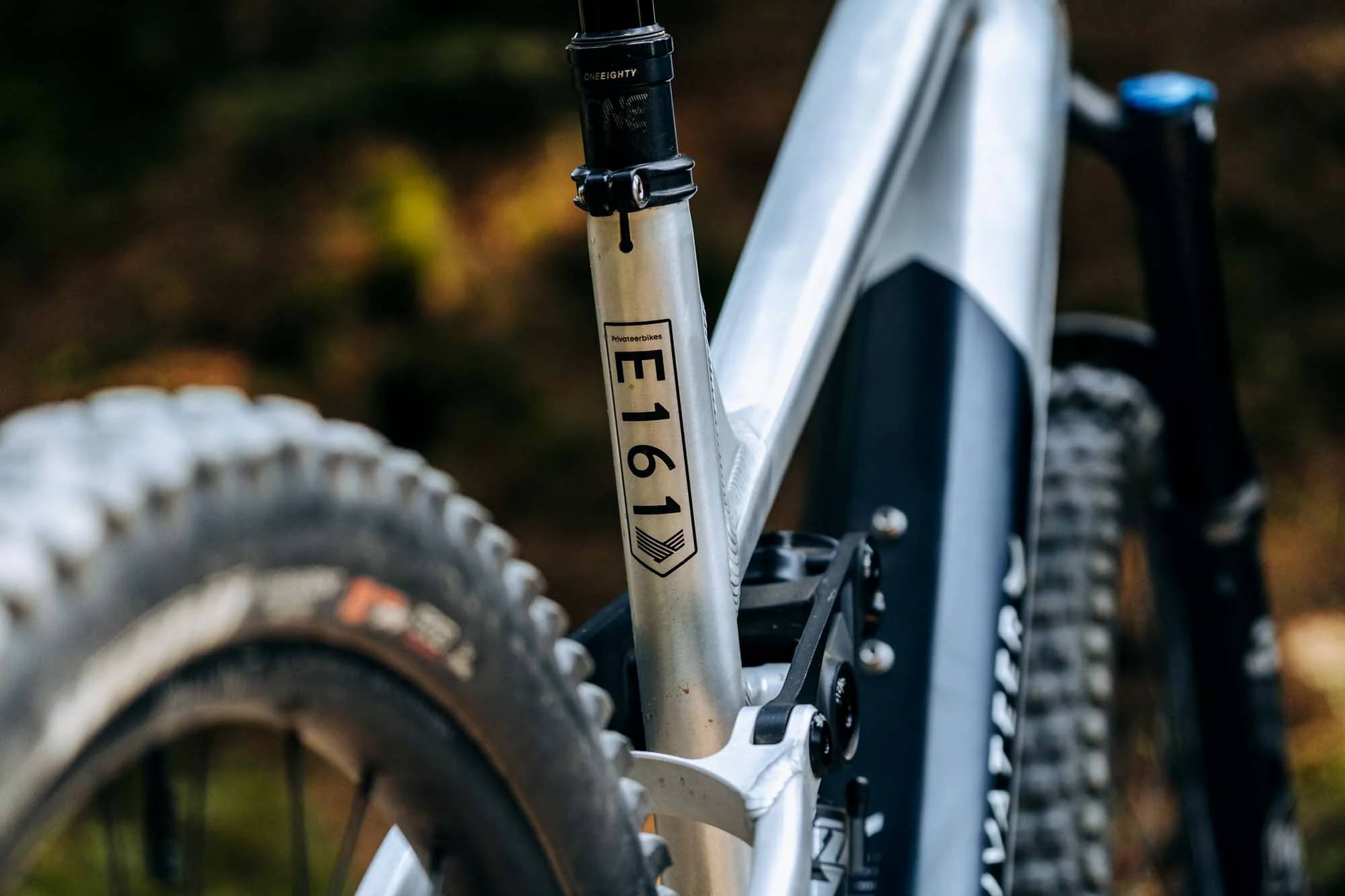

Frame

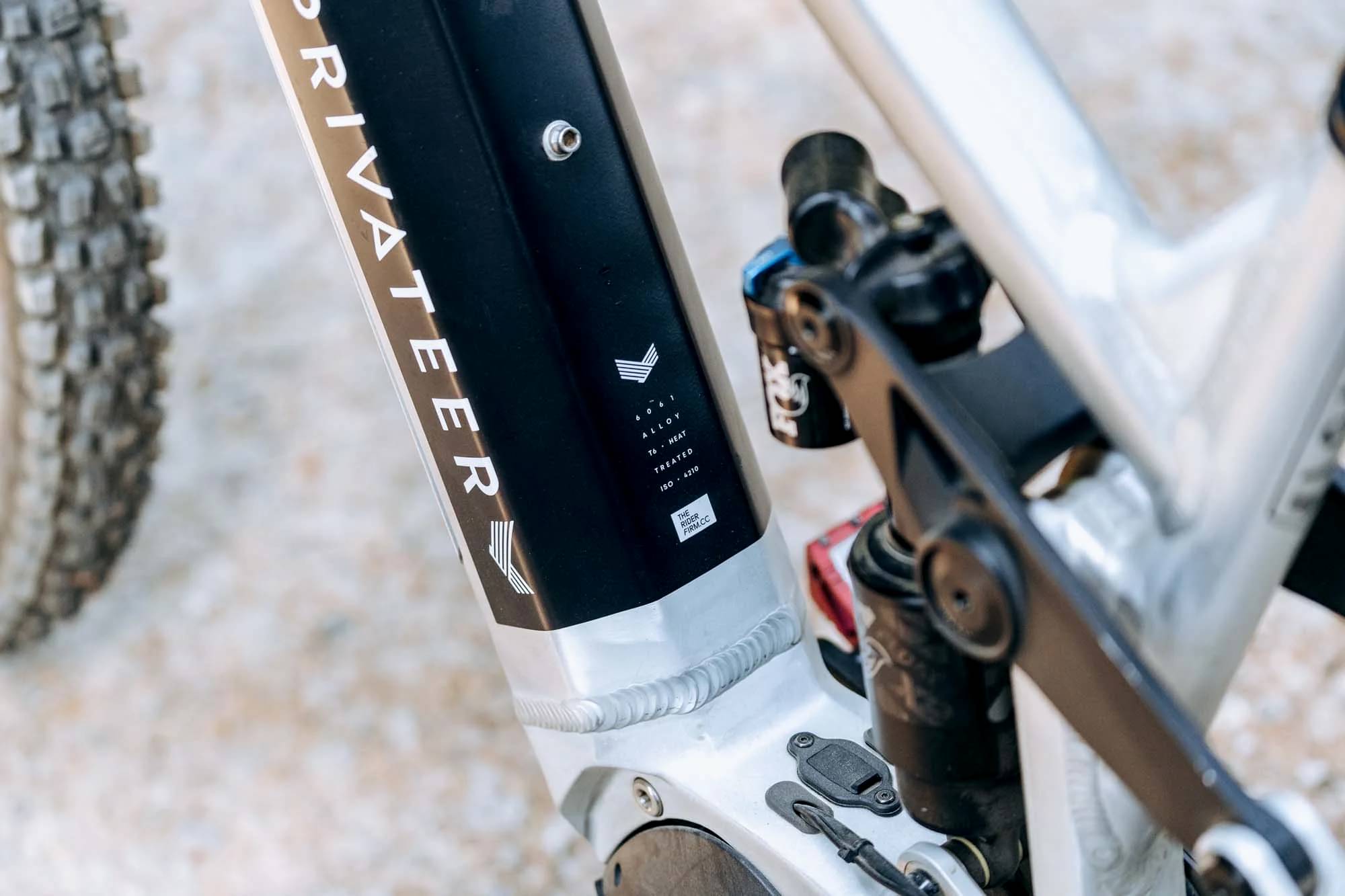

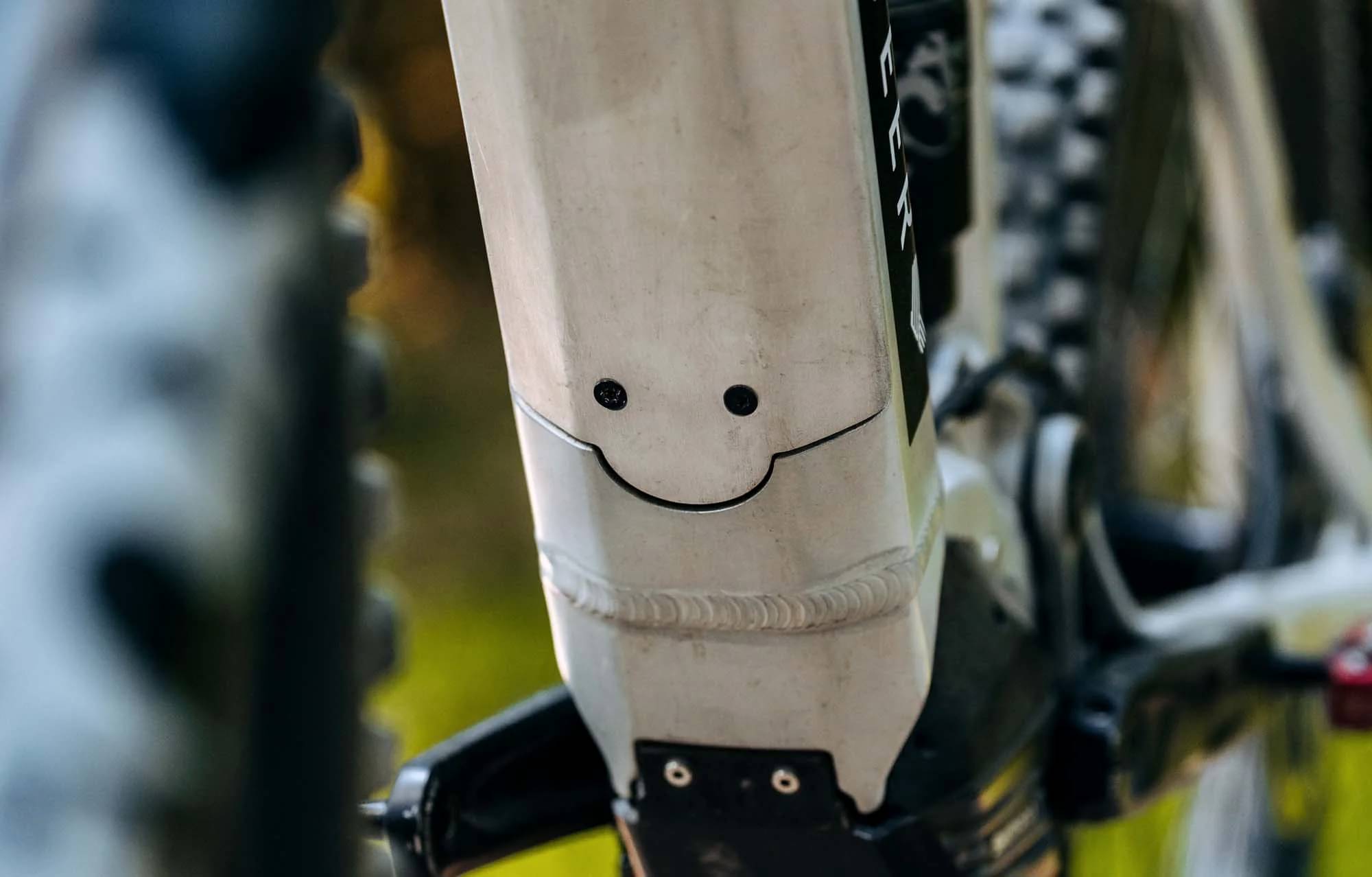

6061 T6, with integrated motor shell, internal battery housing, anodised motor bash guard.
Suspension Fork
Fox 38 Performance Elite E-Bike+, 29”, 170mm travel, Grip 2, HSC, LSC. 15 x 110 QR axle
Rear Shock
Fox Float X2, Performance Elite, 205x65TR, CX004, ECR012, Rezi BX001, LSR, HSR, LSC, HSC, 2 Position Pedal Platform
Drivetrain
Rear Derailleur
Shimano SLX, 12 Speed
Shift Levers
Shimano 12 speed

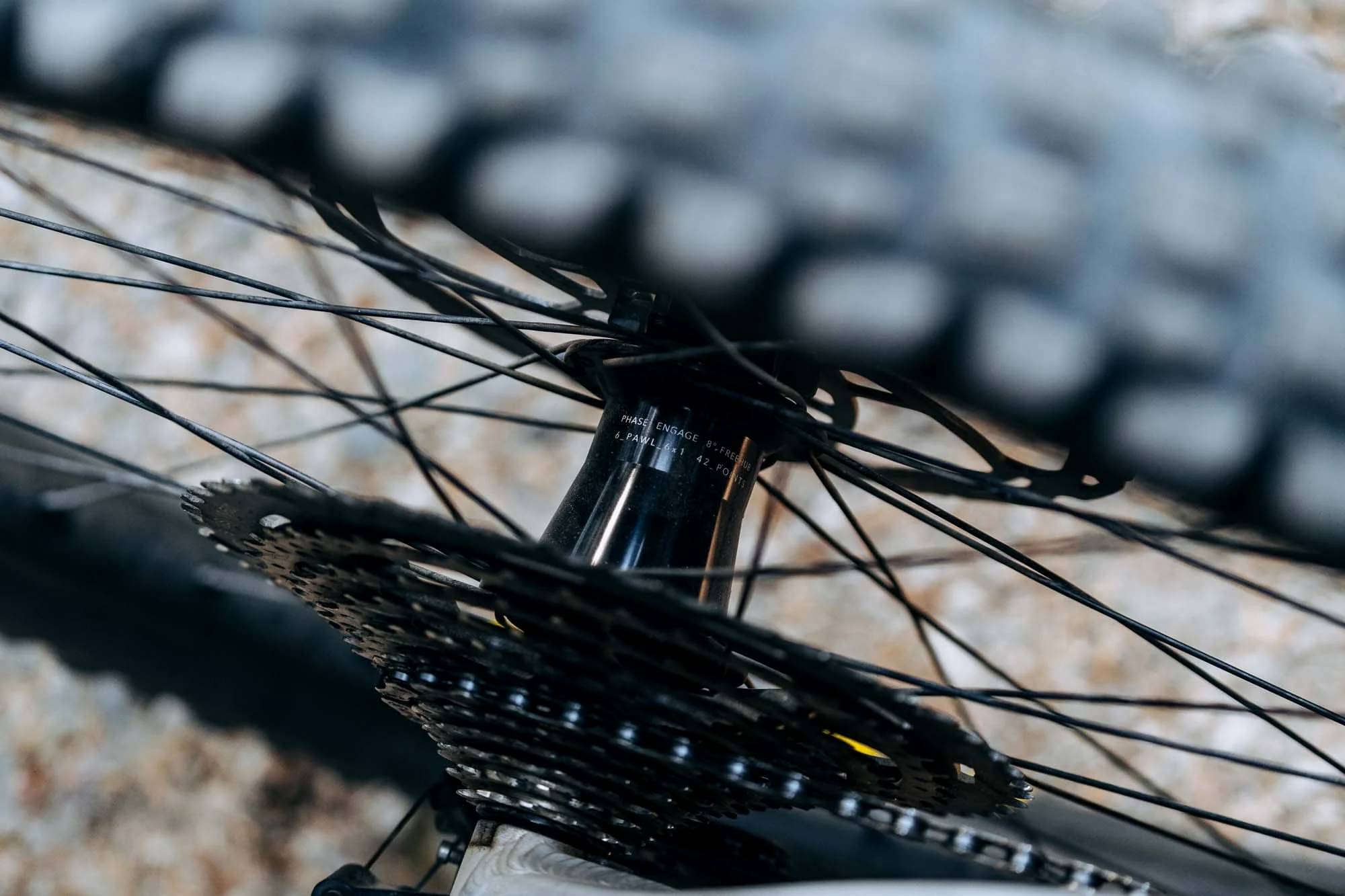

Cassette
Shimano SLX 12 Speed 10-51T
Crank
Shimano FC-EM600, 165mm
Chain
Shmano M6100 12 speed
Wheels

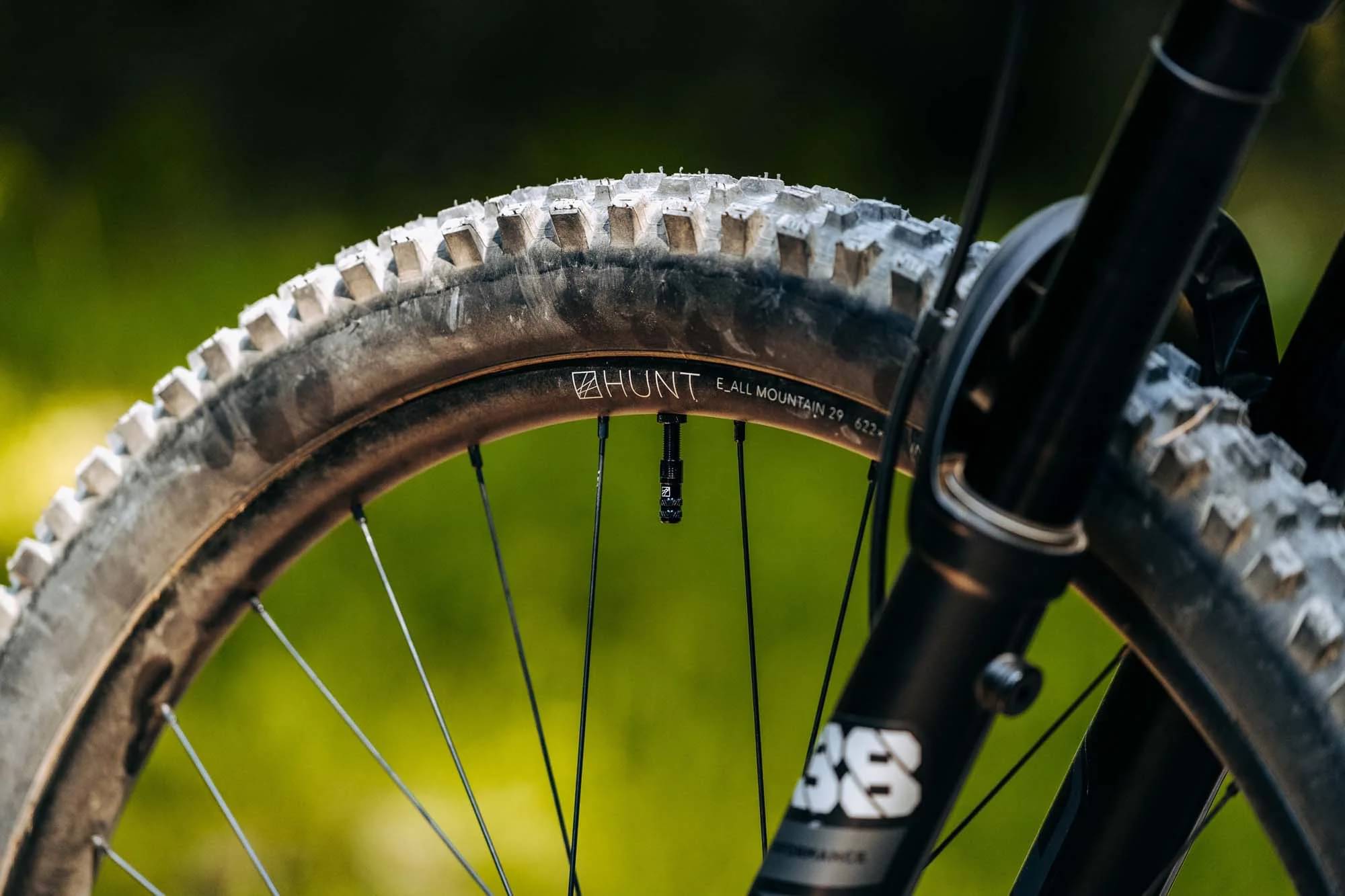

Rims
HUNT E All-Mountain 29" front, 27.5" rear
Tires
Front: Maxxis Assegai 29x2.5", MaxxGrip, 3CG/TR/DH, Rear: Maxxis Minion DHRII 27.5"x 2.4", Maxx Grip; 3CG/TR/DH
Brakes
Brakes

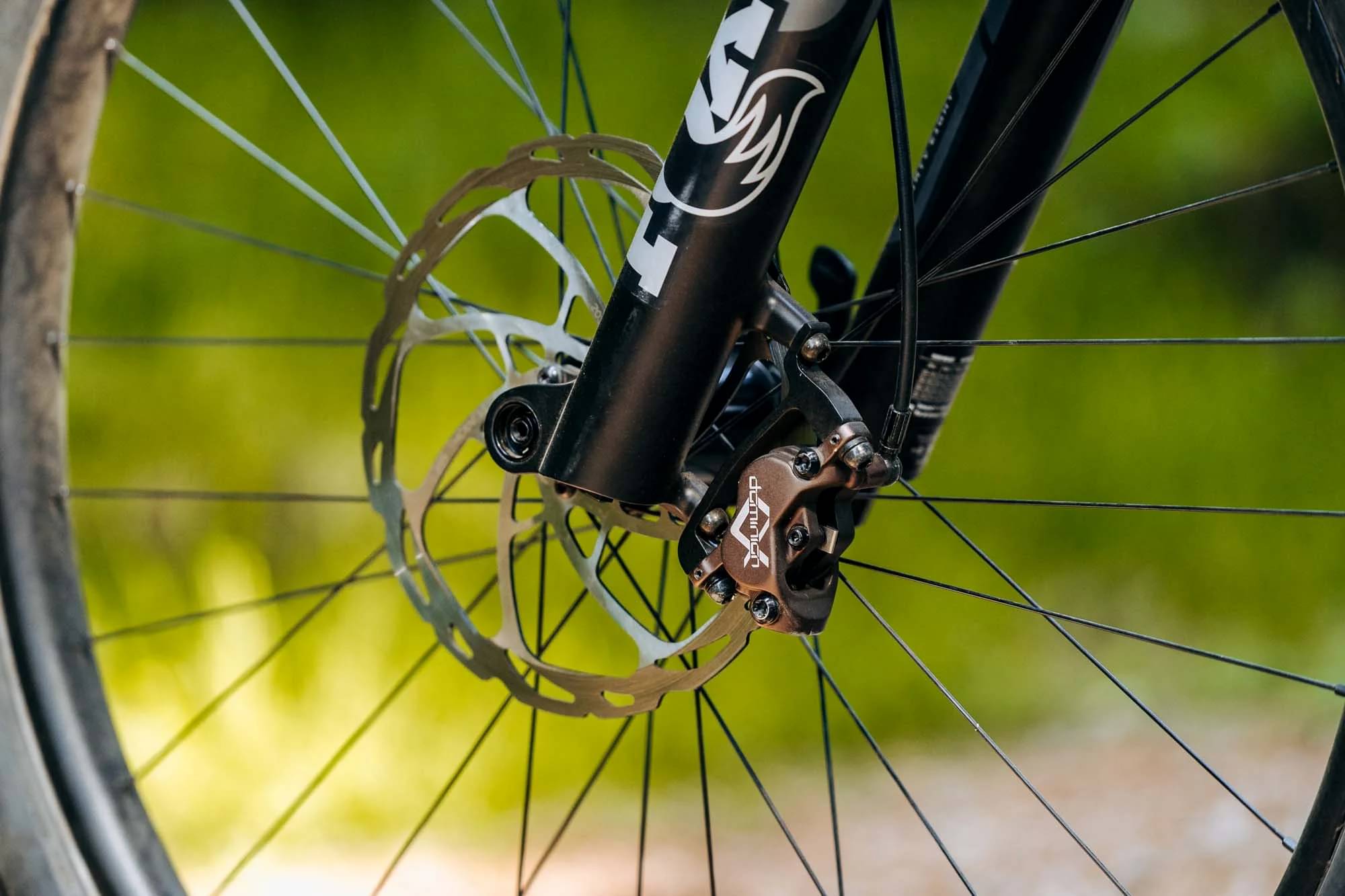

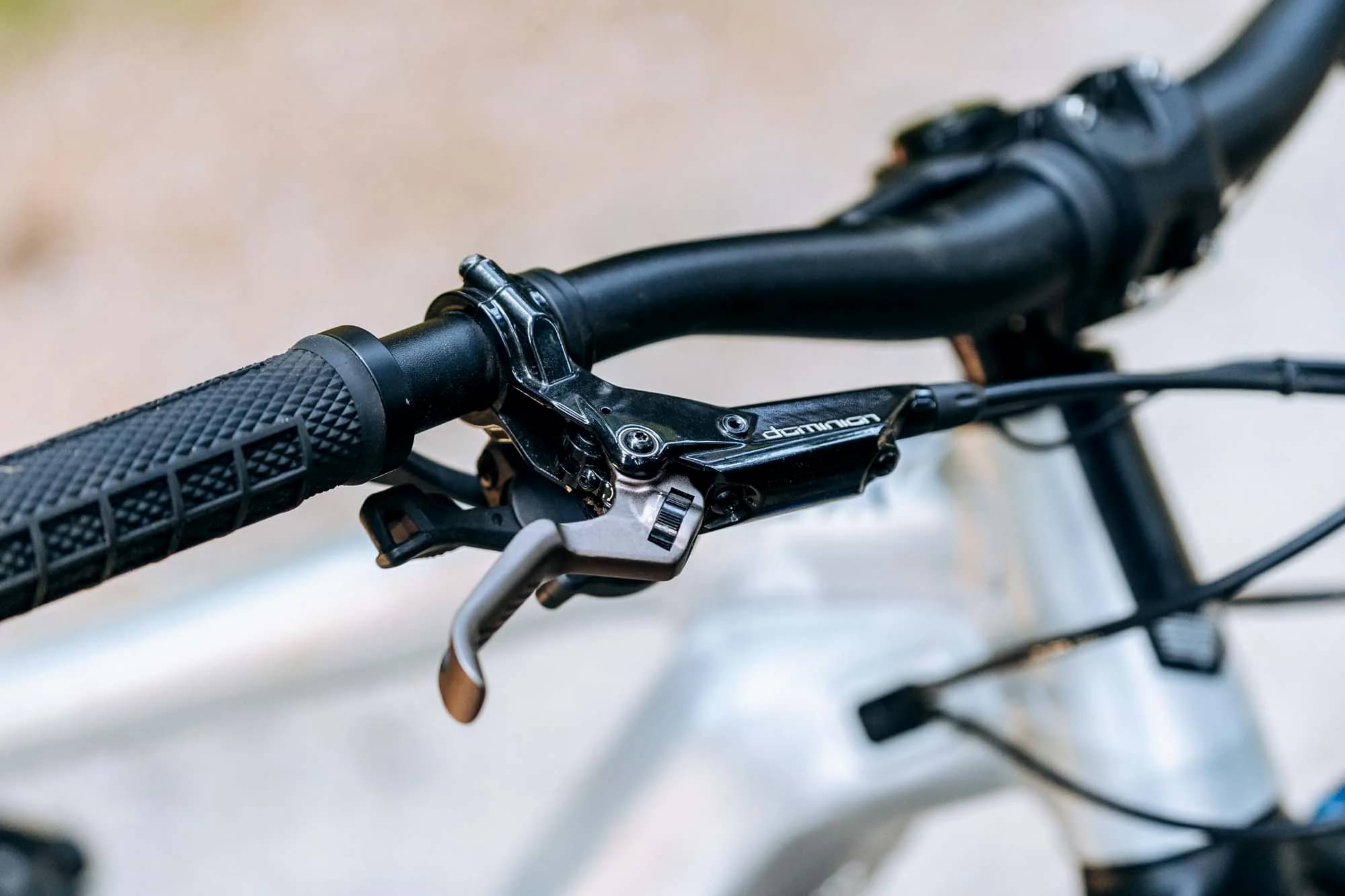

Hayes Dominion A4 4 piston brake
Cockpit

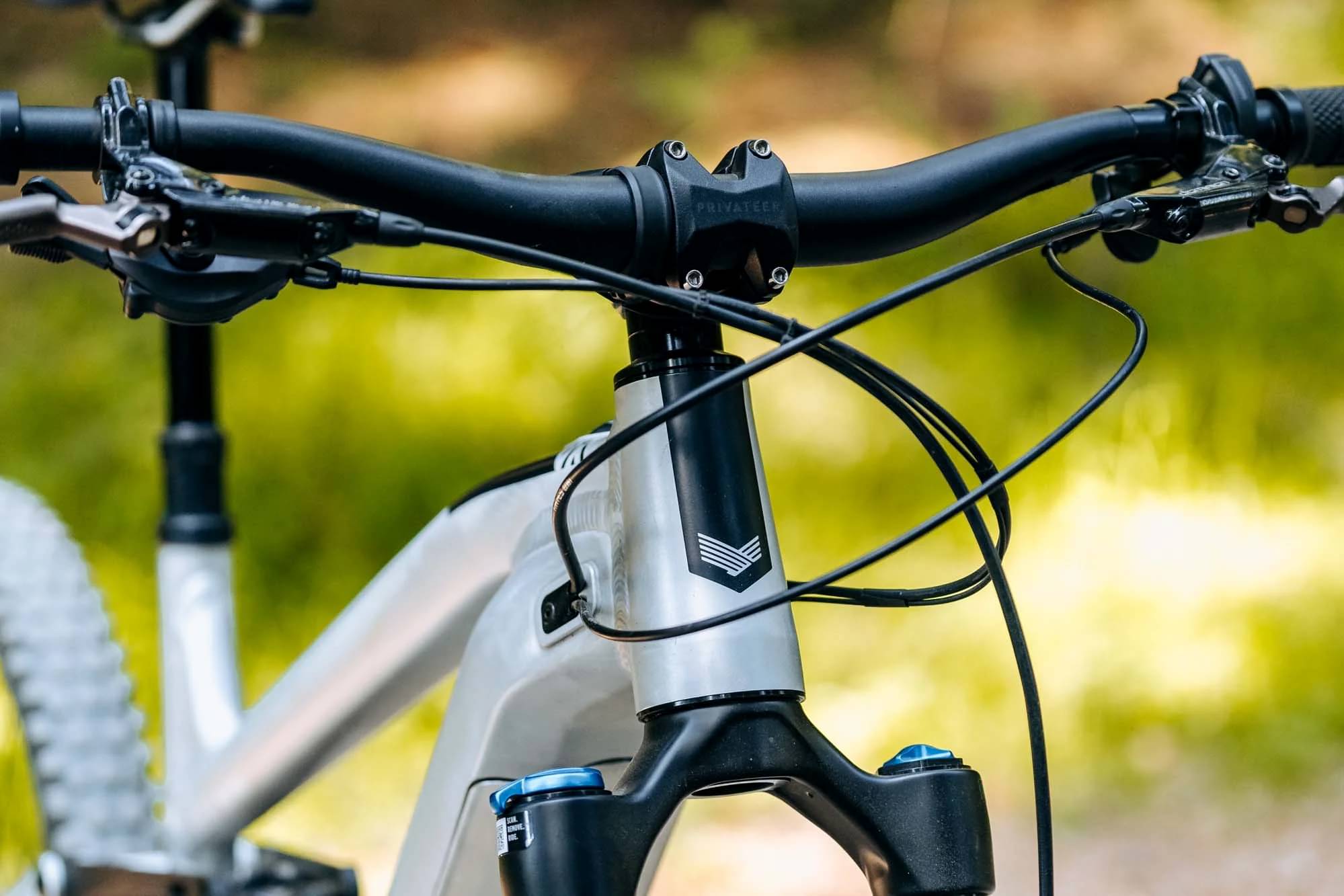

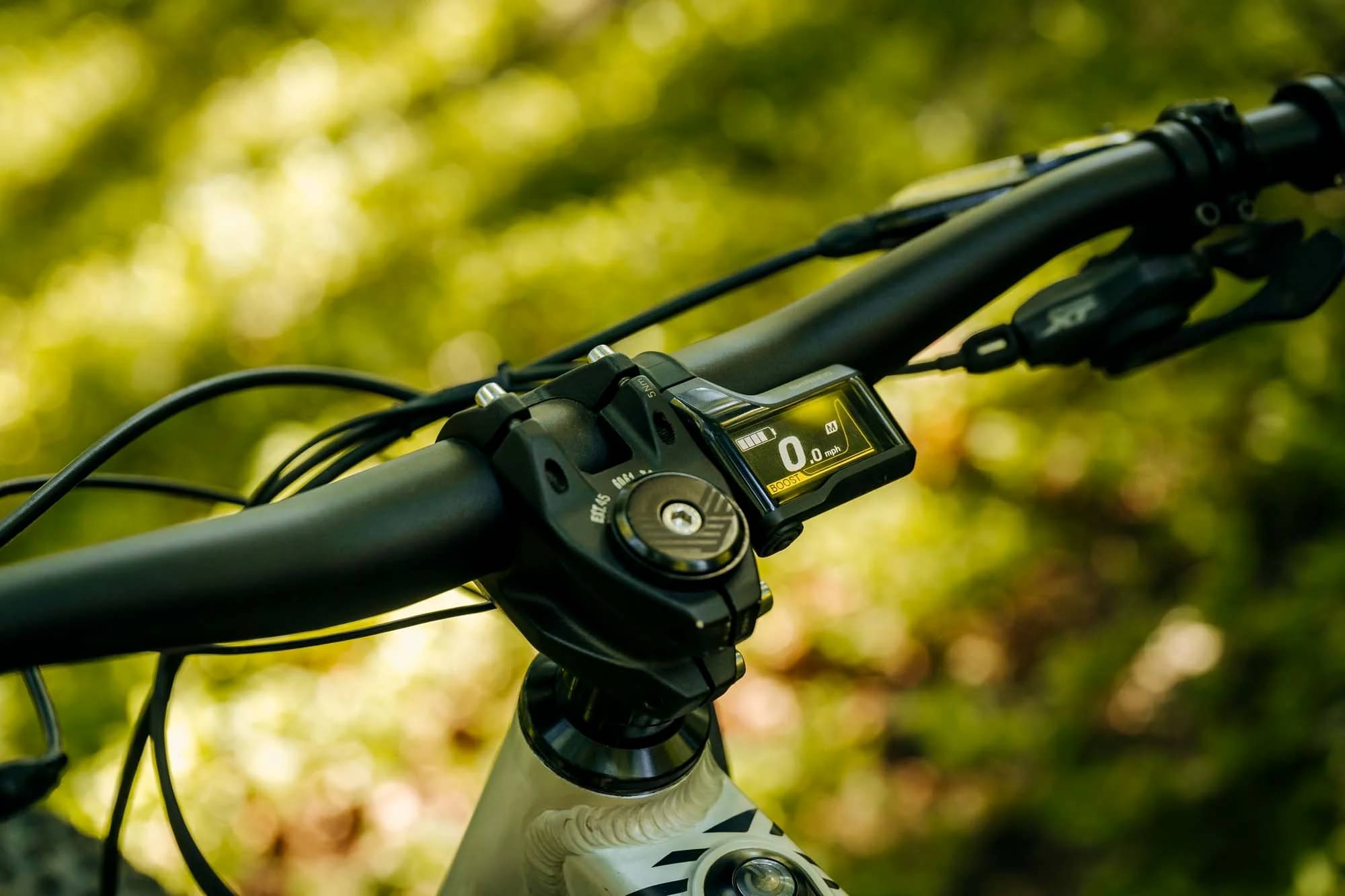

Stem
6061 alloy 40mm, 35mm diameter, black
Handlebar
Custom Privateer 35mm diameter, 30mm rise, 800mm wide
Grips
Propalm 130mm lock on grip
Headset
FSA ZS44/ZS56 sealed cartridge bearings
Seat
Saddle
DK cromo rail
Seatpost
OneUp 1.6mm P1 = 150mm, P2-P4 = 180mm
Motor & Battery

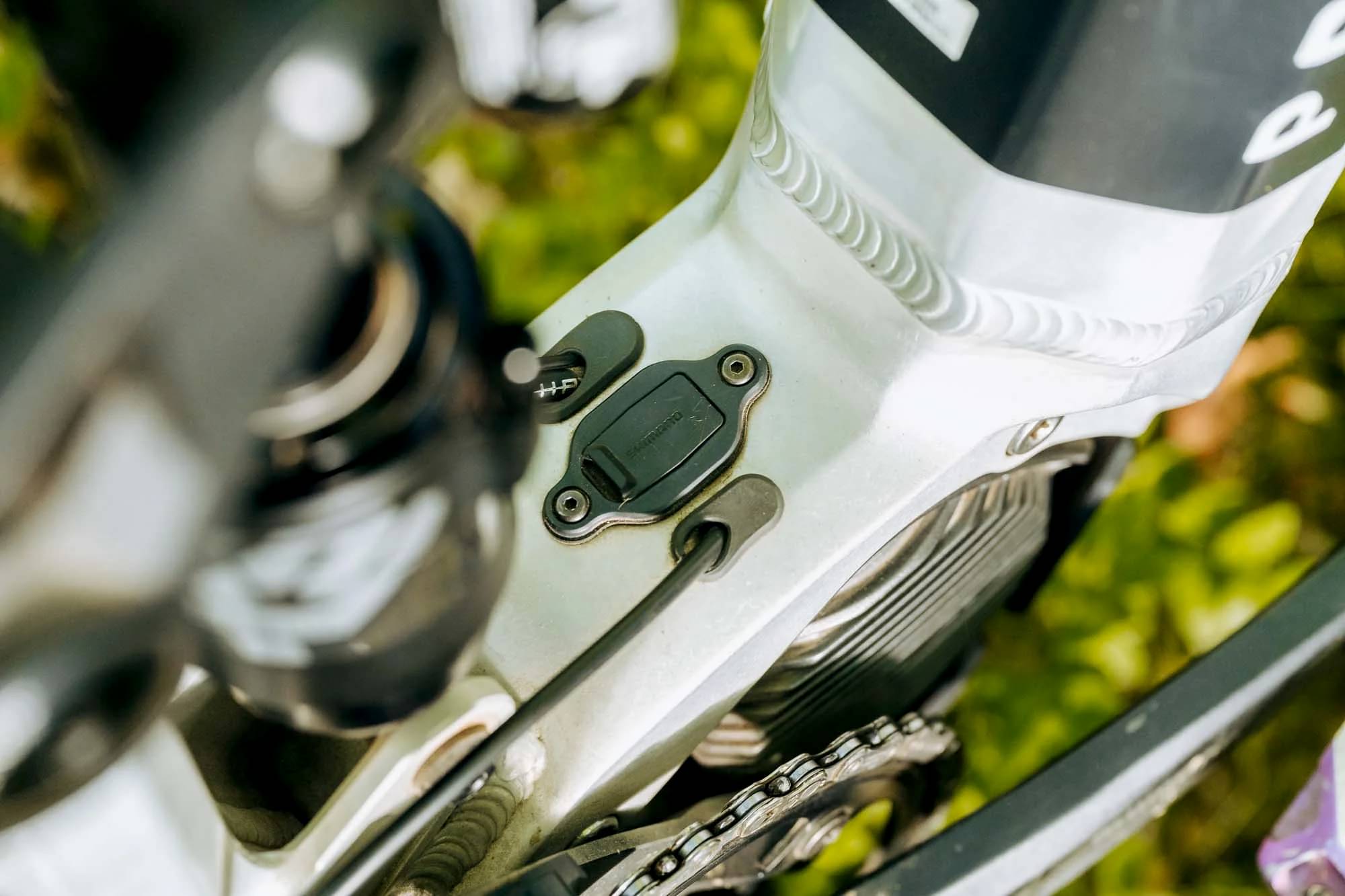

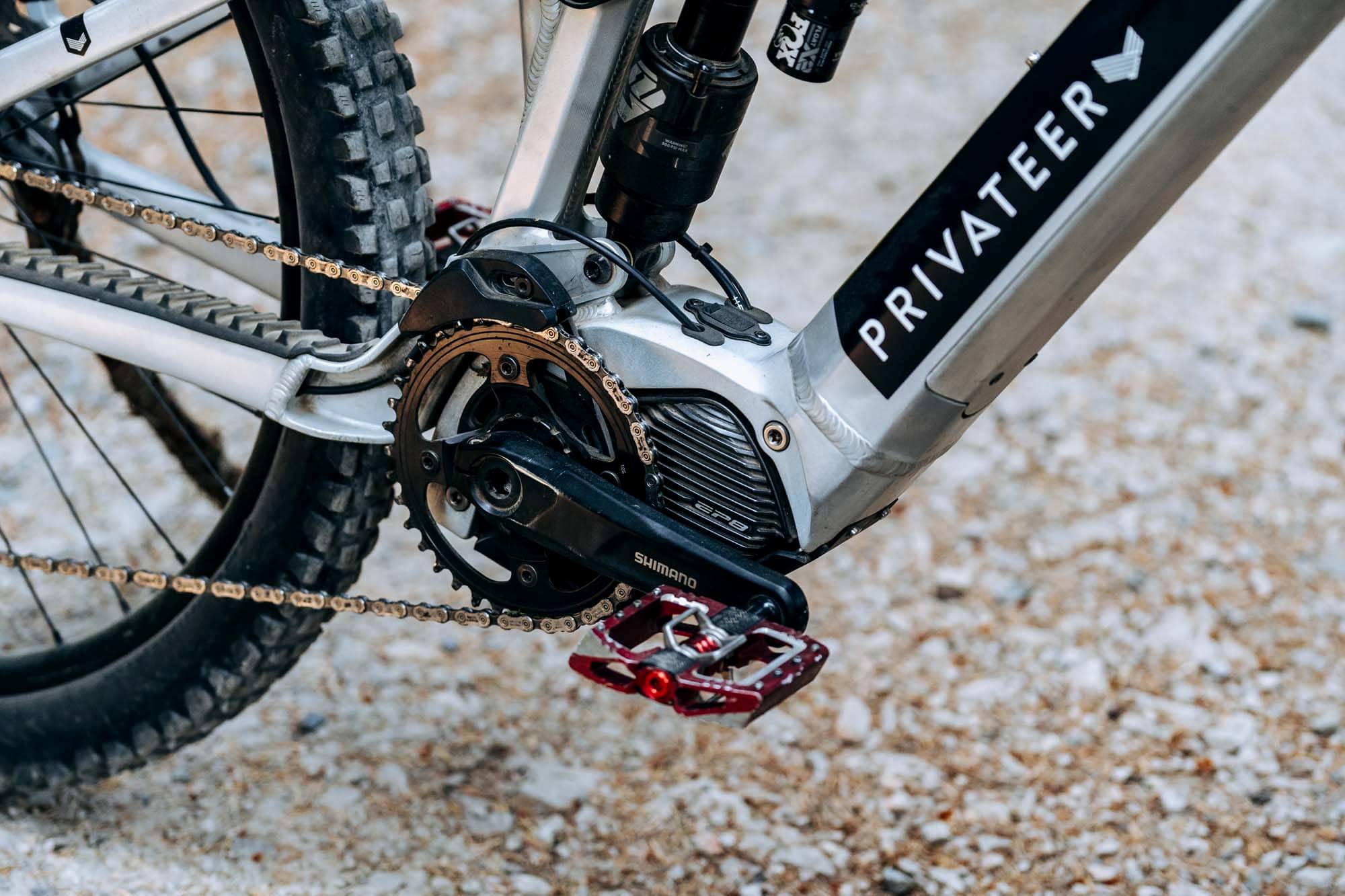

Motor
Shimano EP801, 85NM
Battery
Shimano BT-EN806 630Wh
Fit data

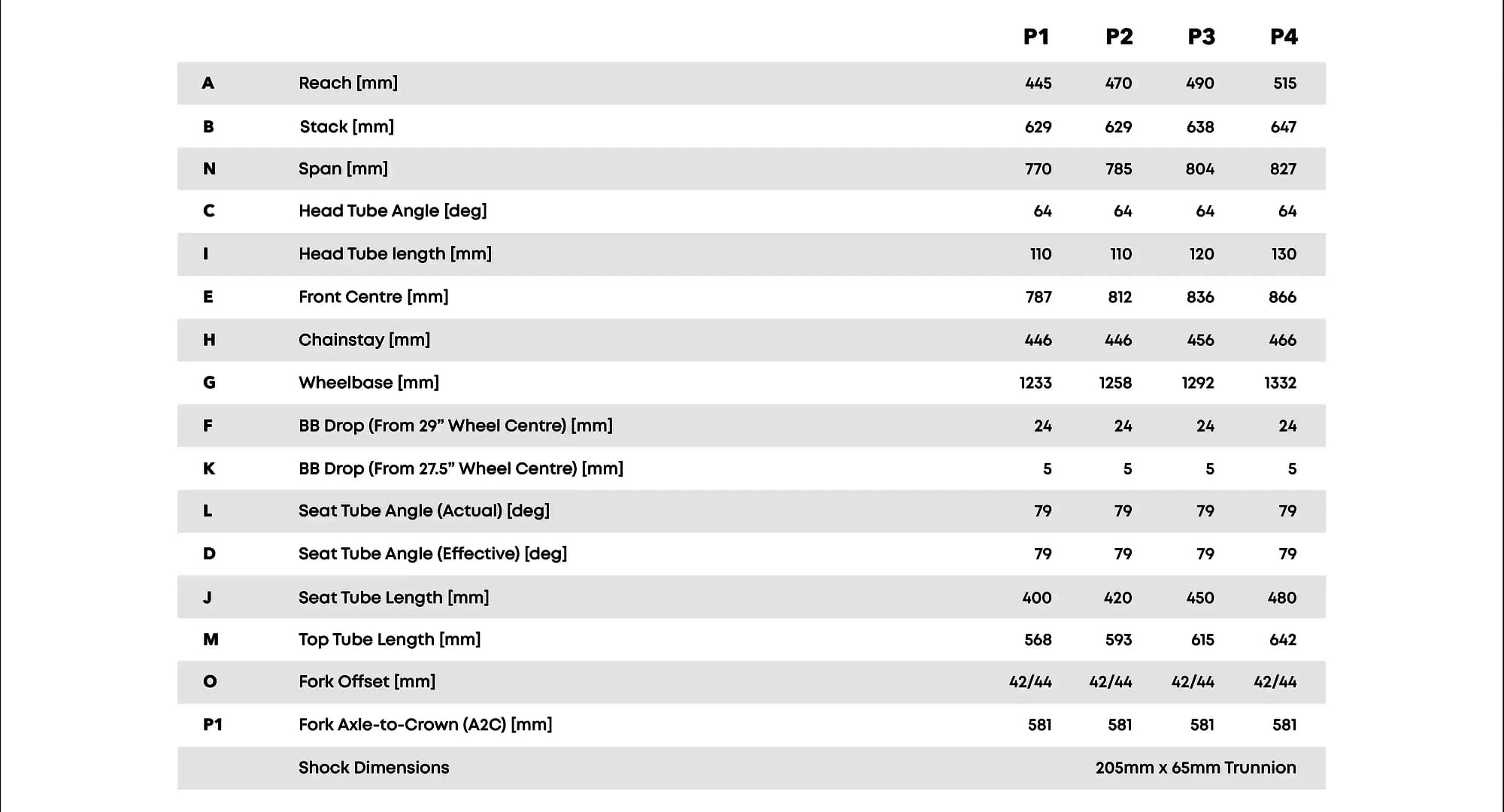

Geometry
Numbers for sizing and ride feel.
| Size | P1 | P2 | P3 | P4 |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
