Production Privee Production Privée Gravel Ti 2024

2024 Road
Estimate price | 2,114$
Open compare Use advisor
Productionprivee Gravel Ti 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Titanium
  • Suspension Rigid
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    158cm - 171cm

  • MD

    168cm - 180cm

  • LG

    178cm - 189cm

  • XL

    186cm - 199cm

Parts list

Components

Main components, grouped by system.

Bike components

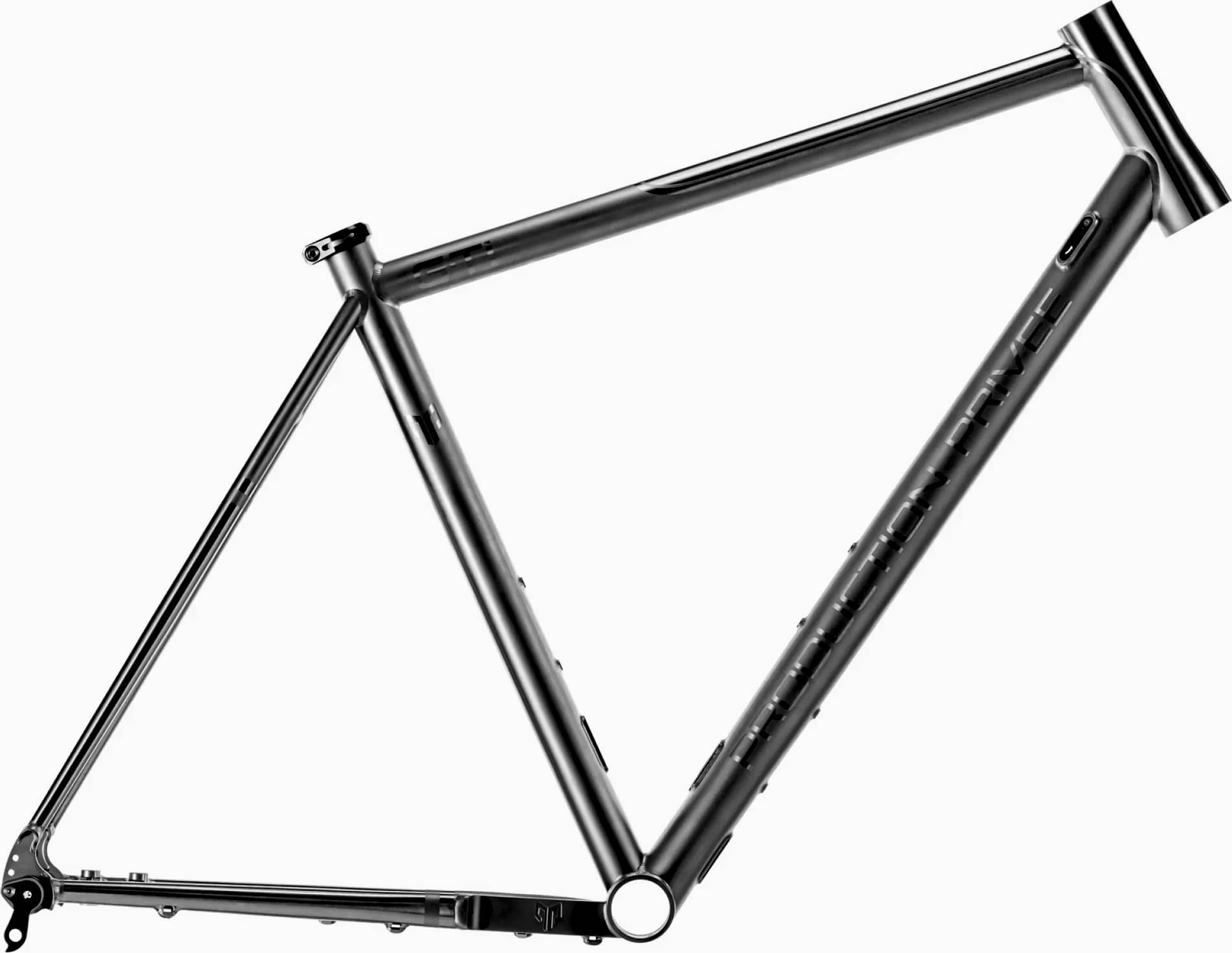

Frame

Frame

S/M/L/XL, SHAN GRAVEL TITANIUM 700c / 650c

Drivetrain

Bottom Bracket

Pressfit BB92

Wheels

Tires

45C ( 700c ) / 2,2” ( 650 c )

Brakes

Brakes

Rear: Flat mount standard

Cockpit

Headset

PP IS42-IS52, Production Privee IS42-IS52 integrated headset

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLGXL
Stack Reach Ratio
1.461 mm1.45 mm1.449 mm1.437 mm
Front Center
630 mm652 mm673 mm696 mm
Trail
136 mm139 mm139 mm139 mm
Stack
561 mm580 mm600 mm618 mm
Reach
384 mm400 mm414 mm430 mm
Top Tube Length
545 mm565 mm585 mm605 mm
Seat Tube Angle
74 °74 °74 °74 °
Seat Tube Length
490 mm520 mm550 mm580 mm
Head Tube Angle
68.5 °68.5 °68.5 °68.5 °
Head Tube Length
145 mm165 mm185 mm205 mm
Chainstay Length
428 mm428 mm428 mm428 mm
Wheelbase
1048 mm1070 mm1092 mm1115 mm
Bottom Bracket Drop
-70 mm-70 mm-70 mm-70 mm
Wheels650650650650
Rider Min Height158 cm168 cm178 cm186 cm
Rider Max Height171 cm180 cm189 cm199 cm
