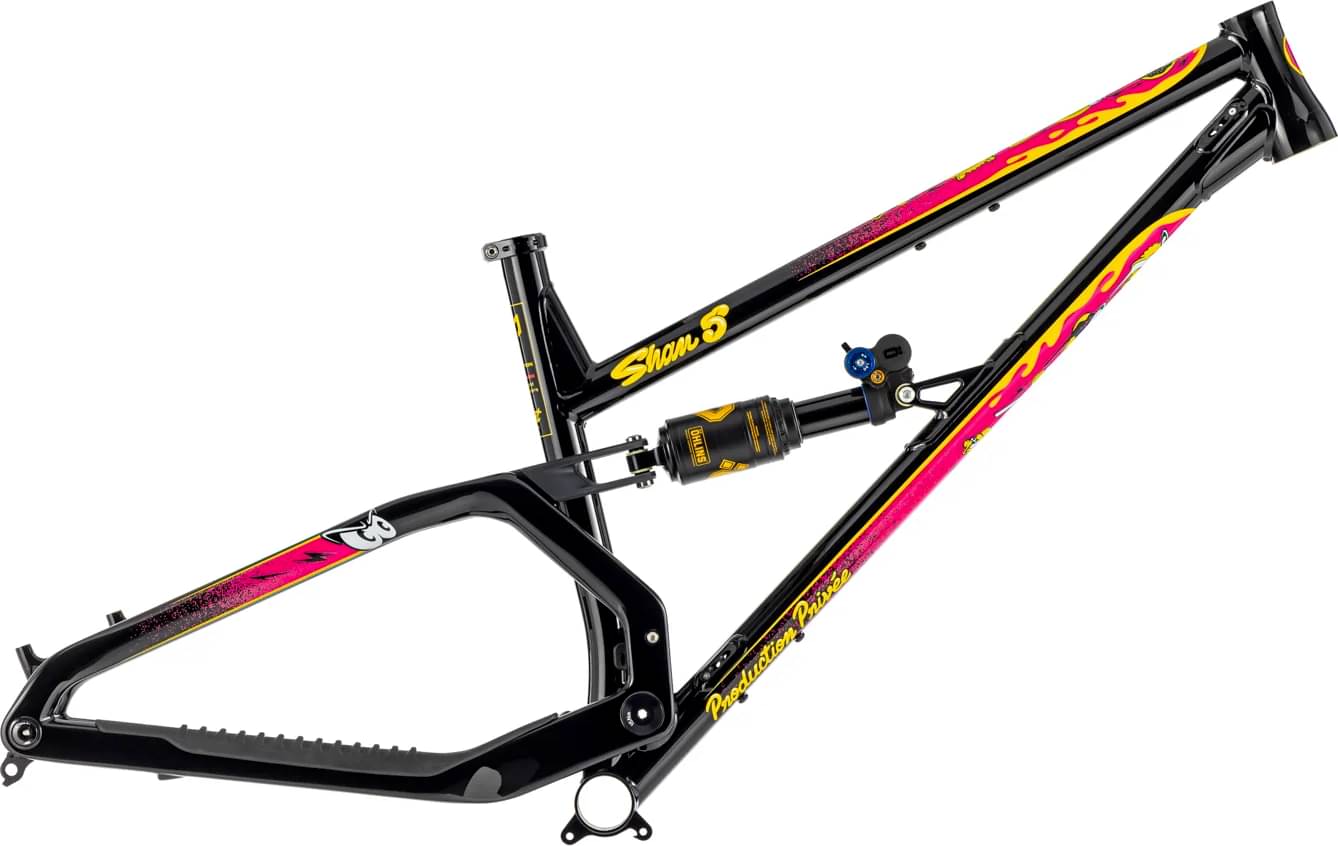

Production Privee Production Privée SHAN 5 – Sweet Limited Edition 2024
2024 Mountain
Estimate price |
2,228$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
150mm / H: 561mm (140 to 160mm acceptable)
Drivetrain
Front Derailleur
Not compatible
Bottom Bracket
BB92 PF41, optimized 32T chain ring 0mm offset (55mm chainline)
Wheels
Rims
29x2,4”
Brakes
Brakes
PM180
Seat
Seatpost
30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.331 mm | 1.29 mm | 1.262 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 780 mm | 807 mm | 834 mm | 856 mm |
| Rake | 51 mm | 50 mm | 51 mm | 51 mm |
| Trail | 124 mm | 125 mm | 124 mm | 124 mm |
| Stack | 614 mm | 623 mm | 632 mm | 641 mm |
| Reach | 445 mm | 468 mm | 490 mm | 508 mm |
| Top Tube Length | 580 mm | 605 mm | 630 mm | 650 |
| Seat Tube Angle | 77.6 ° | 77.6 ° | 77.6 ° | 77.6 ° |
| Seat Tube Length | 410 mm | 430 mm | 450 mm | 475 mm |
| Head Tube Angle | 64.3 ° | 64.3 ° | 64.3 ° | 64.3 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1215 mm | 1242 mm | 1269 mm | 1291 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
