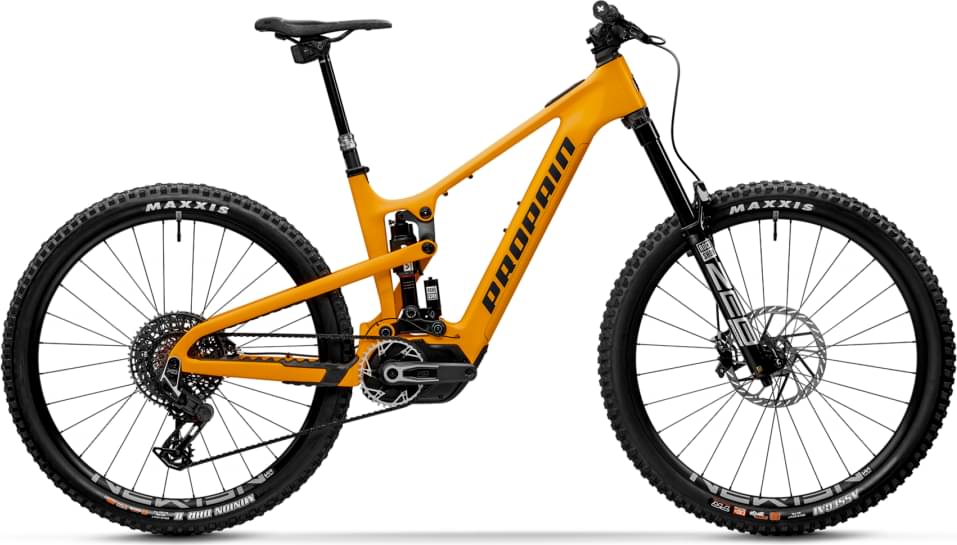

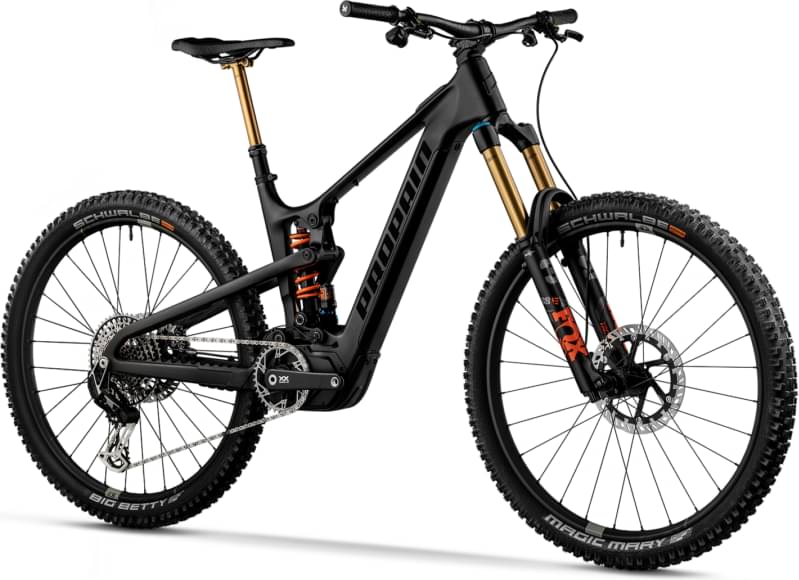

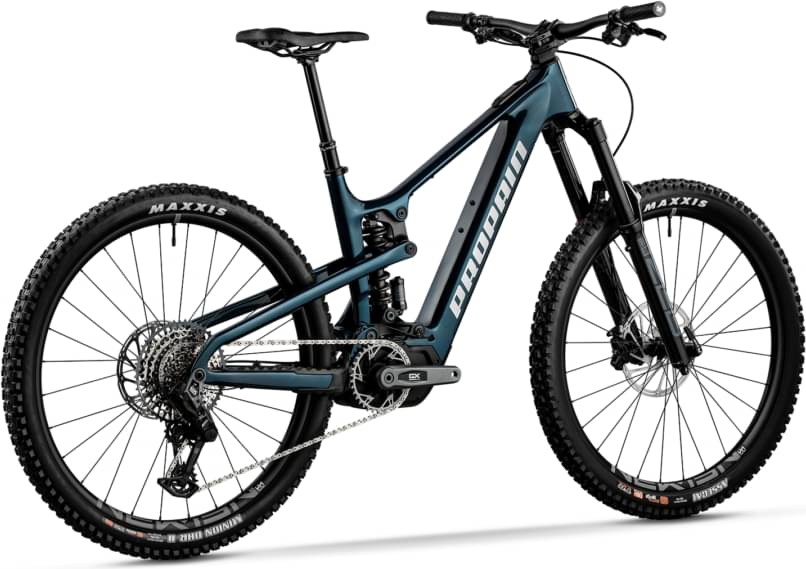

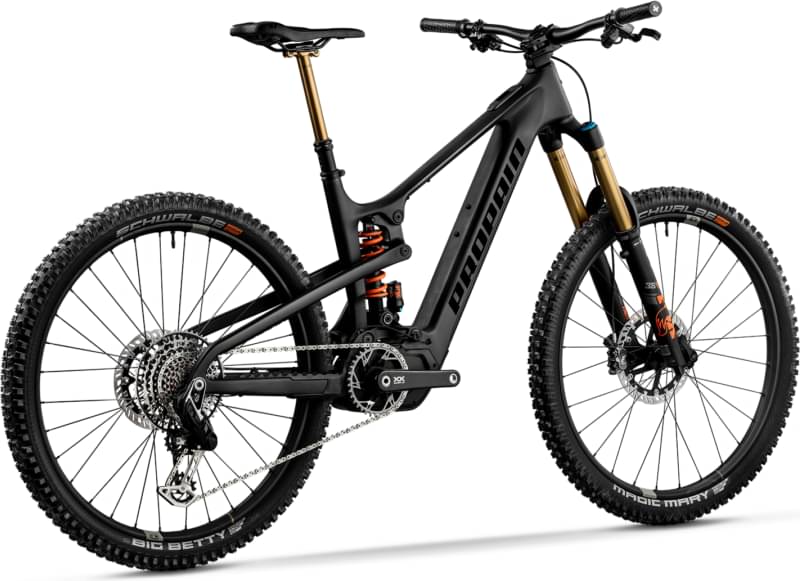

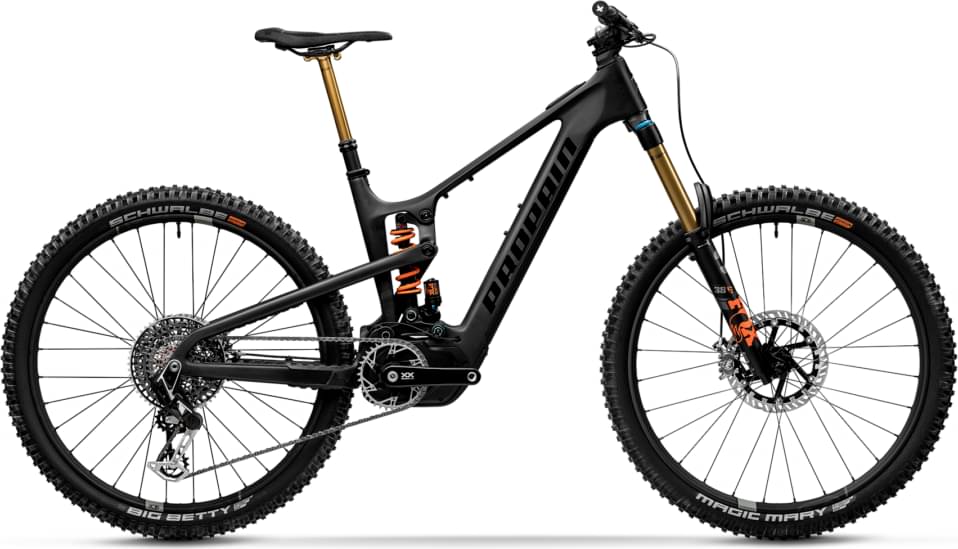

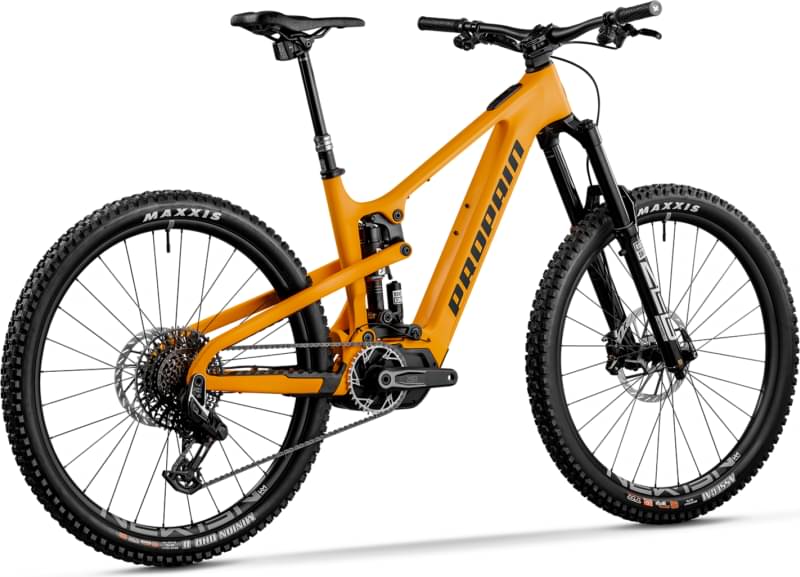

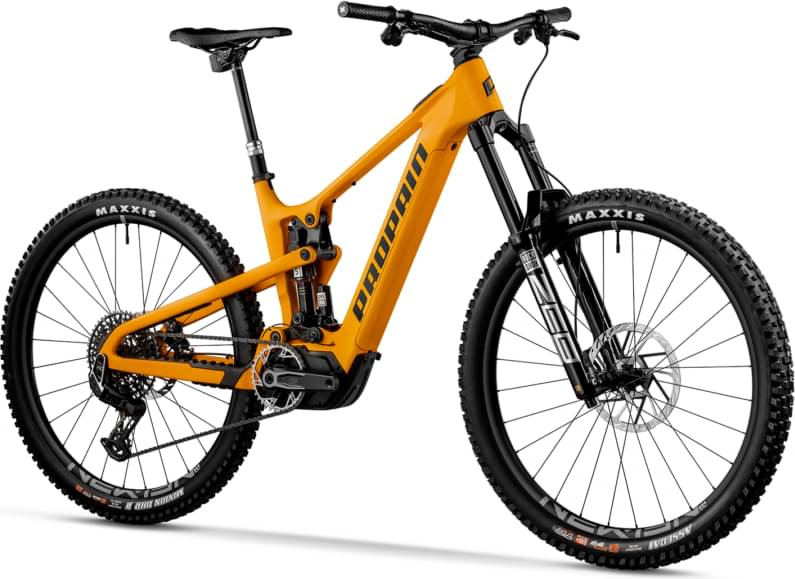

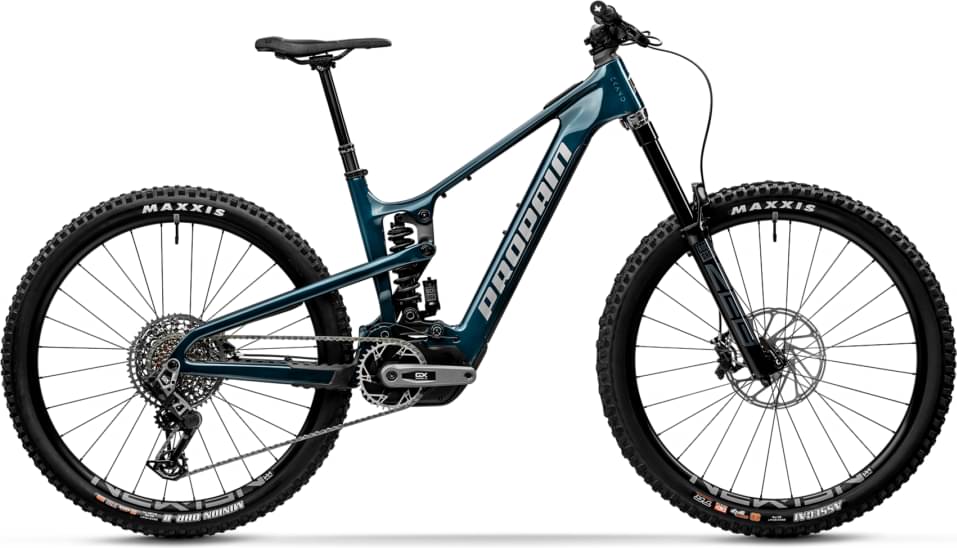

Propain EKANO 2 CF 29 Ultimate 2025
2025 E-bike
Estimate price |
10,050$
Weight | 22.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 180mm -
Travel Rear 170mm -
Fork RockShox ZEB Ultimate
-
Groupset X0 Eagle Transmission -
Suspension Full -
Motor SRAM hub-drive -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Maven Silver Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Blend Carbon Frame
Suspension Fork
RockShox ZEB Ultimate
Rear Shock
RockShox Vivid Ultimate
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission
Cassette
SRAM XS-1295 Eagle Transmission
Crank
SRAM X0 Eagle Transmission
Wheels
Rims
DT Swiss EX 1700
Tires
Schwalbe Magic Mary / Big Betty
Brakes
Brakes
SRAM Maven Silver
Cockpit
Handlebar
SIXPACK Millenium 805
Seat
Saddle
SQLab 611 Infinergy
Seatpost
RockShox Reverb AXS incl. Pod
Motor & Battery
Motor
SRAM Eagle Powertrain
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.426 mm | 1.375 mm | 1.337 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 787 mm | 809 mm | 831 mm | 855 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 134 mm | 134 mm | 134 mm |
| Stack | 644 mm | 649 mm | 653 mm | 662 mm |
| Reach | 435 mm | 455 mm | 475 mm | 495 mm |
| Top Tube Length | 571 mm | 593 mm | 614 mm | 636 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 130 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1239 mm | 1261 mm | 1283 mm | 1307 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm |
| Standover Height | 829 mm | 826 mm | 823 mm | 822 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
