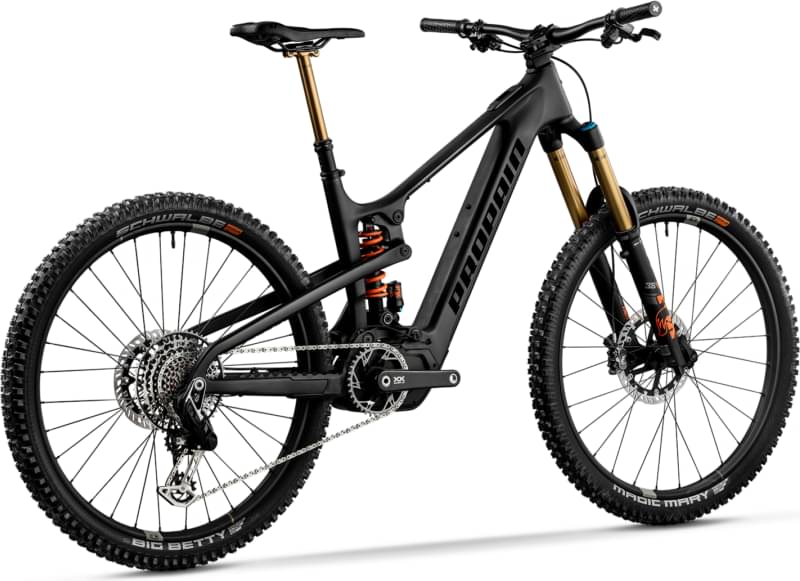

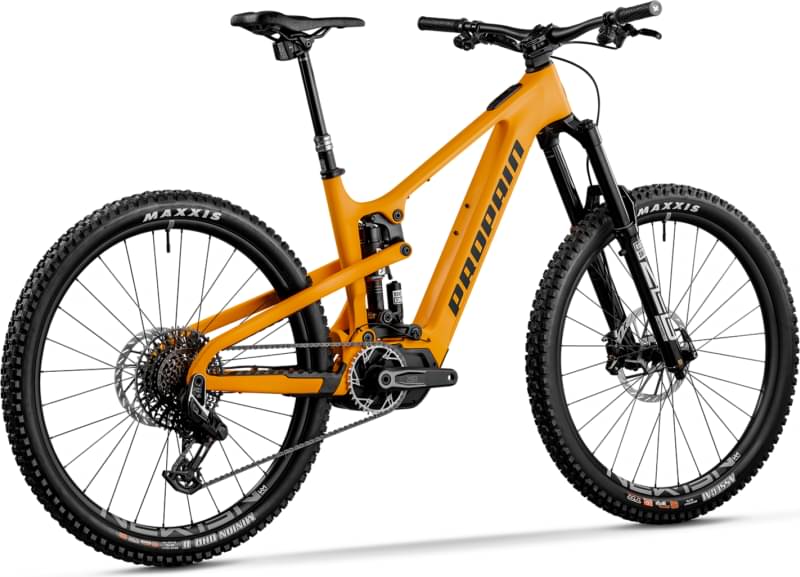

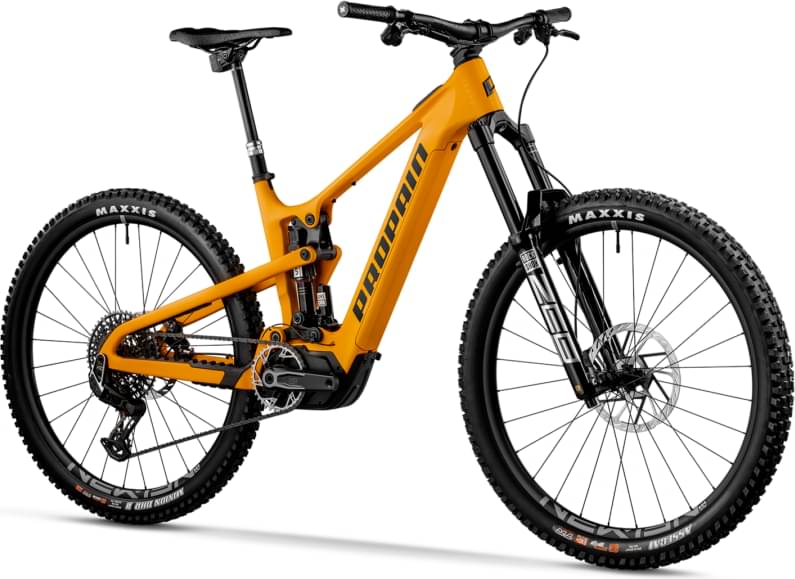

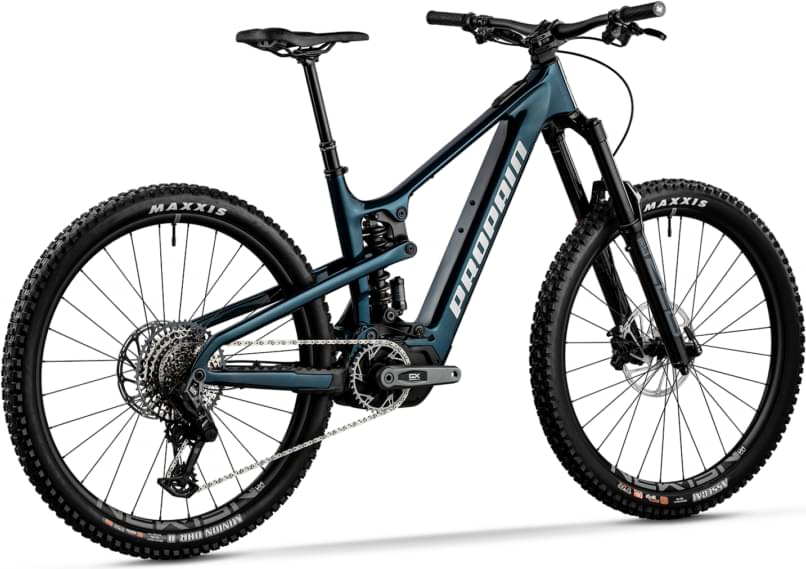

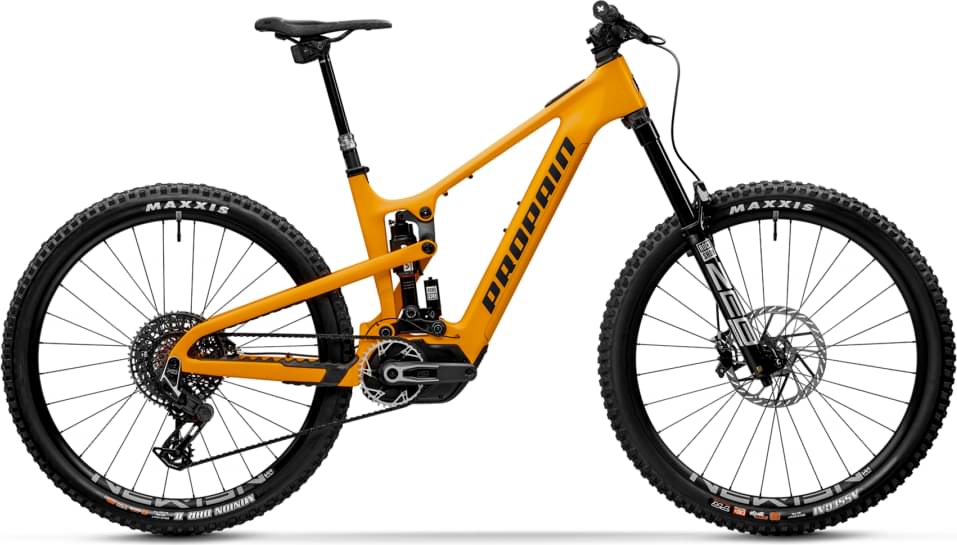

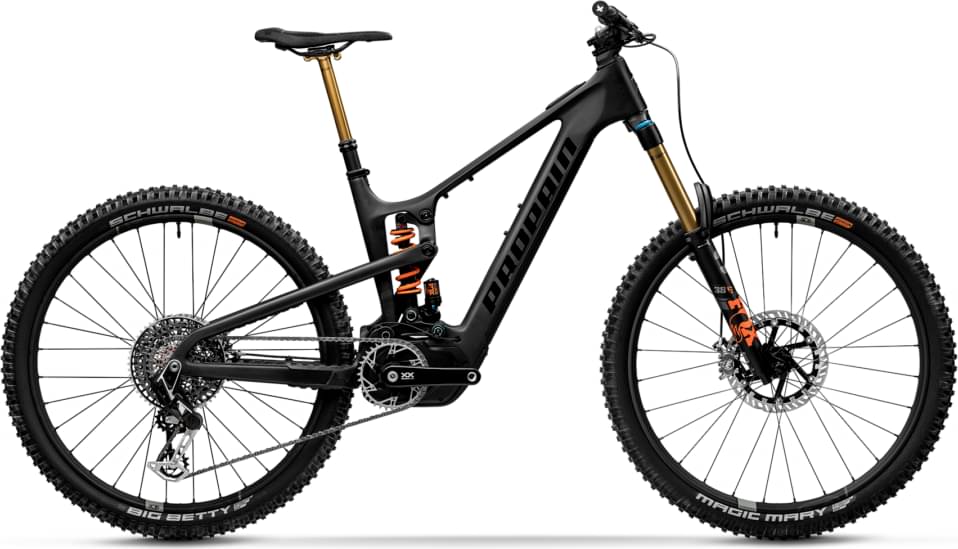

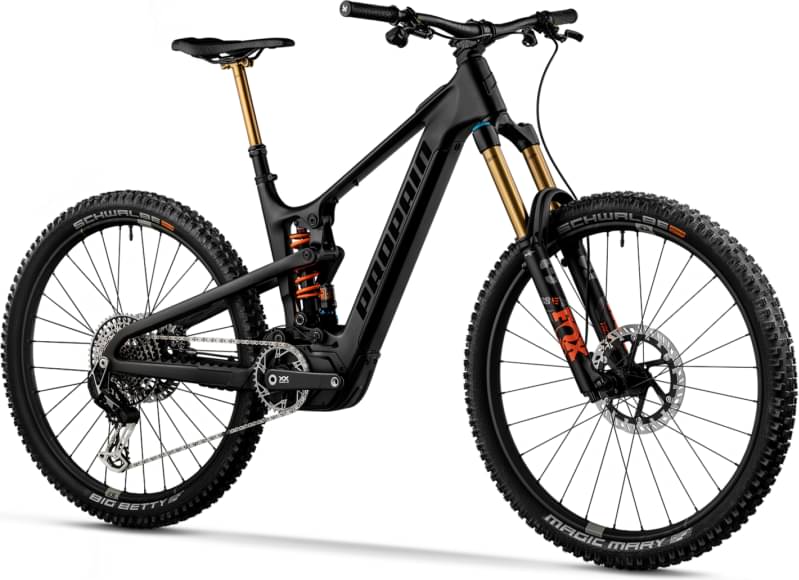

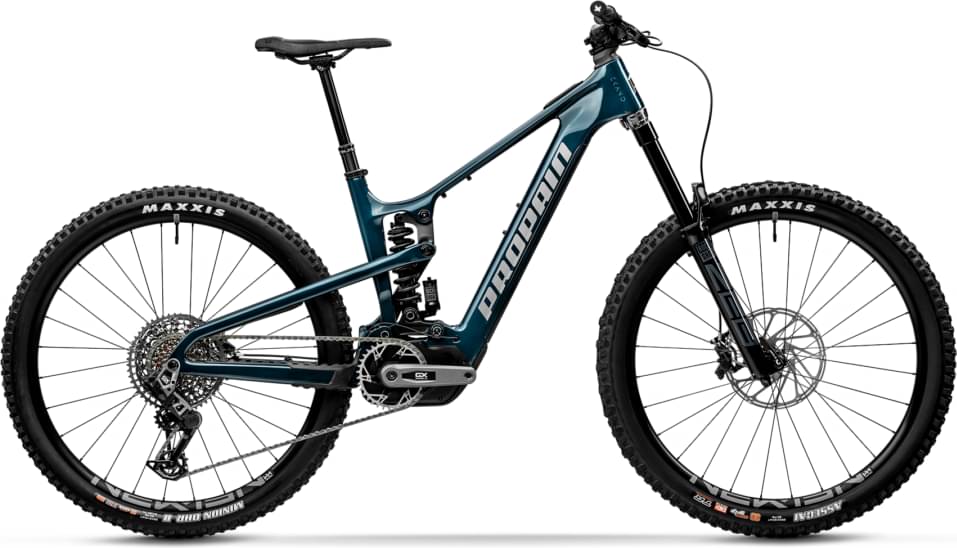

Propain EKANO 2 CF Mix Factory 2025
2025 E-bike
Estimate price |
11,365$
Weight | 22.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 180mm -
Travel Rear 170mm -
Fork Fox Factory Float 38
-
Groupset XX Eagle Transmission -
Suspension Full -
Motor SRAM hub-drive -
Drivetrain 1 × 12 Electronic -
Brakes Magura MT7 Pro Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Blend Carbon Frame
Suspension Fork
Fox 38 Factory Grip2 Kashima
Rear Shock
Fox Float DHX2 Factory Kashima
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission
Cassette
SRAM XS-1297 Eagle Transmission
Crank
SRAM XX Eagle Transmission
Wheels
Rims
Crankbrothers Synthesis E11 I9 Carbon
Tires
Schwalbe Magic Mary / Big Betty
Brakes
Brakes
Magura MT7 Performance
Cockpit
Handlebar
SIXPACK Millenium 805
Seat
Saddle
SQLab 611 Infinergy
Seatpost
Fox Transfer Factory Kashima
Motor & Battery
Motor
SRAM Eagle Powertrain
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.505 mm | 1.446 mm | 1.395 mm | 1.359 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 786 mm | 808 mm | 830 mm | 855 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 146 mm | 148 mm | 148 mm | 147 mm |
| Stack | 647 mm | 652 mm | 657 mm | 666 mm |
| Reach | 430 mm | 451 mm | 471 mm | 490 mm |
| Top Tube Length | 573 mm | 593 mm | 614 mm | 637 mm |
| Seat Tube Angle | 77.6 ° | 77.6 ° | 77.6 ° | 77.6 ° |
| Head Tube Angle | 63.6 ° | 63.6 ° | 63.6 ° | 63.6 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 130 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1237 mm | 1259 mm | 1281 mm | 1306 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 827 mm | 824 mm | 821 mm | 819 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
