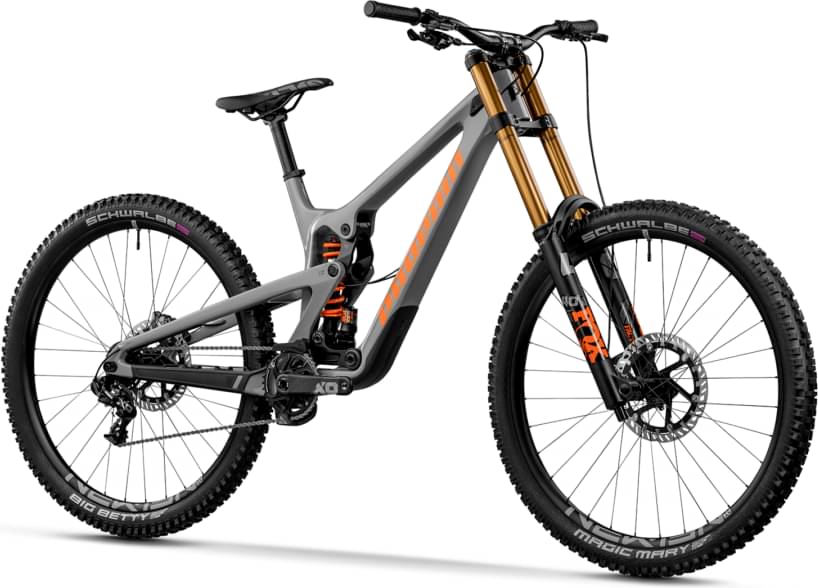

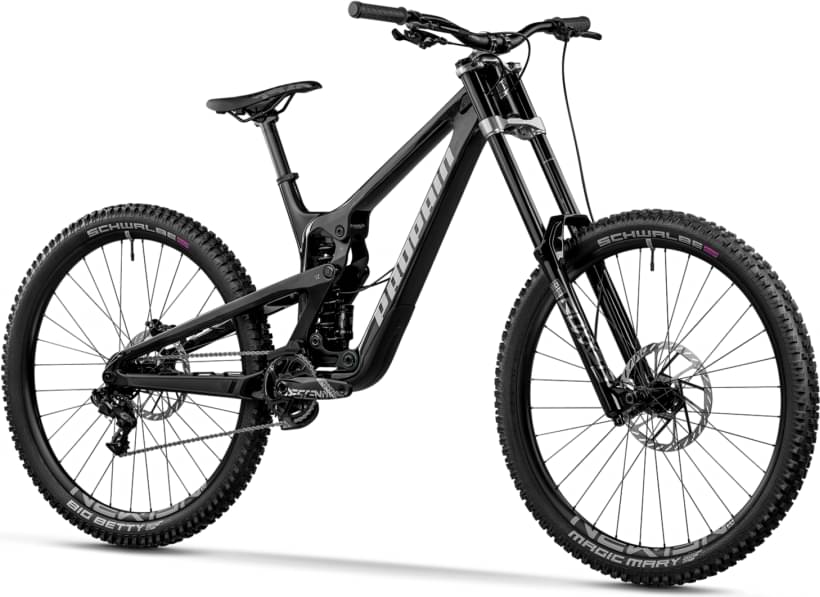

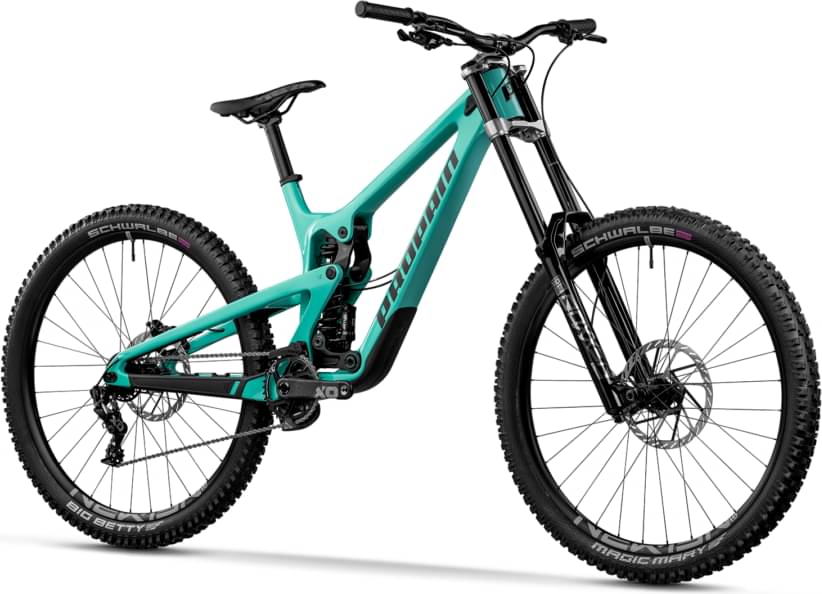

Propain Rage 3 CF Mix Highend 2024
2024 Mountain
Estimate price |
7,351$
Weight | 16.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 200mm -
Travel Rear 215mm -
Fork Fox Factory Float 40
-
Groupset X01 -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Robust Blend Carbon frame
Suspension Fork
Fox 40 Factory Kashima, 203mm
Rear Shock
Fox DHX2 Factory
Drivetrain
Rear Derailleur
SRAM X01 DH
Cassette
SRAM XG-795
Crank
SRAM X01 DH Carbon 165mm 36T
Wheels
Rims
Newmen Evolution EG30 DH
Tires
Schwalbe Magic Mary / Big Betty Super DH
Brakes
Brakes
Magura MT7 Performance, 220 / 203mm
Cockpit
Stem
SIXPACK Millenium DRM 35
Handlebar
SIXPACK Millenium 805
Seat
Saddle
SIXPACK Kamikaze
Seatpost
SIXPACK seat post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.372 mm | 1.289 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm |
| Front Center | 801 mm | 830 mm | 860 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 149 mm | 149 mm | 149 mm |
| Stack | 629 mm | 638 mm | 638 mm |
| Reach | 440 mm | 465 mm | 495 mm |
| Top Tube Length | 562 mm | 589 mm | 619 mm |
| Seat Tube Angle | 79 ° | 79 ° | 79 ° |
| Head Tube Angle | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1246 mm | 1275 mm | 1305 mm |
| Bottom Bracket Drop | 3 mm | 3 mm | 3 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
