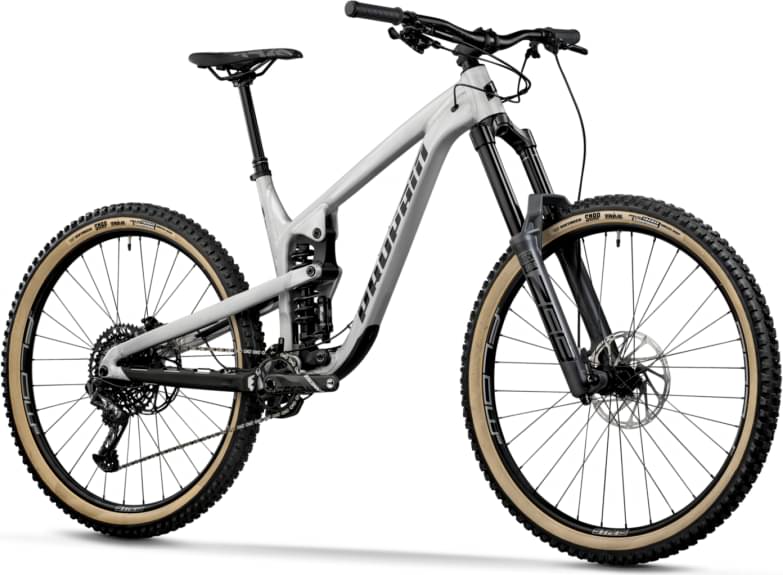

Propain SPINDRIFT 4 AL 29 Start 2024
2024 Mountain
Estimate price |
3,873$
Weight | 15.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 180mm -
Travel Rear 180mm -
Fork RockShox ZEB
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Blend Alloy frame
Suspension Fork
RockShox ZEB-R, 180mm
Rear Shock
RockShox Select R Coil, 180mm
Drivetrain
Rear Derailleur
SRAM GX Eagle (1×12)
Cassette
SRAM XG-1275 10-52, (1×12)
Crank
Truvativ Descendant Eagle, 32Z
Wheels
Rims
NEWMEN Performance, 30
Tires
Schwalbe Magic Mary
Brakes
Brakes
SRAM G2 R, 200mm / 200mm
Cockpit
Stem
SIXPACK Vertic 50
Handlebar
SIXPACK Millenium 805
Seat
Saddle
SIXPACK Kamikaze
Seatpost
PROPAIN Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.407 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm |
| Front Center | 790 mm | 821 mm | 853 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 130 mm |
| Stack | 633 mm | 646 mm | 660 mm |
| Reach | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 584 mm | 612 mm | 640 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1234 mm | 1265 mm | 1297 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
