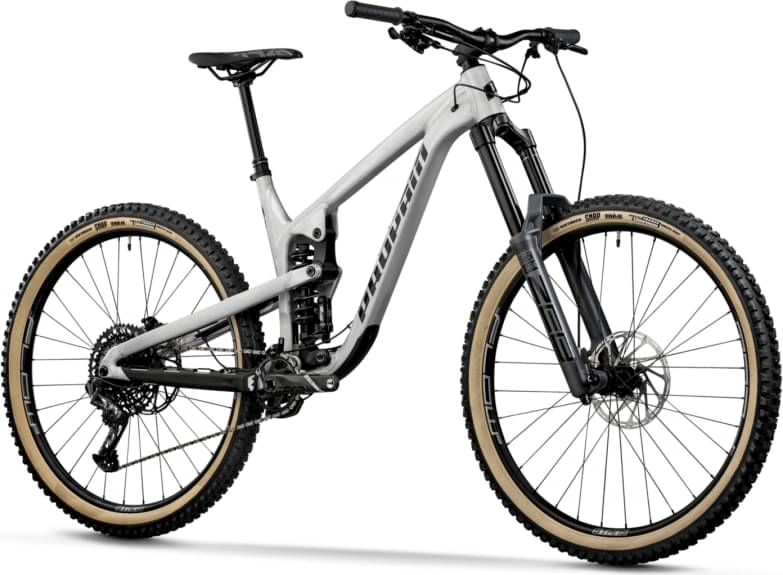

Propain SPINDRIFT 4 AL Mix Start 2024
2024 Mountain
Estimate price |
3,873$
Weight | 15.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 180mm -
Travel Rear 180mm -
Fork RockShox ZEB
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Blend Alloy frame
Suspension Fork
RockShox ZEB-R, 180mm
Rear Shock
RockShox Select R Coil, 180mm
Drivetrain
Rear Derailleur
SRAM GX Eagle (1×12)
Cassette
SRAM XG-1275 10-52, (1×12)
Crank
Truvativ Descendant Eagle, 32Z
Wheels
Rims
NEWMEN Performance, 30
Tires
Schwalbe Magic Mary
Brakes
Brakes
SRAM G2 R, 200mm / 200mm
Cockpit
Stem
SIXPACK Vertic 50
Handlebar
SIXPACK Millenium 805
Seat
Saddle
SIXPACK Kamikaze
Seatpost
PROPAIN Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.451 mm | 1.401 mm | 1.358 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 799 mm | 830 mm | 862 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 129 mm | 129 mm | 129 mm |
| Stack | 640 mm | 653 mm | 667 mm |
| Reach | 441 mm | 466 mm | 491 mm |
| Top Tube Length | 586 mm | 614 mm | 642 mm |
| Seat Tube Angle | 77.2 ° | 77.2 ° | 77.2 ° |
| Head Tube Angle | 63.7 ° | 63.7 ° | 63.7 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1243 mm | 1274 mm | 1306 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
