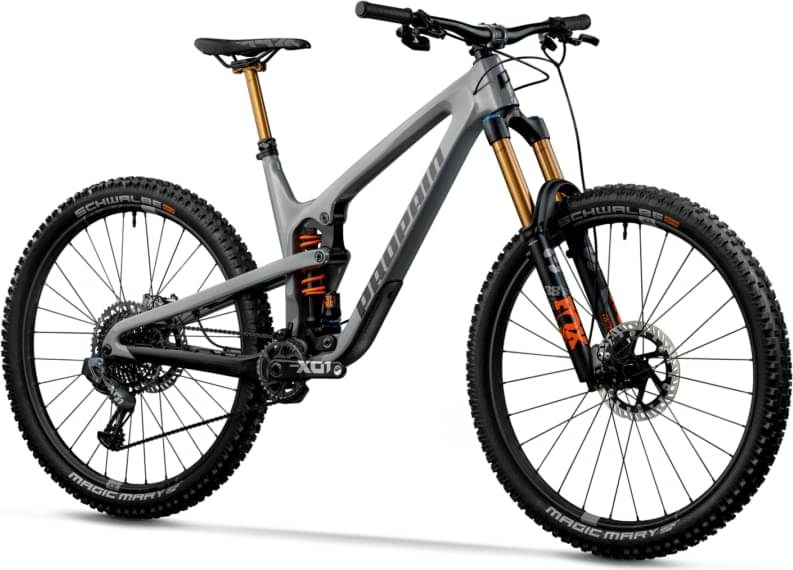

Propain SPINDRIFT 4 CF Mix Highend 2024
2024 Mountain
Estimate price |
10,091$
Weight | 14.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 180mm -
Travel Rear 180mm -
Fork Fox Factory Float 38
-
Groupset XX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Blend Carbon Frame
Suspension Fork
Fox 38 Factory Kashima, 180mm
Rear Shock
Fox DHX2 Factory, 180mm
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission
Cassette
SRAM XX Eagle Transmission
Crank
SRAM XX Eagle Transmission 170mm 32t
Wheels
Rims
Crankbrothers Synthesis Enduro, Carboni9
Tires
Schwalbe Magic Mary
Brakes
Brakes
Magura MT7, 203mm / 203mm
Cockpit
Stem
SIXPACK Millenium 35
Handlebar
SIXPACK Millenium 805
Seat
Saddle
SIXPACK Kamikaze
Seatpost
Fox Transfer Factory
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.451 mm | 1.401 mm | 1.358 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 799 mm | 830 mm | 862 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 129 mm | 129 mm | 129 mm |
| Stack | 640 mm | 653 mm | 667 mm |
| Reach | 441 mm | 466 mm | 491 mm |
| Top Tube Length | 586 mm | 614 mm | 642 mm |
| Seat Tube Angle | 77.2 ° | 77.2 ° | 77.2 ° |
| Head Tube Angle | 63.7 ° | 63.7 ° | 63.7 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1243 mm | 1274 mm | 1306 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
