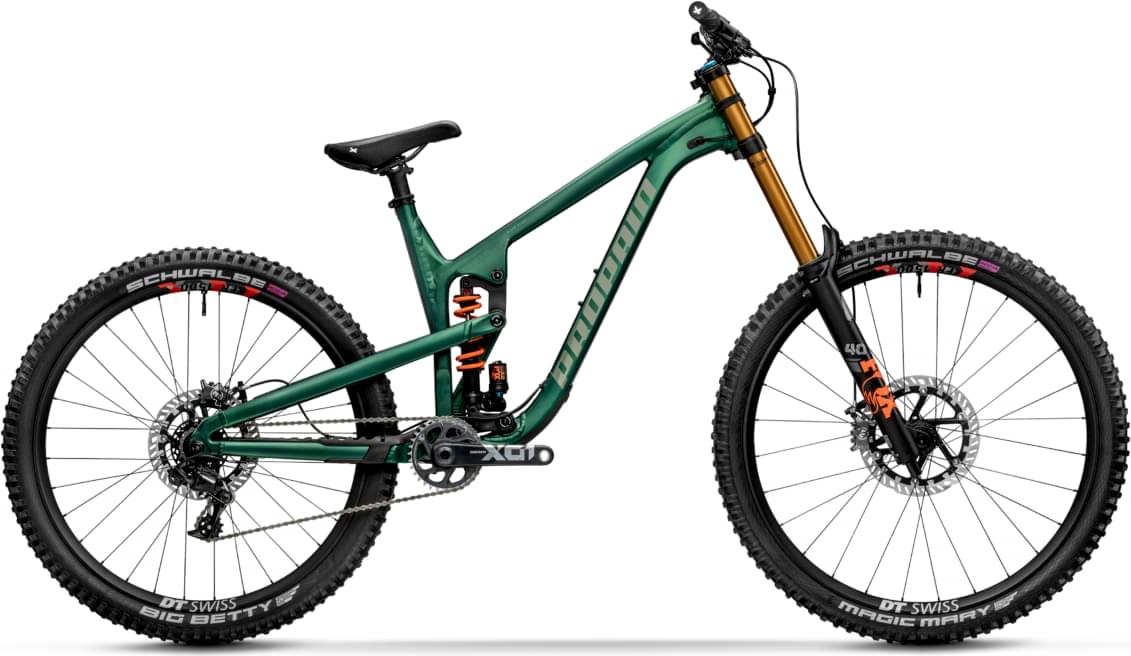

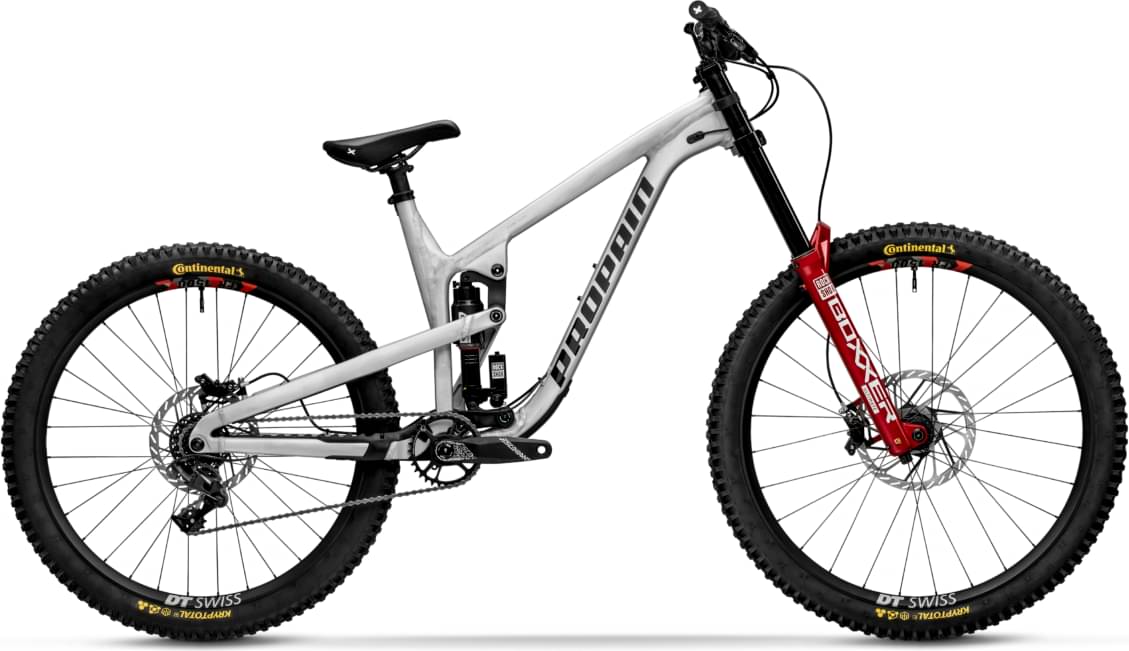

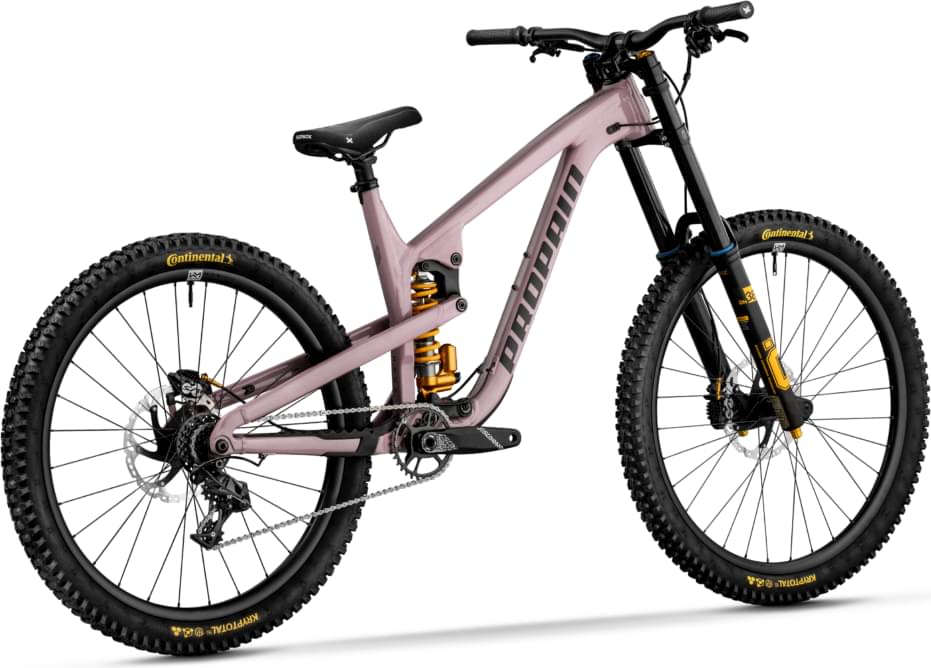

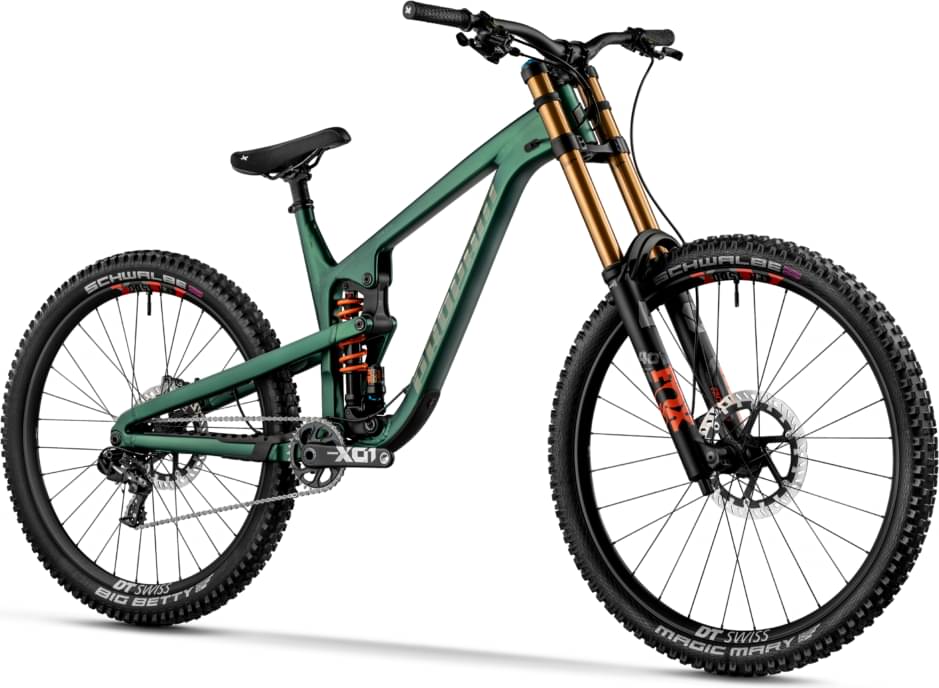

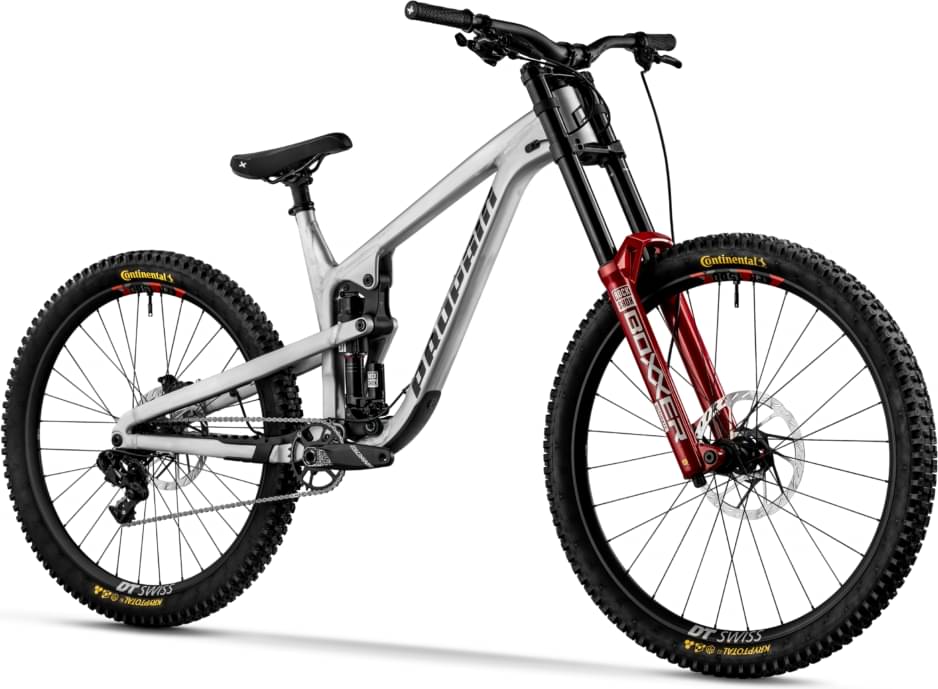

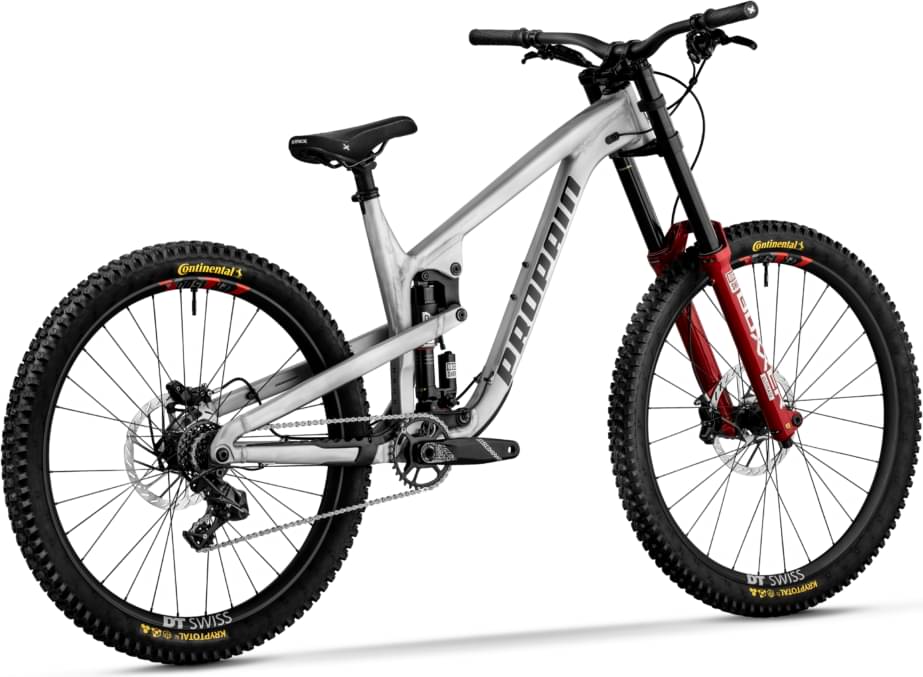

Propain Spindrift 5 AL Park Base 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

Category
- Mountain
- |
- Downhill
Frame Aluminum
Travel Front 200mm
Travel Rear 180mm
Fork RockShox BoXXer
Groupset Truvativ Descendant, GX
Suspension Full
Drivetrain 1 × 7
Brakes Hydraulic Disc

Sizing

Recommended size guide.

SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
XL
186cm - 199cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Blend Alloy frame

Suspension Fork

RockShox Boxxer 200 mm

Rear Shock

RockShox Vivid Coil Select R

Drivetrain

Rear Derailleur

SRAM GX DH

Cassette

SRAM PG-720 DH

Crank

Truvative Descendant 170mm 32t

Chain Guide

Sixpack Millenium

Wheels

Rims

NEWMEN Performance 30 DH

Tires

Schwalbe Magic Mary / Big Betty DH

Brakes

SRAM DB8 220mm / 200mm

Cockpit

Stem

SIXPACK Millenium DRM

Handlebar

SIXPACK Millenium 805

Seat

Saddle

SIXPACK Kamikaze

Seatpost

SIXPACK Kamikaze Aluminium

Fit data

Geometry

Numbers for sizing and ride feel.

Size	SM	MD	MD	MD	LG	LG	LG	XL	XL
Stack Reach Ratio	1.407 mm	1.349 mm	1.398 mm	1.398 mm	1.303 mm	1.342 mm	1.342 mm	1.303 mm	1.303 mm
Bottom Bracket Height	342 mm	342 mm	349 mm	349 mm	342 mm	349 mm	349 mm	349 mm	349 mm
Front Center	761 mm	791 mm	800 mm	800 mm	820 mm	830 mm	830 mm	861 mm	861 mm
Rake	38 mm	38 mm	44 mm	44 mm	38 mm	44 mm	44 mm	44 mm	44 mm
Trail	136 mm	135 mm	132 mm	141 mm	134 mm	131 mm	140 mm	131 mm	140 mm
Stack	605 mm	614 mm	636 mm	636 mm	623 mm	644 mm	644 mm	658 mm	658 mm
Reach	430 mm	455 mm	455 mm	455 mm	478 mm	480 mm	480 mm	505 mm	505 mm
Top Tube Length	553 mm	580 mm	585 mm	585 mm	607 mm	612 mm	612 mm	641 mm	641 mm
Seat Tube Angle	78.4 °	78.4 °	78.4 °	78.4 °	78.4 °	78.7 °	78.7 °	78.6 °	78.6 °
Head Tube Angle	63.9 °	63.9 °	63.9 °	63.9 °	63.9 °	63.9 °	63.9 °	63.9 °	63.9 °
Head Tube Length	100 mm	110 mm	100 mm	100 mm	120 mm	110 mm	110 mm	125 mm	125 mm
Chainstay Length	435 mm	435 mm	435 mm	445 mm	435 mm	435 mm	445 mm	435 mm	445 mm
Wheelbase	1196 mm	1226 mm	1234 mm	1244 mm	1255 mm	1264 mm	1274 mm	1295 mm	1305 mm
Bottom Bracket Drop	7 mm	7 mm	20 mm	20 mm	7 mm	20 mm	20 mm	20 mm	20 mm
Standover Height	816 mm	814 mm	829 mm	829 mm	814 mm	826 mm	826 mm	829 mm	829 mm
Wheels	27"	27"	27"	29"	27"	27"	29"	27"	29"
Rider Min Height	158 cm	168 cm	168 cm	168 cm	178 cm	178 cm	178 cm	186 cm	186 cm
Rider Max Height	171 cm	180 cm	180 cm	180 cm	189 cm	189 cm	189 cm	199 cm	199 cm
