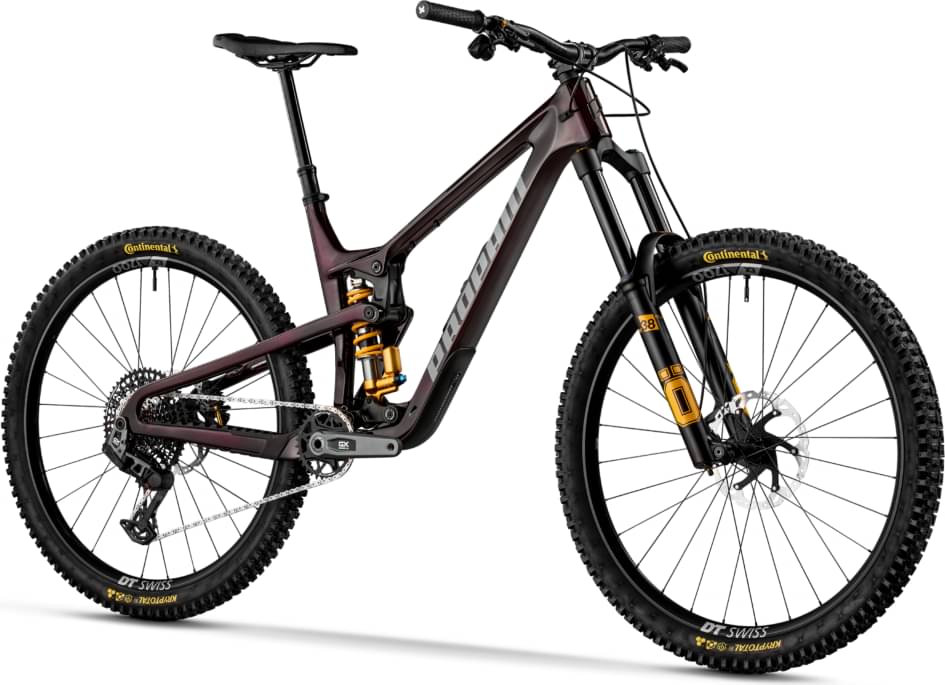

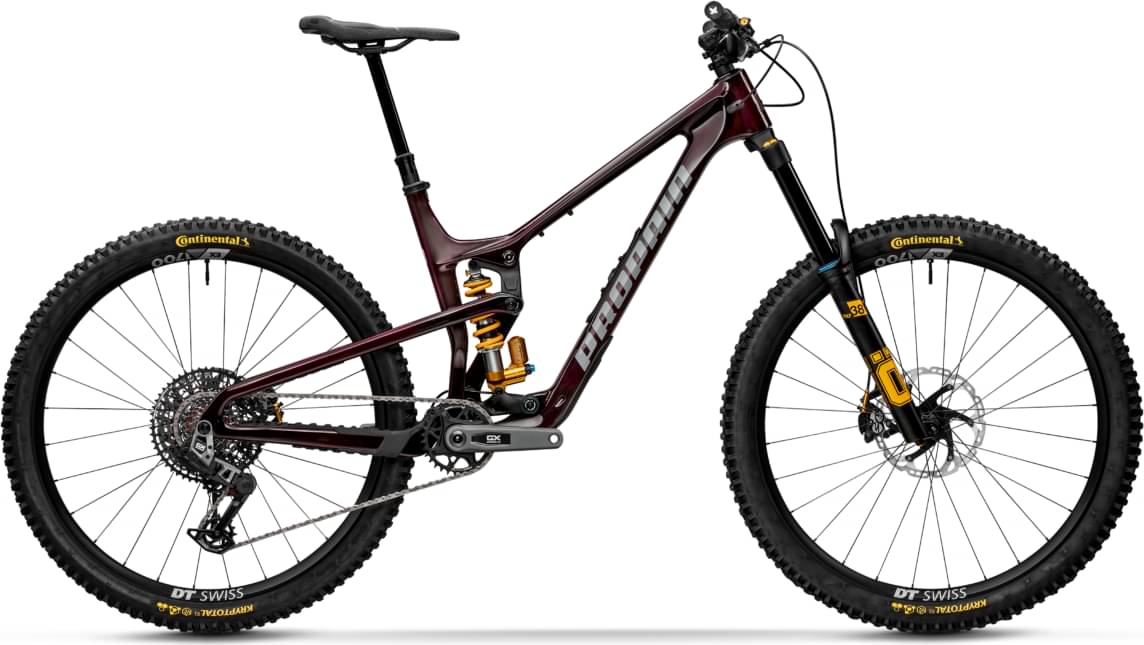

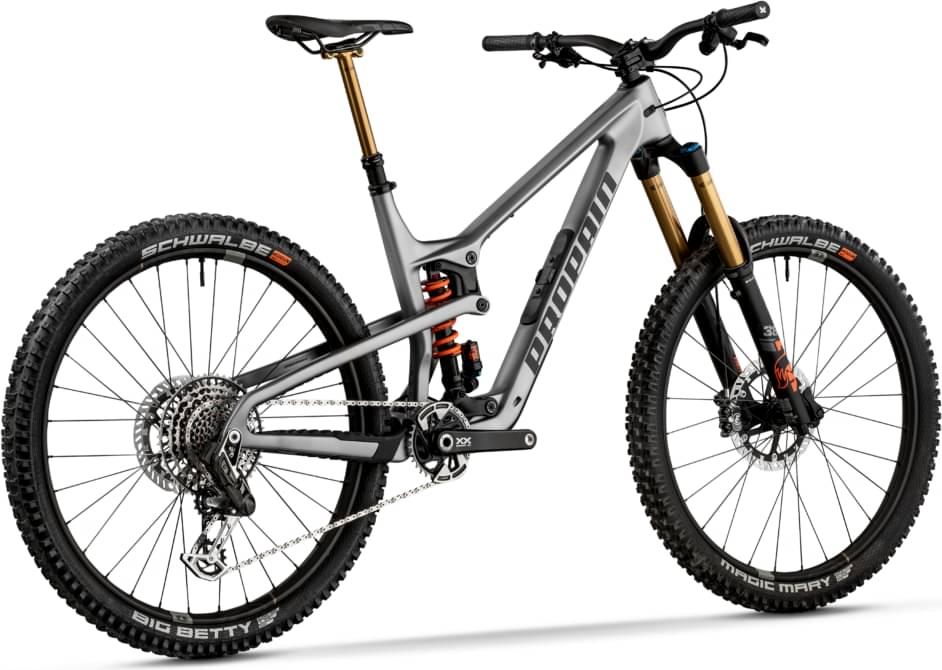

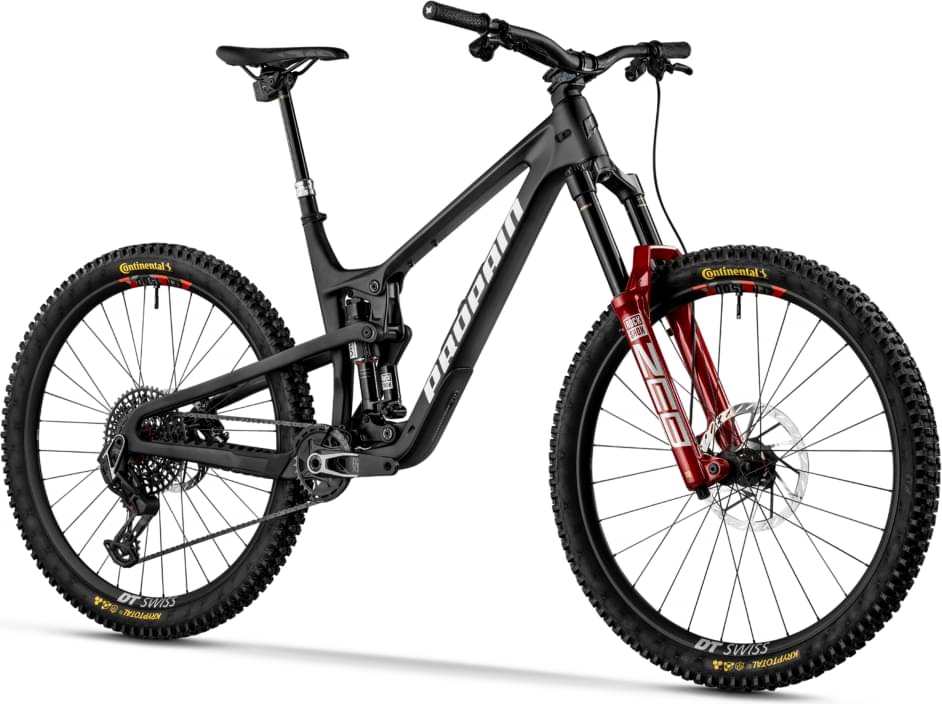

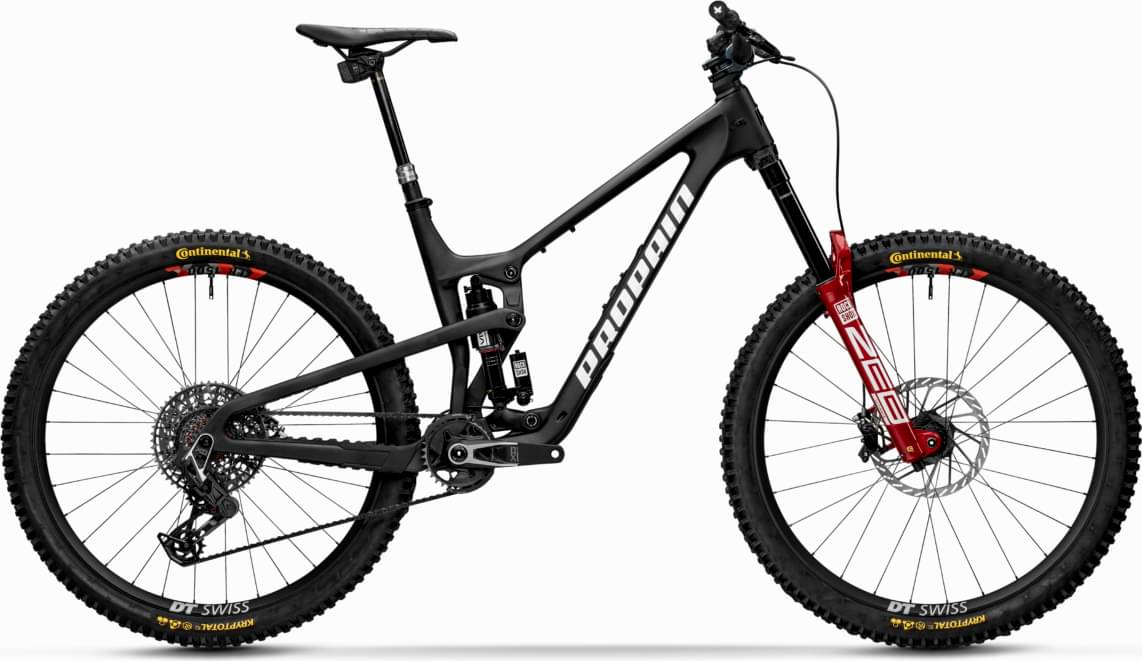

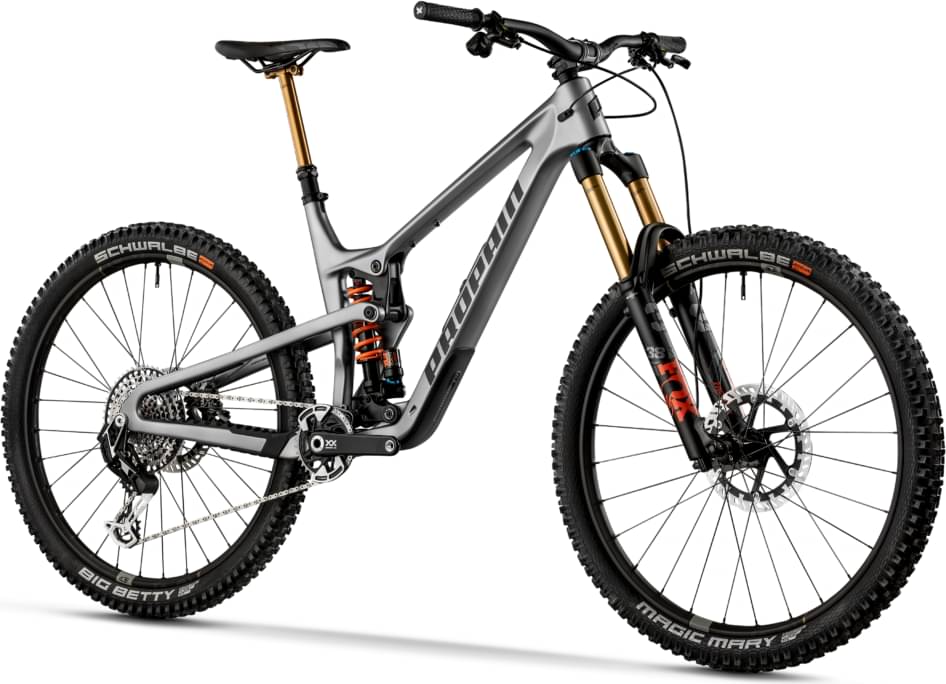

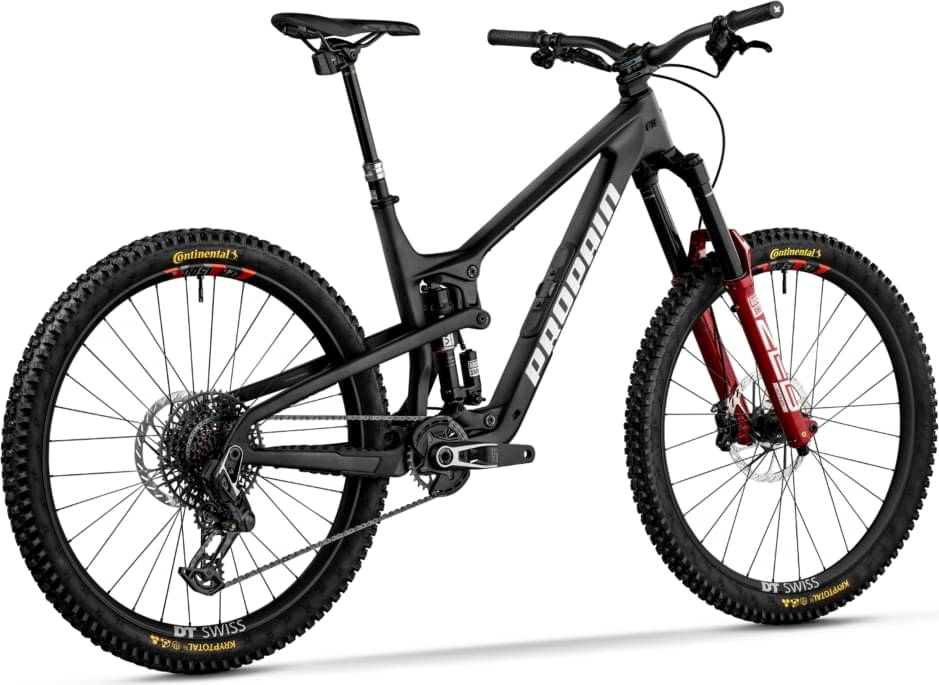

Propain SPINDRIFT 5 CF Base 2024
2024 Mountain
Estimate price |
4,303$
Weight | 15.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 180mm -
Travel Rear 180mm -
Fork RockShox ZEB
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Blend Carbon Frame
Suspension Fork
RockShox ZEB 180 mm
Rear Shock
RockShox Vivid Coil Select R
Drivetrain
Rear Derailleur
SRAM GX Eagle
Cassette
SRAM XG-1275 Eagle
Crank
Truvative Descendant 170mm 32t
Wheels
Rims
NEWMEN Performance 30
Tires
Schwalbe Magic Mary / Big Betty
Brakes
Brakes
SRAM DB8 220mm / 200mm
Cockpit
Stem
Classic Internal / SIXPACK Vertic
Handlebar
SIXPACK Millenium 805
Seat
Saddle
SIXPACK Kamikaze
Seatpost
SIXPACK Kamikaze Aluminium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.409 mm | 1.363 mm | 1.311 mm | 1.273 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm |
| Front Center | 779 mm | 810 mm | 840 mm | 871 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 138 mm | 139 mm | 138 mm | 139 mm |
| Stack | 613 mm | 627 mm | 636 mm | 649 mm |
| Reach | 435 mm | 460 mm | 485 mm | 510 mm |
| Top Tube Length | 565 mm | 593 mm | 620 mm | 648 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 85 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1223 mm | 1254 mm | 1284 mm | 1315 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm |
| Standover Height | 795 mm | 793 mm | 789 mm | 787 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
