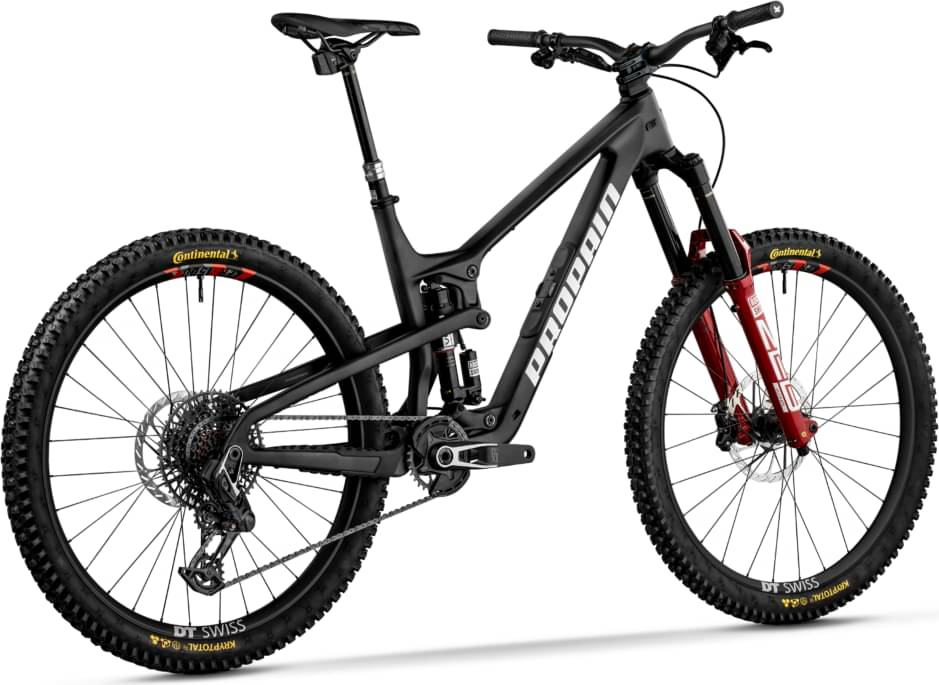

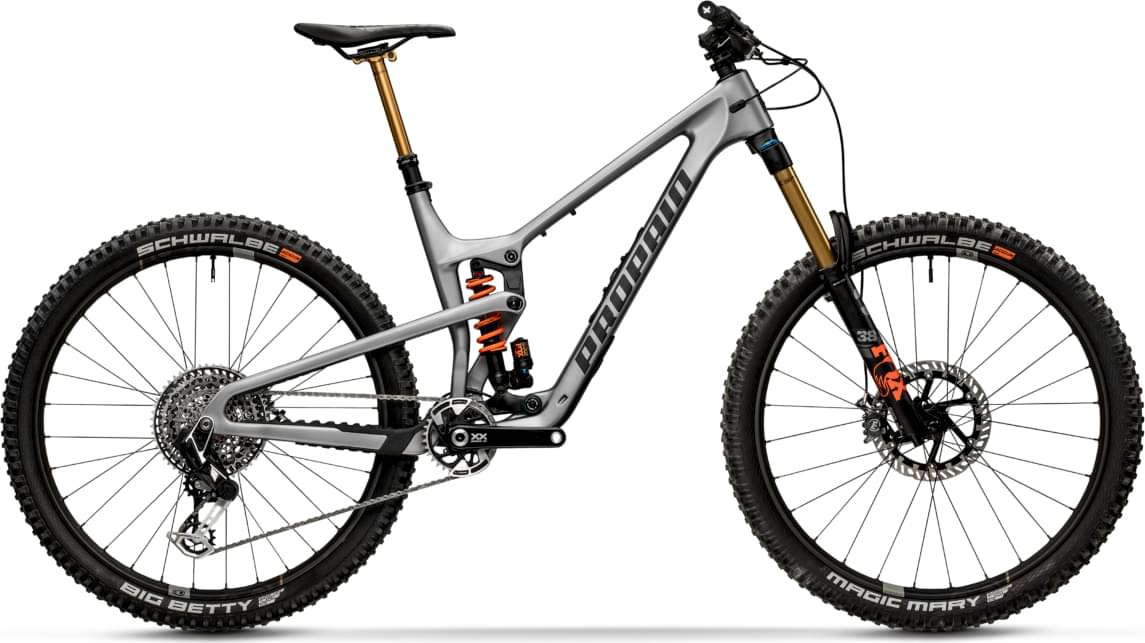

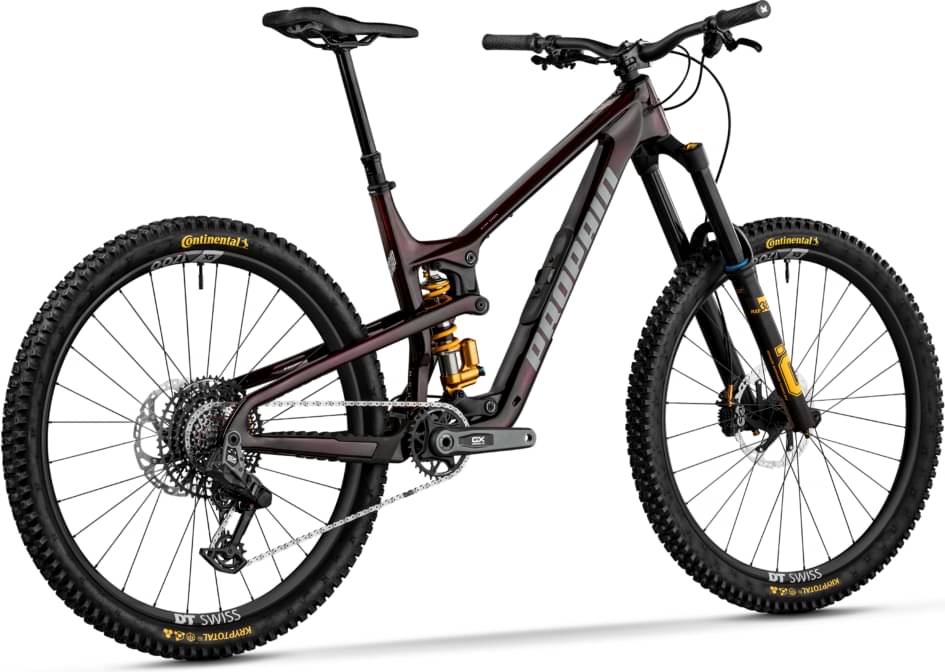

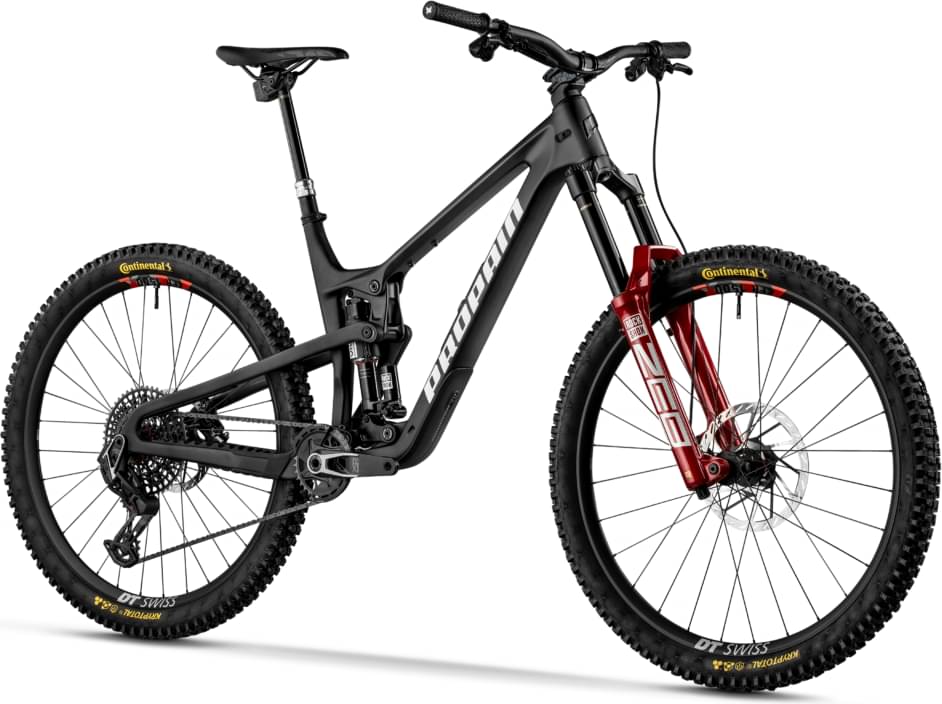

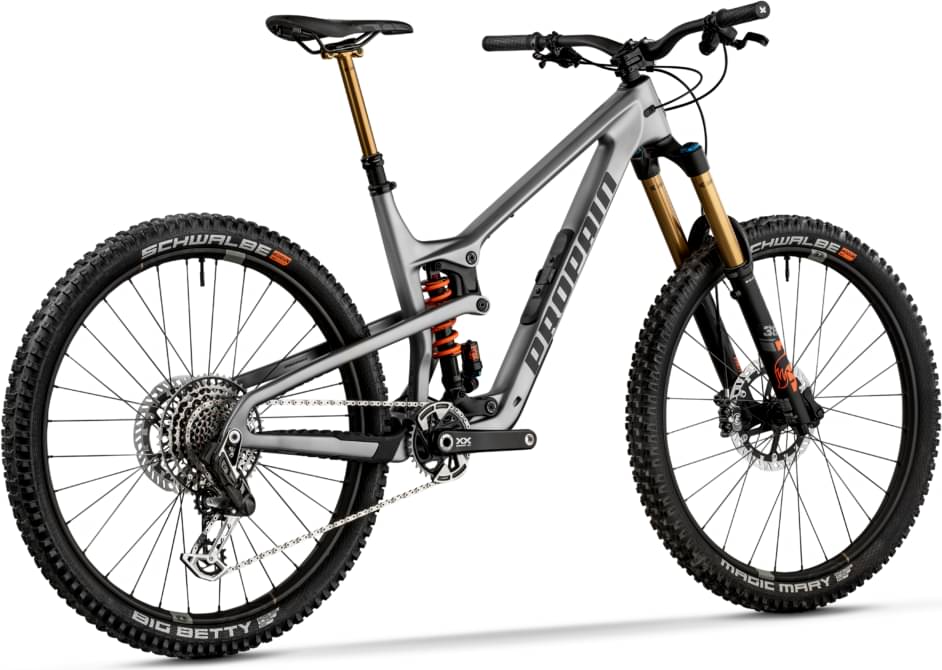

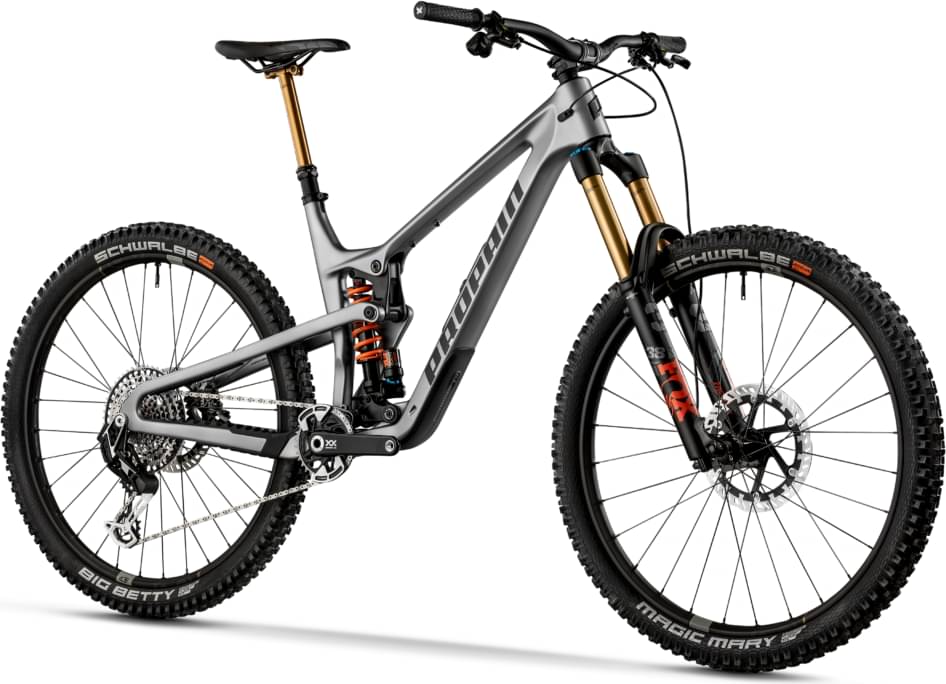

Propain SPINDRIFT 5 CF Factory 2025
2025 Mountain
Estimate price |
10,201$
Weight | 15.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 180mm -
Travel Rear 180mm -
Fork Fox Factory Float 38
-
Groupset XX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Magura MT7 Pro Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Blend Carbon Frame
Suspension Fork
Fox 38 Factory GripX2 180mm
Rear Shock
Fox DHX2 Coil SLS
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission
Cassette
SRAM XX Eagle Transmission
Crank
SRAM XX Eagle Transmission 170mm 32t
Wheels
Rims
Crankbrothers Synthesis Carbon i9 Hydra
Tires
Schwalbe Magic Mary / Big Betty
Brakes
Brakes
Magura MT7 Performance 220mm / 203 mm
Cockpit
Handlebar
OneUp Carbon
Seat
Saddle
SQLab 6OX Infinergy ERGOWAVE
Seatpost
Fox Transfer Factory
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.409 mm | 1.363 mm | 1.311 mm | 1.273 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm |
| Front Center | 779 mm | 810 mm | 840 mm | 871 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 138 mm | 139 mm | 138 mm | 139 mm |
| Stack | 613 mm | 627 mm | 636 mm | 649 mm |
| Reach | 435 mm | 460 mm | 485 mm | 510 mm |
| Top Tube Length | 565 mm | 593 mm | 620 mm | 648 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 85 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1223 mm | 1254 mm | 1284 mm | 1315 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm |
| Standover Height | 795 mm | 793 mm | 789 mm | 787 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
