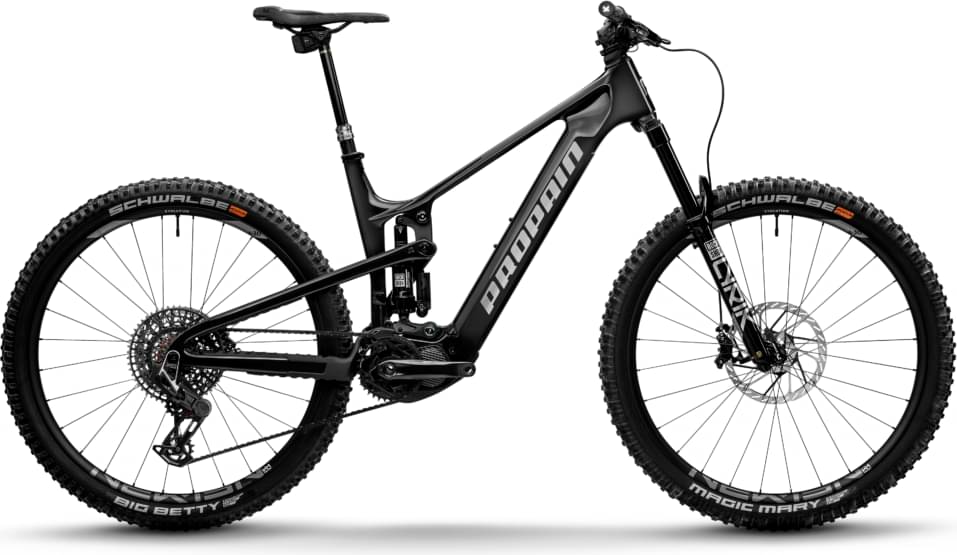

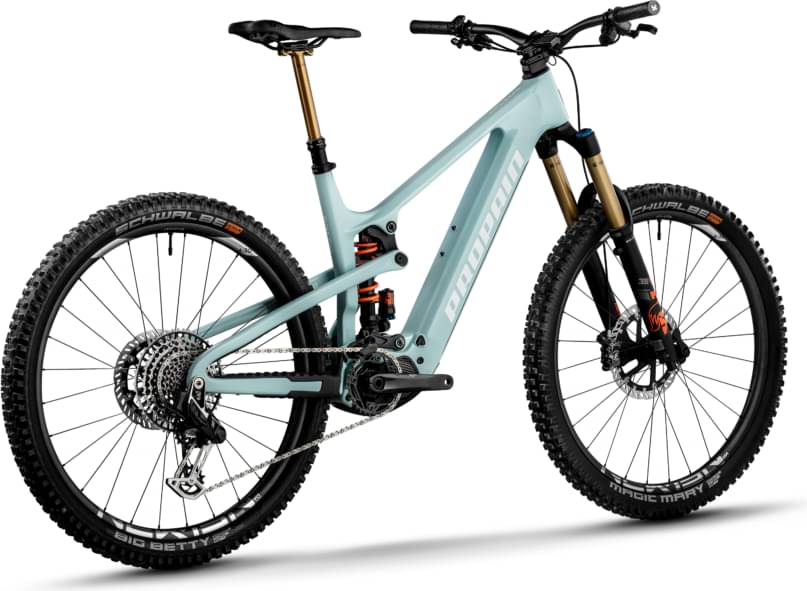

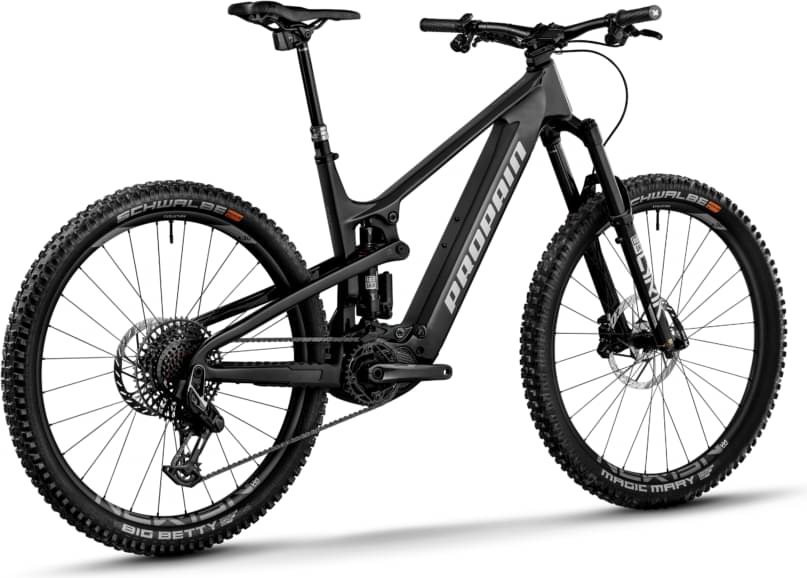

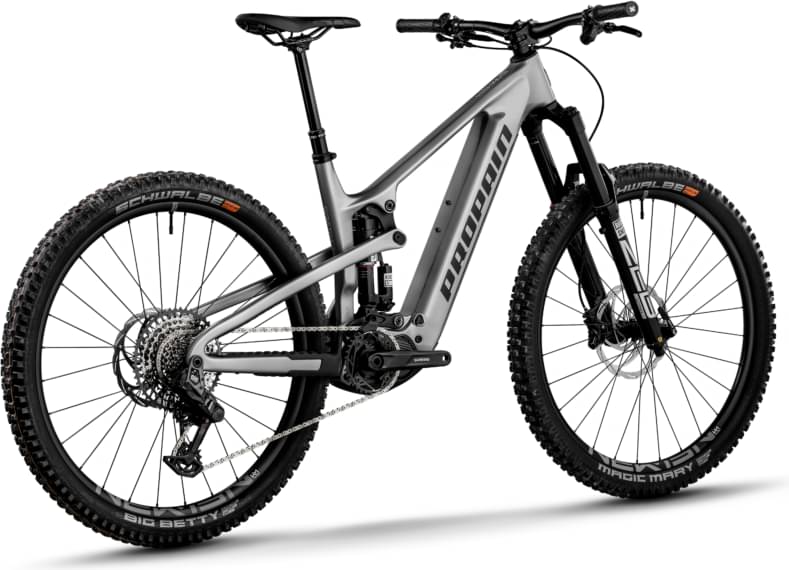

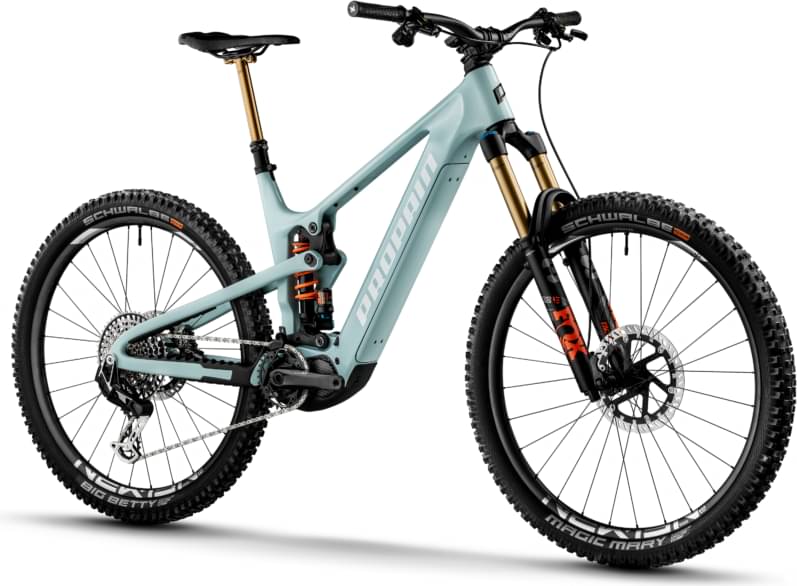

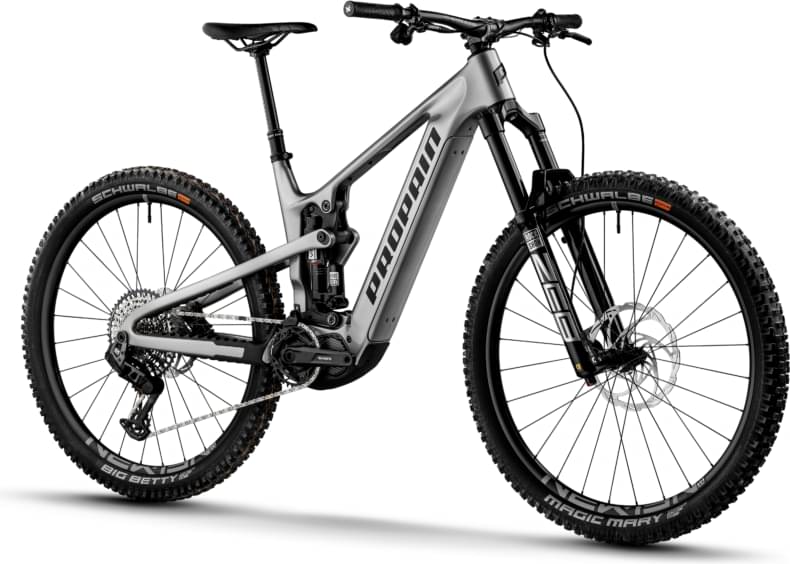

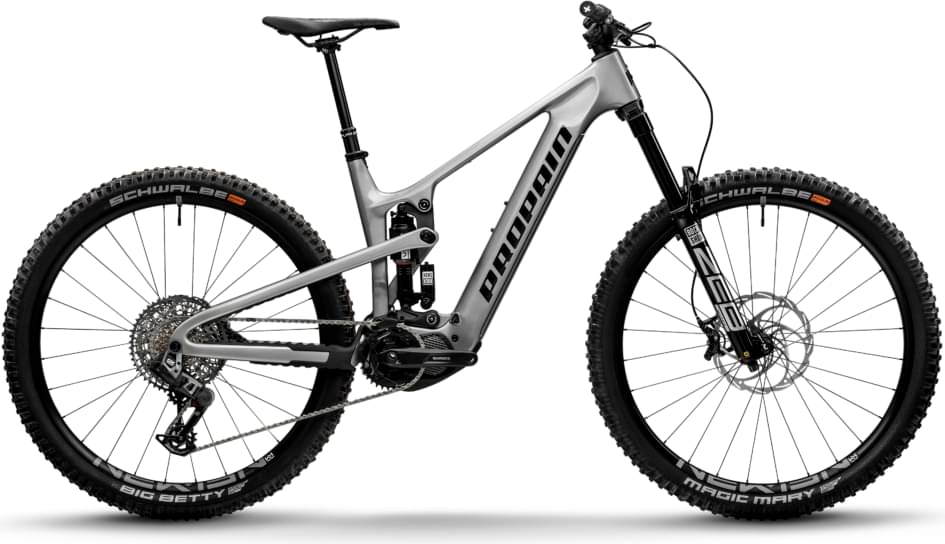

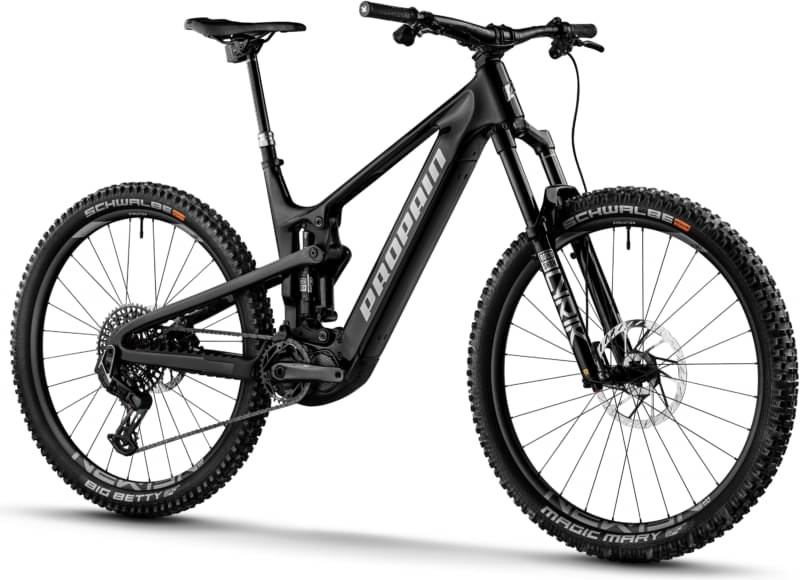

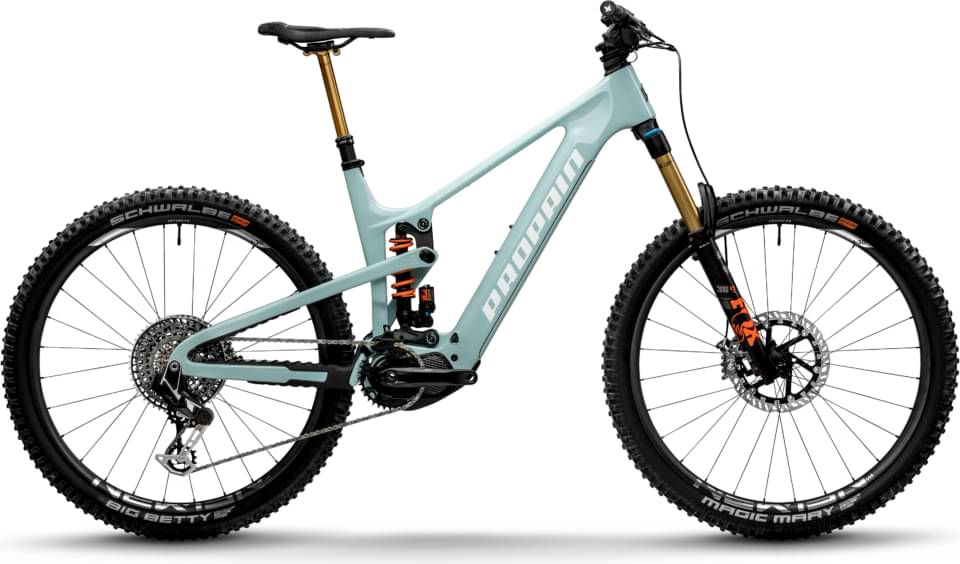

Propain Sresh CF 29 Factory 2025
2025 E-bike
Estimate price |
11,150$
Weight | 20.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 38
-
Groupset XX Eagle Transmission -
Suspension Full -
Motor Shimano hub-drive -
Drivetrain 1 × 12 Electronic -
Brakes Magura MT7 Pro Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Blend Carbon Frame
Suspension Fork
Fox 38 Factory 160mm
Rear Shock
Fox DHX2 Factory
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission
Cassette
SRAM XG-1297 XX Eagle Transmission
Crank
Shimano FC-M8150 165mm 34t
Wheels
Rims
NEWMEN Advanced SL A.30
Tires
Schwalbe Magic Mary / Big Betty
Brakes
Brakes
Magura MT7 Performance 220mm / 203 mm
Cockpit
Stem
SIXPACK Millenium ICR 50
Handlebar
SIXPACK Millenium 805
Seat
Saddle
SQLab 6OX Infinergy
Seatpost
Fox Transfer Factory
Motor & Battery
Motor
Shimano EP801Max
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.437 mm | 1.396 mm | 1.327 mm | 1.279 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 755 mm | 780 mm | 814 mm | 843 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm |
| Stack | 618 mm | 628 mm | 637 mm | 646 mm |
| Reach | 430 mm | 450 mm | 480 mm | 505 mm |
| Top Tube Length | 556 mm | 578 mm | 610 mm | 636 mm |
| Seat Tube Angle | 78.5 ° | 78.5 ° | 78.5 ° | 78.5 ° |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1204 mm | 1229 mm | 1263 mm | 1292 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 825 mm | 817 mm | 807 mm | 813 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
