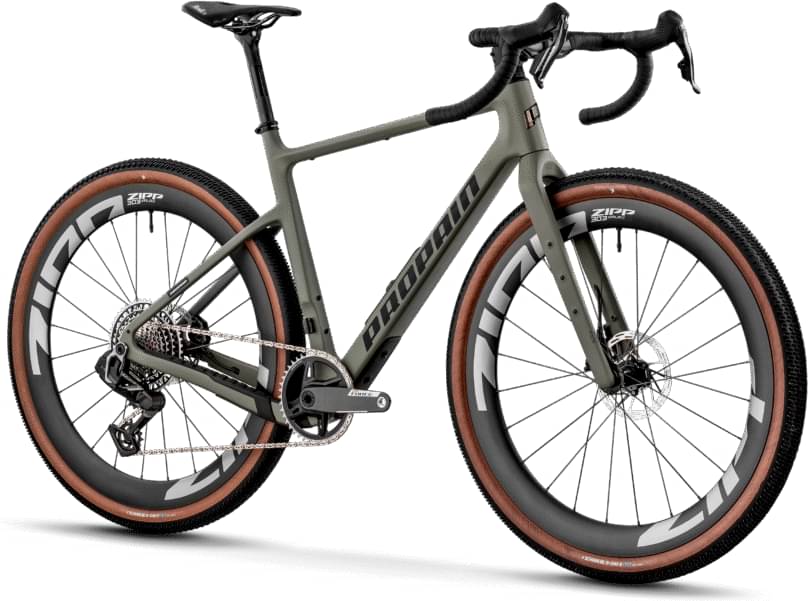

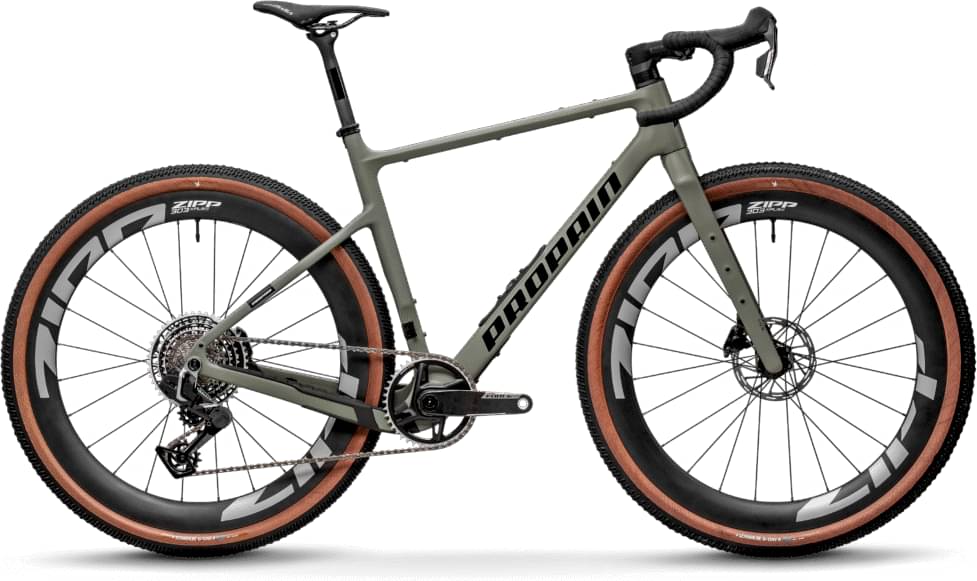

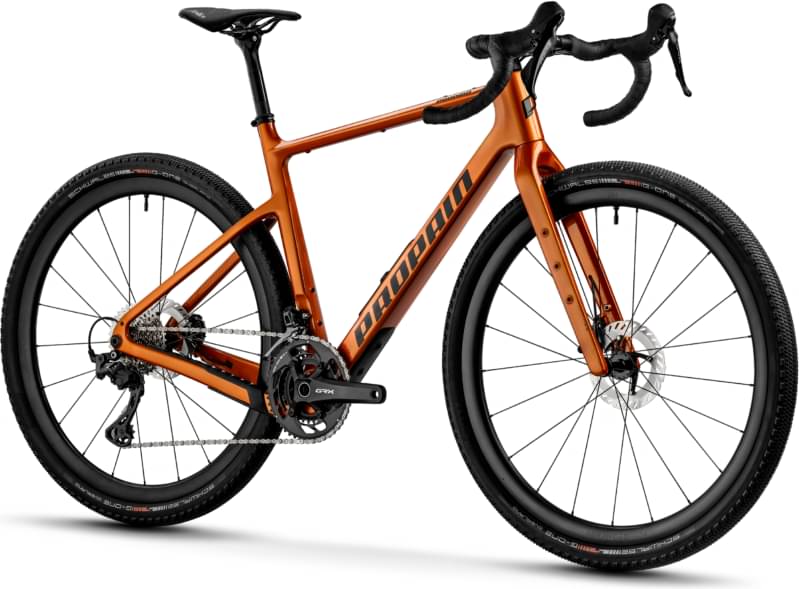

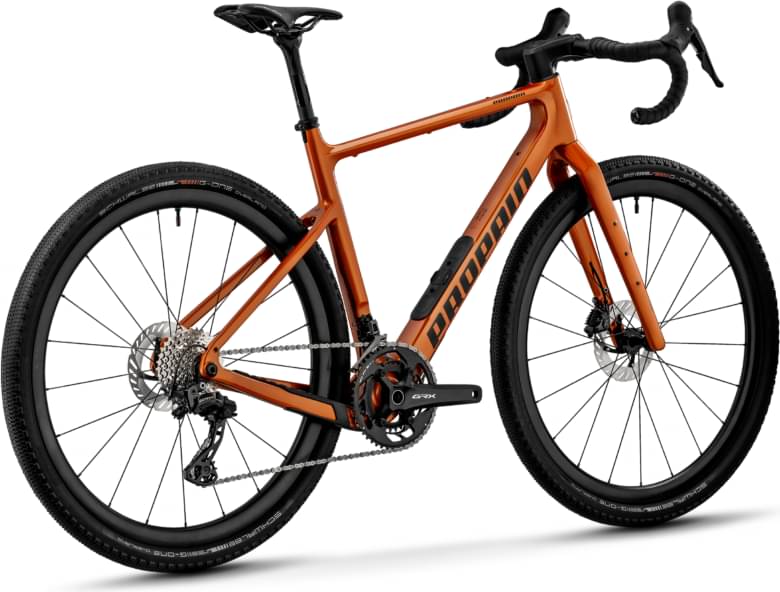

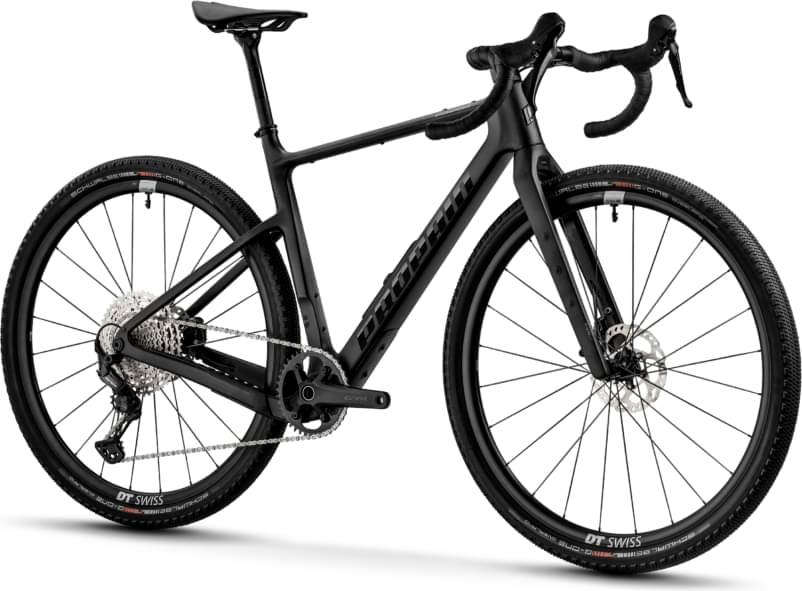

Propain TERREL CF Signature Spec 1 2025
2025 Road
Estimate price |
2,899$
Weight | 8.05 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Apex -
Suspension Rigid -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
GRVL Blend Carbon frame
Suspension Fork
Terrel CF
Drivetrain
Rear Derailleur
SRAM Apex (1x12)
Cassette
SRAM XG-1275 12-speed 10-52T
Crank
SRAM Apex
Chain
SRAM Eagle 12-speed
Wheels
Rims
DT Swiss G 1800 Spline
Tires
Schwalbe G-One Overland 50 mm
Brakes
Brakes
SRAM Centerline 160 mm
Cockpit
Stem
Zipp Service Course SL
Handlebar
Zipp Service Course 70 XPLR
Seat
Saddle
Selle Italia Model X Superflow
Seatpost
Zipp Service Course
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.434 mm | 1.44 mm | 1.476 mm | 1.47 mm |
| Bottom Bracket Height | 287 mm | 292 mm | 292 mm | 292 mm | 292 mm |
| Front Center | 614 mm | 628 mm | 637 mm | 648 mm | 669 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 82 mm | 79 mm | 77 mm | 73 mm | 69 mm |
| Stack | 554 mm | 568 mm | 583 mm | 608 mm | 632 mm |
| Reach | 382 mm | 396 mm | 405 mm | 412 mm | 430 mm |
| Top Tube Length | 538 mm | 564 mm | 578 mm | 592 mm | 617 mm |
| Seat Tube Angle | 74.3 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 98 mm | 116 mm | 130 mm | 154 mm | 177 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1037 mm | 1053 mm | 1062 mm | 1073 mm | 1094 mm |
| Bottom Bracket Drop | 77 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 787 mm | 803 mm | 820 mm | 843 mm | 862 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
