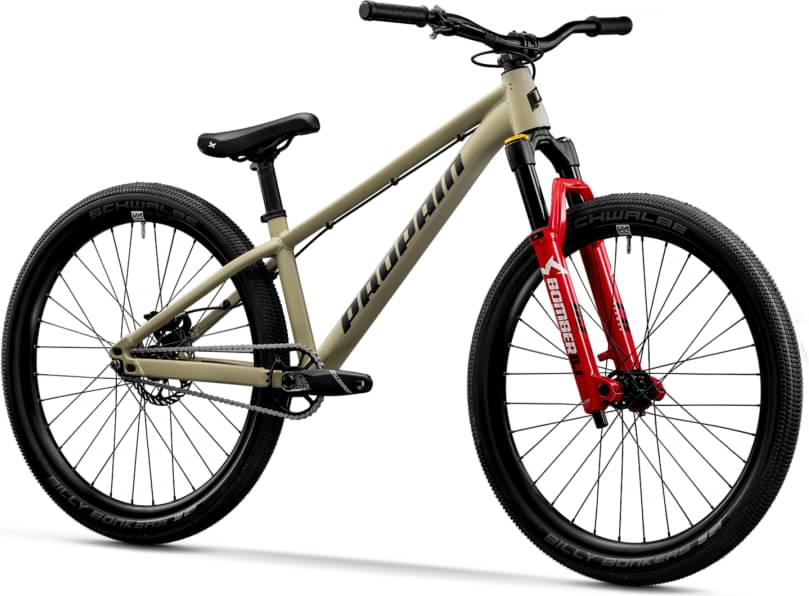

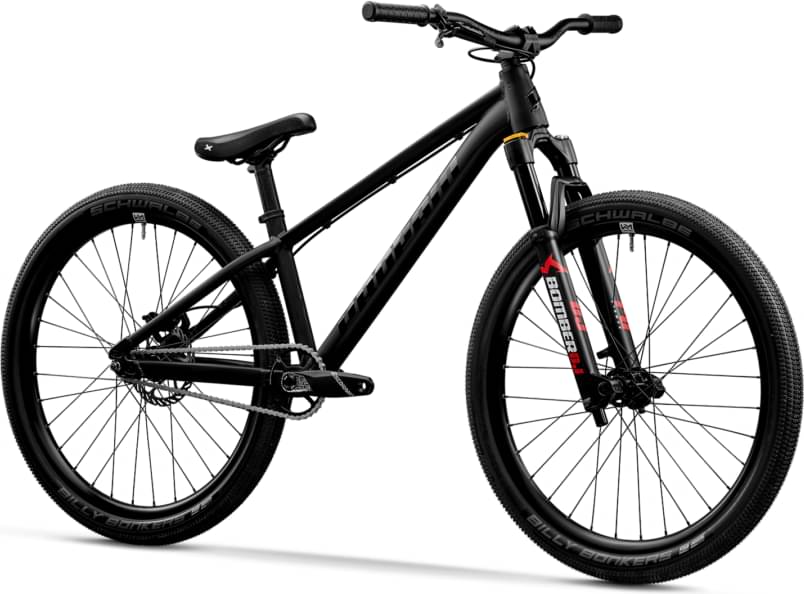

Propain TRICKSHOT AL 2024
2024 Mountain
Estimate price |
1,203$
Weight | 10.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Suspension Hardtail
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Stiff aluminum frame
Suspension Fork
100 mm front suspension travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | XL |
|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.299 mm |
| Bottom Bracket Height | 323 mm | 323 mm |
| Front Center | 653 mm | 678 mm |
| Rake | 40 mm | 40 mm |
| Trail | 92 mm | 92 mm |
| Stack | 552 mm | 552 mm |
| Reach | 400 mm | 425 mm |
| Top Tube Length | 579.5 mm | 604.5 mm |
| Seat Tube Angle | 72 ° | 72 ° |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 110 mm |
| Chainstay Length | 390 mm | 390 mm |
| Wheelbase | 1042 mm | 1067 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Wheels | 26" | 26" |
