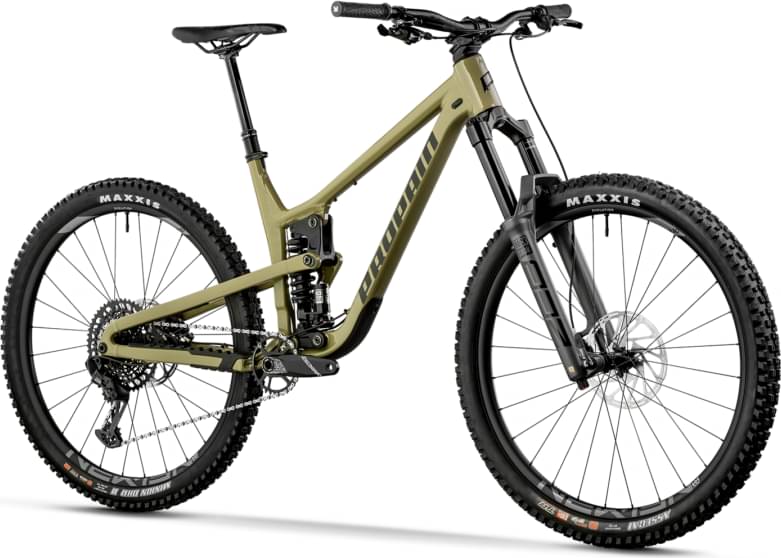

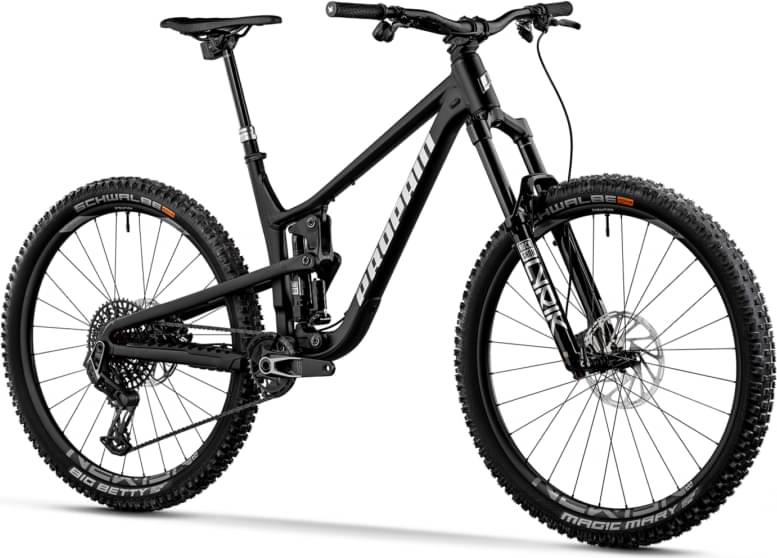

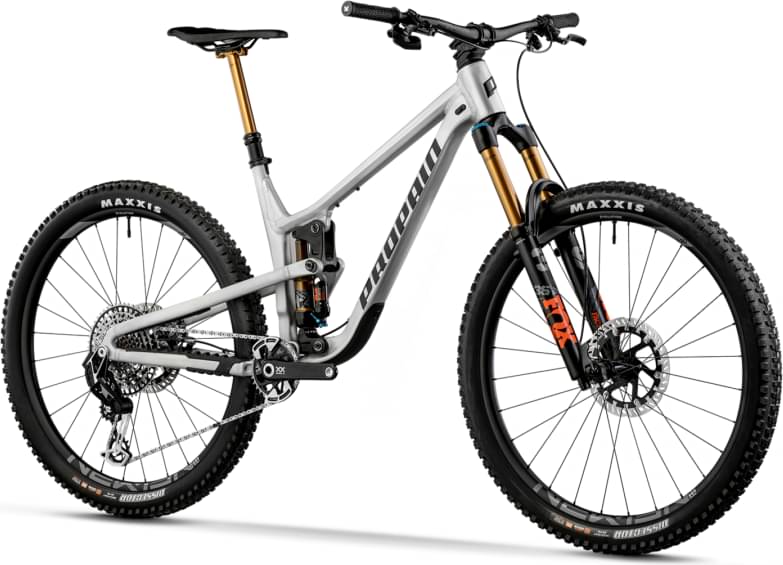

Propain TYEE 6 AL Goldrush 2024
2024 Mountain
Estimate price |
7,644$
Weight | 14.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset XX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
stainless steel frame bearings
Suspension Fork
Fox 36 Factory Kashima 160mm
Rear Shock
Fox Float X Factory Kashima
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission
Crank
SRAM XX Eagle Transmission 170 mm 32t
Wheels
Rims
Crankbrothers Synthesis Enduro Carbon i9
Tires
Schwalbe Magic Mary / Big Betty
Brakes
Brakes
Magura MT7 Performance 203 mm / 203 mm

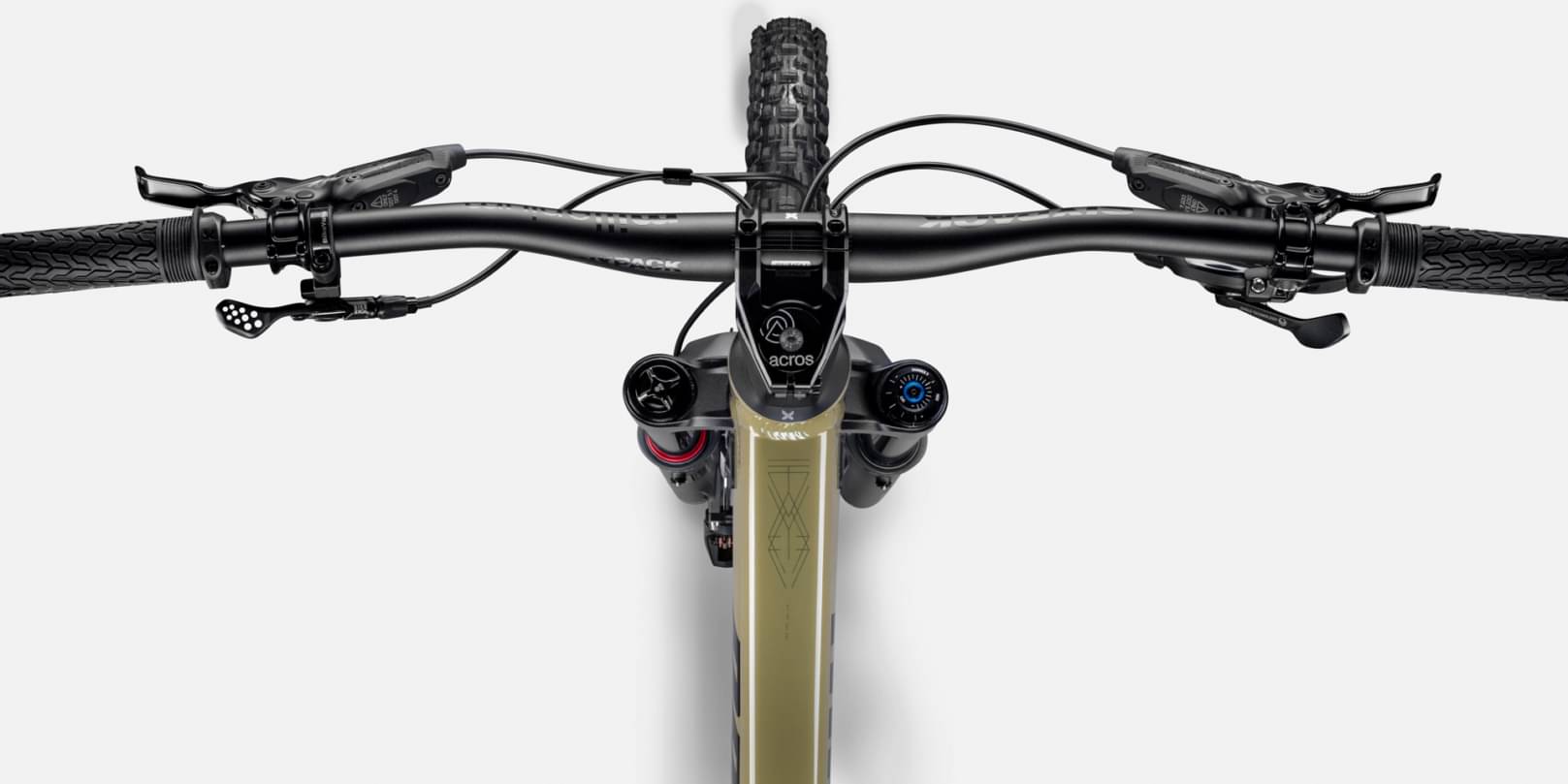

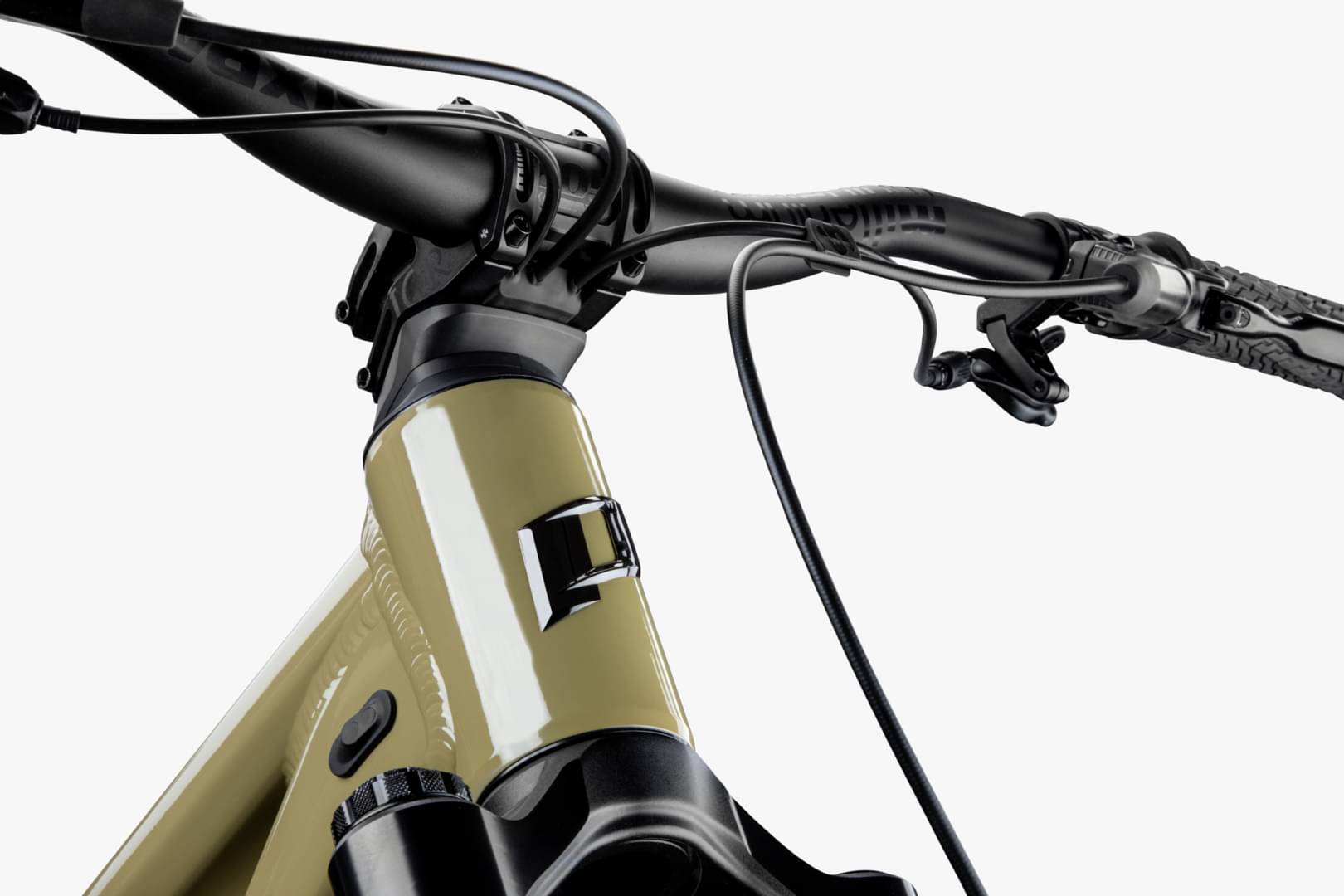

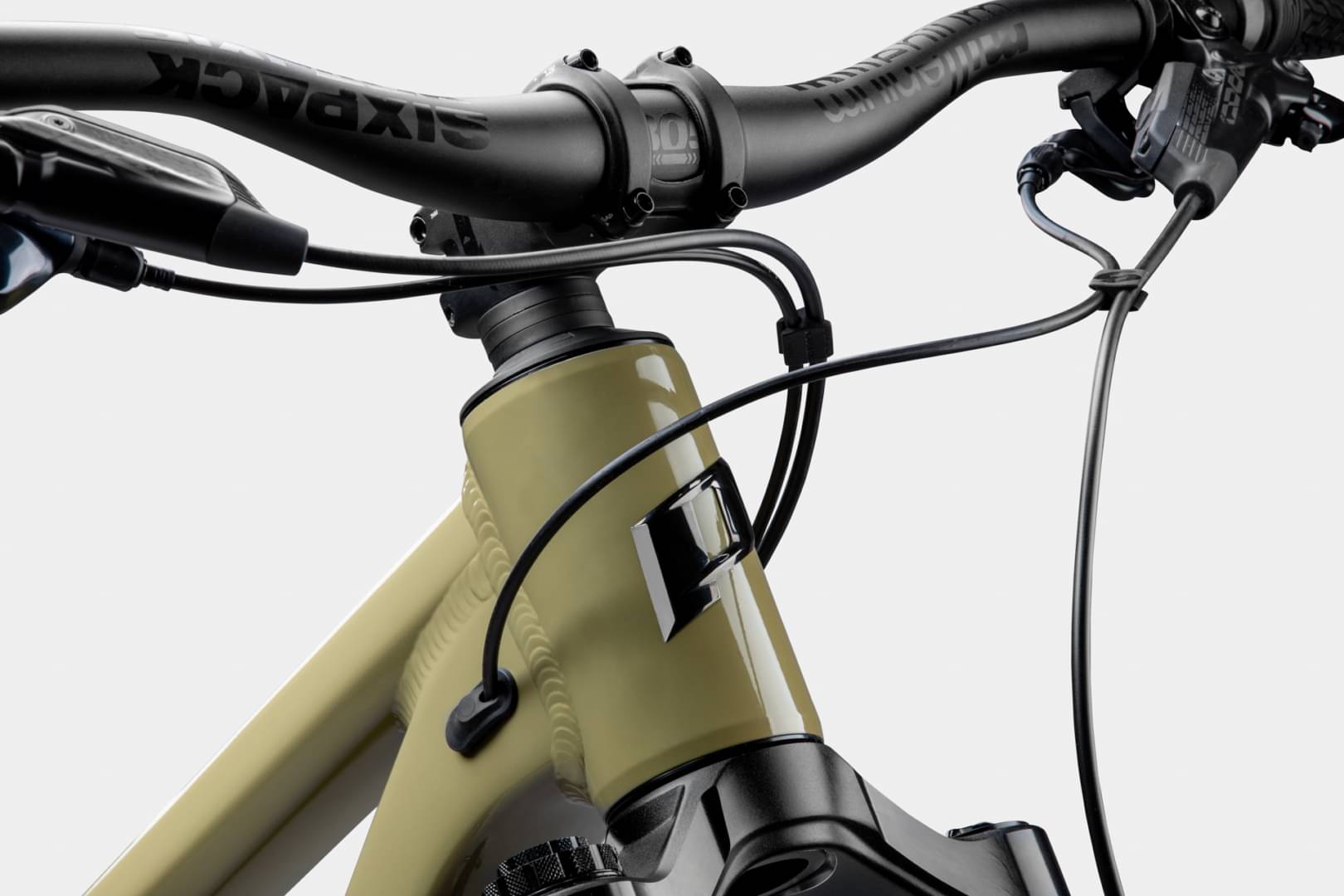

Cockpit
Stem
SIXPACK Millenium 35
Handlebar
SIXPACK Millenium 805
Seat
Saddle
SQLab 611 Infinergy
Seatpost
Fox Transfer Factory Kashima
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | SM High | MD High | MD High | LG High | XL High |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.422 mm | 1.381 mm | 1.334 mm | 1.365 mm | 1.313 mm | 1.265 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 715 mm | 748 mm | 780 mm | 787 mm | 816 mm | 846 mm |
| Rake | 37 mm | 37 mm | 37 mm | 44 mm | 44 mm | 44 mm |
| Trail | 129 mm | 130 mm | 129 mm | 130 mm | 130 mm | 130 mm |
| Stack | 576 mm | 594 mm | 607 mm | 621 mm | 630 mm | 639 mm |
| Reach | 405 mm | 430 mm | 455 mm | 455 mm | 480 mm | 505 mm |
| Top Tube Length | 528 mm | 559 mm | 588 mm | 592 mm | 620 mm | 647 mm |
| Seat Tube Angle | 77.9 ° | 77.7 ° | 77.6 ° | 77.5 ° | 77.5 ° | 77.4 ° |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 90 mm | 110 mm | 125 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1145 mm | 1178 mm | 1210 mm | 1231 mm | 1260 mm | 1290 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 11 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 783 mm | 783 mm | 783 mm | 783 mm | 783 mm | 783 mm |
| Wheels | 27" | 27" | 27" | 29" | 29" | 29" |
