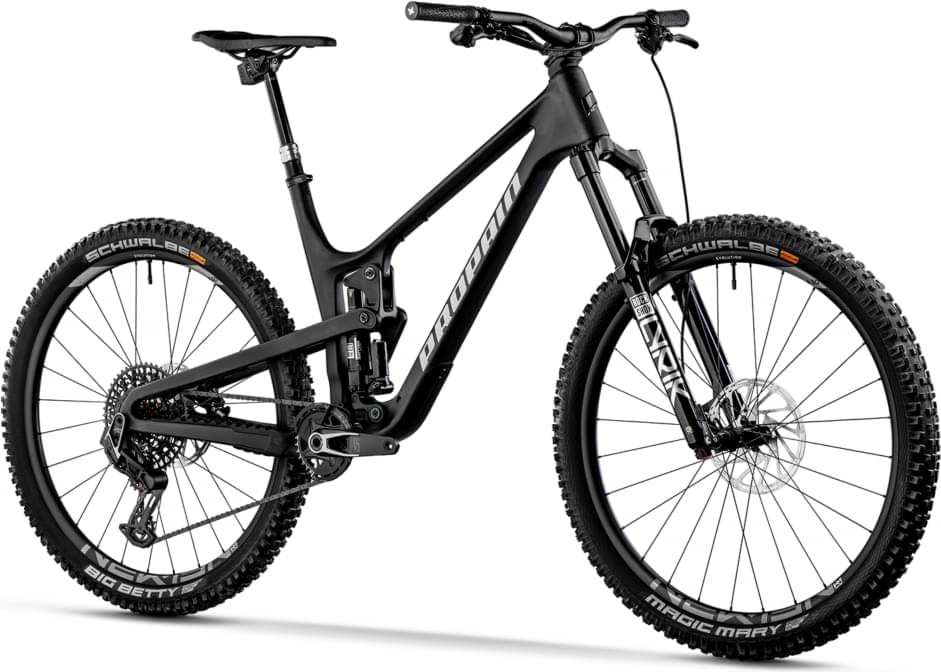

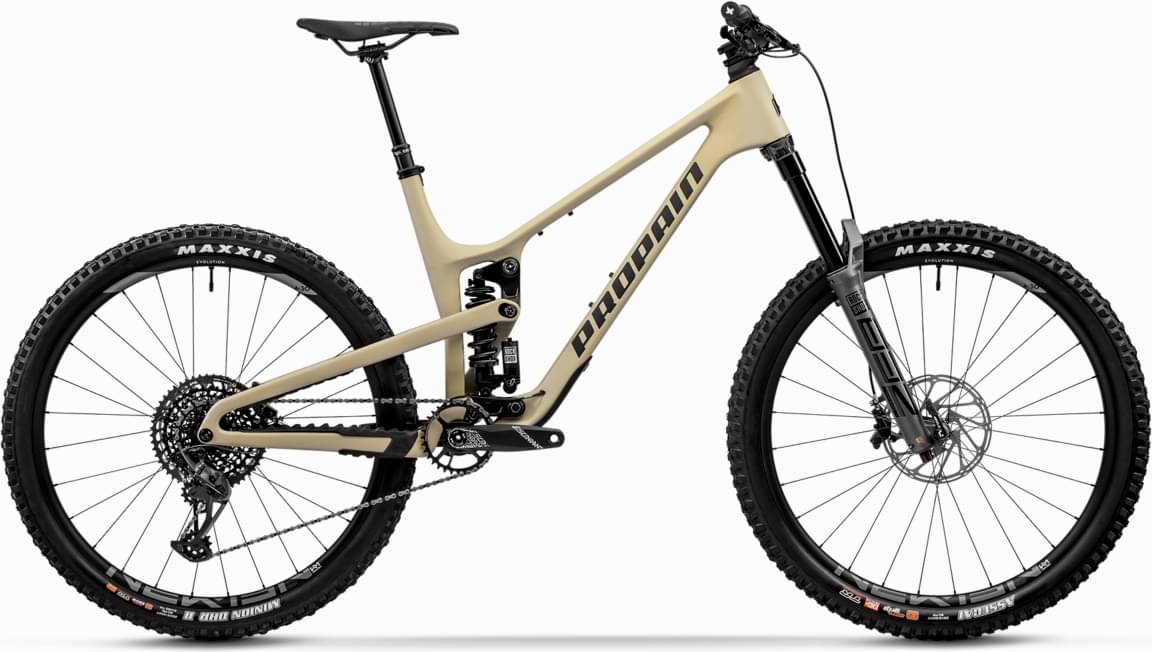

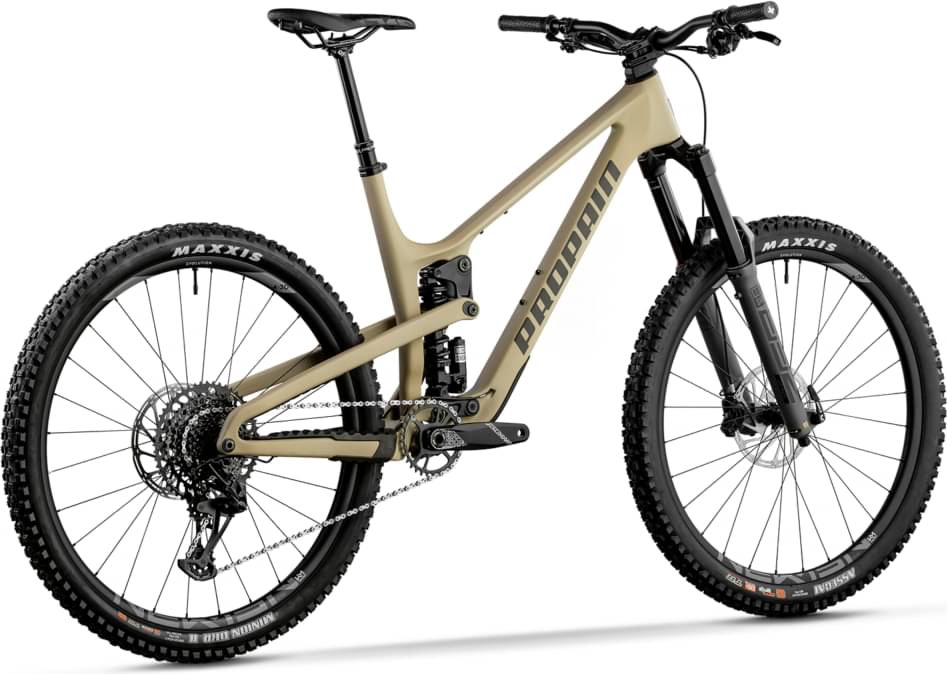

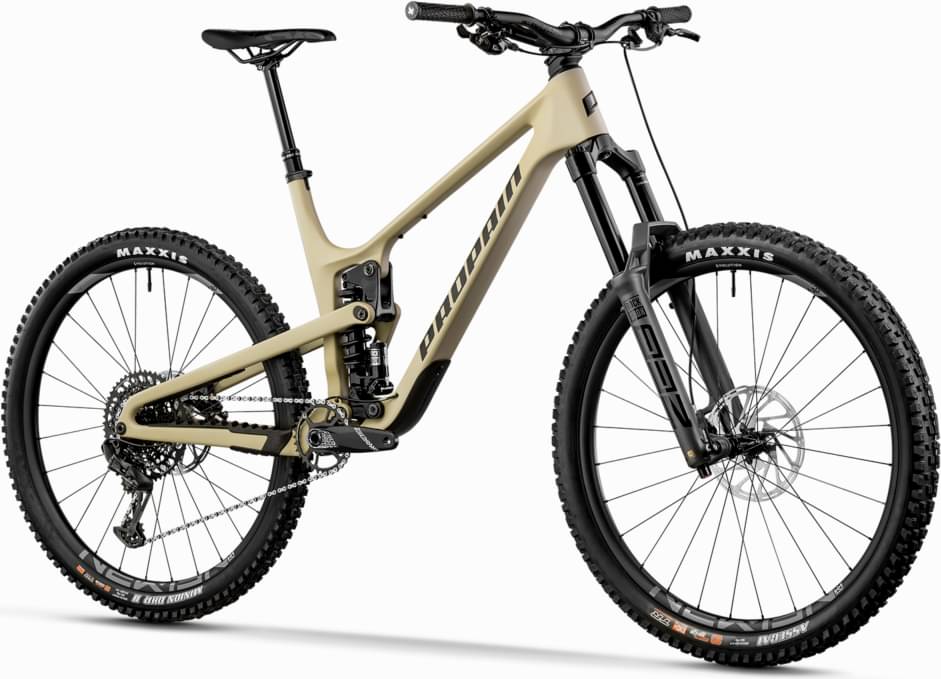

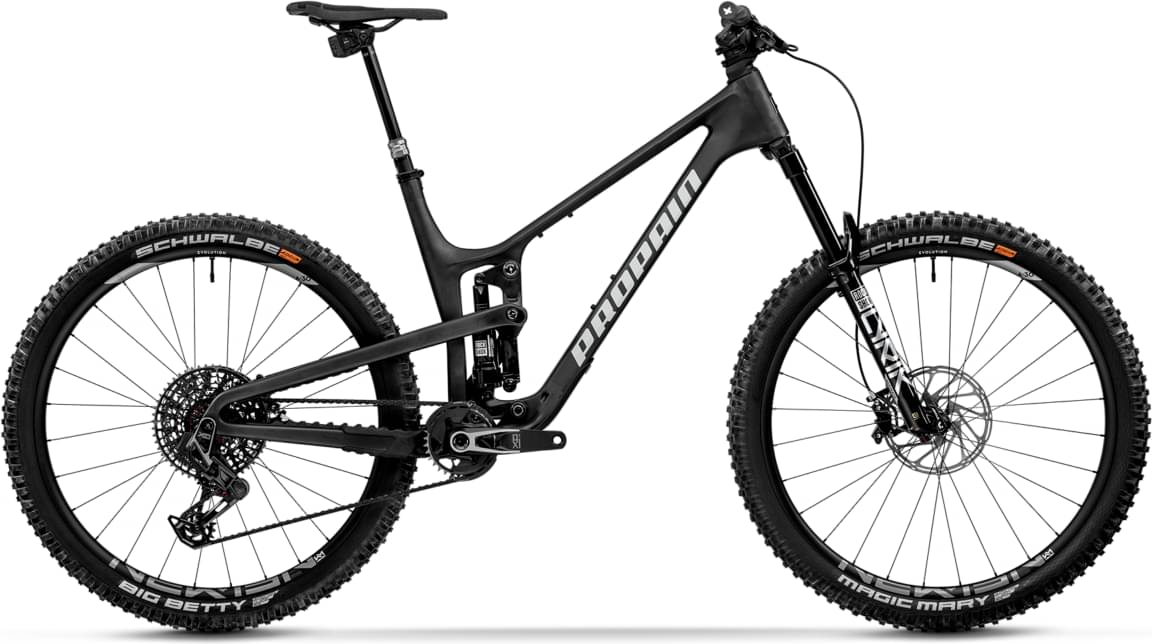

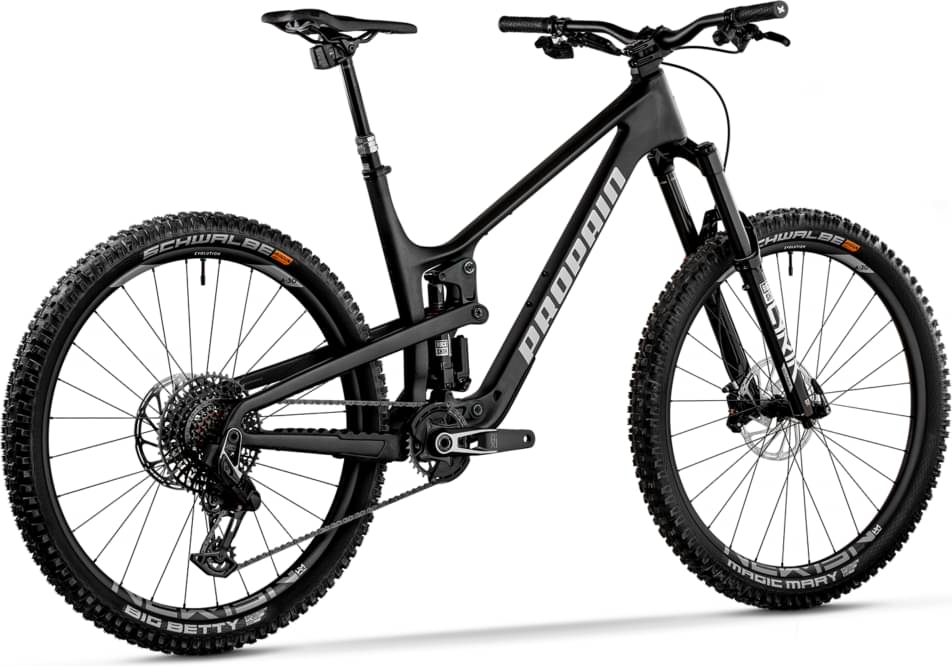

Propain TYEE 6 CF 27.5 Phantom 2025
2025 Mountain
Estimate price |
6,584$
Weight | 13.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox Lyrik Ultimate
-
Groupset X0 Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Code RSC Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Blend Carbon Frame
Suspension Fork
RockShox Lyrik Ultimate 160 mm
Rear Shock
RockShox Super Deluxe Ultimate
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission
Cassette
SRAM X0 Eagle Transmission
Crank
SRAM X0 Eagle Transmission 170 mm 32t
Wheels
Rims
NEWMEN Evolution SL A.30
Tires
Schwalbe Magic Mary / Big Betty
Brakes
Brakes
SRAM Code RSC 200 mm / 200 mm

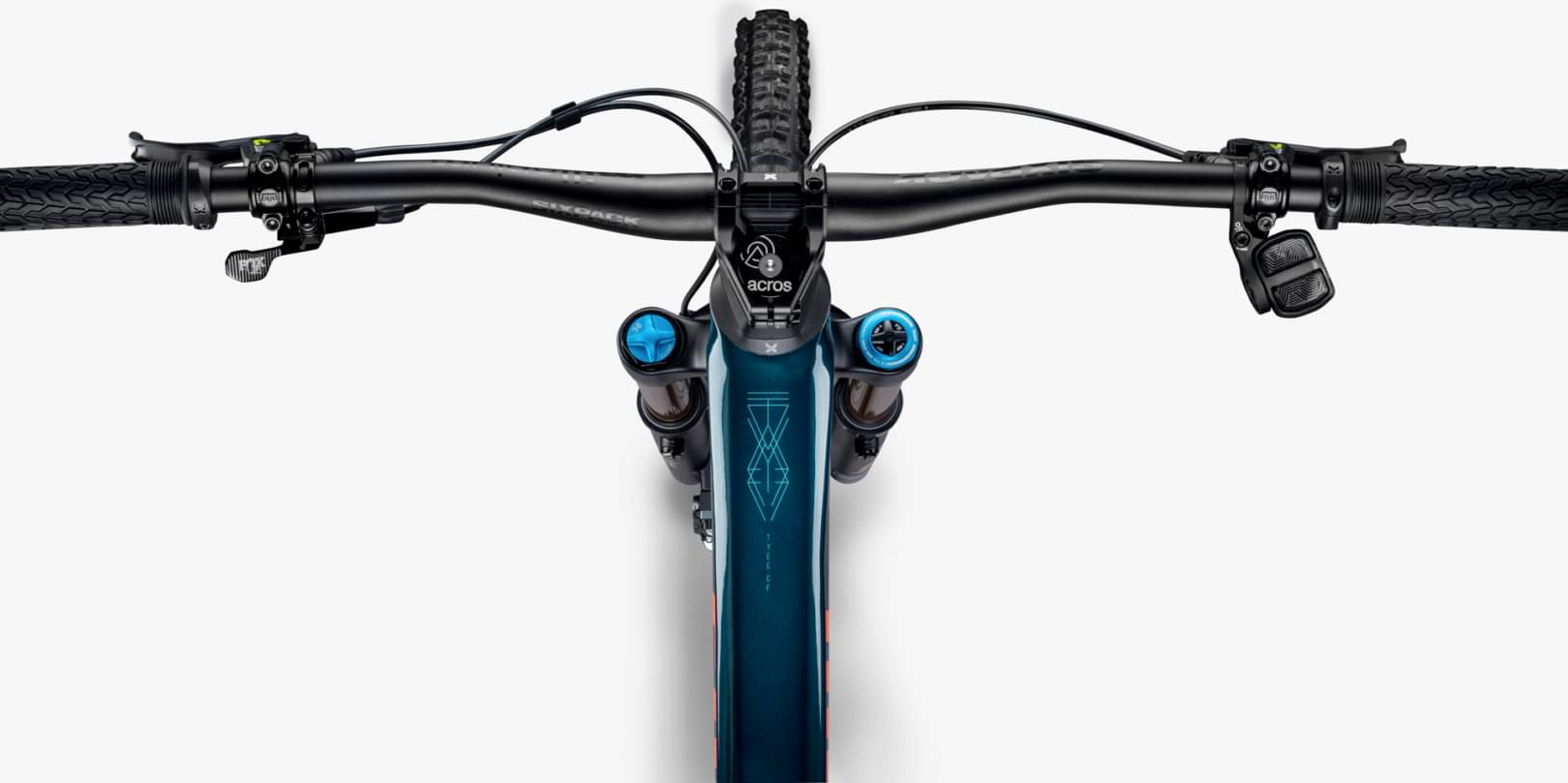

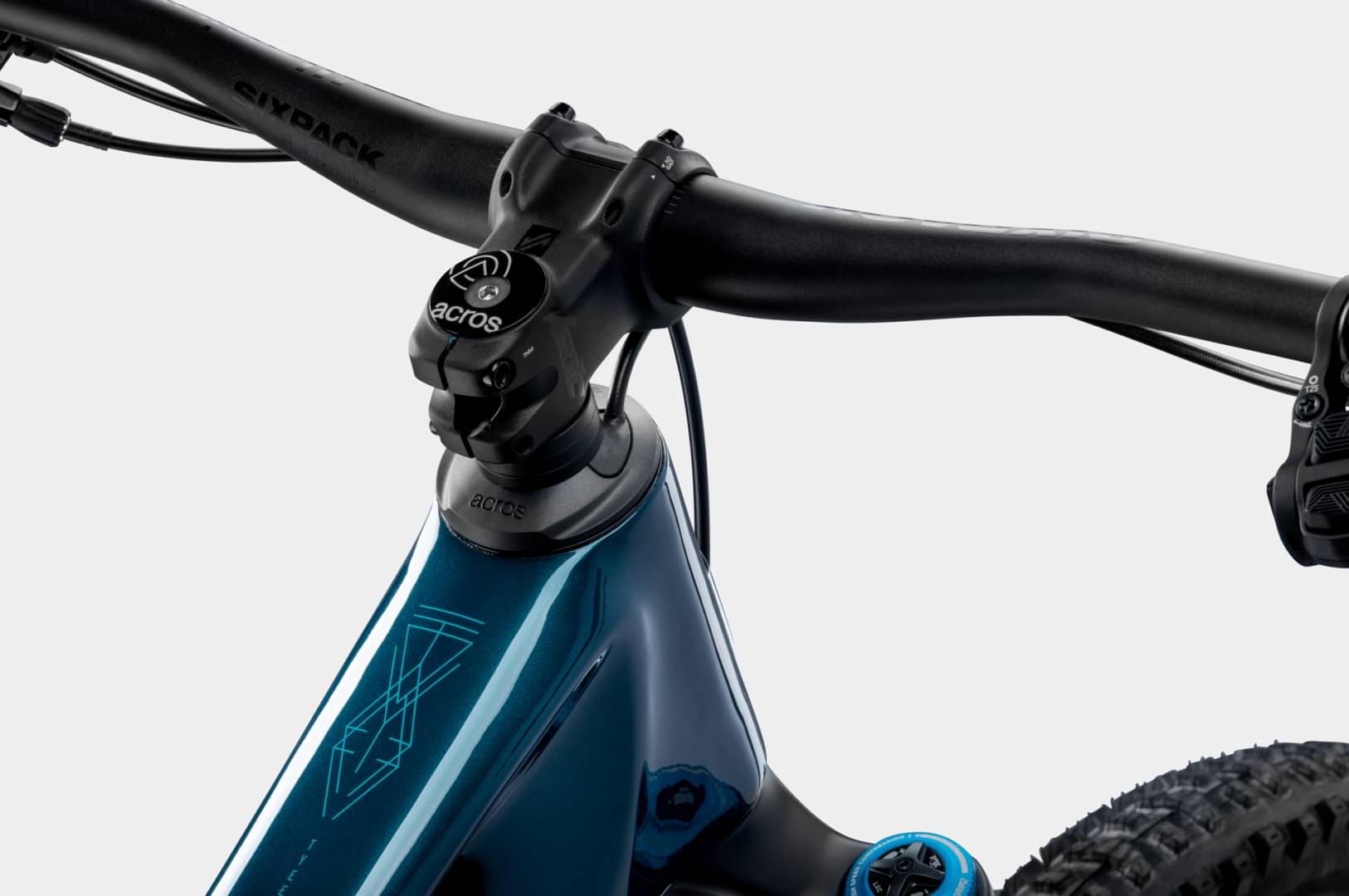

Cockpit
Stem
SIXPACK Millenium 35
Handlebar
SIXPACK Millenium 805
Seat
Saddle
SQLab 611 Infinergy
Seatpost
RockShox Reverb AXS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS Low | SM Low | MD Low |
|---|---|---|---|
| Stack Reach Ratio | 1.486 mm | 1.443 mm | 1.391 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 709 mm | 743 mm | 774 mm |
| Rake | 37 mm | 37 mm | 37 mm |
| Trail | 141 mm | 142 mm | 142 mm |
| Stack | 584 mm | 603 mm | 616 mm |
| Reach | 393 mm | 418 mm | 443 mm |
| Top Tube Length | 531 mm | 562 mm | 591 mm |
| Seat Tube Angle | 76.6 ° | 76.6 ° | 76.6 ° |
| Head Tube Angle | 63.4 ° | 63.4 ° | 63.4 ° |
| Head Tube Length | 90 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1138 mm | 1172 mm | 1203 mm |
| Bottom Bracket Drop | 26 mm | 26 mm | 26 mm |
| Standover Height | 776 mm | 776 mm | 776 mm |
| Wheels | 27" | 27" | 27" |
