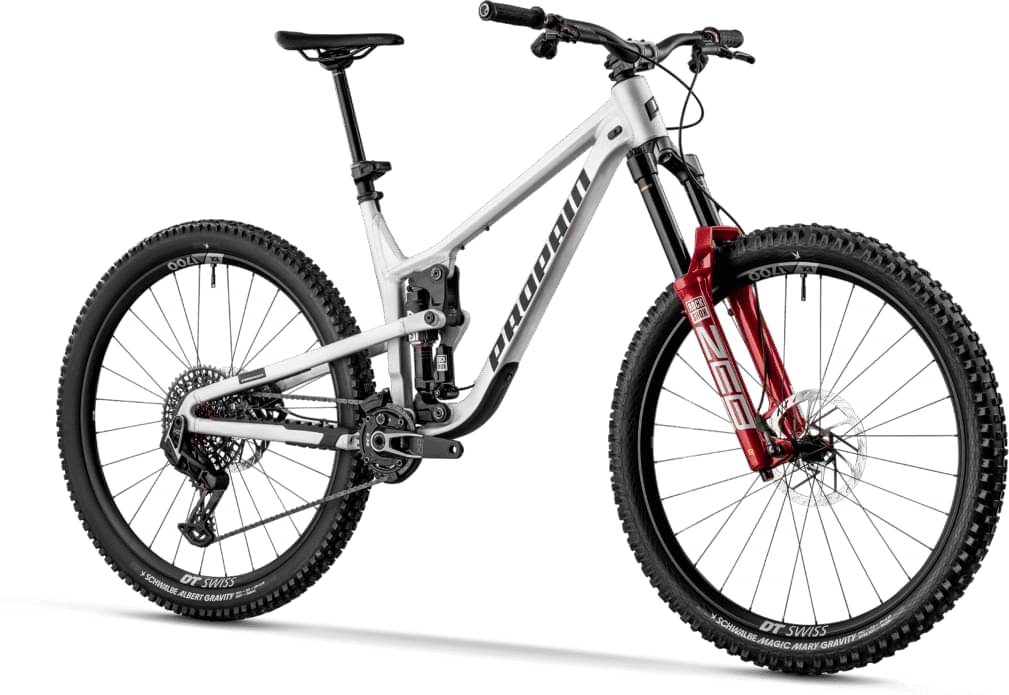

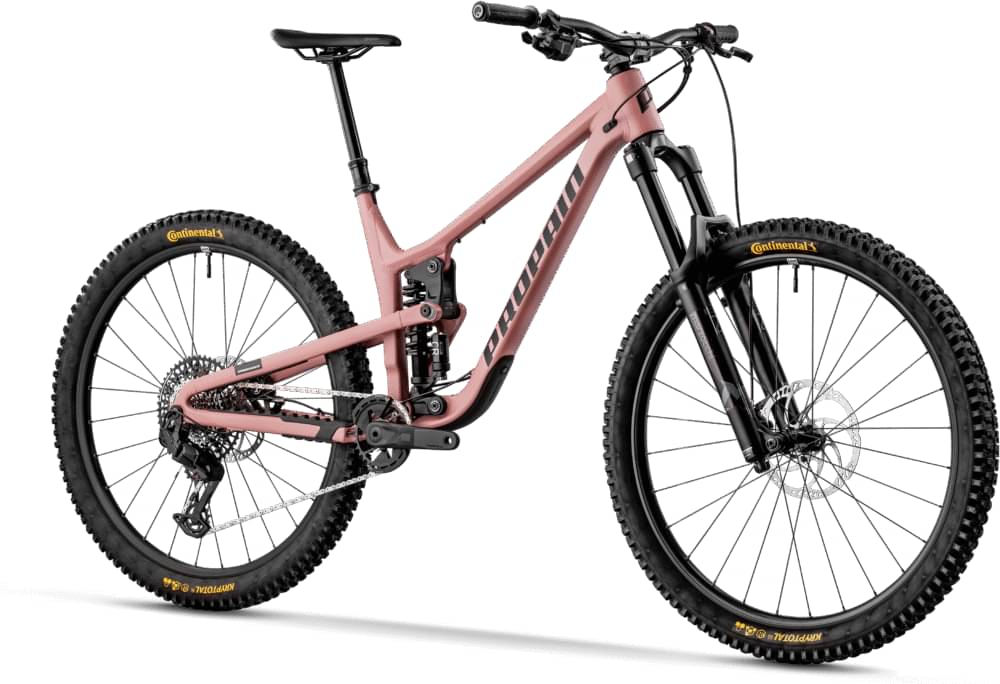

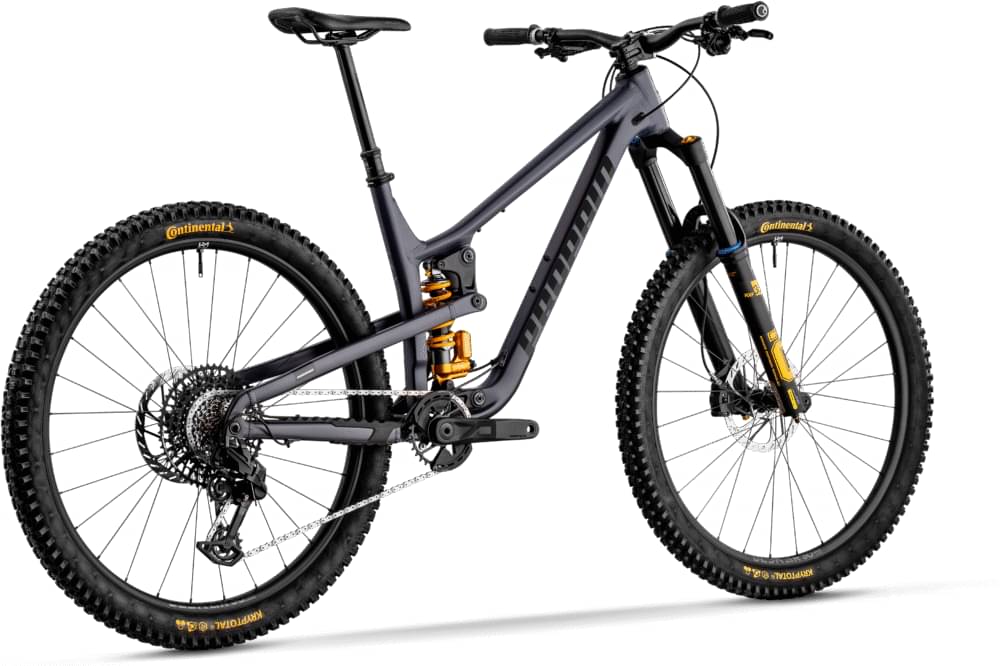

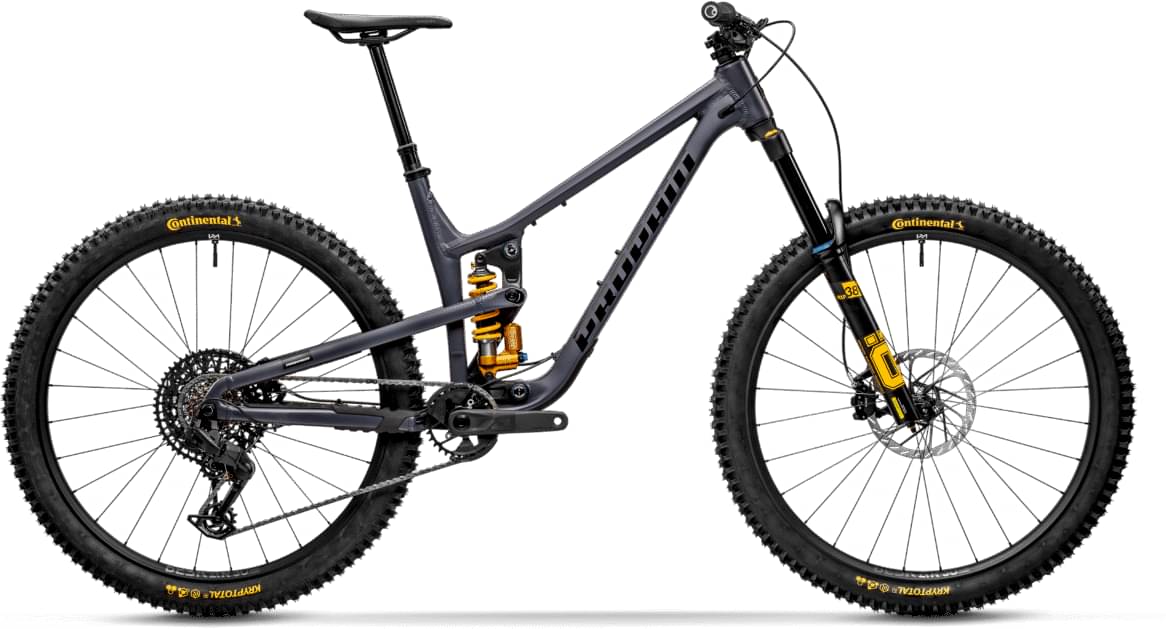

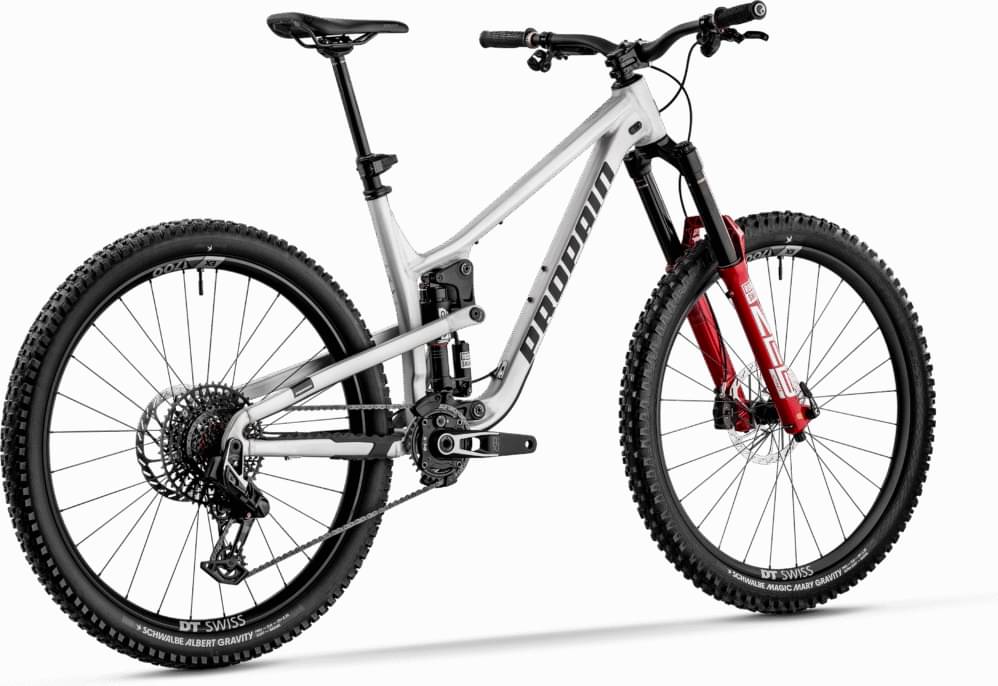

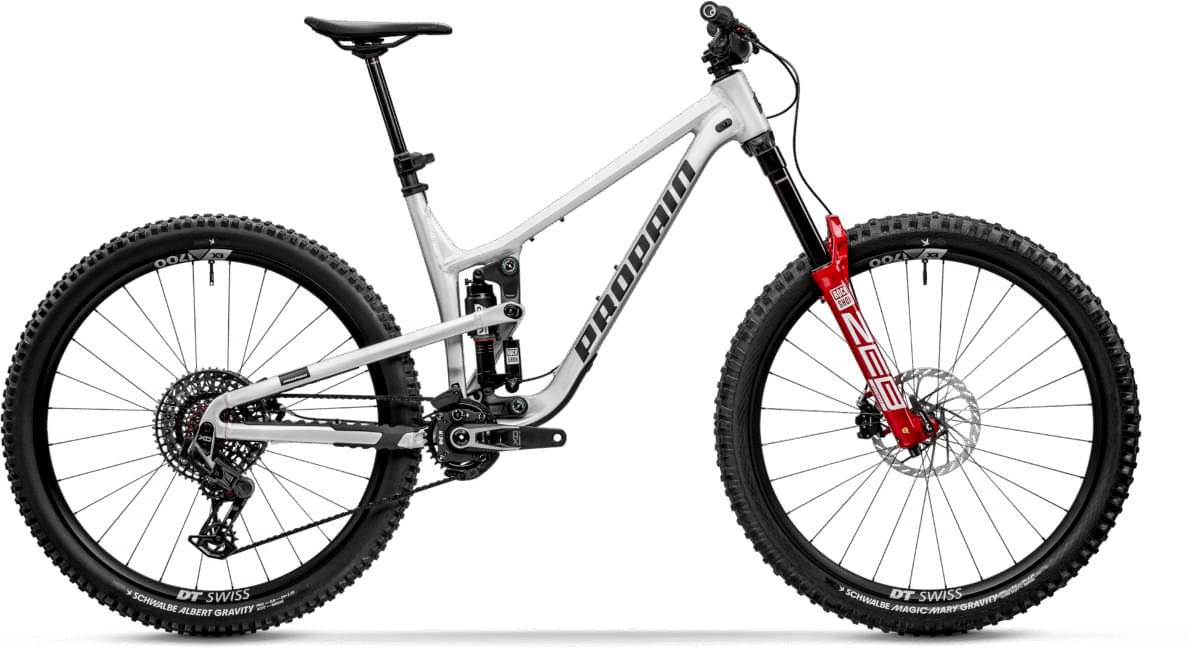

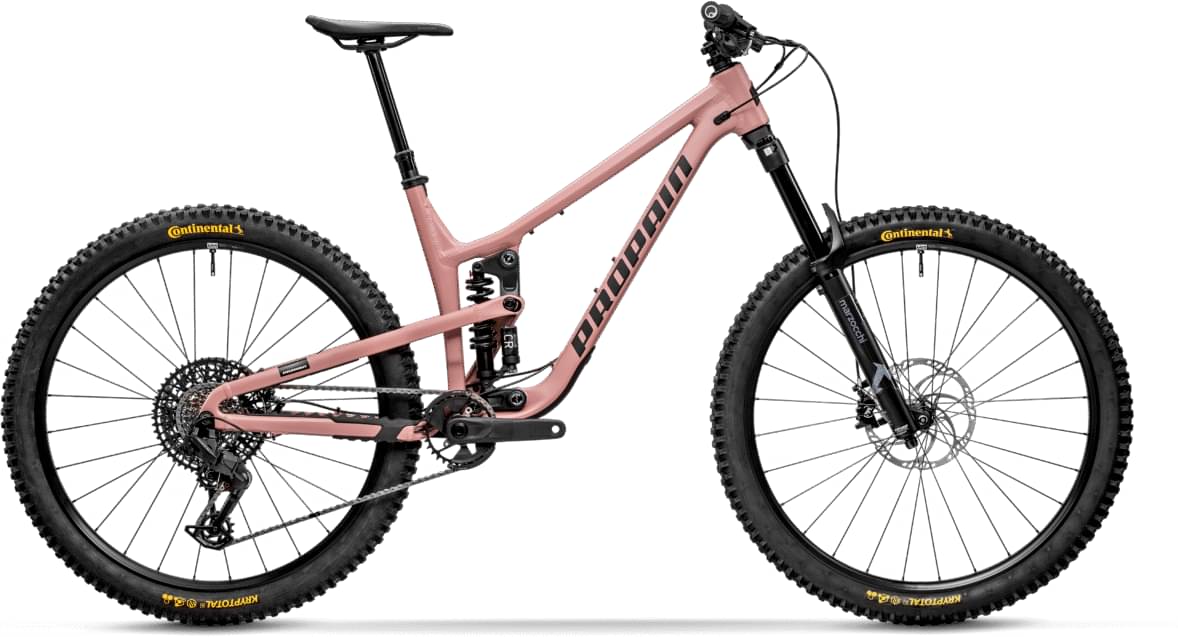

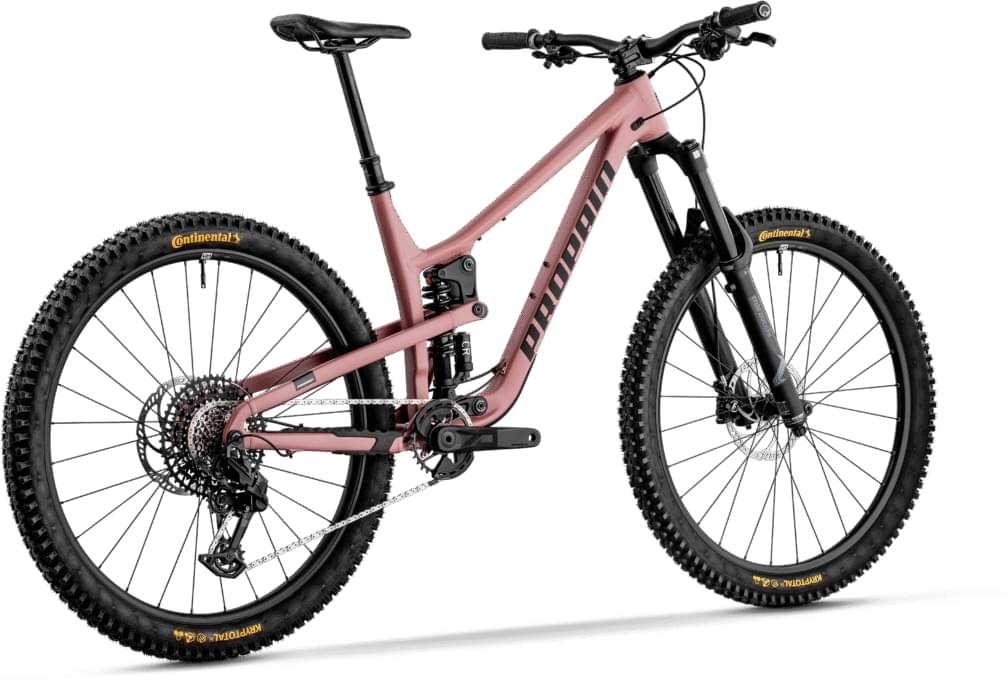

Propain TYEE AL 27.5 Bomber 2025
2025 Mountain
Estimate price |
4,454$
Weight | 15.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 160mm -
Fork Marzocchi
-
Groupset Eagle 70 Transmission -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Magura MT5 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Blend Alloy frame
Suspension Fork
Marzocchi Bomber Z 170 mm
Rear Shock
Marzocchi Bomber CR
Drivetrain
Rear Derailleur
SRAM Eagle 70 Transmission (1x12)
Wheels
Rims
NEWMEN Performance 30
Tires
Continental Kryptotal
Brakes
Brakes
Magura MT5 203 mm / 203 mm
Cockpit

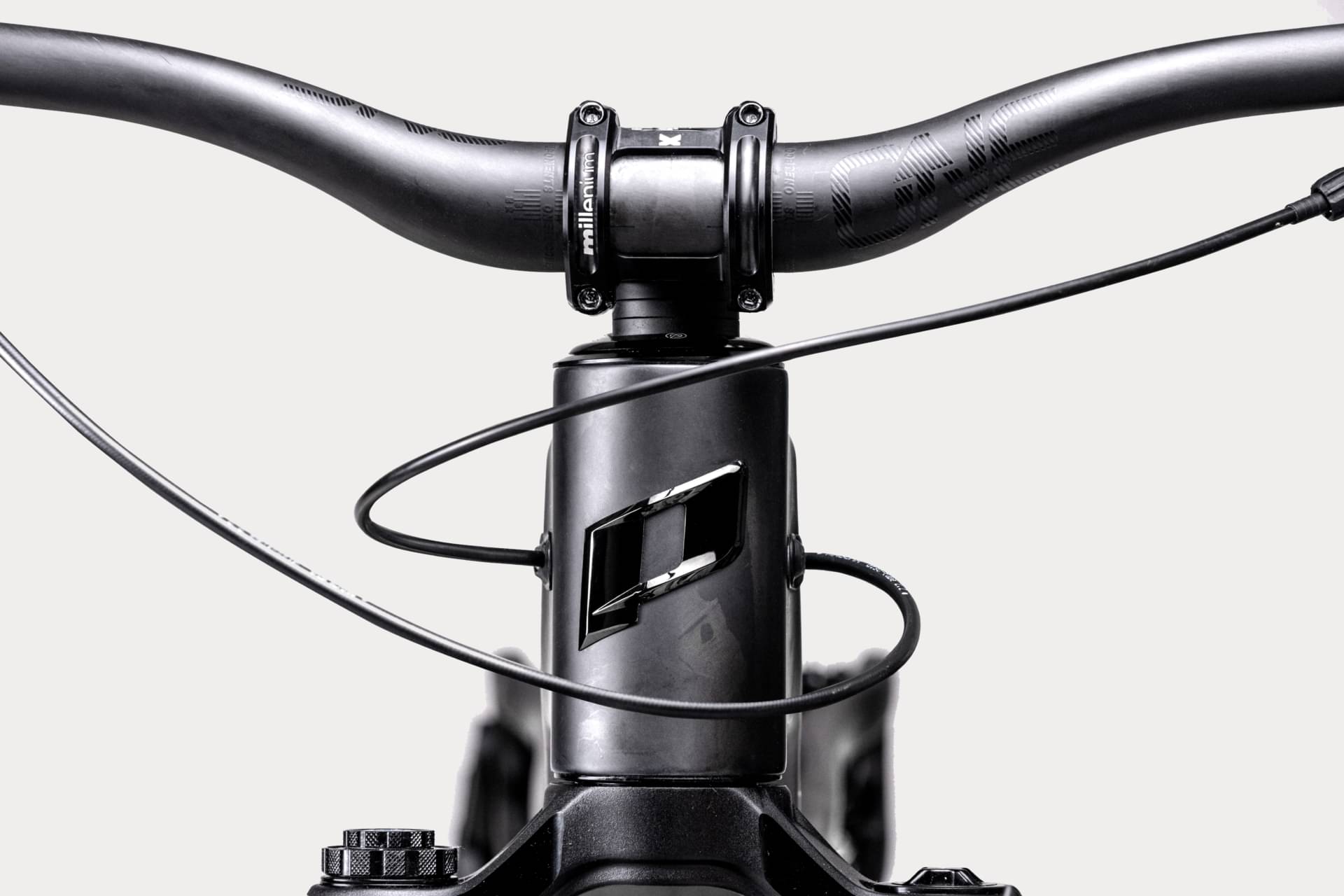

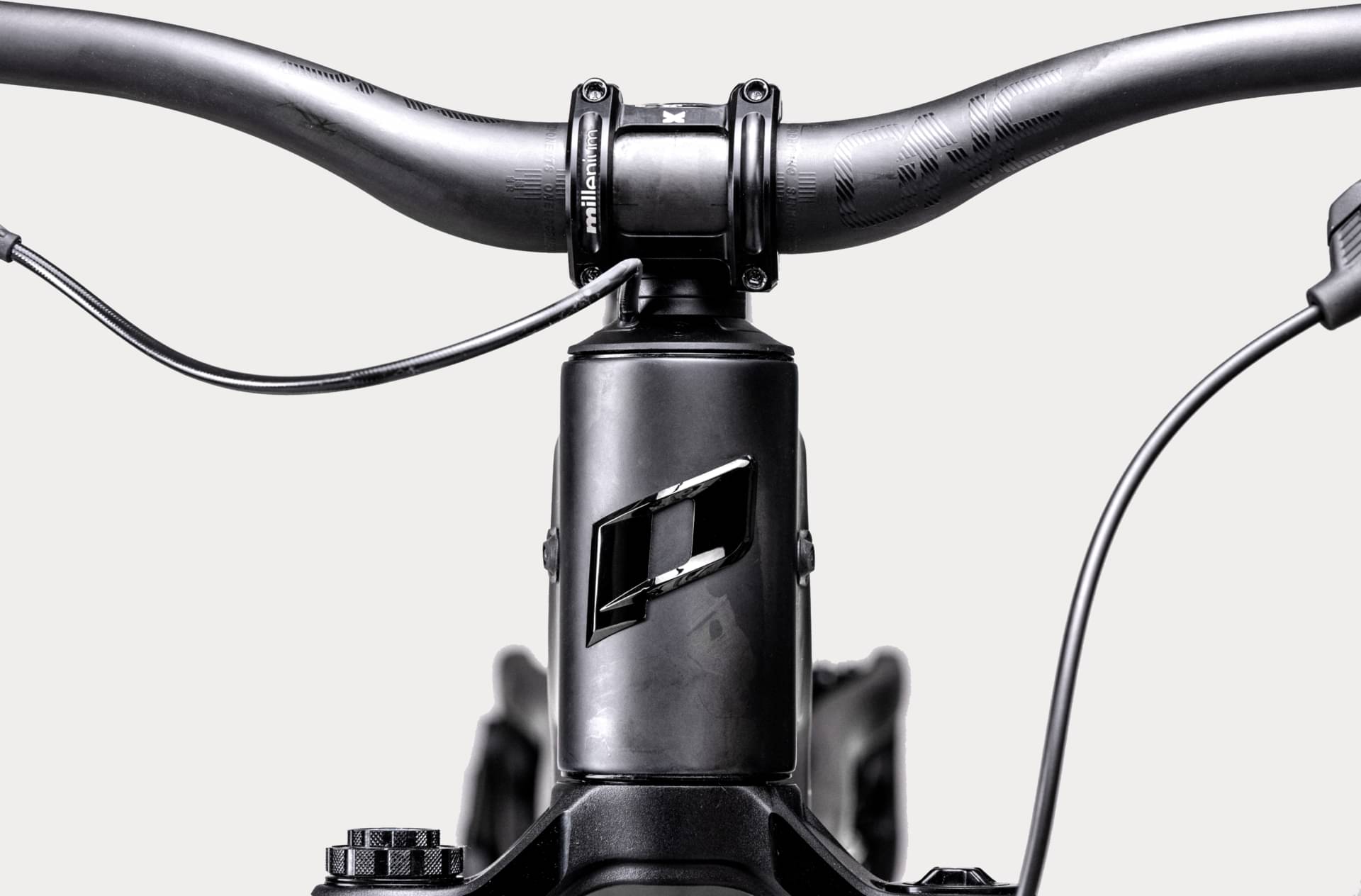

Handlebar

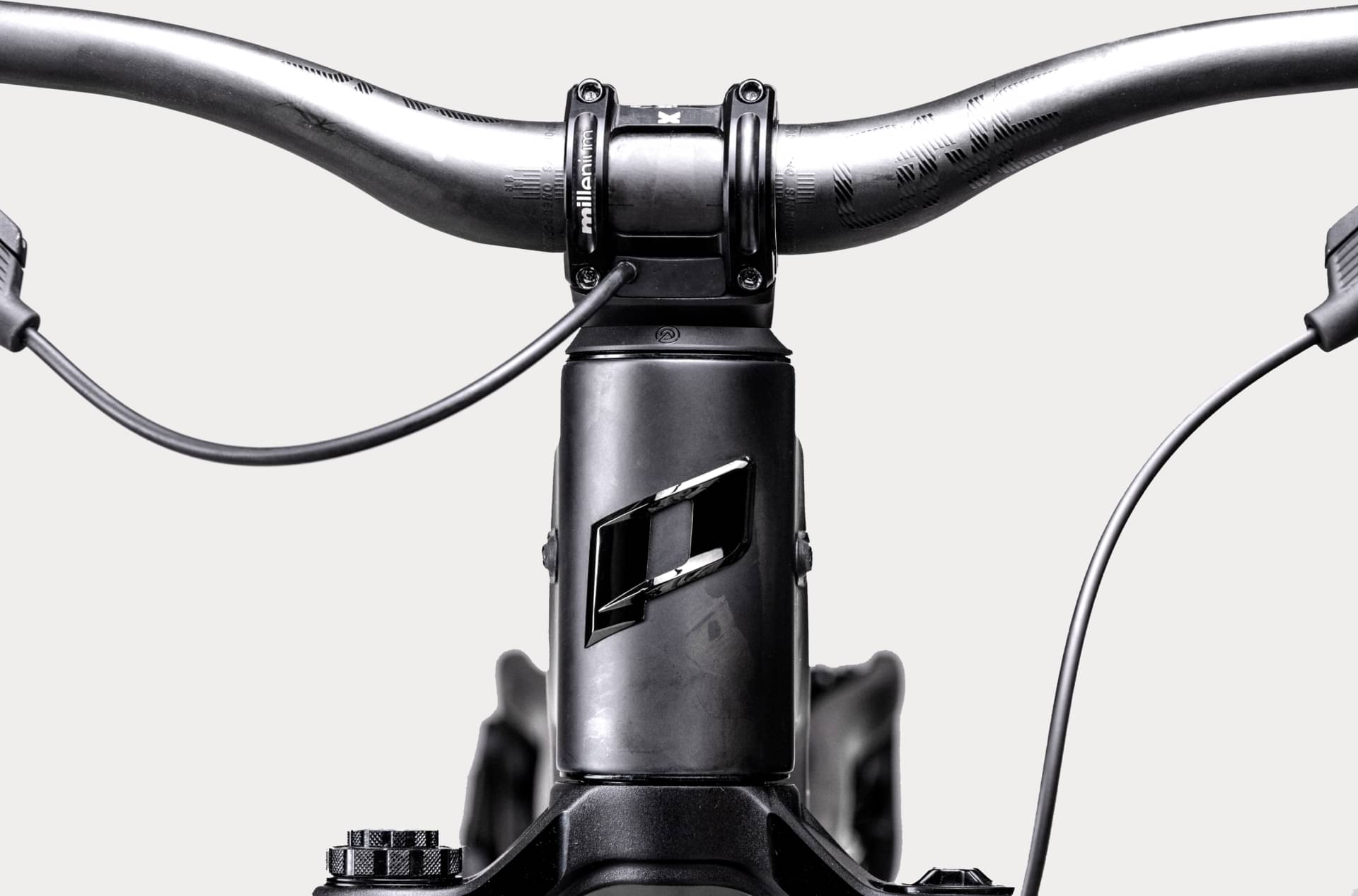

Sixpack Millenium 805 30mm Rise
Grips
Ergon GDH Team
Seat
Saddle
Ergon SM Enduro Comp
Seatpost
OneUp V3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS Low | SM Low | MD Low |
|---|---|---|---|
| Stack Reach Ratio | 1.519 mm | 1.473 mm | 1.421 mm |
| Bottom Bracket Height | 333 mm | 333 mm | 333 mm |
| Front Center | 723 mm | 756 mm | 788 mm |
| Rake | 37 mm | 37 mm | 37 mm |
| Trail | 138 mm | 140 mm | 140 mm |
| Stack | 588 mm | 607 mm | 621 mm |
| Reach | 387 mm | 412 mm | 437 mm |
| Top Tube Length | 531 mm | 562 mm | 591 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Head Tube Angle | 62.8 ° | 62.8 ° | 62.8 ° |
| Head Tube Length | 90 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1152 mm | 1185 mm | 1217 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 22 mm |
| Standover Height | 779 mm | 779 mm | 779 mm |
| Wheels | 27" | 27" | 27" |
