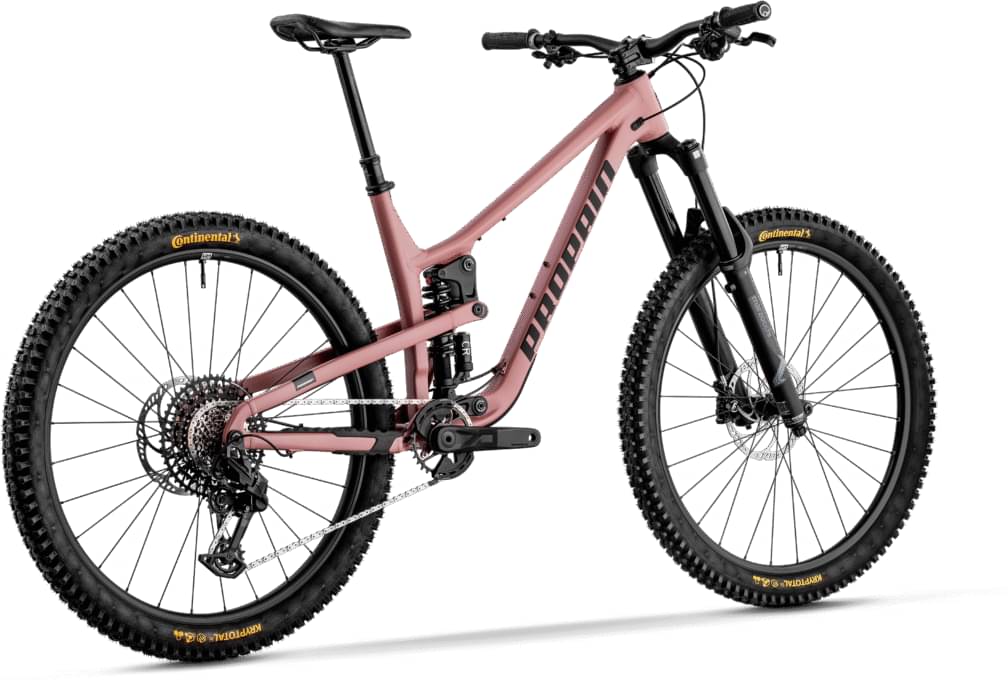

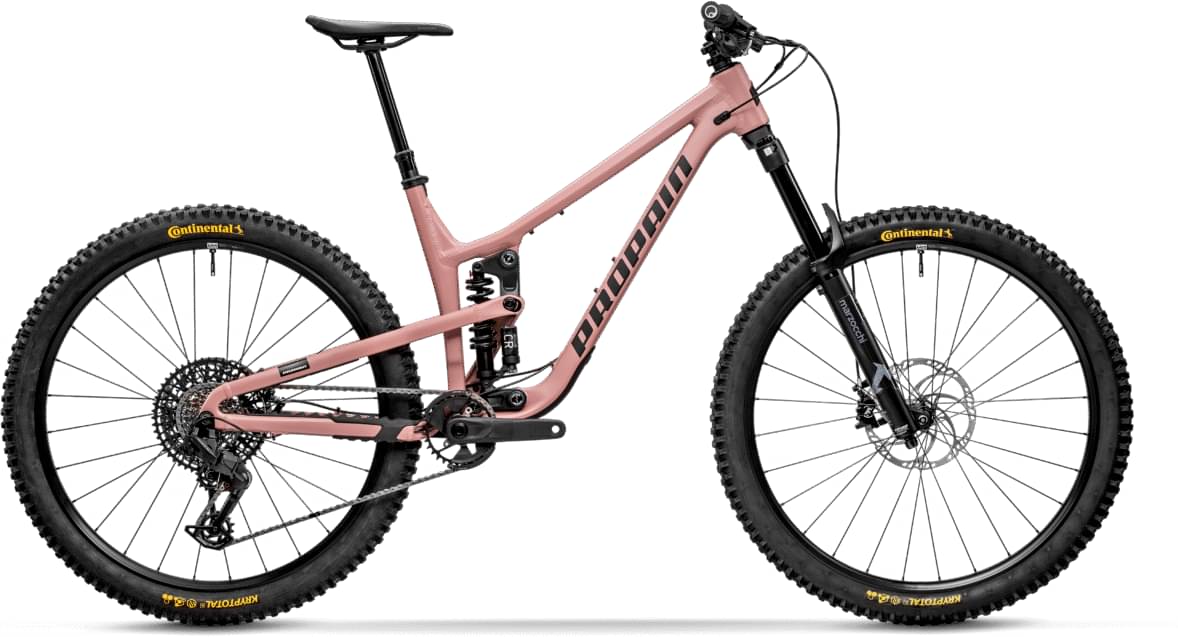

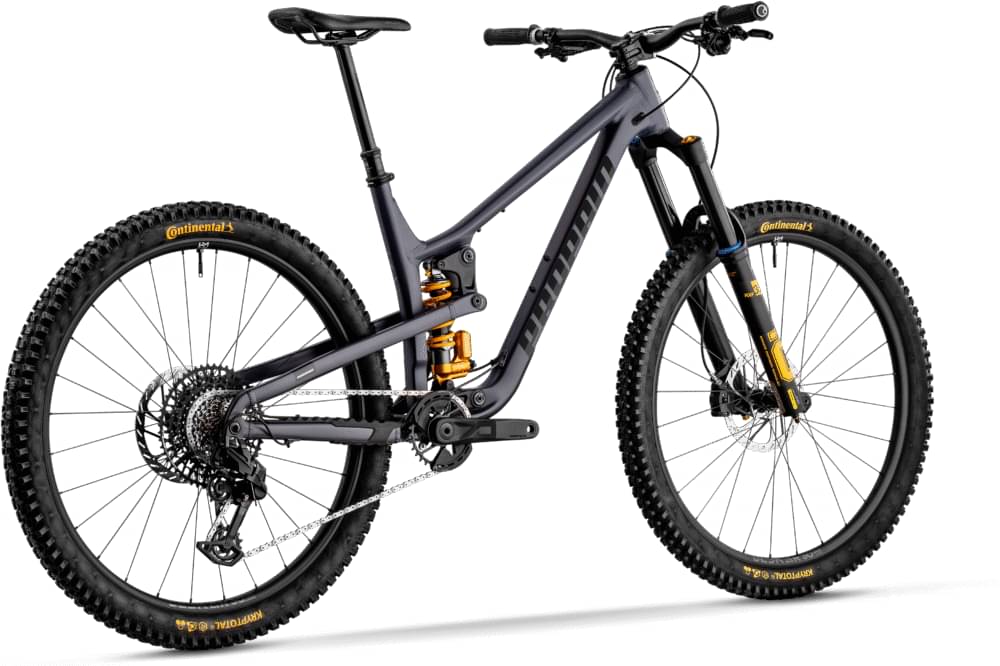

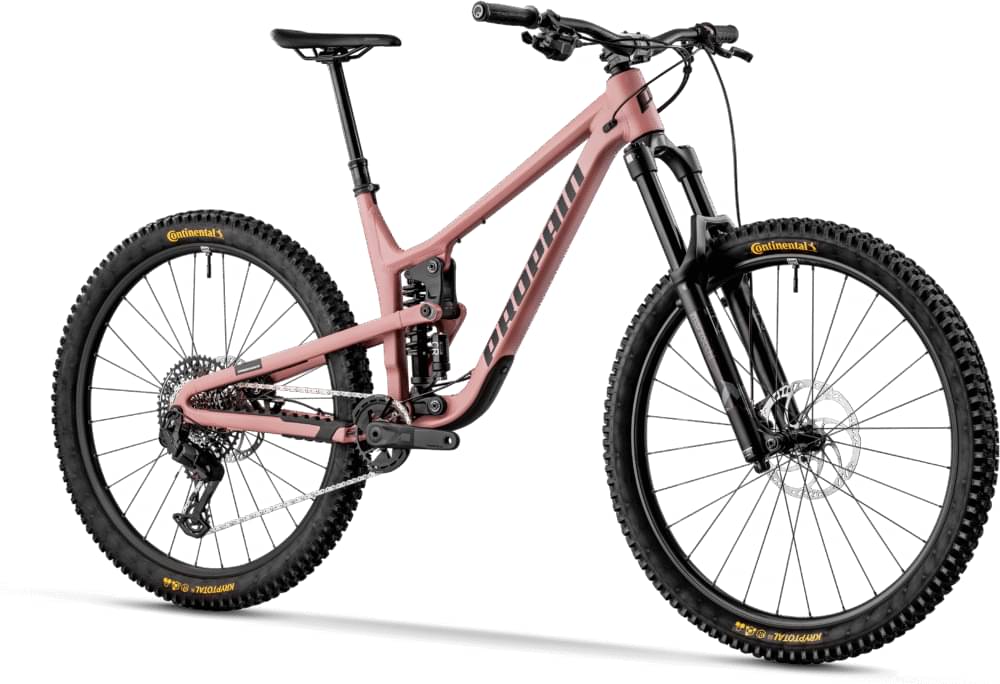

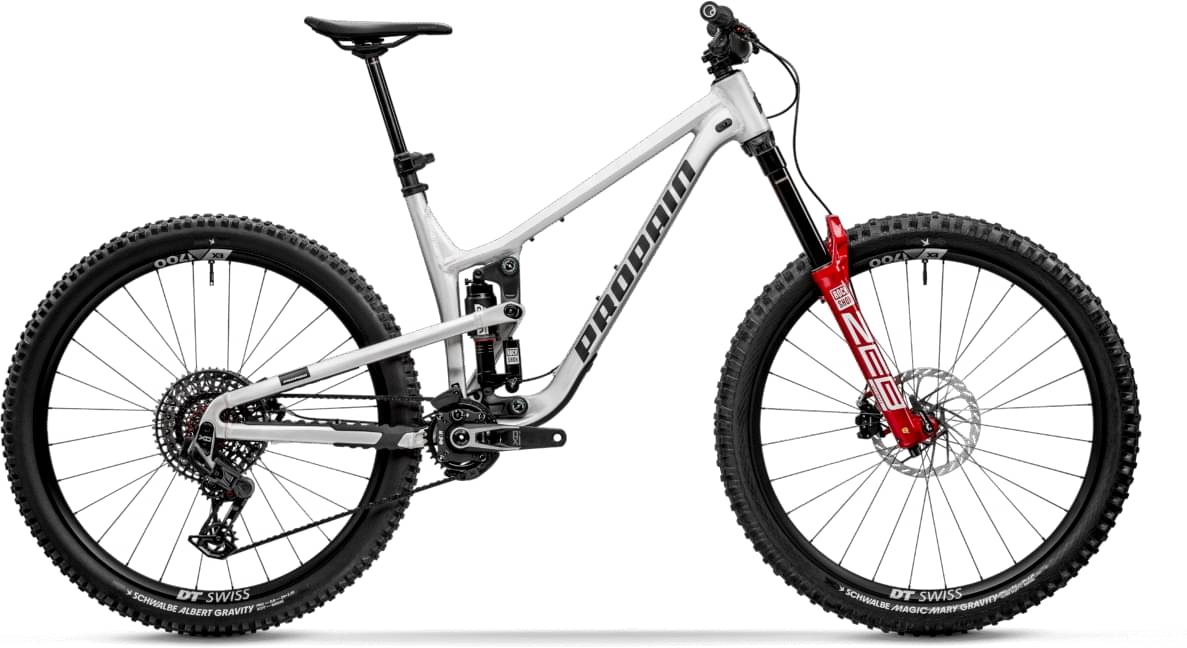

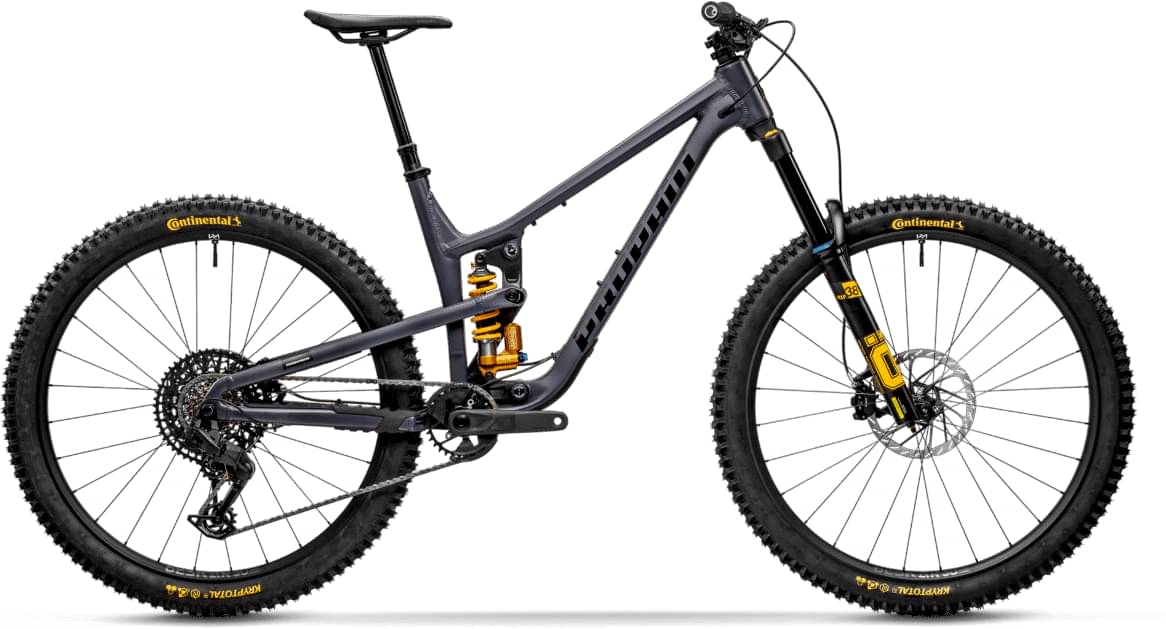

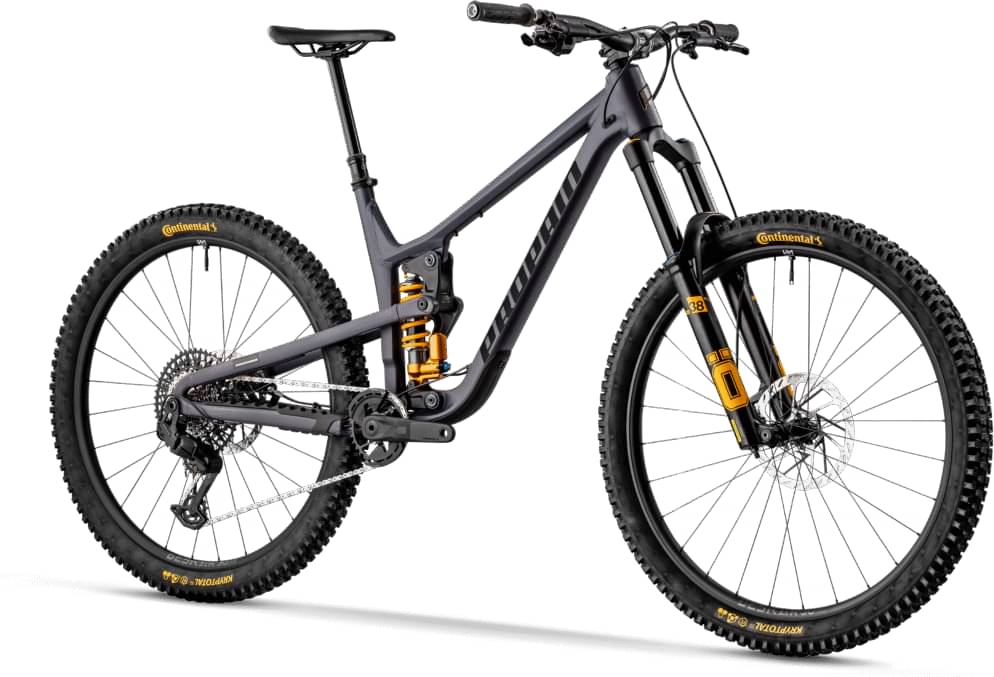

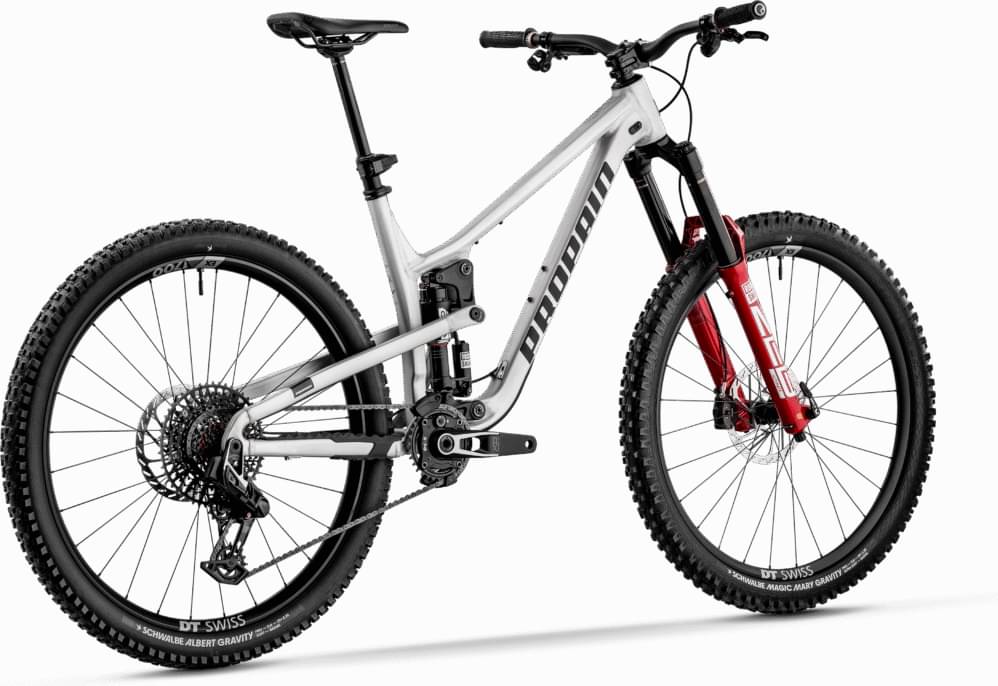

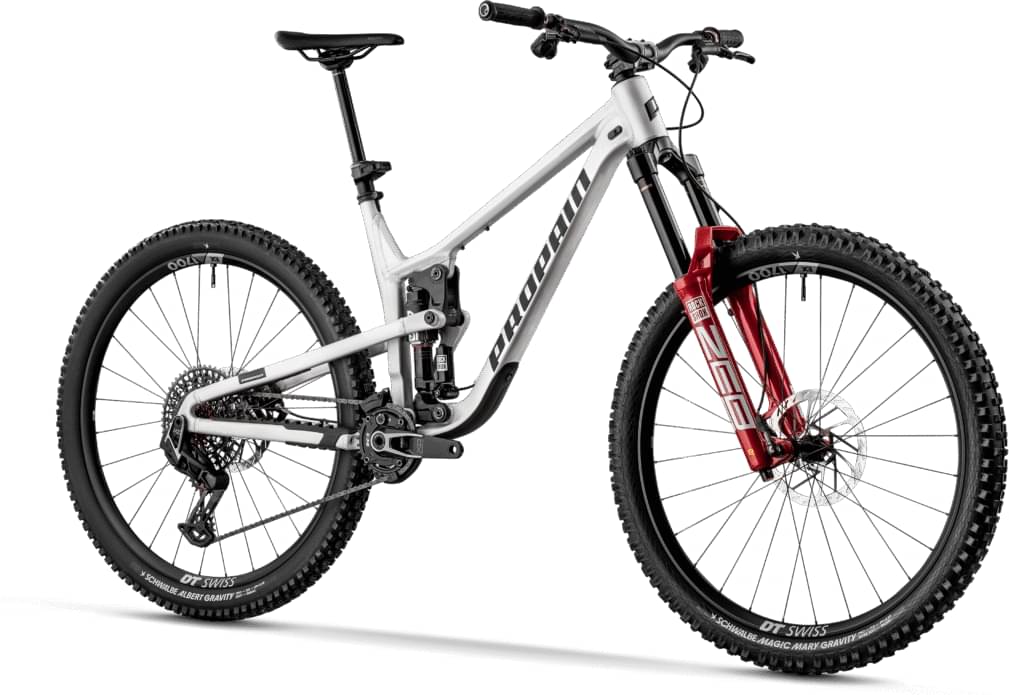

Propain TYEE AL 27.5 Factory 2025
2025 Mountain
Estimate price |
9,684$
Weight | 15.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Trickstuff Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Blend Alloy frame
Suspension Fork
Fox 38 Factory Grip X2 170 mm
Rear Shock
Fox DHX2 Factory
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission (1x12)
Wheels
Rims
Crankbrothers Synthesis Enduro 11 Carbon
Tires
29" / Mix: Schwalbe Magic Mary Gravity Radial / Albert Gravity Radial, 27.5": Schwalbe Magic Mary / Big Bettyl
Brakes
Brakes
Trickstuff Direttissima 203mm / 203mm

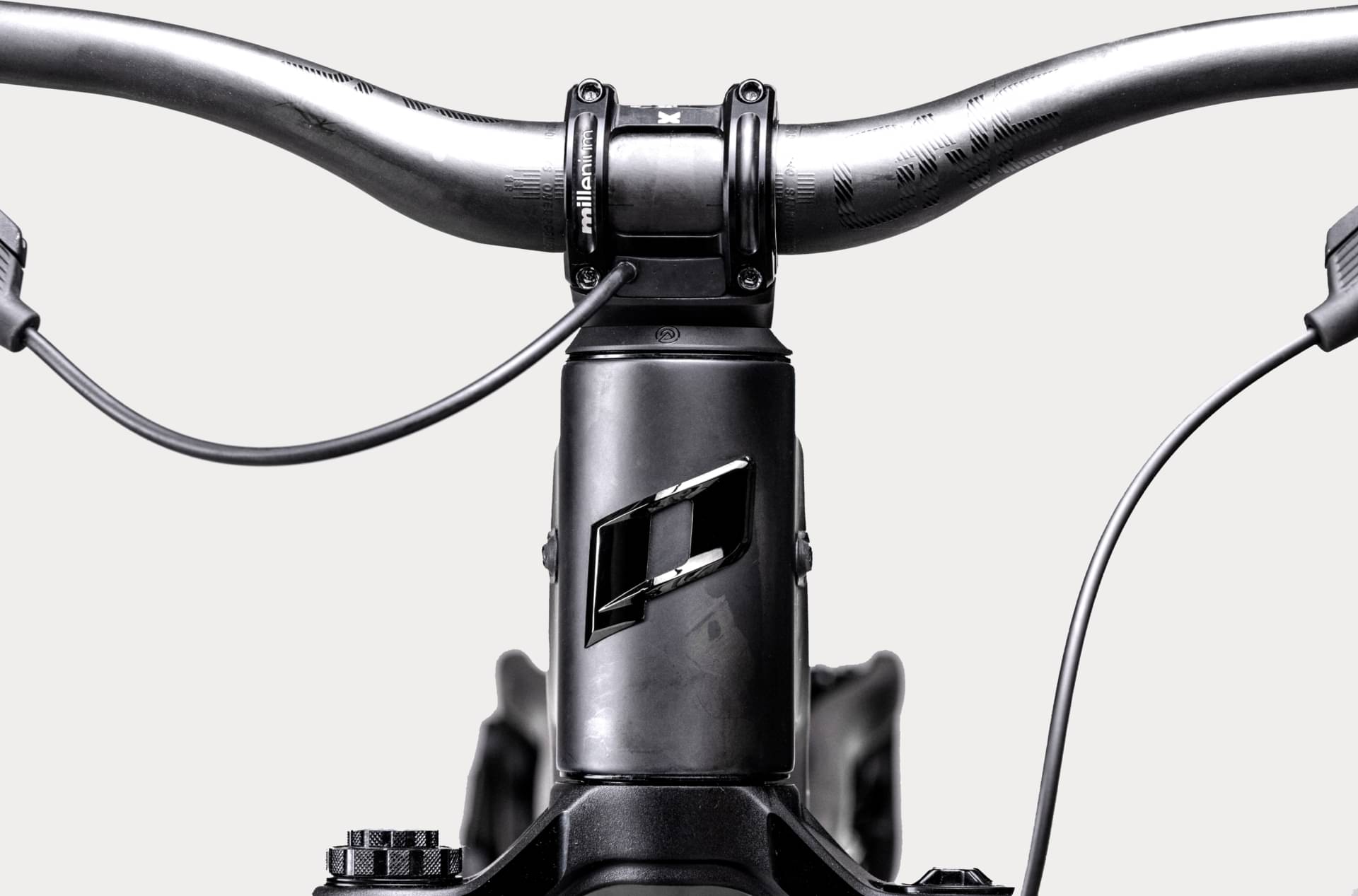

Cockpit

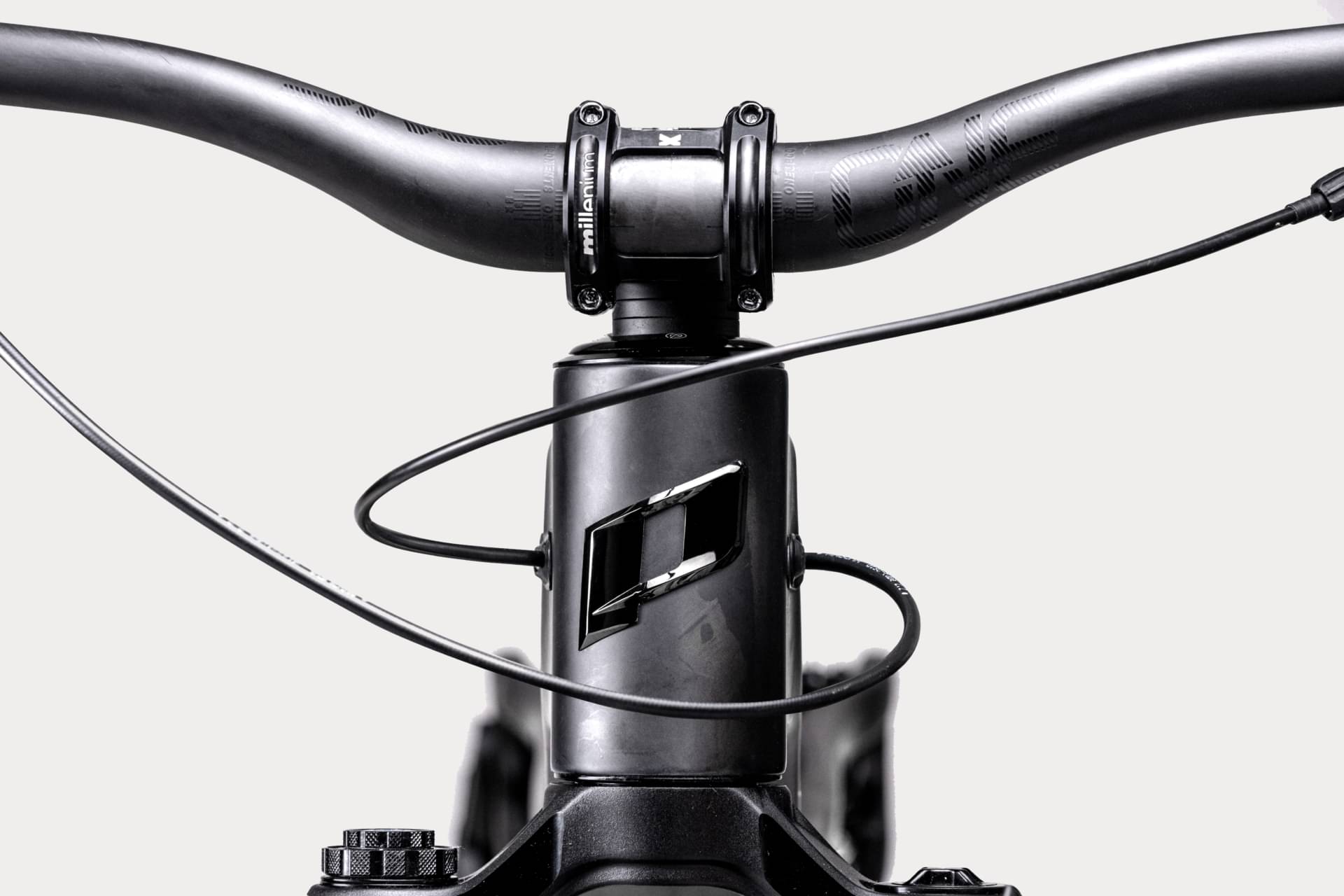

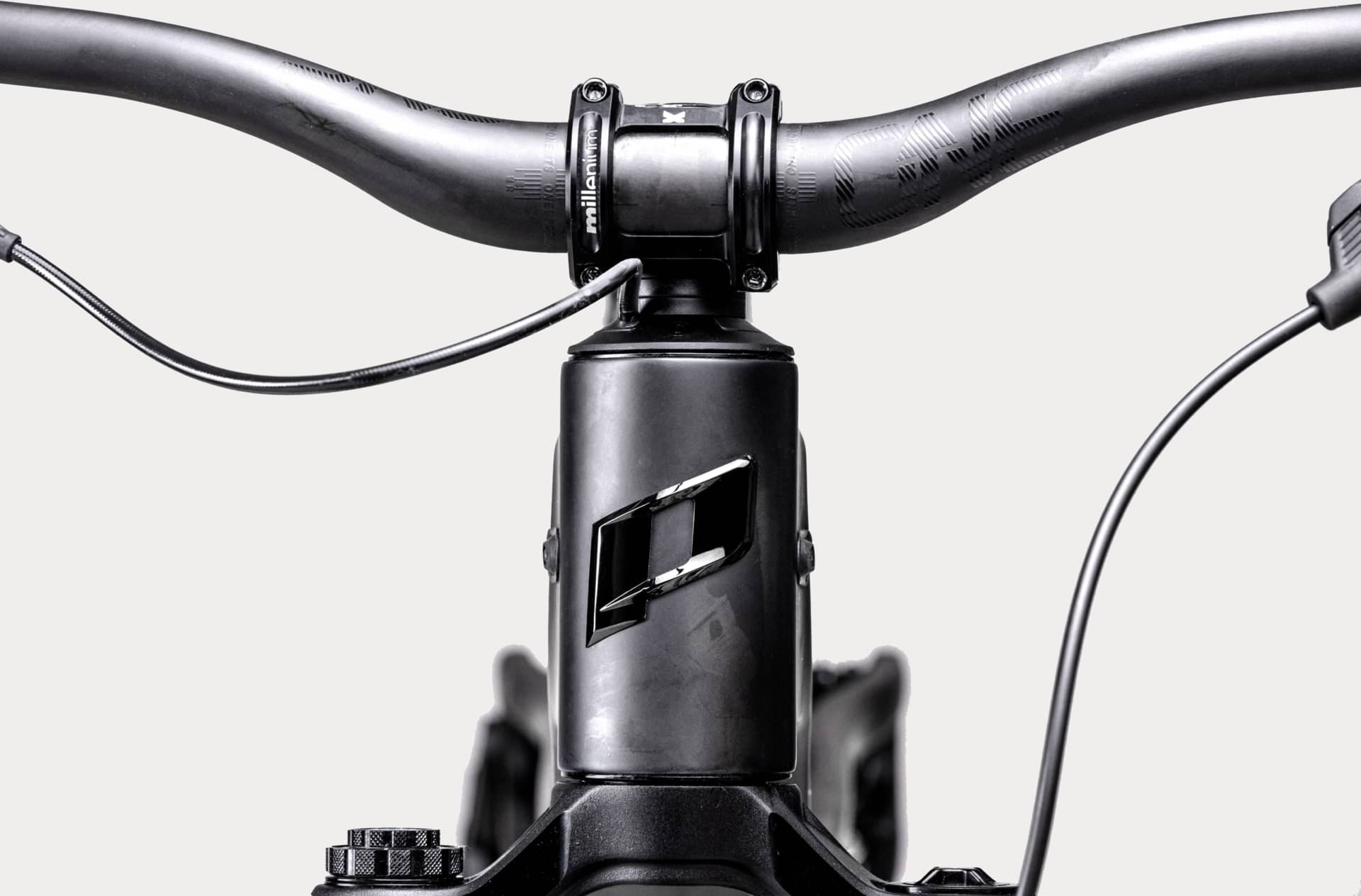

Handlebar
OneUp Carbon 35 mm Rise
Grips
Ergon GDH Team
Seat
Saddle
Ergon SM Enduro Comp
Seatpost
Fox Transfer Factory
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS Low | SM Low | MD Low |
|---|---|---|---|
| Stack Reach Ratio | 1.519 mm | 1.473 mm | 1.421 mm |
| Bottom Bracket Height | 333 mm | 333 mm | 333 mm |
| Front Center | 723 mm | 756 mm | 788 mm |
| Rake | 37 mm | 37 mm | 37 mm |
| Trail | 138 mm | 140 mm | 140 mm |
| Stack | 588 mm | 607 mm | 621 mm |
| Reach | 387 mm | 412 mm | 437 mm |
| Top Tube Length | 531 mm | 562 mm | 591 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Head Tube Angle | 62.8 ° | 62.8 ° | 62.8 ° |
| Head Tube Length | 90 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1152 mm | 1185 mm | 1217 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 22 mm |
| Standover Height | 779 mm | 779 mm | 779 mm |
| Wheels | 27" | 27" | 27" |
