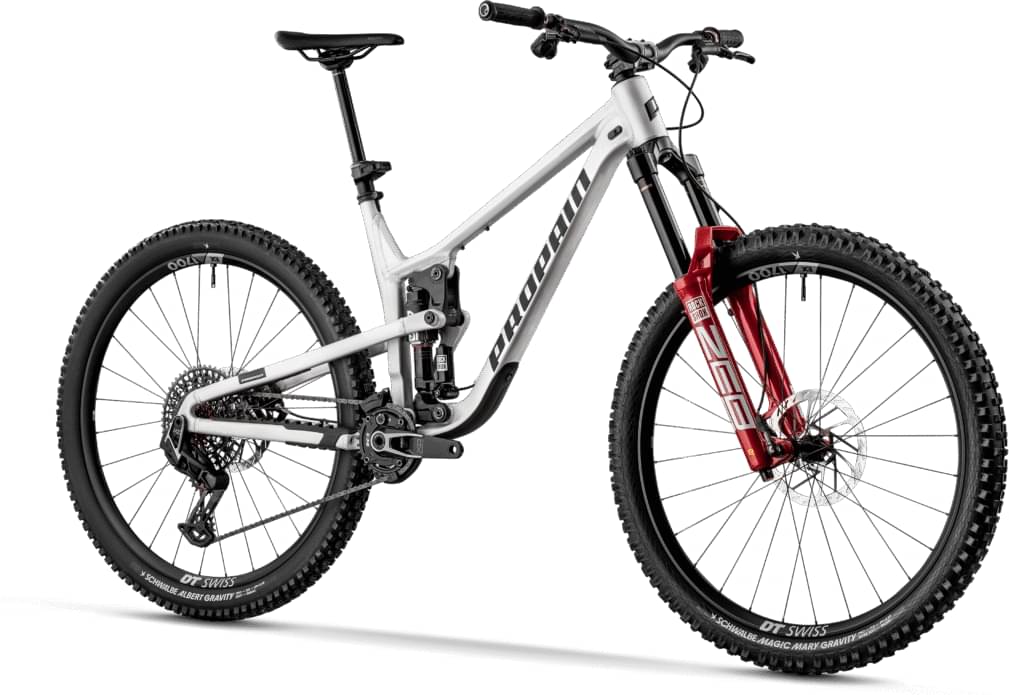

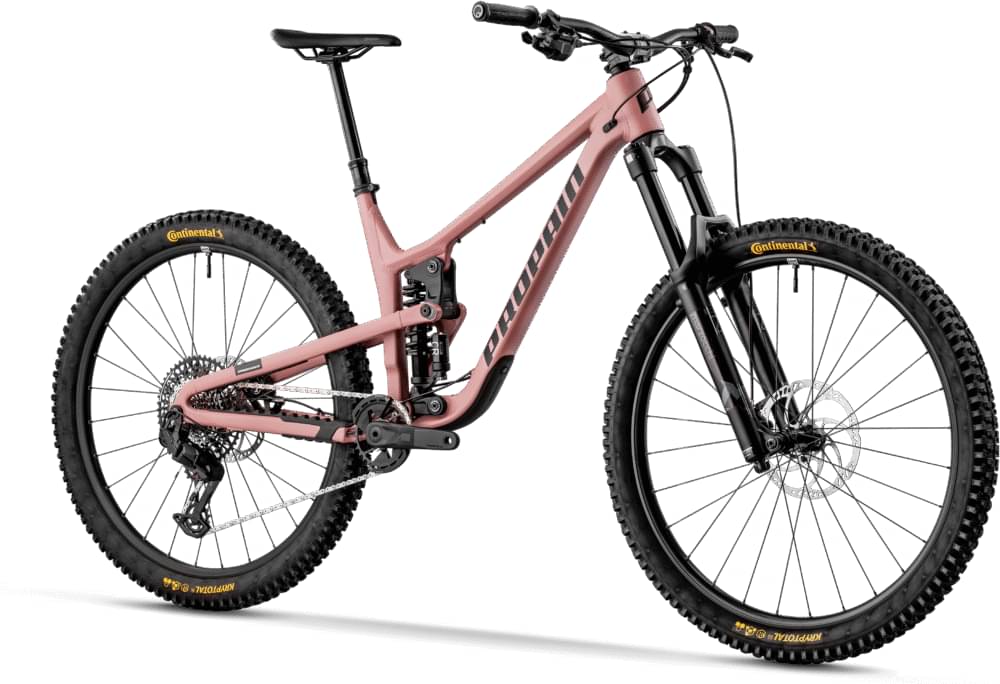

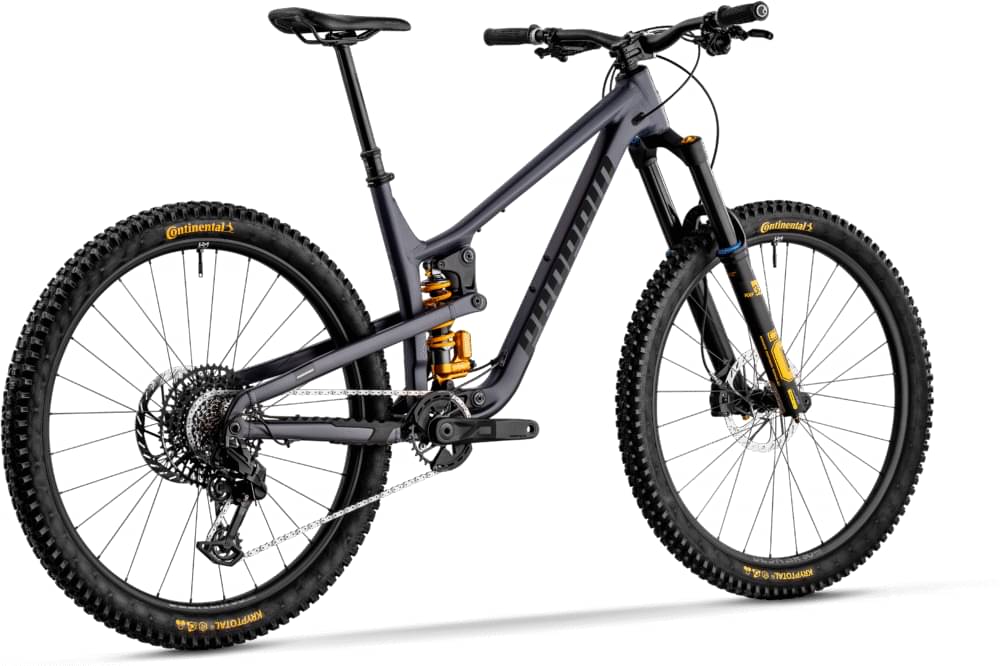

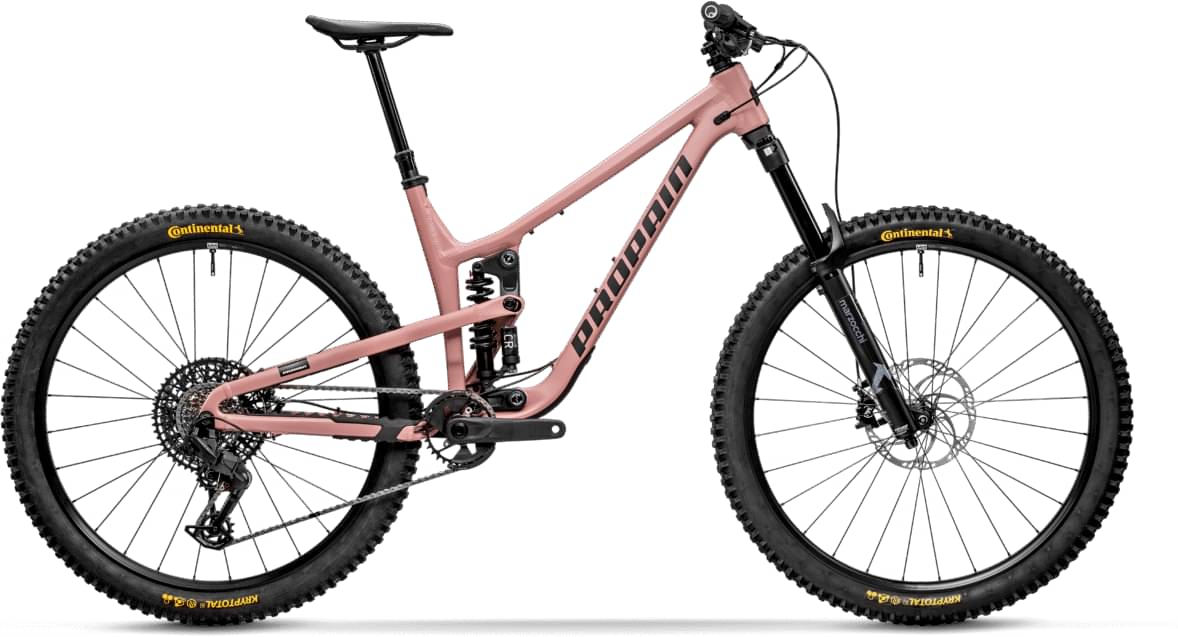

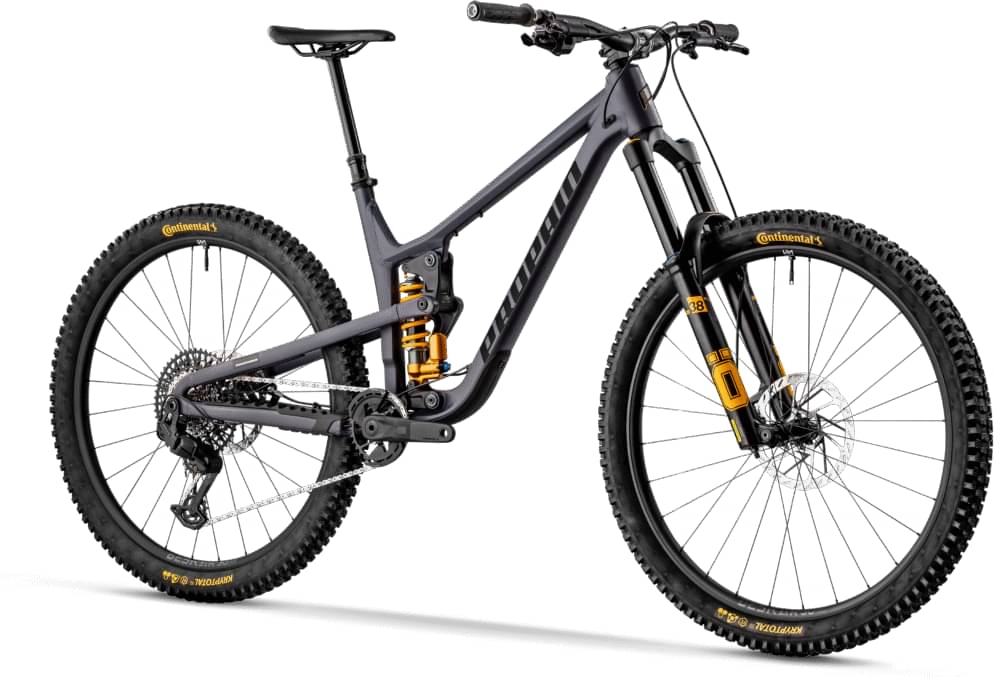

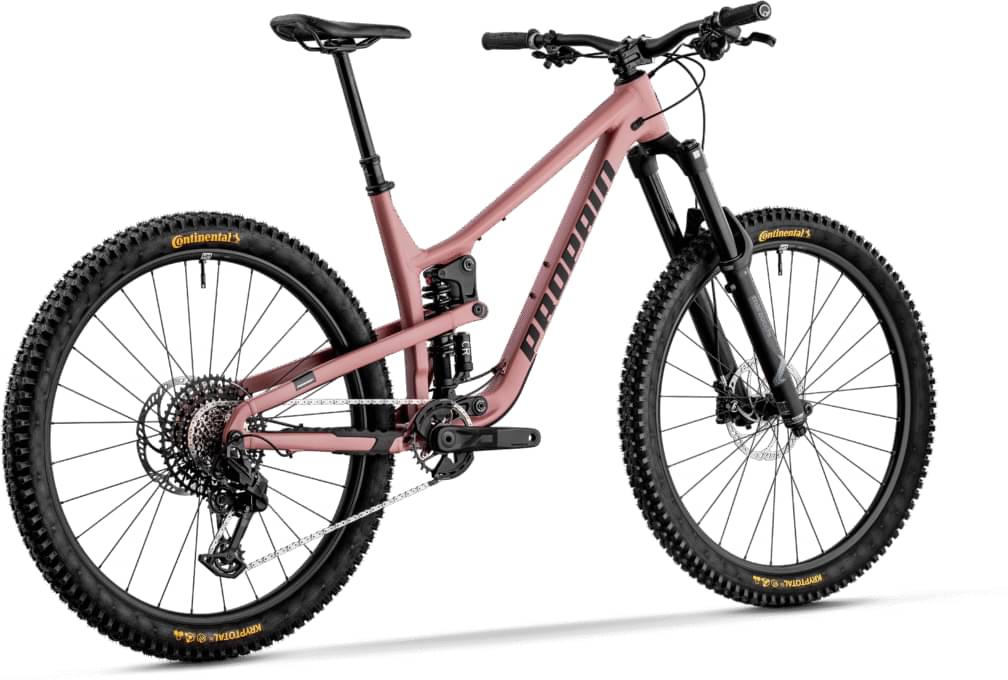

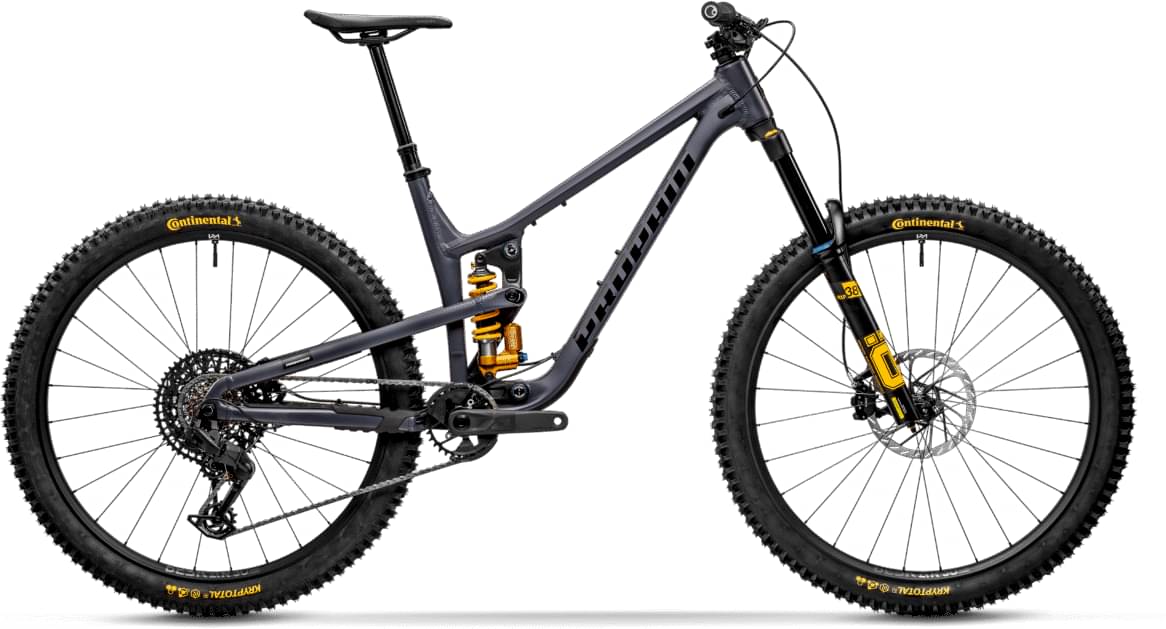

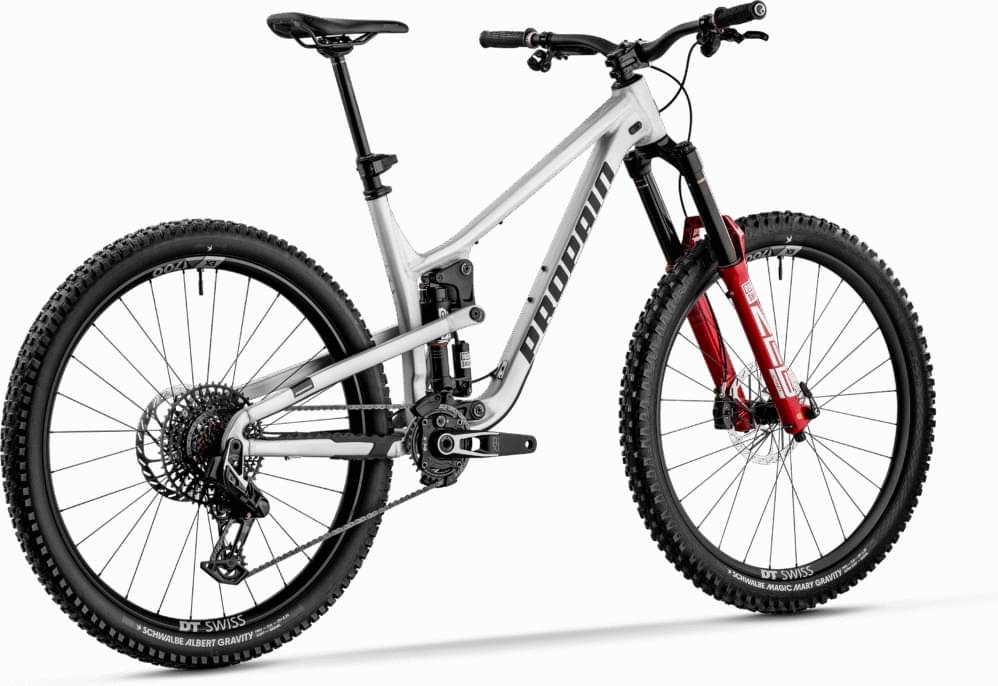

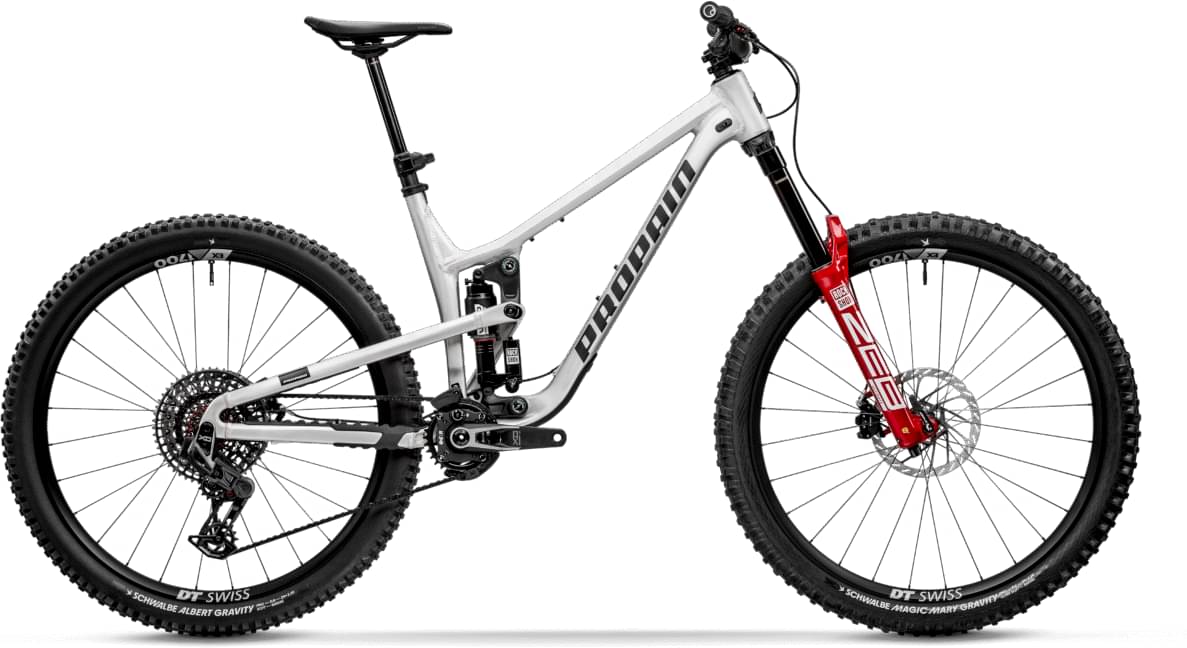

Propain TYEE AL Signature Spec 1 2025
2025 Mountain
Estimate price |
4,399$
Weight | 15.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 160mm -
Fork Marzocchi
-
Suspension Full -
Brakes Magura MT5 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Blend Alloy Frame
Suspension Fork
Marzocchi Bomber Z 170 mm
Rear Shock
Marzocchi Bomber Coil
Wheels
Rims
Crankbrother Synthesis Enduro Alloy
Tires
Maxxis Assegai/ DHR II
Brakes
Brakes
Magura MT5 203 mm / 203 mm

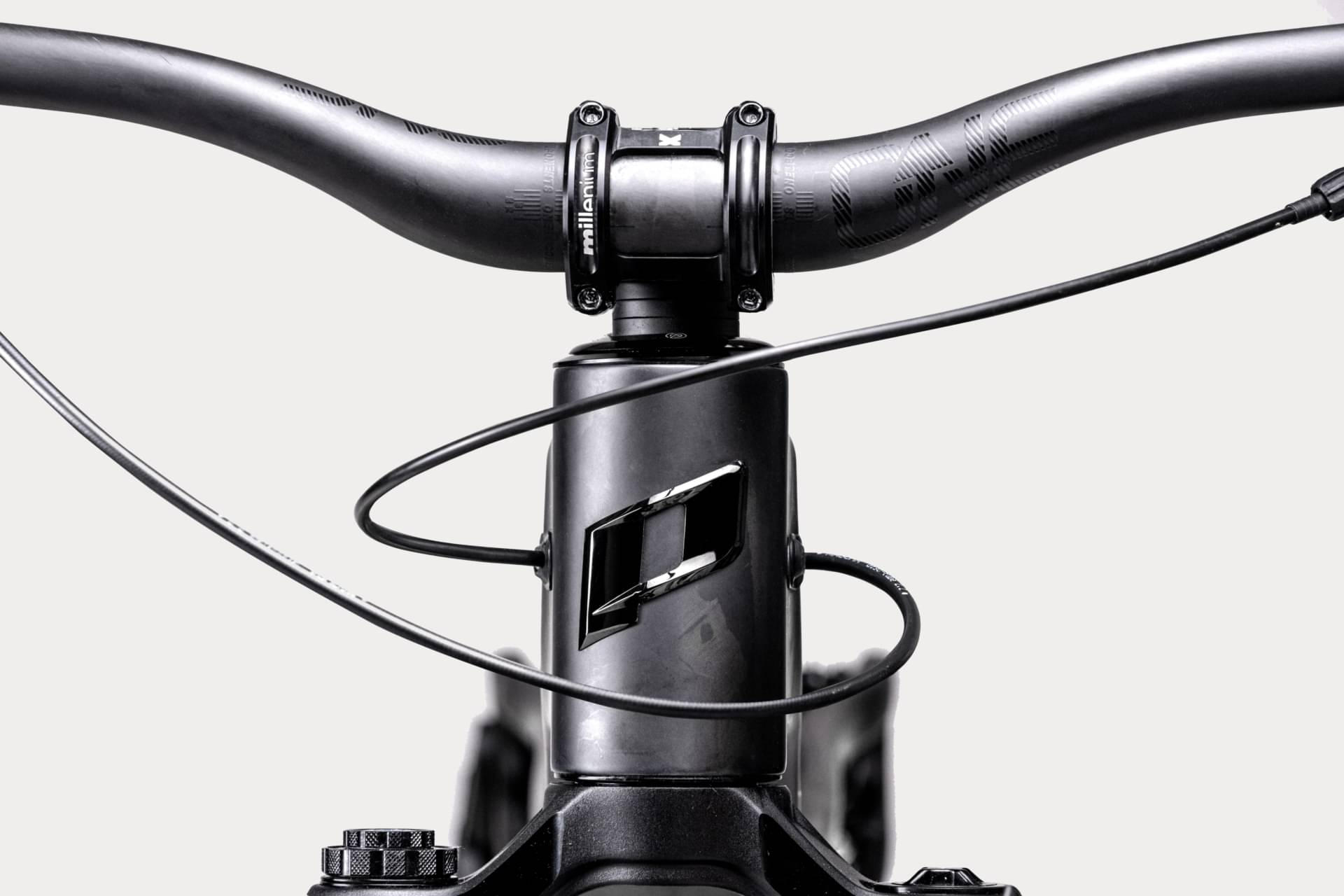

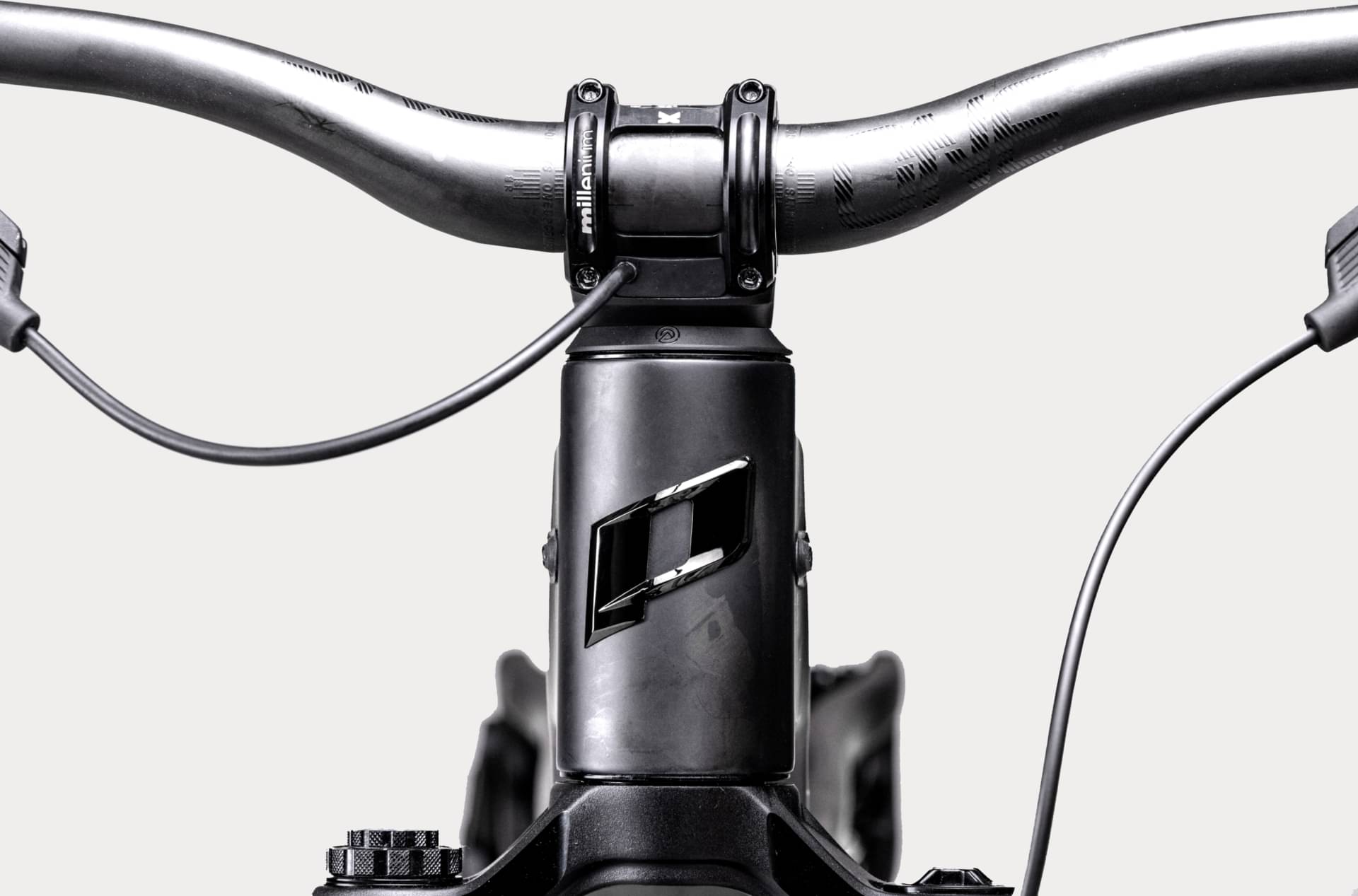

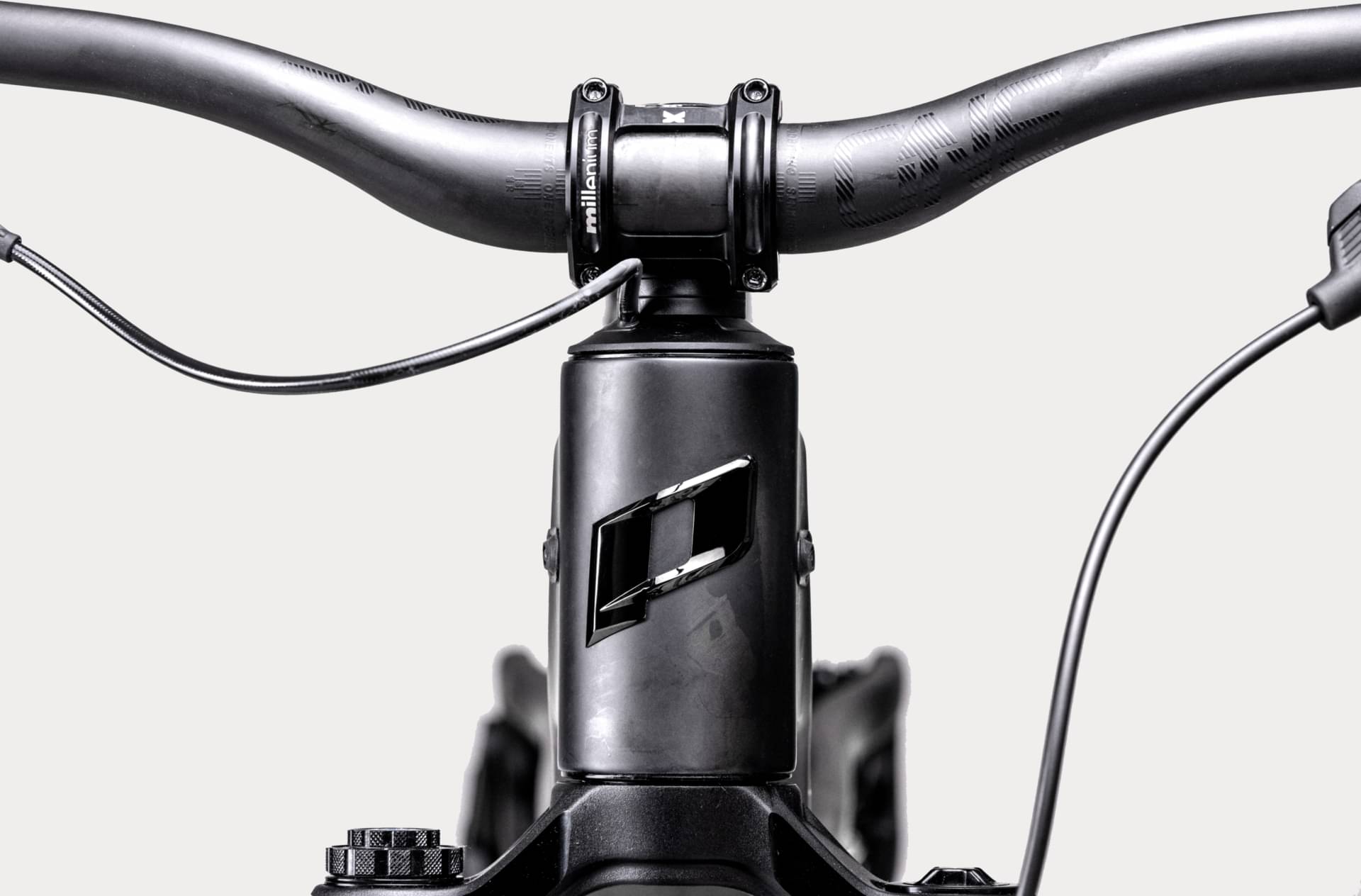

Cockpit
Stem
Sixpack Millenium 35
Handlebar
OneUp Carbon 20 mm Rise
Grips
Ergon GDH Team
Seat
Saddle
Ergon SM Enduro Comp
Seatpost
OneUp V3 (M = 150mm, L = 180mm, XL = 210mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | SM High | MD High | MD High | LG High | XL High |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.454 mm | 1.41 mm | 1.361 mm | 1.394 mm | 1.342 mm | 1.295 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 352 mm | 352 mm | 352 mm |
| Front Center | 721 mm | 754 mm | 786 mm | 793 mm | 822 mm | 852 mm |
| Rake | 37 mm | 37 mm | 37 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 134 mm | 133 mm | 136 mm | 136 mm | 137 mm |
| Stack | 580 mm | 598 mm | 611 mm | 626 mm | 635 mm | 646 mm |
| Reach | 399 mm | 424 mm | 449 mm | 449 mm | 473 mm | 499 mm |
| Top Tube Length | 529 mm | 558 mm | 587 mm | 594 mm | 622 mm | 649 mm |
| Seat Tube Angle | 77.3 ° | 77.3 ° | 77.3 ° | 76.9 ° | 76.9 ° | 76.9 ° |
| Head Tube Angle | 63.9 ° | 63.9 ° | 63.9 ° | 63.9 ° | 63.9 ° | 63.9 ° |
| Head Tube Length | 90 mm | 110 mm | 125 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1151 mm | 1184 mm | 1216 mm | 1237 mm | 1266 mm | 1296 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 22 mm | 22 mm | 22 mm |
| Standover Height | 779 mm | 779 mm | 779 mm | 779 mm | 779 mm | 779 mm |
| Wheels | 27" | 27" | 27" | 29" | 29" | 29" |
