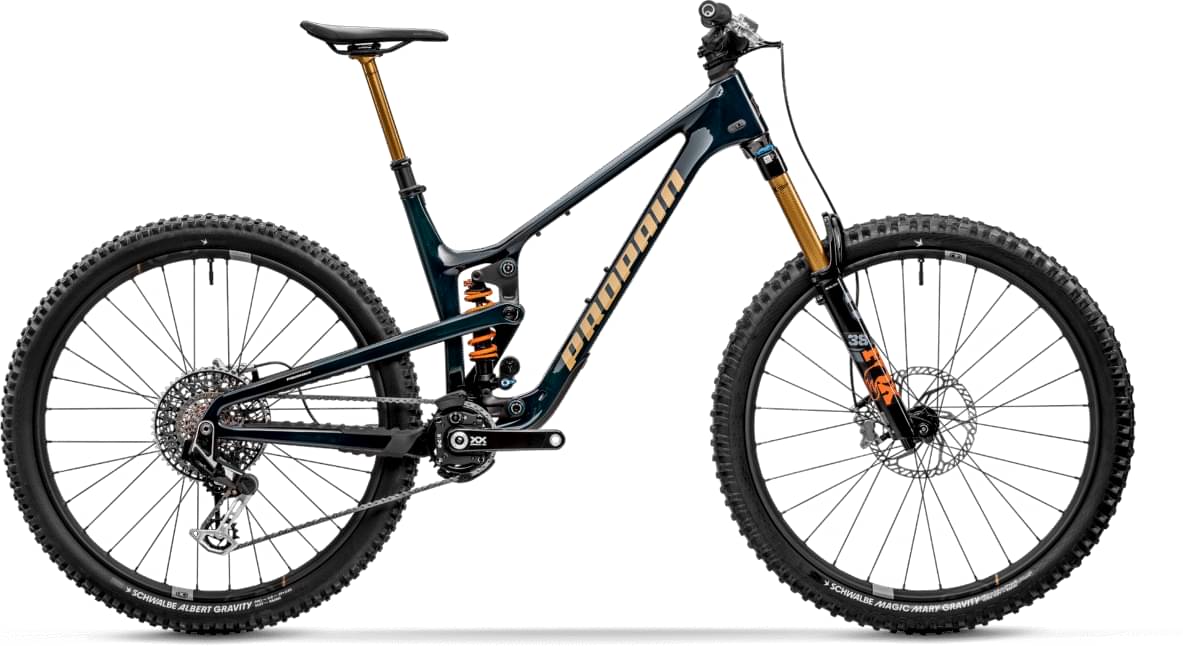

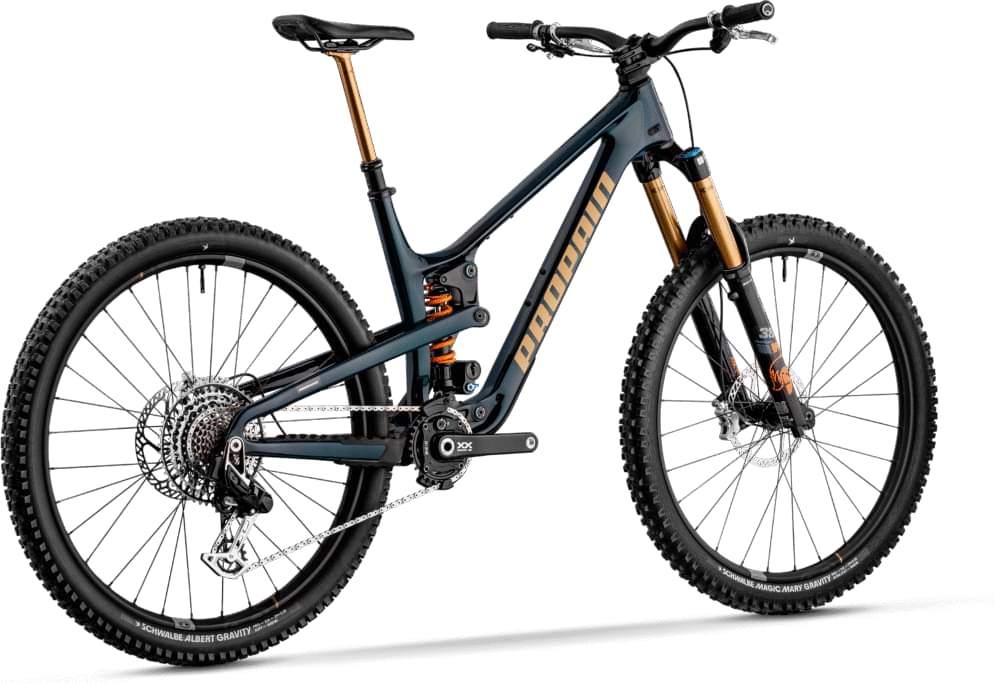

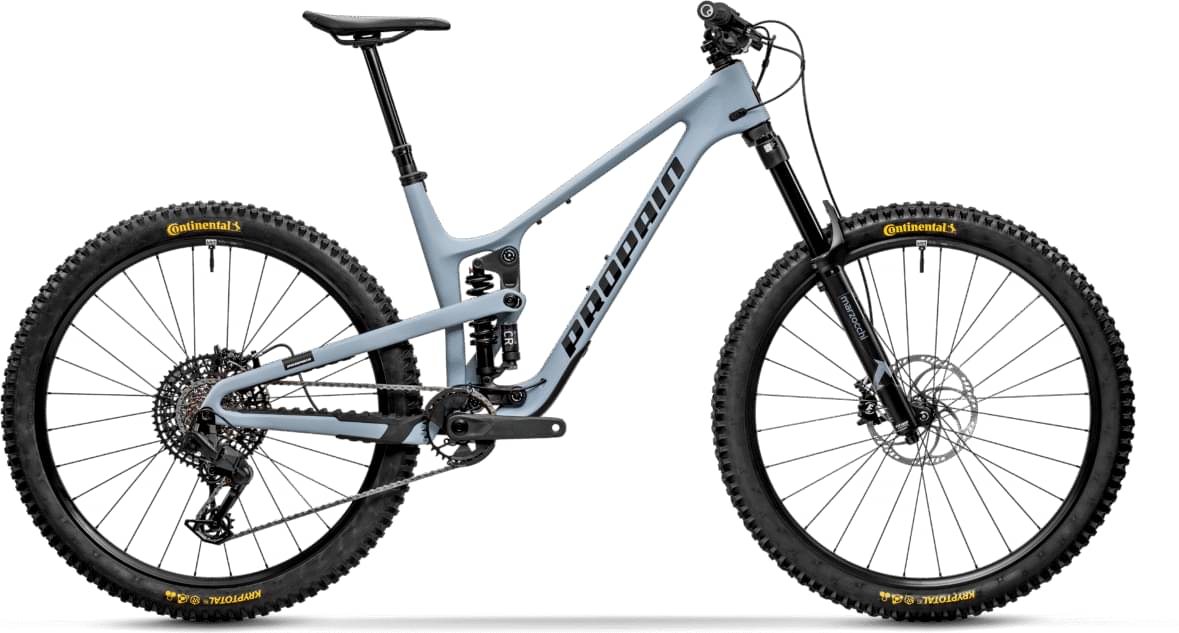

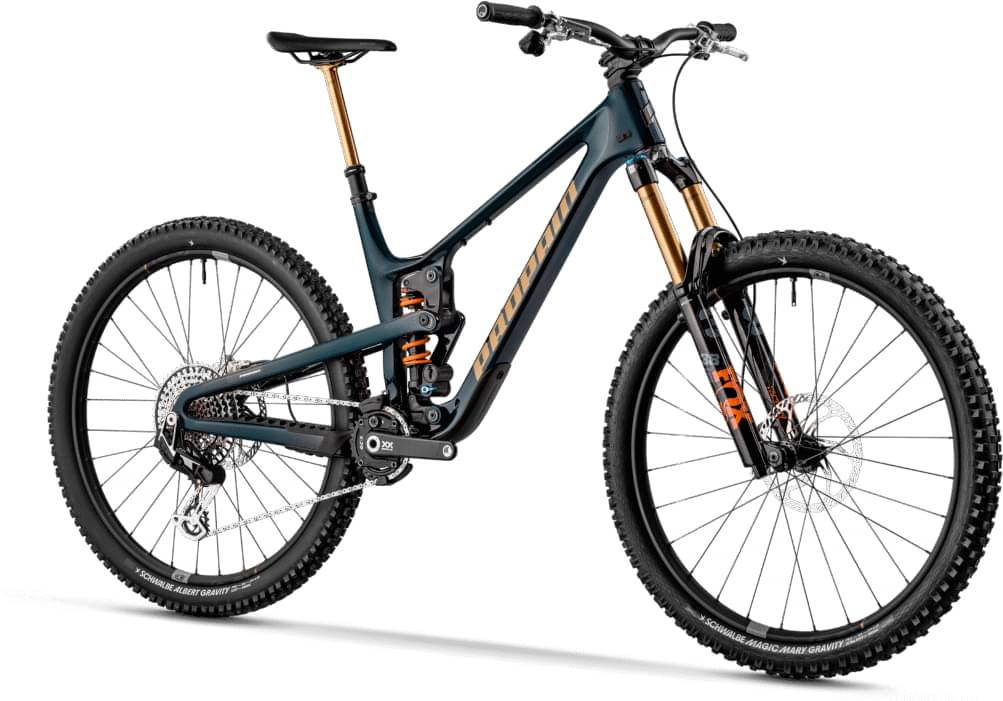

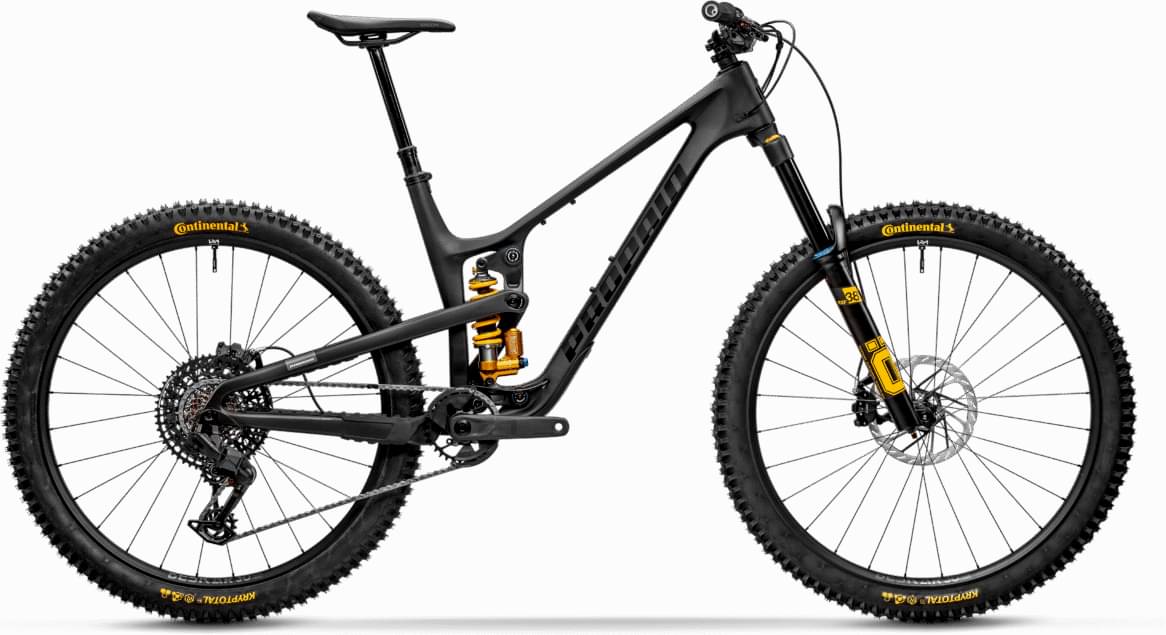

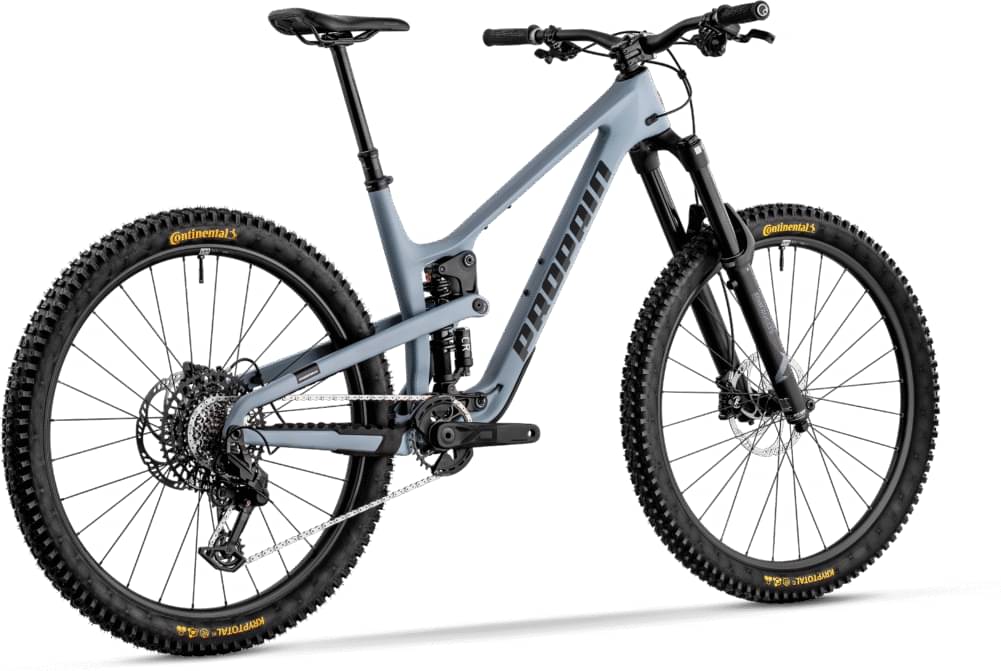

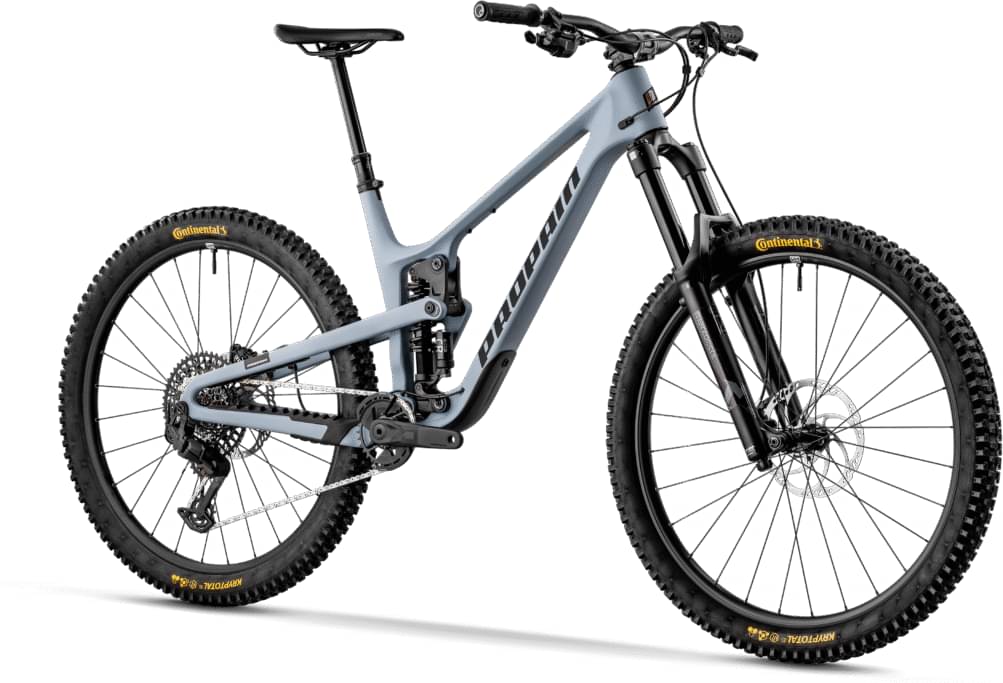

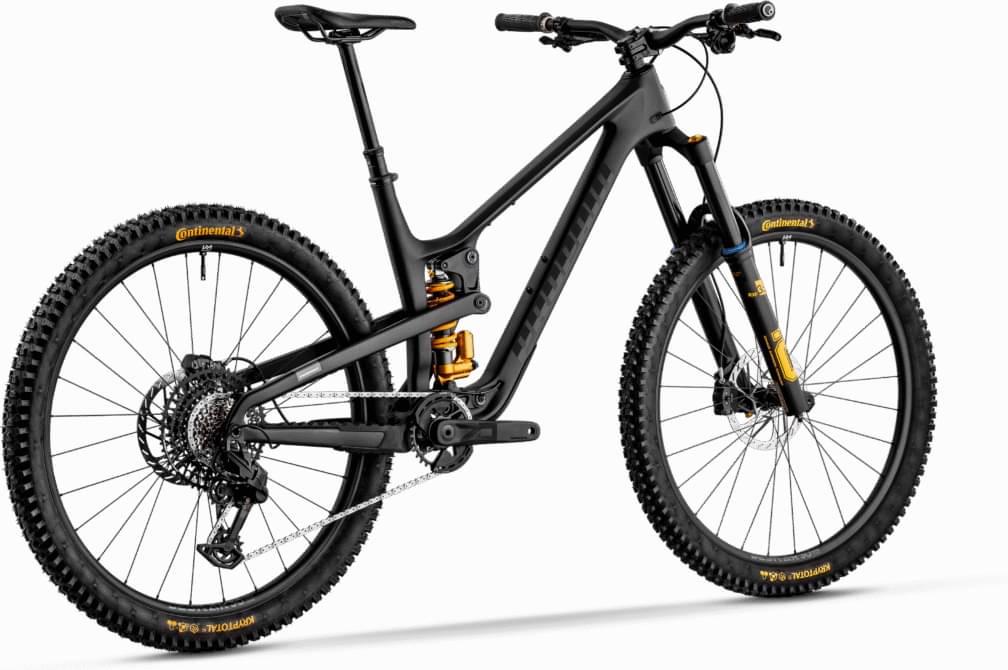

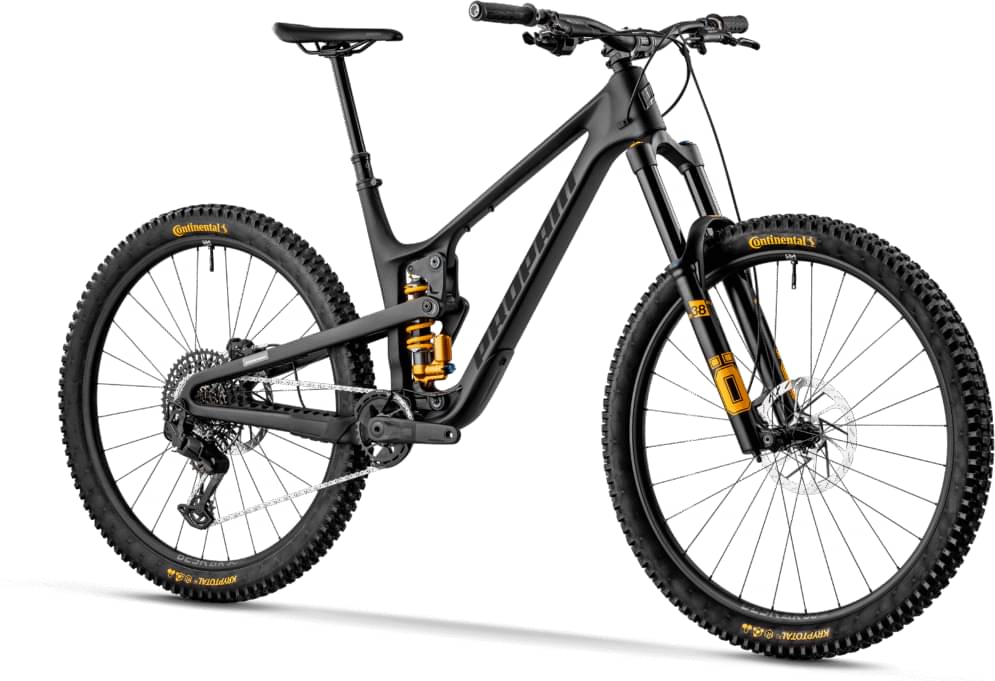

Propain TYEE CF 27.5 Signature Spec 1 2025
2025 Mountain
Estimate price |
4,999$
Weight | 14.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Marzocchi
-
Suspension Full -
Brakes Magura MT5 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Blend Carbon Frame
Suspension Fork
Marzocchi Bomber Z 170 mm
Rear Shock
Marzocchi Bomber Coil
Wheels
Rims
Crankbrother Synthesis Enduro Alloy
Tires
Maxxis Assegai/ DHR II
Brakes
Brakes
Magura MT5 203 mm / 203 mm
Cockpit

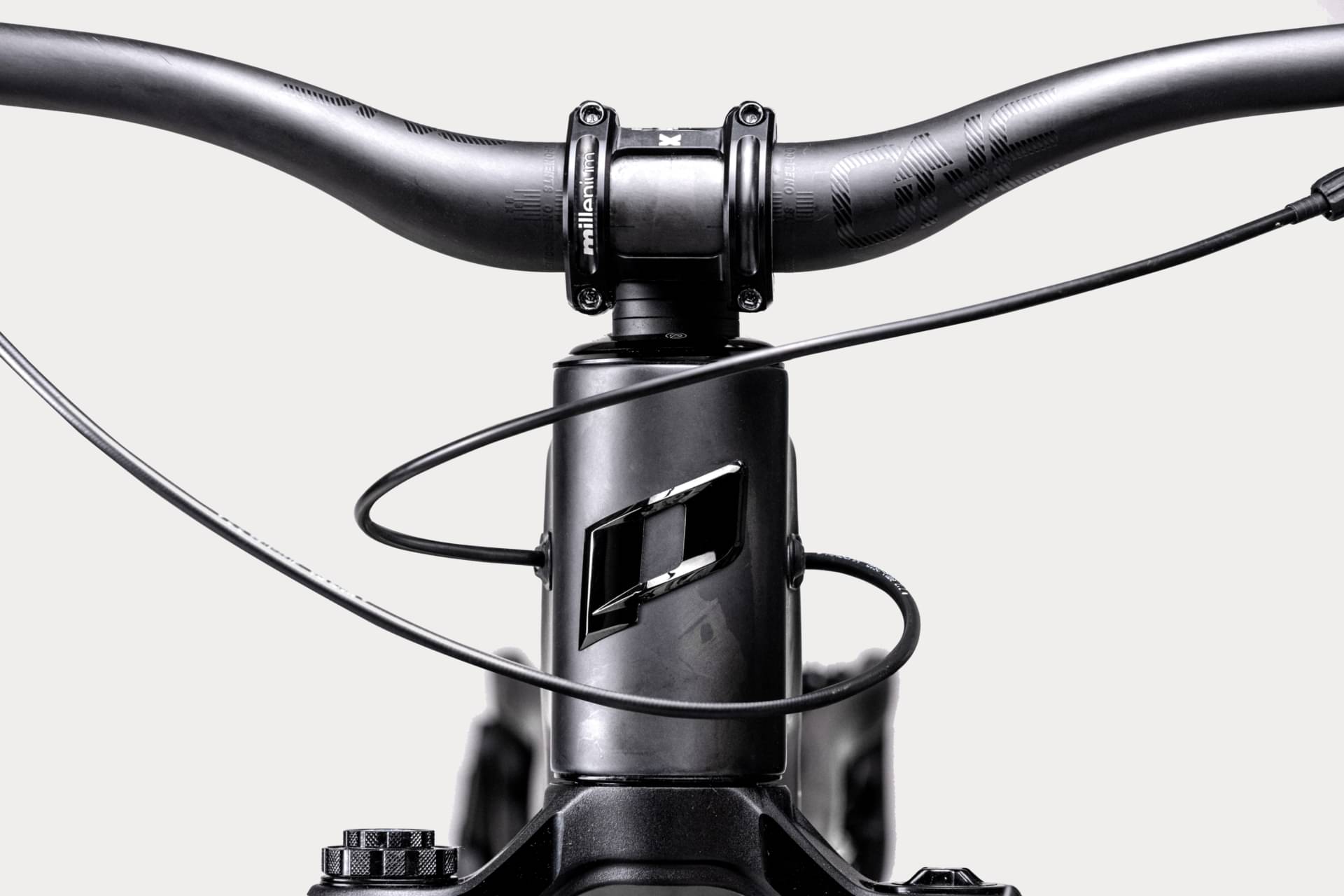

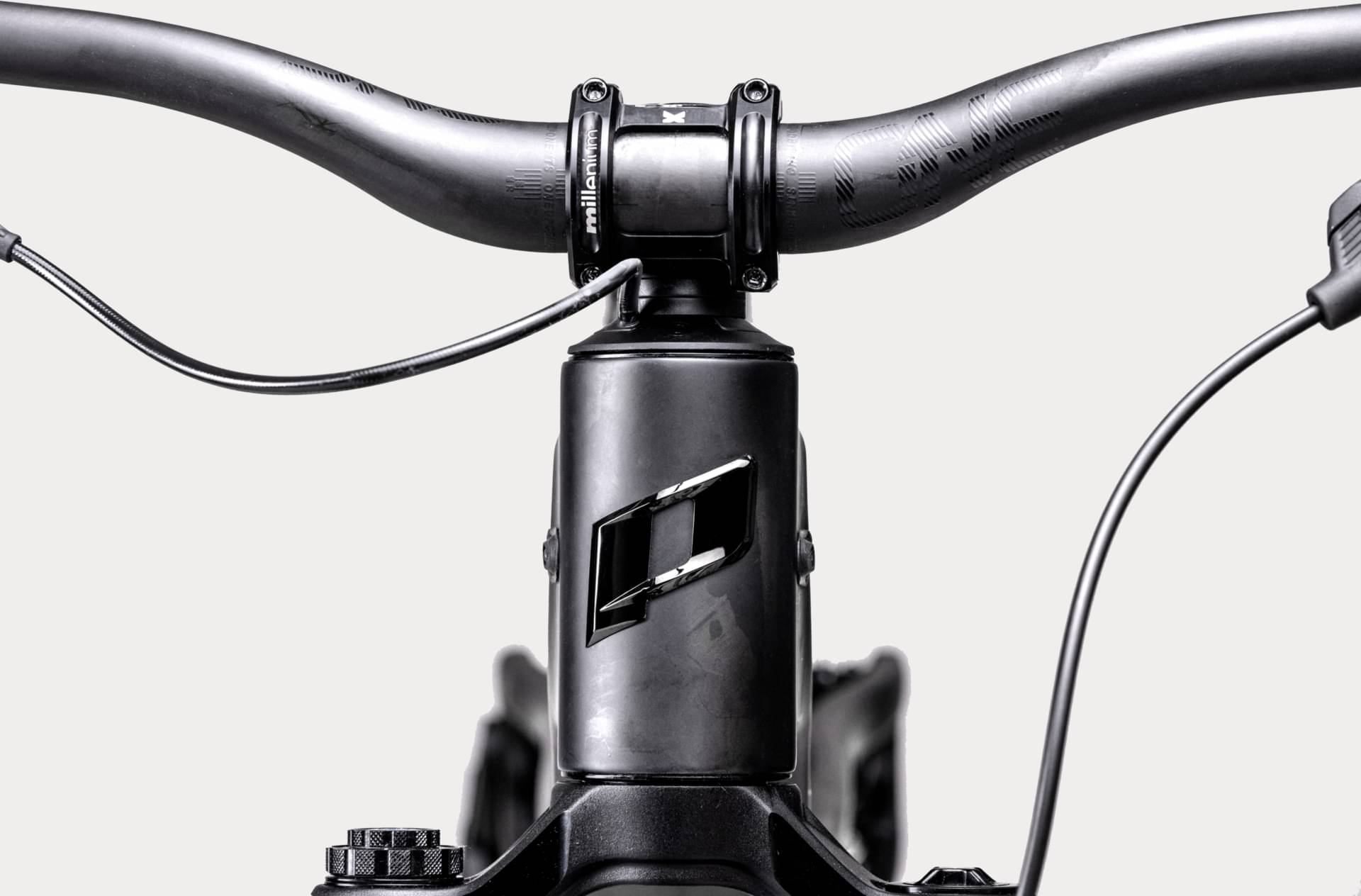

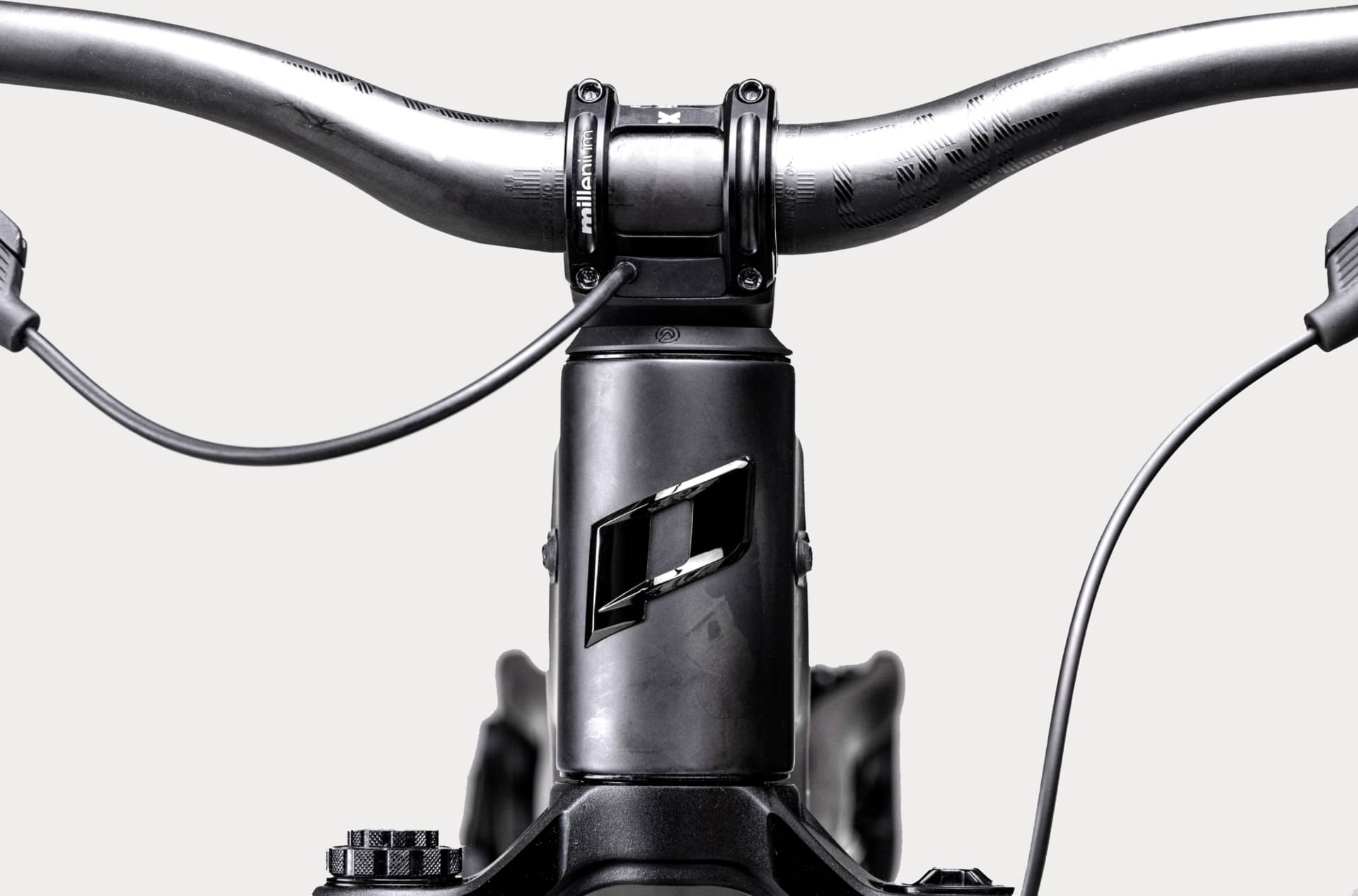

Stem
Sixpack Millenium 35
Handlebar
OneUp Carbon 20 mm Rise
Grips
Ergon GDH Team
Seat
Saddle
Ergon SM Enduro Comp
Seatpost
OneUp V3 (M = 150mm, L = 180mm, XL = 210mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS Low | SM Low | MD Low |
|---|---|---|---|
| Stack Reach Ratio | 1.519 mm | 1.473 mm | 1.421 mm |
| Bottom Bracket Height | 333 mm | 333 mm | 333 mm |
| Front Center | 723 mm | 756 mm | 788 mm |
| Rake | 37 mm | 37 mm | 37 mm |
| Trail | 138 mm | 140 mm | 140 mm |
| Stack | 588 mm | 607 mm | 621 mm |
| Reach | 387 mm | 412 mm | 437 mm |
| Top Tube Length | 531 mm | 562 mm | 591 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Head Tube Angle | 62.8 ° | 62.8 ° | 62.8 ° |
| Head Tube Length | 90 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1152 mm | 1185 mm | 1217 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 22 mm |
| Standover Height | 779 mm | 779 mm | 779 mm |
| Wheels | 27" | 27" | 27" |
