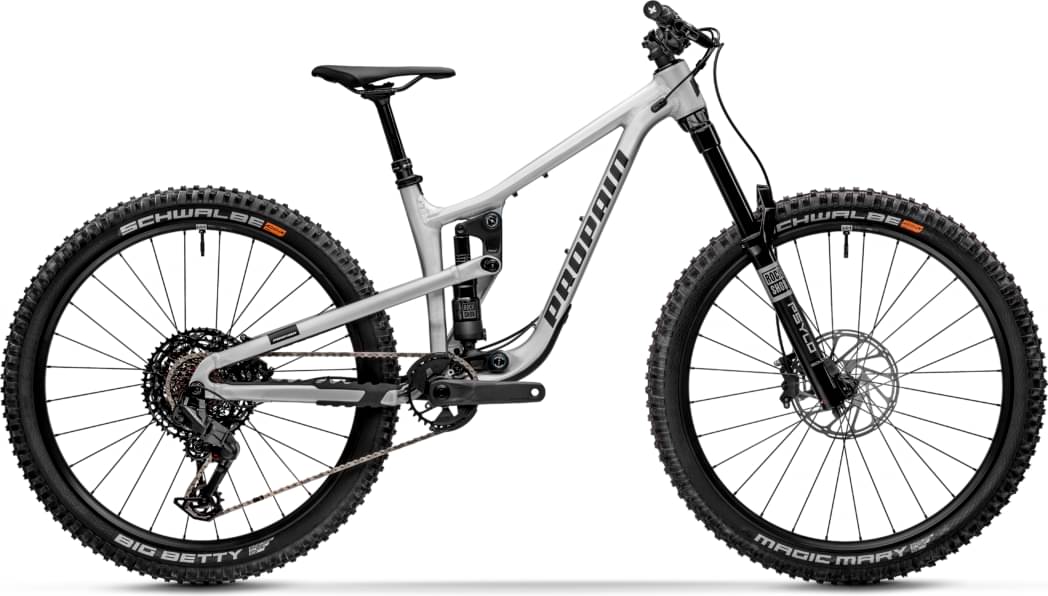

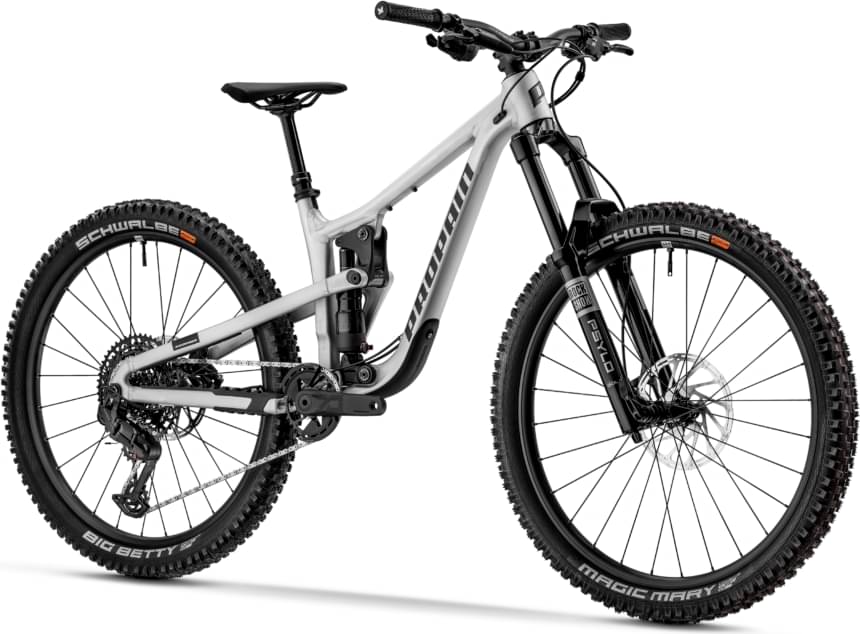

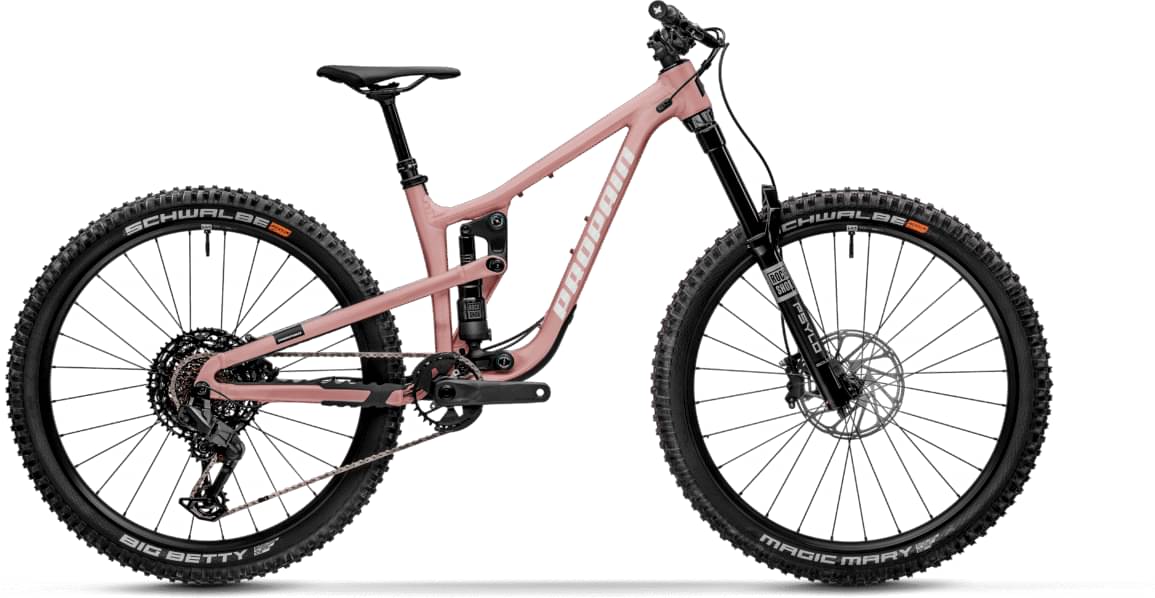

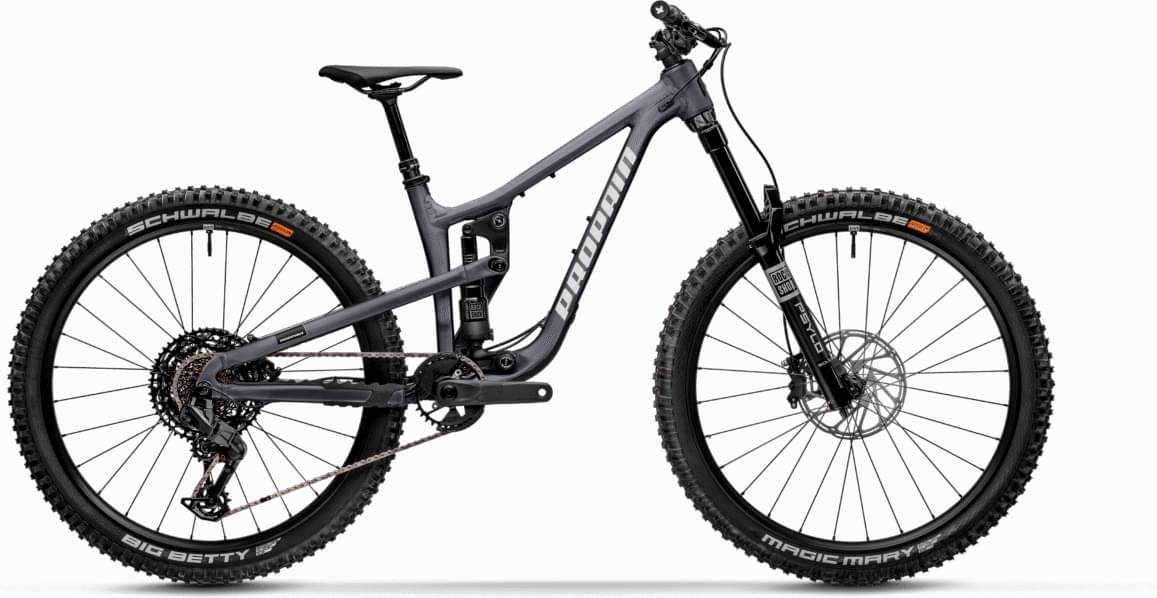

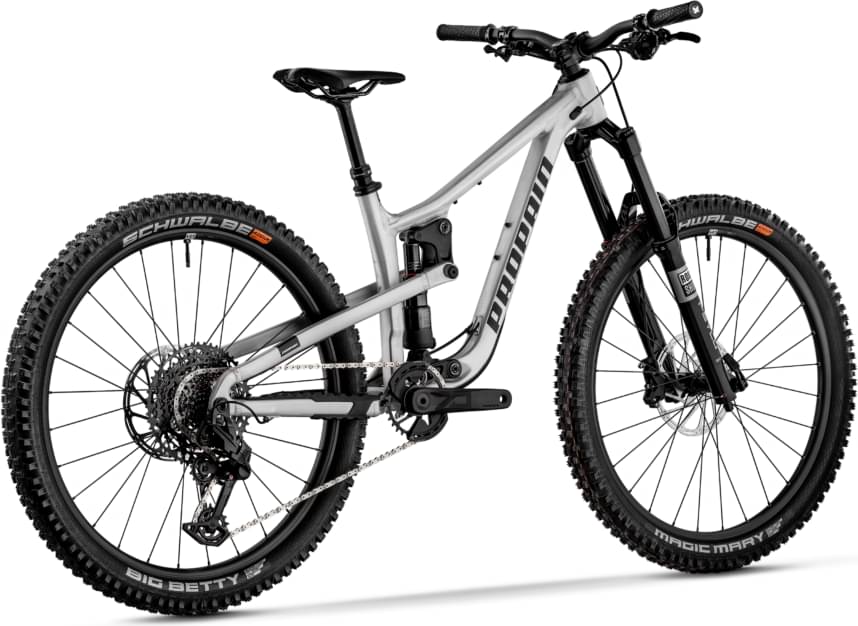

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 160mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lightweight Aluminum Frame
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM |
|---|---|---|
| Stack Reach Ratio | 1.454 mm | 1.41 mm |
| Bottom Bracket Height | 348 mm | 348 mm |
| Front Center | 715 mm | 748 mm |
| Rake | 37 mm | 37 mm |
| Trail | 139 mm | 140 mm |
| Stack | 580 mm | 598 mm |
| Reach | 399 mm | 424 mm |
| Top Tube Length | 529 mm | 558 mm |
| Seat Tube Angle | 77.3 ° | 77.3 ° |
| Head Tube Angle | 63.9 ° | 63.9 ° |
| Head Tube Length | 90 mm | 110 mm |
| Chainstay Length | 430 mm | 430 mm |
| Wheelbase | 1145 mm | 1178 mm |
| Bottom Bracket Drop | 7 mm | 7 mm |
| Standover Height | 779 mm | 779 mm |
| Wheels | 27" | 27" |
