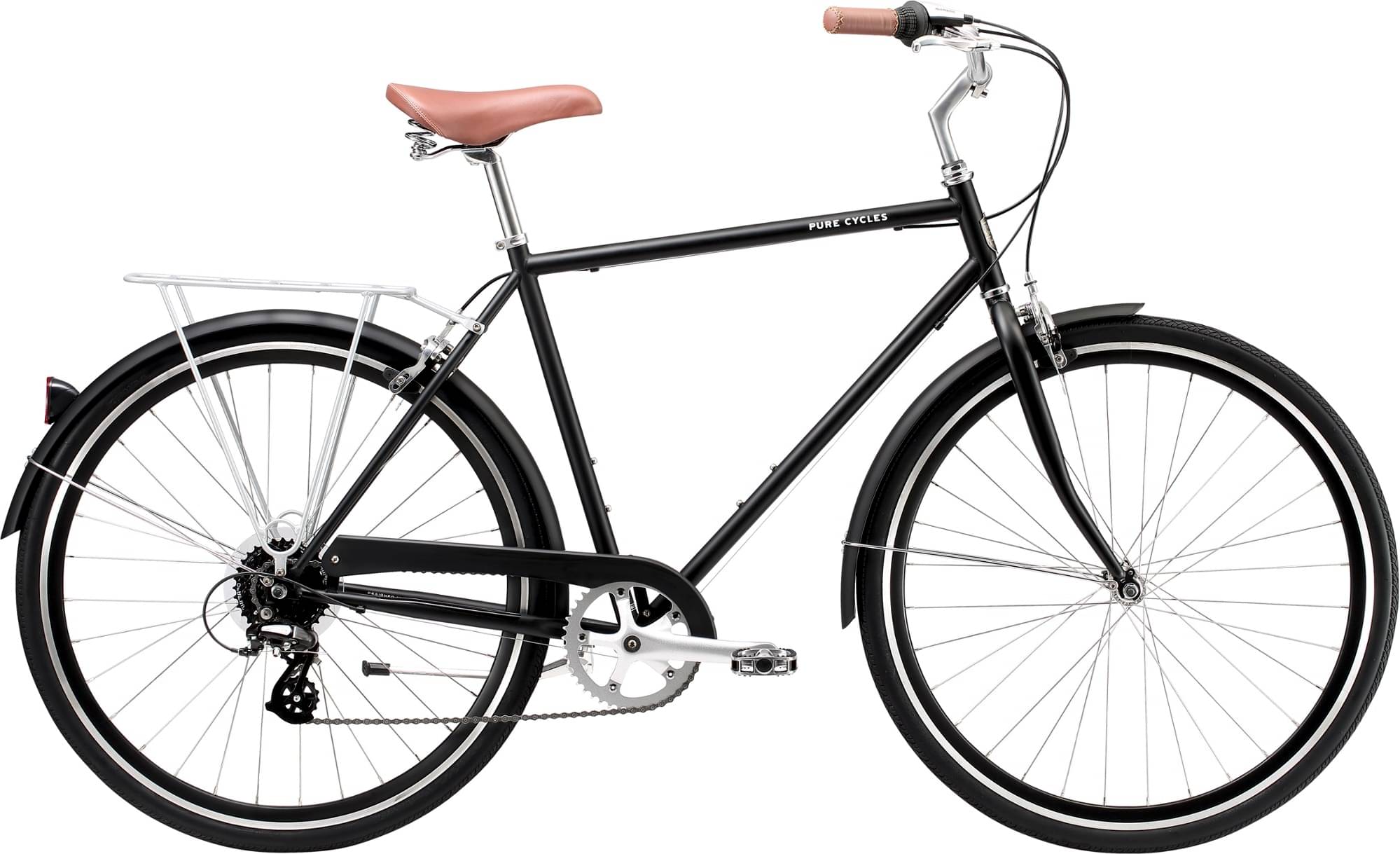

Pure Classic 2024
2024 Urban
Estimate price |
639$
Weight | 13.61 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Nexus -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Rim
Sizing
Recommended size guide.
50cm
162cm - 172cm
54cm
170cm - 180cm
58cm
177cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-tensile steel
Suspension Fork
High-tensile steel
Drivetrain
Shift Levers
Shimano Nexus Revo-8
Cassette
Shimano CS-HG20-8 12-32t cassette
Crank
Alloy, 44t chainring
Bottom Bracket
Square taper sealed cartridge
Chain
KMC Z-51
Pedals
9/16" City platform
Wheels
Front Hub
Alloy front hub
Rear Hub
Alloy cassette rear hub
Rims
Pure Cycles 30mm deep dish 32h rim, stainless-steel spokes
Tires
700 x 35c
Brakes
Brakes
Alloy dual pivot Rim
Brake Levers
Alloy 4-finger
Cockpit
Stem
Pure Cycles alloy quill
Handlebar
Pure Cycles alloy
Headset
1" threaded
Seat
Saddle
Pure Cycles Comfort
Seatpost
Micro adjust alloy, 25.4 x 300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 54cm | 58cm |
|---|---|---|---|
| Rake | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 582 mm | 595 mm | 621 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 500 mm | 540 mm | 580 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1079 mm | 1092 mm | 1119 mm |
| Standover Height | 737 mm | 762 mm | 813 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 170 cm | 177 cm |
| Rider Max Height | 172 cm | 180 cm | 185 cm |
