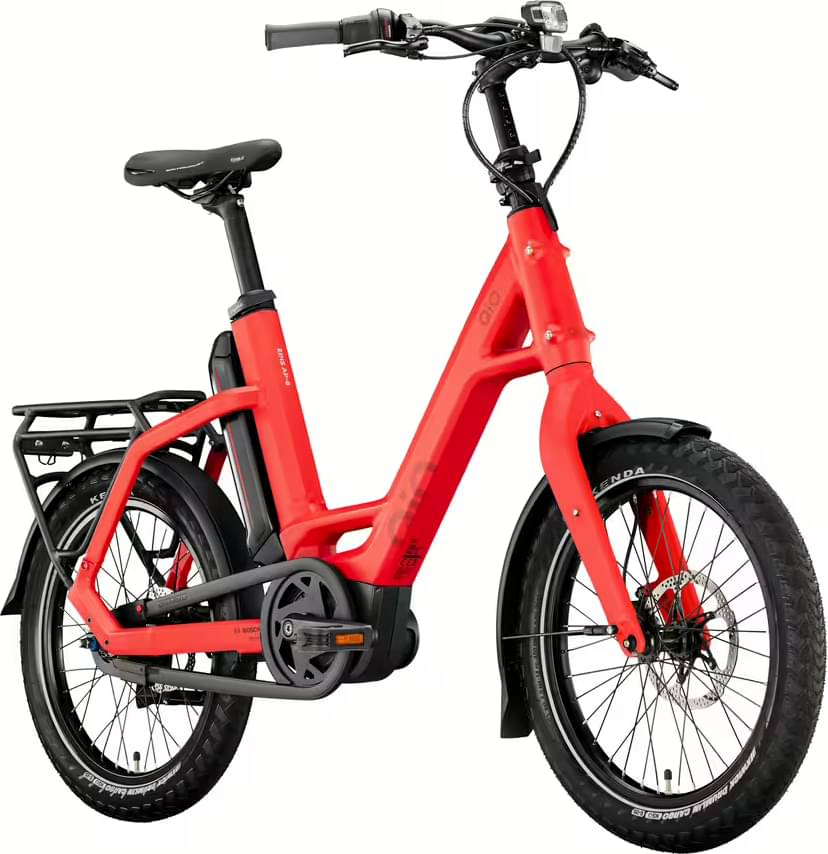

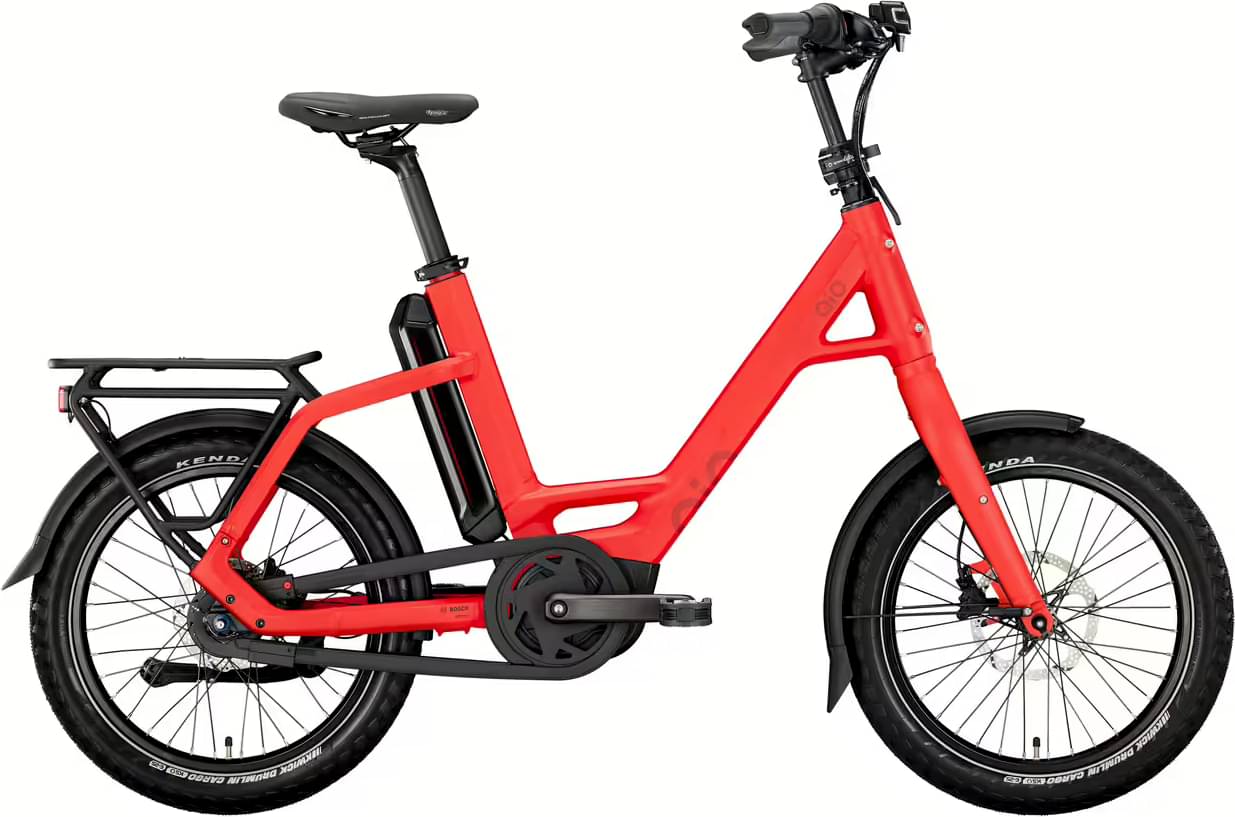

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Motor Bosch 600W 50Nm mid-drive -
Battery BOSCH "PowerPack 400", 400 Wh, BES3 -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
QIO EINS, Bosch Gen.3, BES3, aluminium, 49,5cm, imola red matt
Suspension Fork
QIO EINS 20", aluminium, tapered 1 1/4" - 1,5", 313,5mm shaft, post mount, imola red matt
Drivetrain
Shift Levers
SHIMANO "Nexus, SL-C6000-8", 8-speed, sScandinavian design
Cassette
SHIMANO "SM-GEAR", 16 teeth
Crank
Stronglight "Mangan 3", 170mm, for Bosch Gen.3, BNI, aluminium, black
Bottom Bracket
Bosch, press-fit
Chain Guide
HEBIE "Chainglider", plastic, front 44 teeth, rear 16-18 teeth, black
Pedals
UNION "SP-153", foldable
Wheels
Front Hub
SHIMANO "Deore HB-M6000", Center Lock, 36 holes, QR, black
Rear Hub
SHIMANO "Nexus SG-C6061-8D", 8-speed, freewheel, Center Lock, 36 holes, black
Rims
SCHÜRMANN "YAK DISC 25", 25-406, 36 holes, disc brake, black
Spokes
Niro, schwarz
Tires
KENDA "Kwick Drumlin Cargo", 62-406, K1216, K-Shield, 60 TPI, E-25, reflex
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
BY.SCHULZ "Stem SDS", 1 1/8", 31,8mm handlebar clamp, 70mm long, angle 7°, black
Handlebar
ERGOTEC "Lady Town", 620mm, Ø 31,8mm, 30° backsweep, rise 16mm, Level 4, black
Grips
HERRMANS "Clik Original DD37", 90/123mm, handlebar clamp, black
Headset
CONTEC "Drop-A-Gogo", aluminium, Ø 31,6mm, 465mm long, 170mm, black
Seat
Saddle
SELLE ROYAL "Nuvola 5060", unisex, relaxed, black
Seatpost
BY.SCHULZ "R.3 P-QR", aluminium, Ø 34,9mm, 400mm, 7mm clamp, pull-out stop, theft protection, black
Motor & Battery
Motor
BOSCH "Active Line Plus", Gen.3, BES3
Battery
BOSCH "PowerPack 400", 400 Wh, BES3
Remote
BOSCH "BRC3600", LED remote
Charger
BOSCH 4 A, BES3
