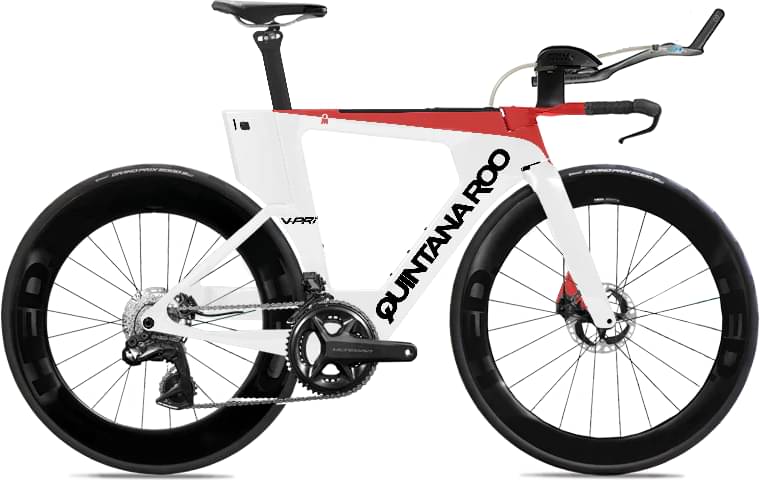

Quintana Roo Ironman V-PRi – Ultegra Di2 12 Spd 2025
2025 Road
Estimate price |
10,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Dura-Ace Di2, Ultegra -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano Dura-Ace Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Suspension Fork
Deep Aero Fork
Drivetrain
Rear Derailleur
Ultegra Di2 8150 12 spd, with Ceramic Speed OSPW System
Front Derailleur
Ultegra Di2 8150 12 spd
Shift Levers
Dura-Ace Di2 9160 12 spd, Located on Extensions & Brake Levers
Cassette
Ultegra R8100 11-30 12 spd
Crank
Ultegra R8100 52/36 12 spd, with 4iii PRECISION 3+ Ultegra R8100 Single Sided Powermeter
Bottom Bracket
T47 Ceramic Speed
Chain
Shimano M8100
Wheels
Rims
DT Swiss ARC 1600 Dicut
Tires
Continental GP5000 S TR 28c
Brakes
Brakes
Dura-Ace 9180 Hydraulic Disc, Shifters also Located on Extensions & Brake Levers
Cockpit
Handlebar
Vision Pro Extensions
Headset
Cane Creek IS41
Seat
Seatpost
QR.SP - Short Post Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.203 mm | 1.179 mm | 1.208 mm |
| Bottom Bracket Height | 262 mm | 262 mm | 262 mm |
| Front Center | 581 mm | 610 mm | 648 mm |
| Rake | 48 mm | 47 mm | 48 mm |
| Trail | 59 mm | 60 mm | 59 mm |
| Stack | 475 mm | 495 mm | 535 mm |
| Reach | 395 mm | 420 mm | 443 mm |
| Top Tube Length | 487 mm | 515 mm | 550 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 505 mm | 540 mm | 585 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 65 mm | 83 mm | 126 mm |
| Chainstay Length | 395 mm | 395 mm | 395 mm |
| Wheelbase | 964 mm | 994 mm | 1031 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm |
| Standover Height | 763 mm | 791 mm | 833 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
