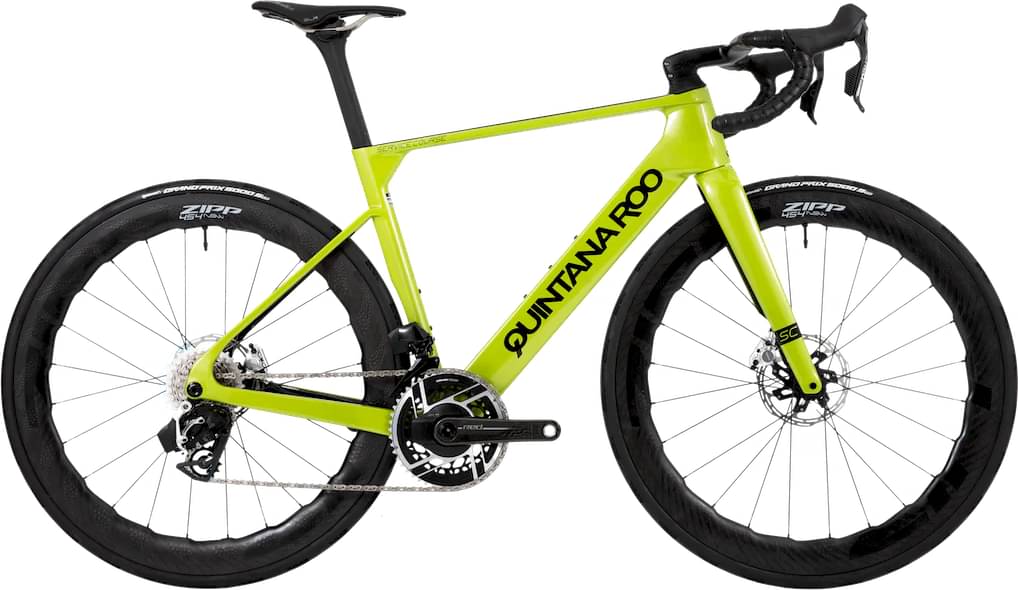

Quintana Roo Service Course – 105 Di2 12 Spd 2025
2025 Road
Estimate price |
4,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano 105 Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Suspension Fork
QR Carbon Aero
Drivetrain
Rear Derailleur
Shimano 105 R7150 Di2 12 spd
Front Derailleur
Shimano 105 R7150 Di2 12 spd
Shift Levers
Shimano 105 R7170 Di2 12 spd
Cassette
Shimano 105 R7101 11
Crank
Shimano 105 R7100 52/36 12 spd
Bottom Bracket
T47a Asymmetrical
Chain
Shimano M7100 12 spd
Wheels
Rims
Select Wheels Above
Tires
Continental Grand Prix GP5000 S TR Tubeless 28c
Brakes
Brakes
Shimano 105 R7170
Cockpit
Stem
FSA SMR
Handlebar
Select Bar Above
Headset
FSA 55R ACR
Seat
Saddle
Selle Italia Model X Superflow
Seatpost
Aero Road Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.392 mm | 1.408 mm | 1.436 mm | 1.463 mm |
| Bottom Bracket Height | 262 mm | 262 mm | 264 mm | 266 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 450 mm | 485 mm | 520 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
