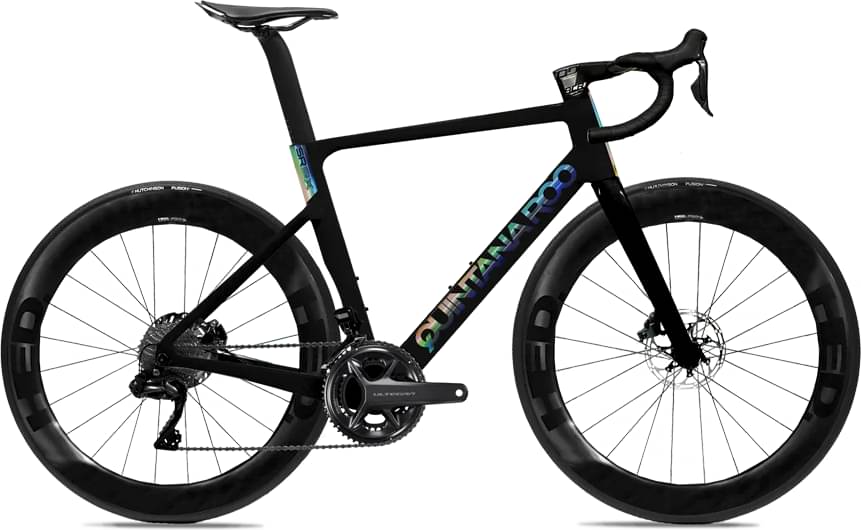

Quintana Roo SRsix – SRAM RED AXS E1 2025
2025 Road
Estimate price |
8,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes SRAM RED Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Suspension Fork
QR Carbon Aero
Drivetrain
Rear Derailleur
SRAM Red E1 AXS 12spd
Front Derailleur
SRAM Red E1 AXS 12spd
Shift Levers
SRAM Red E1 AXS HRD
Cassette
SRAM Red E1 XG1290 10-36 12spd
Crank
SRAM Red E1 2X 48-35 12spd Power Meter
Bottom Bracket
Praxis T47
Chain
SRAM Red E1 Flattop 12spd
Wheels
Rims
DT Swiss E 1800 Spline Disc
Tires
Continental GP5000 700x28c Blk
Brakes
Brakes
SRAM Red E1 AXS HRD
Cockpit
Stem
Vision Metron 5D Integrated Carbon ACR
Handlebar
Vision Metron 5D Integrated Carbon ACR
Headset
FSA
Seat
Saddle
Fizik Vento Argo R5 S-Alloy 140 Black
Seatpost
QR Carbon Aero, 20mm Offset**
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.458 mm | 1.459 mm | 1.487 mm | 1.45 mm | 1.463 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 570 mm | 580 mm | 595 mm | 615 mm | 630 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 67 mm | 64 mm | 61 mm | 64 mm | 64 mm |
| Stack | 525 mm | 540 mm | 565 mm | 580 mm | 600 mm |
| Reach | 360 mm | 370 mm | 380 mm | 400 mm | 410 mm |
| Top Tube Length | 515 mm | 530 mm | 550 mm | 570 mm | 585 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 445 mm | 465 mm | 490 mm | 510 mm | 535 mm |
| Head Tube Angle | 71.2 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 115 mm | 130 mm | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 970 mm | 984 mm | 997 mm | 1019 mm | 1035 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 723 mm | 745 mm | 774 mm | 792 mm | 812 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
