Bike details
Overview
Key information split into simple groups.

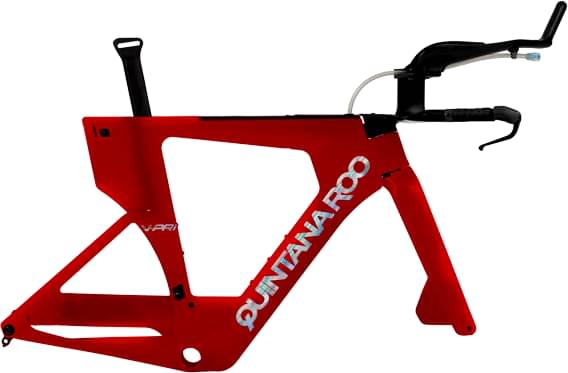

Frame summary
-
-
Frame Carbon -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Cockpit
Handlebar
Vuka Shift AXS 90
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.203 mm | 1.179 mm | 1.208 mm |
| Bottom Bracket Height | 262 mm | 262 mm | 262 mm |
| Front Center | 581 mm | 610 mm | 648 mm |
| Rake | 48 mm | 47 mm | 48 mm |
| Trail | 59 mm | 60 mm | 59 mm |
| Stack | 475 mm | 495 mm | 535 mm |
| Reach | 395 mm | 420 mm | 443 mm |
| Top Tube Length | 487 mm | 515 mm | 550 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 505 mm | 540 mm | 585 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 65 mm | 83 mm | 126 mm |
| Chainstay Length | 395 mm | 395 mm | 395 mm |
| Wheelbase | 964 mm | 994 mm | 1031 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm |
| Standover Height | 763 mm | 791 mm | 833 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
