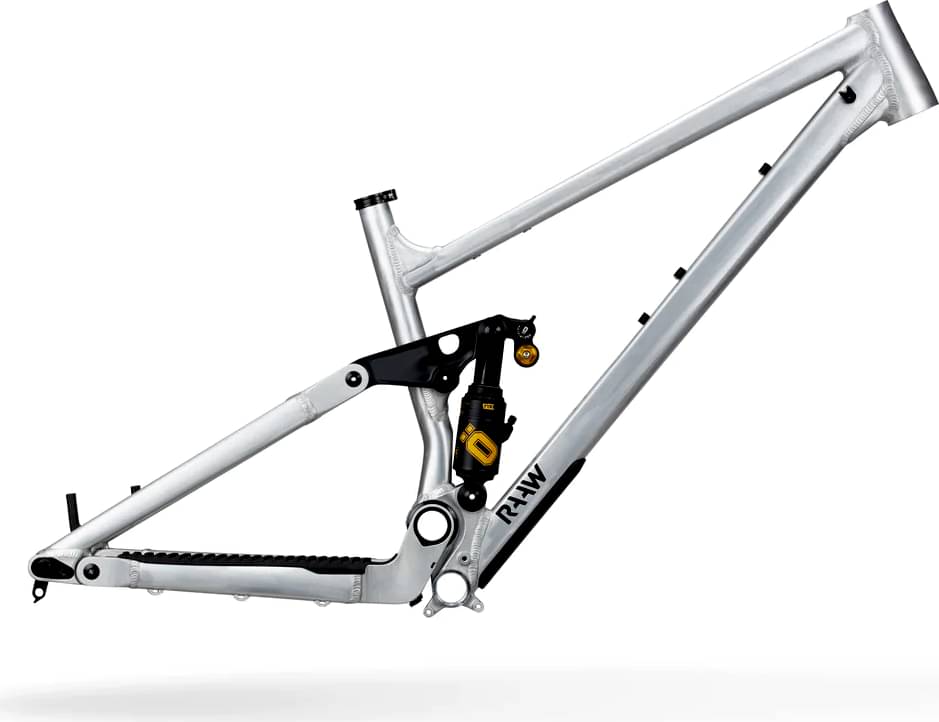

RAAW Jibb Frame Kit 2023
2023 Mountain
Estimate price |
2,839$
Weight | 3.9 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 29" -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
167cm - 180cm
LG
177cm - 190cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL 6066 T6
Drivetrain
Shift Levers
One-by only, boost, 36t max
Bottom Bracket
73mm BSA / ISCG05
Wheels
Rear Hub
148 x 12
Brakes
Brakes
203mm Postmount
Cockpit
Headset
44 / 56 Zero stack
Seat
Seatpost
Yes
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.448 mm | 1.398 mm | 1.353 mm | 1.311 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 734 mm | 765 mm | 797 mm | 828 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 118 mm | 119 mm | 118 mm | 118 mm |
| Stack | 608 mm | 622 mm | 636 mm | 649 mm |
| Reach | 420 mm | 445 mm | 470 mm | 495 mm |
| Top Tube Length | 561 mm | 589 mm | 619 mm | 648 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 395 mm | 420 mm | 445 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 440 mm | 440 mm | 445 mm | 450 mm |
| Wheelbase | 1172 mm | 1203 mm | 1240 mm | 1276 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 167 cm | 177 cm | 186 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 199 cm |
About this model
Jibb Frame Kit belongs to the Raaw Jibb model. RAAW released 3 frames variations of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro frames average price
According to our math, the average price for a trustworthy Enduro frame is 1895$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2584$. Comparing this to the average Enduro frame price, we see that the price is 36.36% more expensive.
Average weight for Enduro frames
The average weight for Enduro frames is 3.43 kg (7.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Jibb Frame Kit weighs 3.9 kg (8.6 lbs) and is considerably heavier than the average. In short, the average Enduro frame weight is 13.7% lower than this one.
Jibb Frame Kit components
Brakes
Stopping the bike when needed, it’s essential for your safety. This frame has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
RAAW Jibb Frame Kit frame has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
