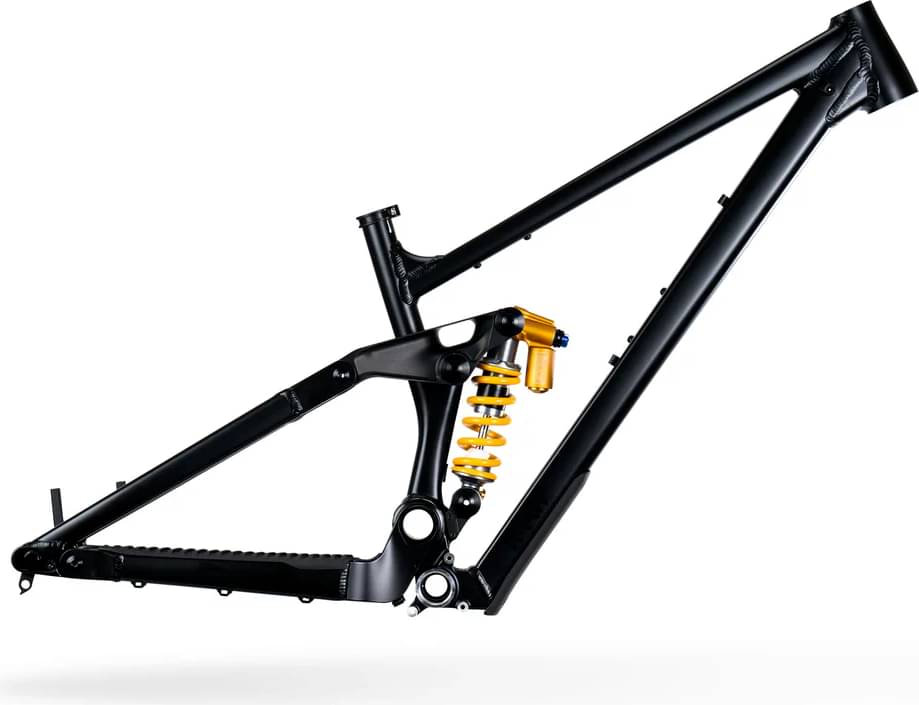

RAAW Madonna V2.2 Frame Kit 2025
2025 Mountain
Estimate price |
3,624$
Weight | 3.9 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Travel Rear 160mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
167cm - 180cm
LG
177cm - 190cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL 6066 T6
Drivetrain
Shift Levers
One-by only, boost, 36t max
Bottom Bracket
73mm BSA / ISCG05
Wheels
Rear Hub
148 x 12
Brakes
Brakes
203mm Postmount
Cockpit
Headset
44 / 56 Zero stack
Seat
Seatpost
Yes
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.413 mm | 1.369 mm | 1.327 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 759 mm | 795 mm | 826 mm | 857 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 129 mm | 130 mm | 130 mm |
| Stack | 621 mm | 643 mm | 657 mm | 670 mm |
| Reach | 430 mm | 455 mm | 480 mm | 505 mm |
| Top Tube Length | 573 mm | 596 mm | 617 mm | 645 mm |
| Seat Tube Angle | 77.2 ° | 77 ° | 78.3 ° | 78.2 ° |
| Seat Tube Length | 395 mm | 420 mm | 445 mm | 470 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 440 mm | 440 mm | 445 mm | 450 mm |
| Wheelbase | 1197 mm | 1233 mm | 1269 mm | 1305 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 167 cm | 177 cm | 186 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 199 cm |
